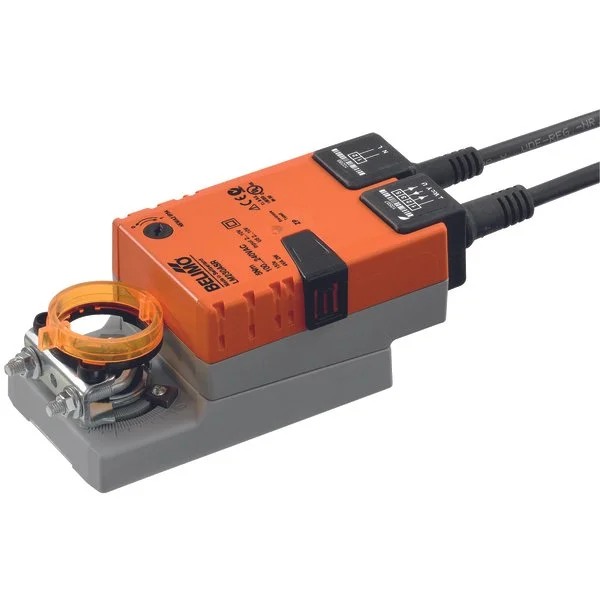

Belimo rotary actuators without fail-safe can handle a magnitude of HVAC applications. Available in a wide range of nominal voltages and torques.
Torque: 5 Nm.
Voltage: AC/DC 24 V.
Control: On-off or 3-point control.
Features: Includes a 5-year warranty, as noted in the image, and a manual override button.
Belimo rotary actuators without fail-safe can handle a magnitude of HVAC applications. Available in a wide range of nominal voltages and torques.
Torque: 5 Nm.
Voltage: AC/DC 24 V.
Control: On-off or 3-point control.
Features: Includes a 5-year warranty, as noted in the image, and a manual override button.
Available Types:
LM24A-SX-F
Rotary actuator, 5 Nm, AC/DC 24 V, 2...10 V, 150 s, Form fit 8x8 mm, IP54, Adaptation
LM24A-TP
Rotary actuator, 5 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, IP54, Terminals
LM24AP5
Rotary actuator, 5 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, IP54, Feedback potentiometer 5 kΩ
VLM24A-LP1
Rotary actuator, 5 Nm, AC/DC 24 V, Cloud, BACnet/IP, Modbus TCP, 2...10 V, 150 s (35...150 s), IP40
