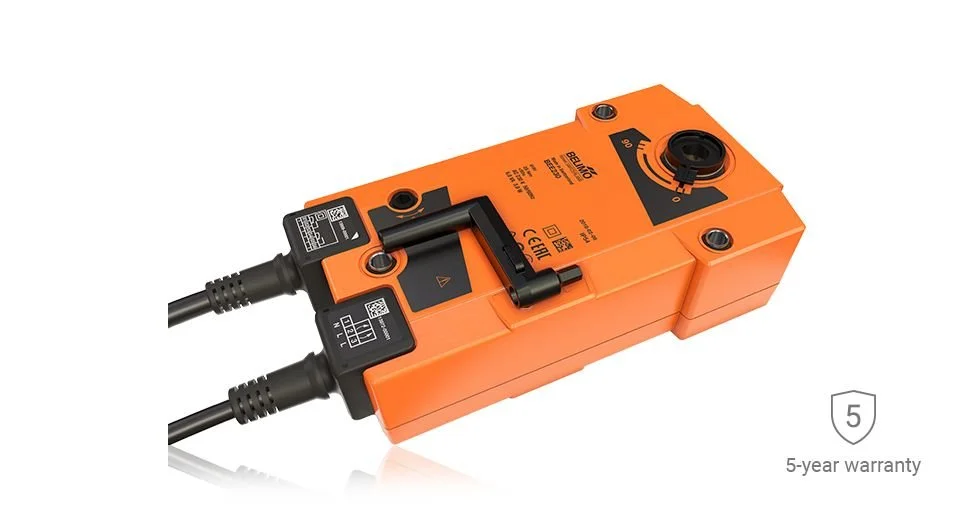

Smoke Control Damper Actuators

$0.00

Powerful technology in a compact design and energy-efficient operation. Belimo smoke control damper actuators provide reliably keeping escape and rescue routes free of smoke.

Powerful technology in a compact design and energy-efficient operation. Belimo smoke control damper actuators provide reliably keeping escape and rescue routes free of smoke.

Efficient smoke control, more safety

Belimo has a graduated product range of smoke control damper actuators for the economical motorisation of smoke control dampers. The powerful actuators convince with their compact design and energy-efficient operation.

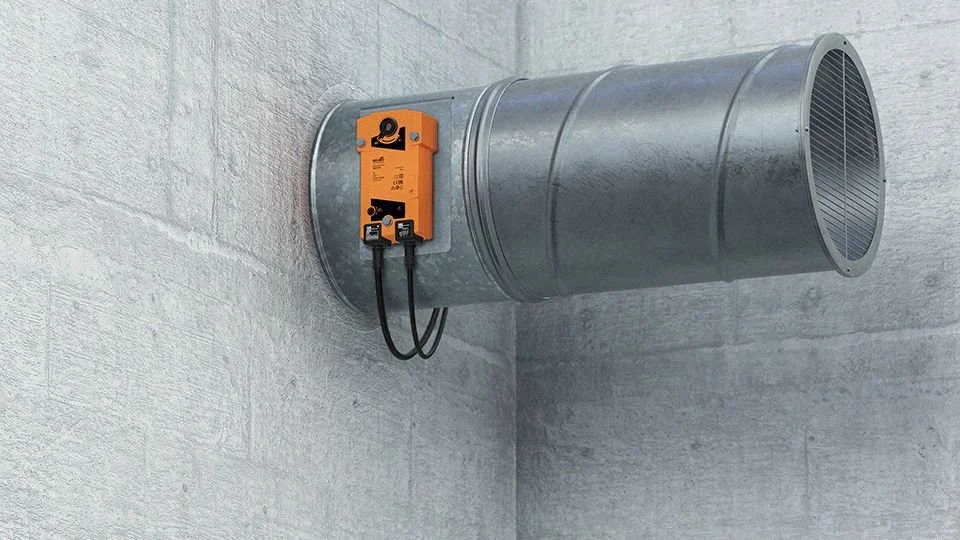

Belimo smoke control damper actuators move the smoke control damper into the defined safety position (open or closed) in the case of a fire. The Safety Position Lock™ function reliably holds the smoke control damper in the safety position. The smoke control damper actuators have been developed to comply with the specific requirements of European standards.

  • 1. The right actuator for every HVAC application

    2. Energy-efficient motorisation

    3. Uncompromised safety

    4. The right product at the right time

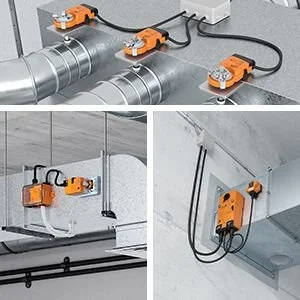

    5. Easy, universal installation

    6. Ready for the future

    7. Quick and simple retrofitting (contact the damper manufacturer)

    8. Swiss Quality from Belimo since 1975



Product range:

BEN 15 Nm Series

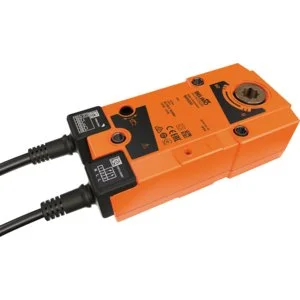

BEN230

Smoke control damper actuator, 15 Nm, AC 230 V, Open/close, 30 s, 2x SPDT, Form fit 12x12 mm, IP54, Cable

BEN24

Smoke control damper actuator, 15 Nm, AC/DC 24 V, Open/close, 30 s, 2x SPDT, Form fit 12x12 mm, IP54, Cable

BEN24-SR

Smoke control damper actuator, 15 Nm, AC/DC 24 V, 2...10 V, 30 s, 2x SPDT, Form fit 12x12 mm, IP54, Cable

BEN24-ST

Smoke control damper actuator, 15 Nm, AC/DC 24 V, Open/close, 30 s, 2x SPDT, Form fit 12x12 mm, IP54, Cable with connector plug



BEE 25 Nm Series

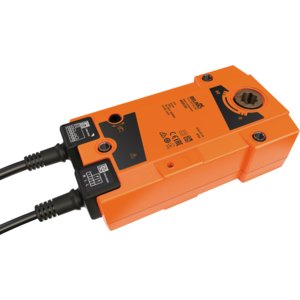

BEE230

Smoke control damper actuator, 25 Nm, AC 230 V, Open/close, 60 s, 2x SPDT, Form fit 12x12 mm, IP54, Cable

BEE24

Smoke control damper actuator, 25 Nm, AC/DC 24 V, Open/close, 60 s, 2x SPDT, Form fit 12x12 mm, IP54, Cable

BEE24-SR

Smoke control damper actuator, 25 Nm, AC/DC 24 V, 2...10 V, 60 s, 2x SPDT, Form fit 12x12 mm, IP54, Cable

BEE24-ST

Smoke control damper actuator, 25 Nm, AC/DC 24 V, Open/close, 60 s, 2x SPDT, Form fit 12x12 mm, IP54, Cable with connector plug



BE 40 Nm Series

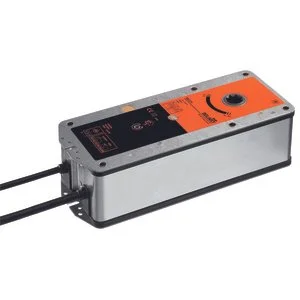

BE230

Smoke control damper actuator, 40 Nm, AC 230 V, Open/close, 60 s, 2x SPDT, Form fit 14x14 mm, IP54, Cable

BE230-12

Smoke control damper actuator, 40 Nm, AC 230 V, Open/close, 60 s, 2x SPDT, Form fit 12x12 mm, IP54, Cable

BE24

Smoke control damper actuator, 40 Nm, AC/DC 24 V, Open/close, 60 s, 2x SPDT, Form fit 14x14 mm, IP54, Cable

BE24-12

Smoke control damper actuator, 40 Nm, AC/DC 24 V, Open/close, 60 s, 2x SPDT, Form fit 12x12 mm, IP54, Cable

BE24-12-ST

Smoke control damper actuator, 40 Nm, AC/DC 24 V, Open/close, 60 s, 2x SPDT, Form fit 12x12 mm, IP54, Cable with connector plug

BE24-ST

Smoke control damper actuator, 40 Nm, AC/DC 24 V, Open/close, 60 s, 2x SPDT, Form fit 14x14 mm, IP54, Cable with connector plug
