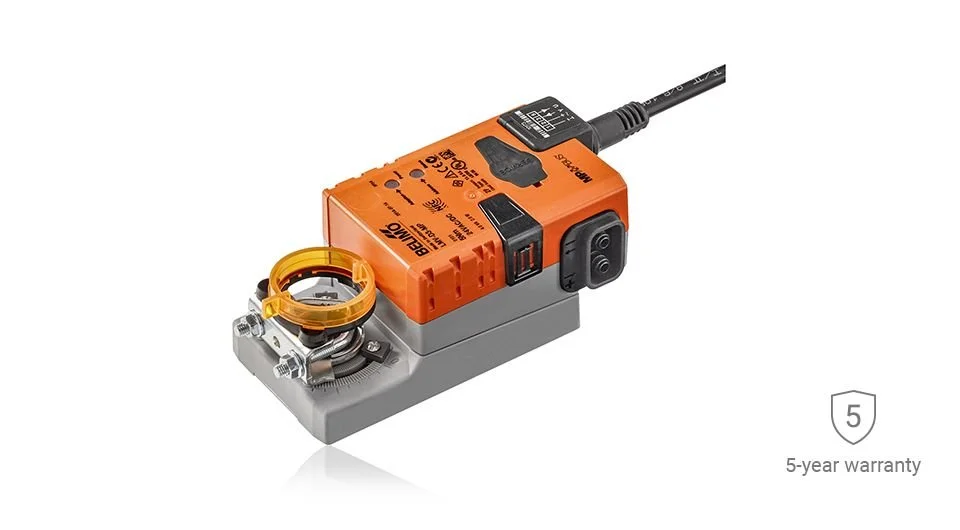

VAV-Compact

$0.00

Belimo VAV actuators provide solutions for volumetric flow and pressure control for VAV and CAV units.

Cost-optimised for controlled room climate

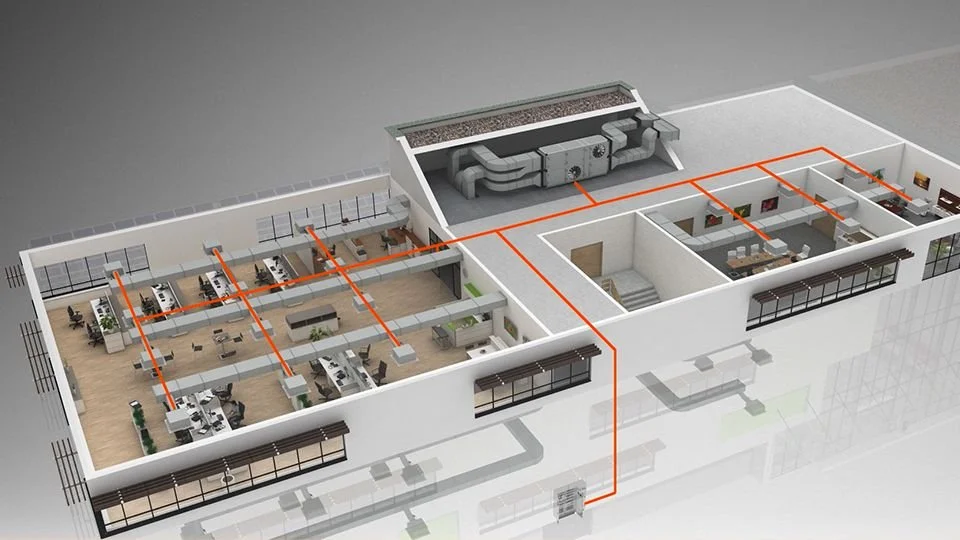

Belimo room and system solutions encompass a complete program for the cost-optimised control of zones and individual rooms - in comfort zones as well as in industry, trade and sensitive work areas. After all, health, well-being and productivity greatly depend on room climate.

Belimo VAV actuators provide solutions for volumetric flow and pressure control for VAV and CAV units.

Cost-optimised for controlled room climate

Belimo room and system solutions encompass a complete program for the cost-optimised control of zones and individual rooms - in comfort zones as well as in industry, trade and sensitive work areas. After all, health, well-being and productivity greatly depend on room climate.

Optimal actuator and control solutions for air flow control

In case of fire, motorised fire dampers are moved to the safety position (closed) using the spring energy of the fire damper actuator if:

The operating temperature is exceeded in the duct or in the environment,
A smoke detector is triggered,
The supply voltage fails,
The ventilation system is shutdown,
The fire alarm system responds.

The Safety Position Lock™ function keeps the motorised fire dampers in the safety position in case of fire.

1. The right actuator for every HVAC application

2. Energy-efficient motorisation

3. Uncompromised safety

4. The right product at the right time

5. Easy, universal installation

6. Ready for the future

7. Quick and simple retrofitting (contact the damper manufacturer)

8. Swiss Quality from Belimo since 1975

Product range:

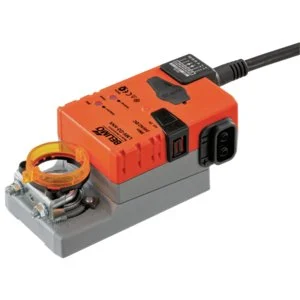

LMV-D3-KNX

VAV-Compact unit – with VAV controller, dynamic Δp sensor and damper actuator, 5 Nm, KNX (S-Mode)

Field of application: VAV units in comfort applications

Application: VAV/CAV, position control

LMV-D3-MOD

VAV-Compact unit – with VAV controller, dynamic Δp sensor and damper actuator, 5 Nm, BACnet MS/TP, Modbus RTU, MP-Bus, 0/2...10 V

Field of application: VAV units in comfort applications

Application: VAV/CAV, position control

LMV-D3-MP

VAV-Compact unit – with VAV controller, dynamic Δp sensor and damper actuator, 5 Nm, MP-Bus, 0/2...10 V

Field of application: VAV units in comfort applications

Application: VAV/CAV, position control

LMV-M1-MOD

VAV-Compact unit – with VAV controller, static Δp sensor (membrane) and damper actuator, 5 Nm, BACnet MS/TP, Modbus RTU, MP-Bus, 0/2...10 V

Field of application: VAV units in comfort applications or ventilation systems with contaminated air

Application: VAV/CAV, position control

LMV-M1-MP

VAV-Compact unit – with VAV controller, static Δp sensor (membrane) and damper actuator, 5 Nm, MP-Bus, 0/2...10 V

Field of application: VAV units in comfort applications or ventilation systems with contaminated air

Application: VAV/CAV, position control

NMV-D3-KNX

VAV-Compact unit – with VAV controller, dynamic Δp sensor and damper actuator, 10 Nm, KNX (S-Mode)

Field of application: VAV units in comfort applications

Application: VAV/CAV, position control

NMV-D3-MOD

VAV-Compact unit – with VAV controller, dynamic Δp sensor and damper actuator, 10 Nm, BACnet MS/TP, Modbus RTU, MP-Bus, 0/2...10 V

Field of application: VAV units in comfort applications

Application: VAV/CAV, position control

NMV-D3-MP

VAV-Compact unit – with VAV controller, dynamic Δp sensor and damper actuator, 10 Nm, MP-Bus, 0/2...10 V

Field of application: VAV units in comfort applications

Application: VAV/CAV, position control

NMV-M1-MOD

VAV-Compact unit – with VAV controller, static Δp sensor (membrane) and damper actuator, 10 Nm, BACnet MS/TP, Modbus RTU, MP-Bus, 0/2...10 V

Field of application: VAV units in comfort applications or ventilation systems with contaminated air

Application: VAV/CAV, position control

NMV-M1-MP

VAV-Compact unit – with VAV controller, static Δp sensor (membrane) and damper actuator, 10 Nm, MP-Bus, 0/2...10 V

Field of application: VAV units in comfort applications or ventilation systems with contaminated air

Application: VAV/CAV, position control

SMV-D3-MOD

VAV-Compact unit – with VAV controller, dynamic Δp sensor and damper actuator, 20 Nm, BACnet MS/TP, Modbus RTU, MP-Bus, 0/2...10 V

Field of application: VAV units in comfort applications

Application: VAV/CAV, position control

SMV-D3-MP

VAV-Compact unit – with VAV controller, dynamic Δp sensor and damper actuator, 20 Nm, MP-Bus, 0/2...10 V

Field of application: VAV units in comfort applications

Application: VAV/CAV, position control

LHV-D3-KNX

VAV-Compact unit – with VAV controller, dynamic Δp sensor and linear actuator, 150 N, KNX (S-Mode)

Field of application: VAV units in comfort applications

Application: VAV/CAV, position control

LHV-D3-MOD

VAV-Compact unit – with VAV controller, dynamic Δp sensor and linear actuator, 150 N, BACnet MS/TP, Modbus RTU, MP-Bus, 0/2...10 V

Field of application: VAV units in comfort applications

Application: VAV/CAV, position control

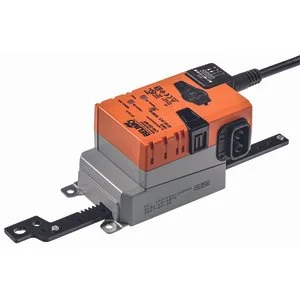

LHV-D3-MP

VAV-Compact unit – with VAV controller, dynamic Δp sensor and linear actuator, 150 N, MP-Bus, 0/2...10 V

Field of application: VAV units in comfort applications

Application: VAV/CAV, position control
