Application
TOXFREE® ES05Z1- K & ES07Z1-K type 2 is a LSZH safety cable. In the event of fire, it does not emit toxic gases, nor does it give off corrosive gases, avoiding any possible damage to people or electronic equipment. For these reasons it is highly recommended for use in public places such as hospitals, schools, museums, airports, bus terminals, shopping malls, offices, laboratories, etc.
Characteristics
-
Copper, class 5 (flexible).
-
300/500V (ES05Z1-K/H05Z-K up to 1mm2)
450/750 V (H07Z-K from 1,5mm2)
-
Maximum conductor temperature: 70ºC.
Maximum short-circuit temperature: 160ºC (max. 5 s).
Minimum installation and handling temperature: 5ºC.
Minimum service temperature: -40ºC (fixed and protected installations).
-
Flame non-propagation according to EN 60332-1 and IEC 60332-1.Fire non-propagation according to EN 60332-3 and IEC 60332-3 and EN 50399.
Reaction to fire CPR: B2ca-s1a, d1, a1 (cable H07Z1-K from 1,5 mm2to 240 mm2) according to EN 50575.LSZH (Low Smoke Zero Halogen) according to EN 60754-1 and IEC 60754-1.
Low corrosive gases emission according to UNE-EN 60754-2 and IEC 60754-2.
Low smoke emission according to UNE-EN 61034 and IEC 61034.: Light transmittance > 80%.
-
Minimum bending radius: x5 cable diameter.
-
Chemical & Oil resistance: Acceptable.
-
In conduit.
-
Meter by meter marking (from 10 mm2 onwards).
Typical applications of
TOXFREE® LSZH ES05Z1-K & H07Z1-K
-
TOXFREE® LSZH H07Z1-K cables excel in industrial facilities, combining LSZH properties with high flexibility and compact routing, for reliable power distribution.
-

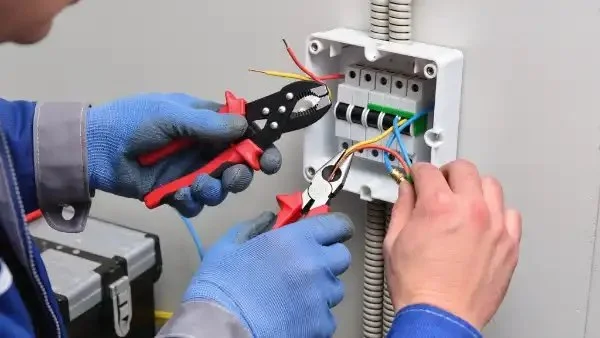

TOXFREE® LSZH H07Z1-K cables ensure safe, flexible wiring for homes, meeting low smoke zeron halogen fire performance propierties.
-
TOXFREE® LSZH H07Z1-K cables are ideal for electric cabinets, offering superior flexibility and low smoke zeron halogen fire safety compliance.
