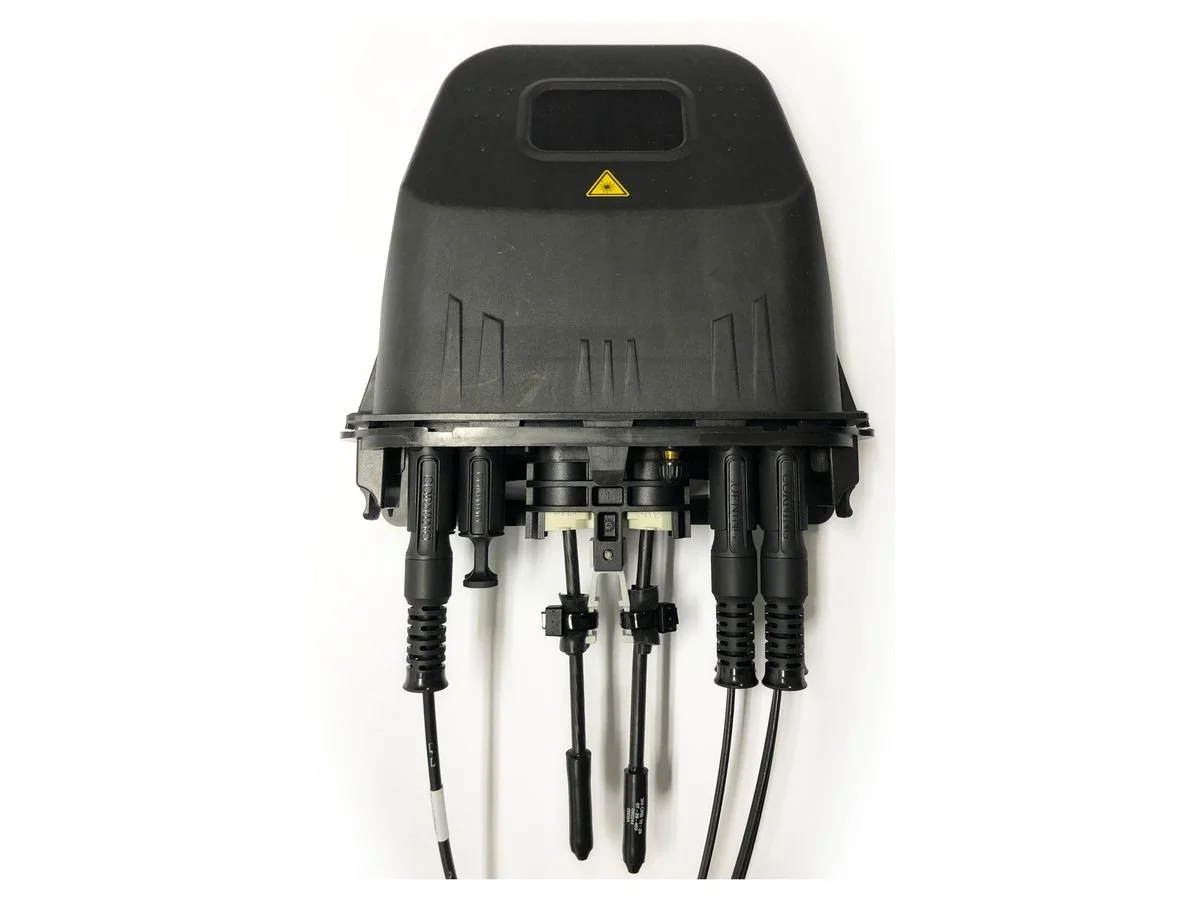

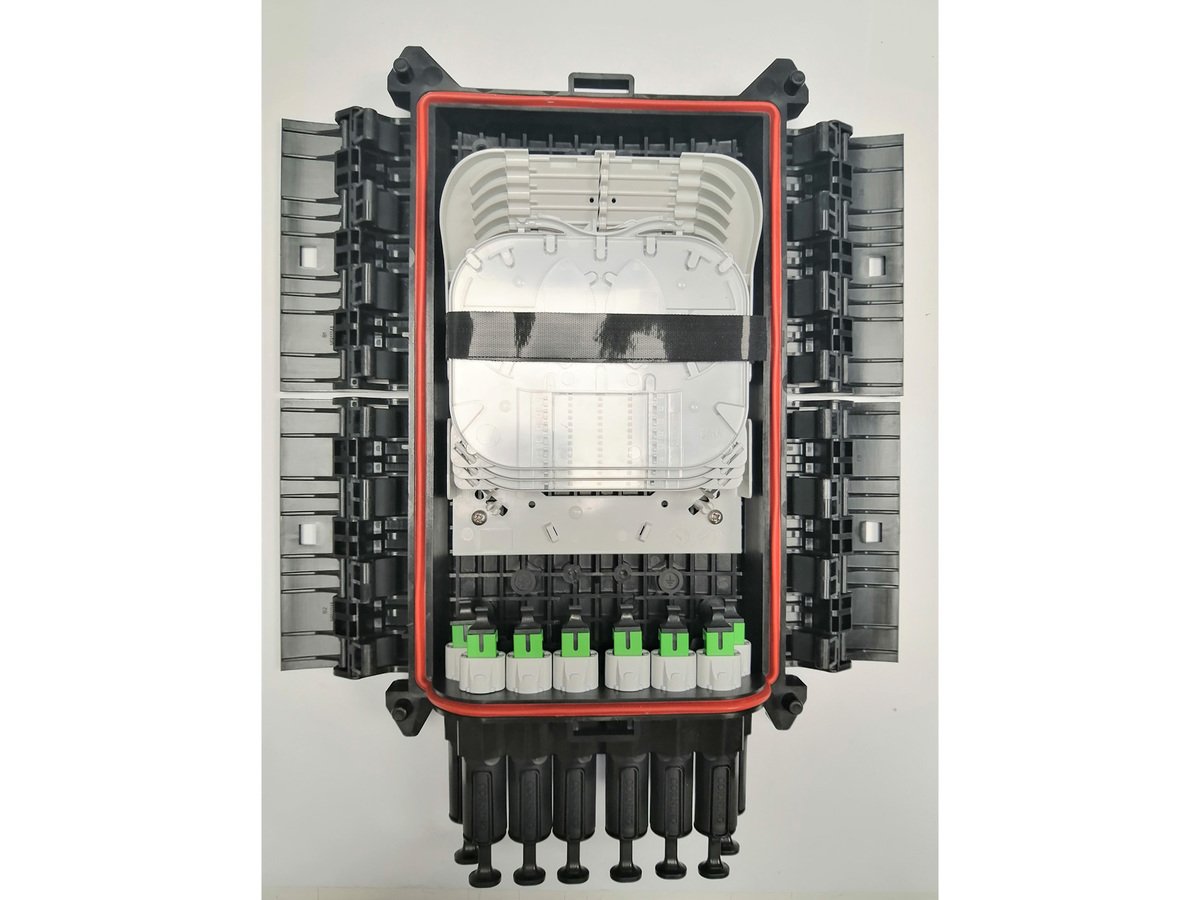

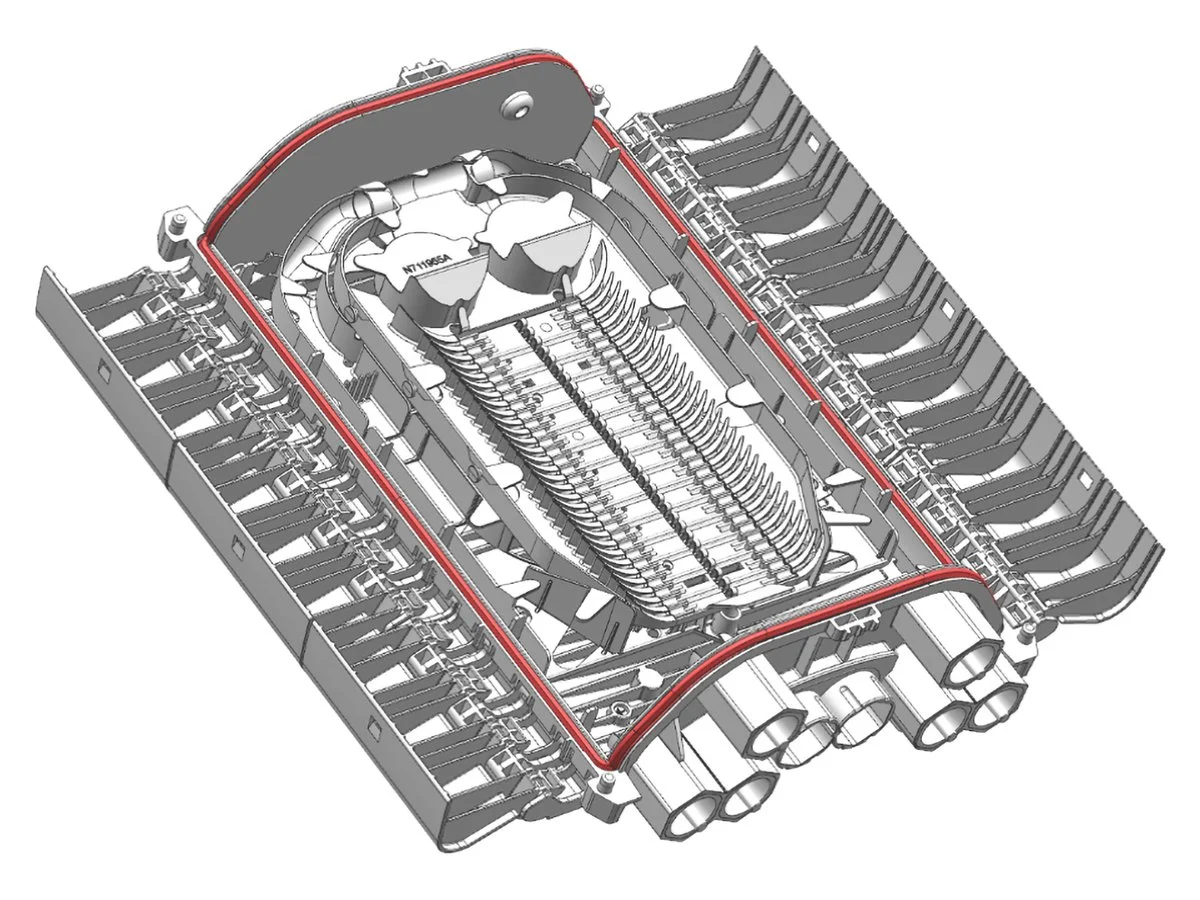

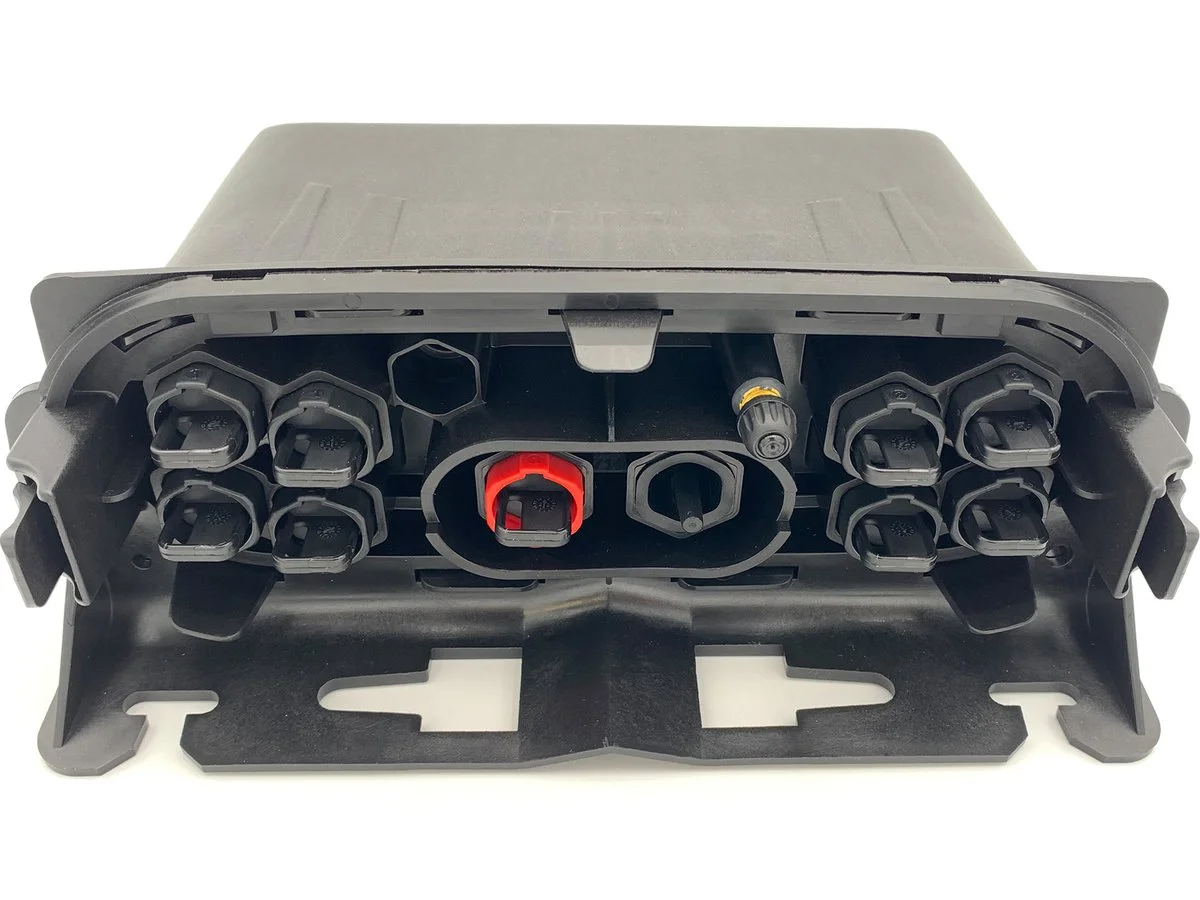

BPEO Fibre Closure

$0.00

Fibre Closures BPEO are designed with flexibility in application in mind. Available in a range of sizes, they can be deployed above grade (pole, facade) or below grade (manhole, handhole). These closures can be used for fibre-to-the-home (FTTH) deployments and any type of optical fibre cable deployment in the outside plant. Mechanical and tool free: Easy to re-enter and close; integrated sealing gasket keeps water out . The built-in seals of the BPEO in conjunction with the latch mechanism ensure that the closure remains watertight even after frequent use. The sealing gasket requires no replacement and no addition of sealant material, even after several open/close operations.

Connection Technology: Bare Fibre

Connection Type: Splice

Closure Size:

Fibre Closures BPEO are designed with flexibility in application in mind. Available in a range of sizes, they can be deployed above grade (pole, facade) or below grade (manhole, handhole). These closures can be used for fibre-to-the-home (FTTH) deployments and any type of optical fibre cable deployment in the outside plant. Mechanical and tool free: Easy to re-enter and close; integrated sealing gasket keeps water out . The built-in seals of the BPEO in conjunction with the latch mechanism ensure that the closure remains watertight even after frequent use. The sealing gasket requires no replacement and no addition of sealant material, even after several open/close operations.

Connection Technology: Bare Fibre

Connection Type: Splice

Products

  • Indoor/Outdoor 4.1 mm Round Drop Cable U-DQ(ZN)H 1E9 G.657.A2 250

  • Indoor/Outdoor 4.1 mm Round Drop Cable U-DQ(ZN)H 1E9 G.657.B3 250

  • Indoor/Outdoor 4.1 mm Round Drop Cable U-DQ(ZN)H 1E9 G.657.A1 250

Product range:

B0-04P-D00-02A-PG04

BPEO Fibre Closure, Size 0 with Evolv Pushlok Technology, 4 ports with 2 splice trays, 4 SC APC adapters

B0-08P-D00-02A-PG08

BPEO Fibre Closure, Size 0 with Evolv Pushlok Technology, 8 ports with 2 splice trays, 8 SC APC adapters



B0-06P-0000-000-2102

BPEO Fiber Closure, BPEO ECAM Connect, S0, Densification Box, 2 SPL 1x2 SC APC IN/OUT preconnectorized, 6 ports ECAM Connect

B0-E04-D15K-01A-2102

BPEO Fiber Closure, BPEO ECAM Connect, S0, Distribution Box, Midspan Access (12-15mm) 2 Splitter 1x2 SC APC

B0-E04-D15K-01A-PG04

BPEO Fiber Closure, BPEO ECAM Connect, S0, Distribution Box, Midspan Access (12-15mm), 4 pigtails SC APC

B0-E10-0000-000-2104

BPEO Fibre Closure BPEO ECAM Connect, S0, Densification Box, 2 SPL 1X4 SC APC IN/OUT preconnectorised

BH-FBG

BPEO Fibre Closure Size 1.5 Fibre Distribution Point Branch with one express cable and seventeen branch cables. Organiser holds up to 12 splice trays

BH-EDP

BPEO Fibre Closure Size 1.5 Cable Distribution Point with one express cable and five branch cables. Organiser holds up to 12 splice trays



B0-E09-0000-000-1108

BPEO Fibre Closure BPEO ECAM Connect,S0, End Box, 1 SPL 1x8 SC APC IN/OUT preconnectorized

B0-E10-0000-000-1108-7030

BPEO Fibre Closure BPEO ECAM Connect, S0 DTAP Box (70/30), 1 SPL 1x8 SC APC IN/OUT preconnectorized



B2-CDP-0000-000-000-0000

BPEO Fibre Closure Size 2 Cable Distribution Point for one express cable and up to 6 branch cables. Organiser holds up to 30 splice trays

B2-EDP-0000-000-000-0000

BPEO Fibre Closure Size 2 End Distribution Point for up to one express cable and up to 12 branch cables. Organiser holds up to 30 splice trays



B1-08P-D00-02A-PG08

BPEO Fibre Closure Size 1 with Evolv Pushlok Technology, 8 ports with 2 splice trays, 8 SC APC adapters

B1-D12-0000-000-03A-0000B

BPEO Fibre Closure Size 1 Fibre Distribution Point Branch Connect 8 SC APC 1TR 1BK
