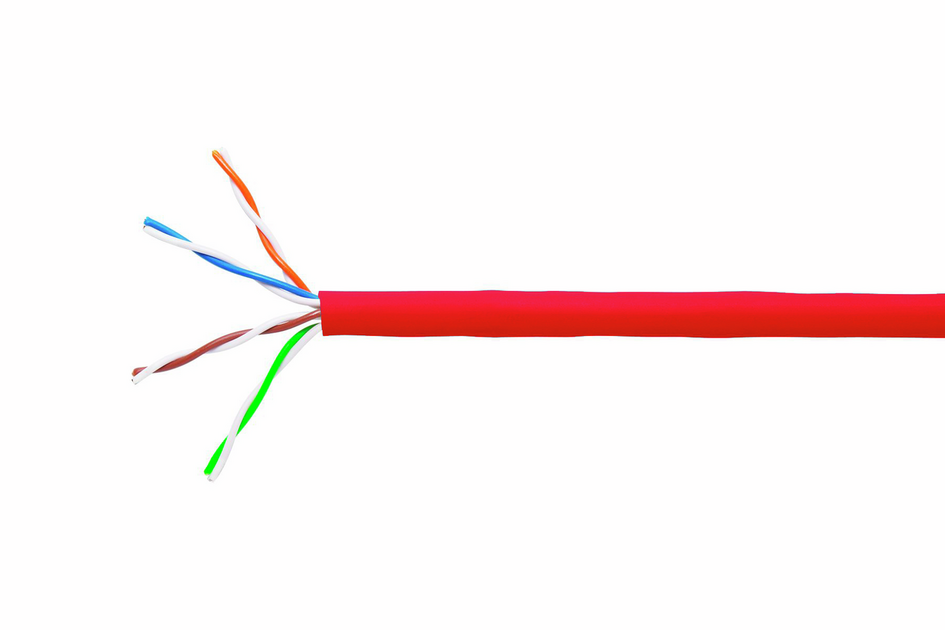

Cat 5e_1061_Red.png
Cat 5e_1061_Red.png

Category 5e Cables

$0.00

CommScope Category 5e (Cat 5e) twisted-pair cables offer high-performance networking solutions for voice and data applications, supporting up to 1 Gbps speeds. These cables are available in unshielded (U/UTP) and shielded (F/UTP) options, featuring 4-pair construction (24 AWG) and various jackets like LSZH, plenum, and non-plenum for diverse environments.

CommScope Category 5e (Cat 5e) twisted-pair cables offer high-performance networking solutions for voice and data applications, supporting up to 1 Gbps speeds. These cables are available in unshielded (U/UTP) and shielded (F/UTP) options, featuring 4-pair construction (24 AWG) and various jackets like LSZH, plenum, and non-plenum for diverse environments.

Key Features & Specifications

  • Performance: Designed for 100BaseT Ethernet and suitable for Gigabit Ethernet (1 Gbps) up to 100 meters.

  • Cable Types: U/UTP (Unshielded) and F/UTP (Shielded).

  • Structure: 4-pair, solid copper conductors, usually 24 AWG.

  • Common Product Lines: SYSTIMAX, Uniprise, and CS24P/CS27P series.

  • Lengths: Commonly available in 1000 ft (304.8 m) reels or spools.

  • Applications: Structured cabling, horizontal cabling, VoIP, and data networking.

  • Environmental Ratings: Options for Plenum (CS24P) and Non-plenum

Key Products:

  • 1061F/1061C: Common Cat 5e U/UTP horizontal cable.

  • CS24CM/CS24P: Shielded and plenum-rated options.

  • 5NF4: Outdoor burial UV flooded cables.

CommScope cables are known for reliable performance and often feature reverse footage markers for easier installation. They are available in various colors, including white, blue, and black.

Products

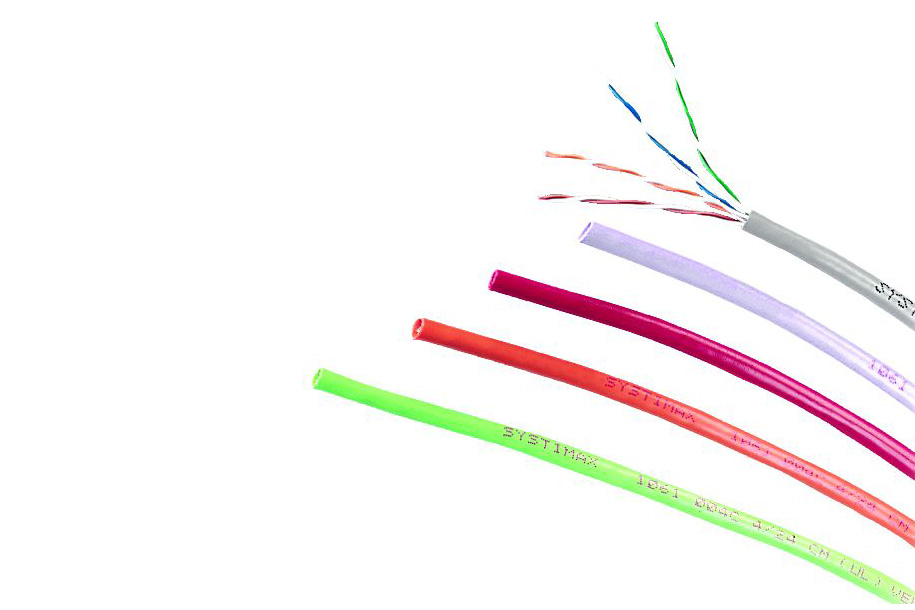

1061B

  • General Specifications

    ANSI/TIA Category 5e

    Cable Component Type Horizontal:

    Cable Type U/UTP (unshielded)

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D

  • Diameter Over Jacket, nominal 5.207 mm | 0.205 in

    Jacket Thickness 0.508 mm | 0.02 in

    Conductor Gauge, singles 24 AWG

    • 107091936 | 1061B SL 4/24 W1000

      • PowerSUM 1061B ETL Verified Category 5e U/UTP Cable, non-plenum CMR rated, slate jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    • 107251696 | 1061B BL 4/24 W1000

      • PowerSUM 1061B ETL Verified Category 5e U/UTP Cable, non-plenum CMR rated, blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    • 107819575 | 1061B WH 4/24 W1000

      • PowerSUM 1061B ETL Verified Category 5e U/UTP Cable, non-plenum CMR rated, white jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    • 108173840 | 1061B OR 4/24 W1000

      • PowerSUM 1061B ETL Verified Category 5e U/UTP Cable, non-plenum CMR rated, orange jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    • 700022643 | 1061B RD 4/24 W1000

      • PowerSUM 1061B ETL Verified Category 5e U/UTP Cable, non-plenum CMR rated, red jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

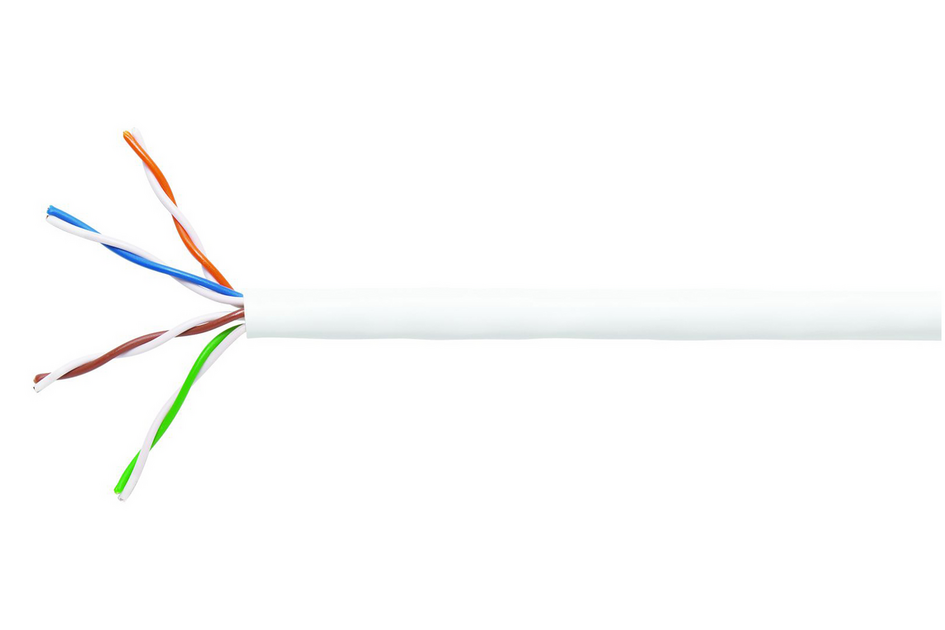

1061C

  • Product Number 1061C

    ANSI/TIA Category 5e

    Cable Component Type Horizontal

    Cable Type U/UTP (unshielded)

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D

  • Diameter Over Jacket, nominal 5.207 mm | 0.205 in

    Jacket Thickness 0.508 mm | 0.02 in

    Conductor Gauge, singles 24 AWG

  • 106836950 | 1061C SL 4/24 W1000

    106871809 | 1061C LB 4/24 W1000

    106926363 | 1061C RD 4/24 W1000

    107001687 | 1061C YL 4/24 W1000

    107147787 | 1061C WH 4/24 W1000

    107244022 | 1061C LL 4/24 W1000

    107244030 | 1061C SG 4/24 W1000

    107509051 | 1061C BK 4/24 W1000

    107509051 | 1061C BK 4/24 W1000

    700207889 | 1061C1 LB 4/24 W1000

    760004671 | 1061C BL 4/24 W1000

    760116285 | 1061C WH 4/24 R3000

    760136903 | 1061C LB 4/24 R3000

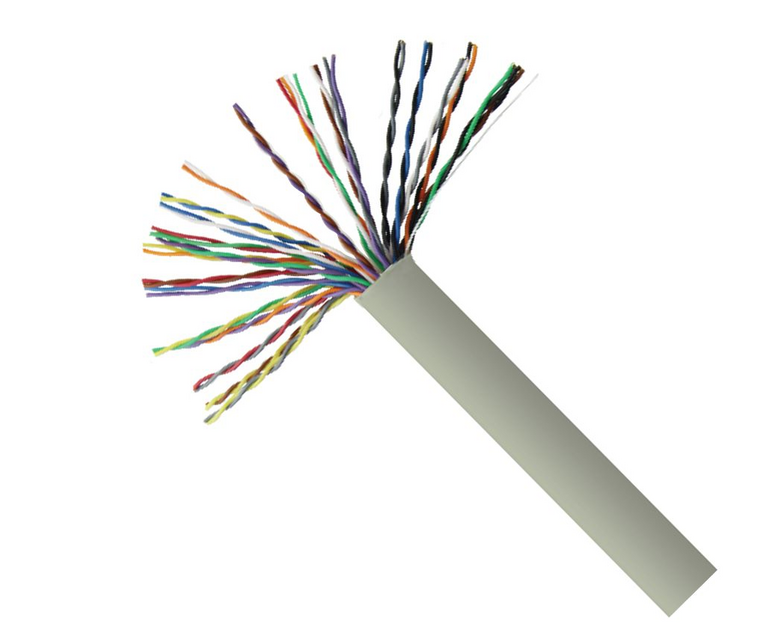

1061F

  • General Specifications

    ANSI/TIA Category 5e

    Cable Component Type Horizontal:

    Cable Type U/UTP (unshielded)

    Conductor Type, singles Solid

  • Conductor Gauge, singles 24 AWG

  • 1499418-1 | 1061F Cat5e U/UTP WHT 25/24 R1000

    • 1061F Cat5e U/UTP Cable, Riser, White Jacket, 25 pair count, 1000 ft (305 M) length reel

    1499418-2 | 1061F SLT C5E 25/24 U/UTP R1000

    • 1061F Cat5e U/UTP Cable, Riser, Slate Jacket, 25 pair count, 1000 ft (305 M) length reel

    2-1499418-1 | 1061F Cat5e U/UTP WHT 25/24 R4000

    • 1061F Cat5e U/UTP Cable, Riser, White Jacket, 25 pair count, 4000 ft (1220 M) length reel

1061L

  • Product Number 1061L

    ANSI/TIA Category 5e

    Cable Component Type Horizontal

    Cable Type U/UTP (unshielded)

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D

  • Diameter Over Jacket, nominal 5.207 mm | 0.205 in

    Jacket Thickness 0.508 mm | 0.02 in

    Conductor Gauge, singles 24 AWG

  • 760058602 | 1061L WH 4/24 W1000

    • PowerSUM 1061L ETL Verified Category 5e U/UTP Cable, Clean Room (ATD GC/MS), white jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    760058610 | 1061L LB 4/24 W1000

    • PowerSUM 1061L ETL Verified Category 5e U/UTP Cable, Clean Room (ATD GC/MS), light blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    760058628 | 1061L SL 4/24 W1000

    • PowerSUM 1061L ETL Verified Category 5e U/UTP Cable, Clean Room (ATD GC/MS), slate jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    760075028 | 1061L SL 4/24 R1000

    • PowerSUM 1061L ETL Verified Category 5e U/UTP Cable, Clean Room (ATD GC/MS), slate jacket, 4 pair count, 1000 ft (305 m) length, reel

    760256261 | 1061L-C SLT CAT5E 4/24 U/UTP R3000

    • PowerSUM 1061L-C ETL Verified Category 5e U/UTP Cable, Clean Room (ATD GC/MS), slate jacket, 4 pair count, 3000 ft (915 m) length, reel

    760259352 | 1061L-B SLT C5E 4/24 U/UTP R3000

    • PowerSUM 1061L-B ETL Verified Category 5e U/UTP Cable, Clean Room (ATD GC/MS), slate jacket, 4 pair count, 3000 ft (915 m) length, reel

2061F

  • General Specifications

    ANSI/TIA Category 5e

    Cable Component Type Horizontal:

    Cable Type U/UTP (unshielded)

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D

  • Diameter Over Jacket, nominal 5.207 mm | 0.205 in

    Jacket Thickness 0.508 mm | 0.02 in

    Conductor Gauge, singles 24 AWG

  • 760041913 | 2061F BL 4/24 W1000

    • PowerSUM 2061F ETL Verified Category 5e U/UTP Cable, plenum, blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    760041921 | 2061F WH 4/24 W1000

    • PowerSUM 2061F ETL Verified Category 5e U/UTP Cable, plenum, white jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    760041939 | 2061F SL 4/24 W1000

    • PowerSUM 2061F ETL Verified Category 5e U/UTP Cable, plenum, slate jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    760041947 | 2061F YL 4/24 W1000

    • PowerSUM 2061F ETL Verified Category 5e U/UTP Cable, plenum, yellow jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    760041954 | 2061F OR 4/24 W1000

    • PowerSUM 2061F ETL Verified Category 5e U/UTP Cable, plenum, orange jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    760049650 | 2061F WH 4/24 R3000

    • PowerSUM 2061F ETL Verified Category 5e U/UTP Cable, plenum, white jacket, 4 pair count, 3000 ft (914 m) length, reel

    760049668 | 2061F SL 4/24 R3000

    • PowerSUM 2061F ETL Verified Category 5e U/UTP Cable, plenum, slate jacket, 4 pair count, 3000 ft (914 m) length, reel

3061A

  • Product Number 3061A

    ANSI/TIA Category 5e

    Cable Component Type Horizontal

    Cable Type U/UTP (unshielded)

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D

  • Diameter Over Jacket, nominal 5.207 mm | 0.205 in

    Jacket Thickness 0.508 mm | 0.02 in

    Conductor Gauge, singles 24 AWG

  • 107573545 | 3061A WH 4/24 W1000

    • PowerSUM 3061A ETL Verified Category 5e U/UTP Cable, low smoke zero halogen, white jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    760077776 | 3061A BL 4/24 R4000

    • PowerSUM 3061A ETL Verified Category 5e U/UTP Cable, low smoke zero halogen, blue jacket, 4 pair count, 4000 ft (1,220 m) length, reel

    760077792 | 3061A WH 4/24 R4000

    • PowerSUM 3061A ETL Verified Category 5e U/UTP Cable, low smoke zero halogen, white jacket, 4 pair count, 4000 ft (1,220 m) length, reel

    760154377 | 3061A BL 4/24 W1000

    • PowerSUM 3061A ETL Verified Category 5e U/UTP Cable, low smoke zero halogen, blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    760158741 | 3061A SL 4/24 W1000

    • PowerSUM 3061A ETL Verified Category 5e U/UTP Cable, low smoke zero halogen, slate jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    760159459 | 3061A SL 4/24 R4000

    • PowerSUM 3061A ETL Verified Category 5e U/UTP Cable, low smoke zero halogen, slate jacket, 4 pair count, 4000 ft (1,220 m) length, reel

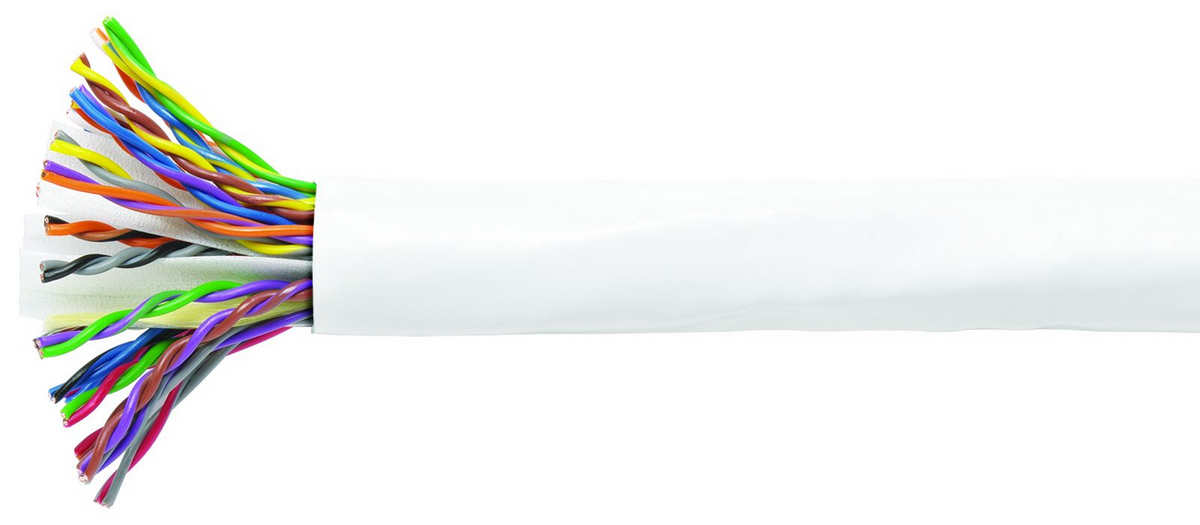

3061B

  • ANSI/TIA Category 5e

    Cable Type U/UTP (unshielded)

    Conductor Type, singles Solid

    Conductors, quantity 50

    Pairs, quantity 25

  • Conductor Gauge, singles 24 AWG

  • 1427278-1 | 3061B Cat5e U/UTP WHT 25/24 R1000

    • 3061B Cat5e U/UTP Cable, LSZH, White Jacket, 25 pair count, 1000 ft (305 M) length reel

    1427278-3 | 3061B Cat5e U/UTP WHT 25/24 R4000

    • 3061B Cat5e U/UTP Cable, LSZH, White Jacket, 25 pair count, 4000 ft (1220 M) length reel

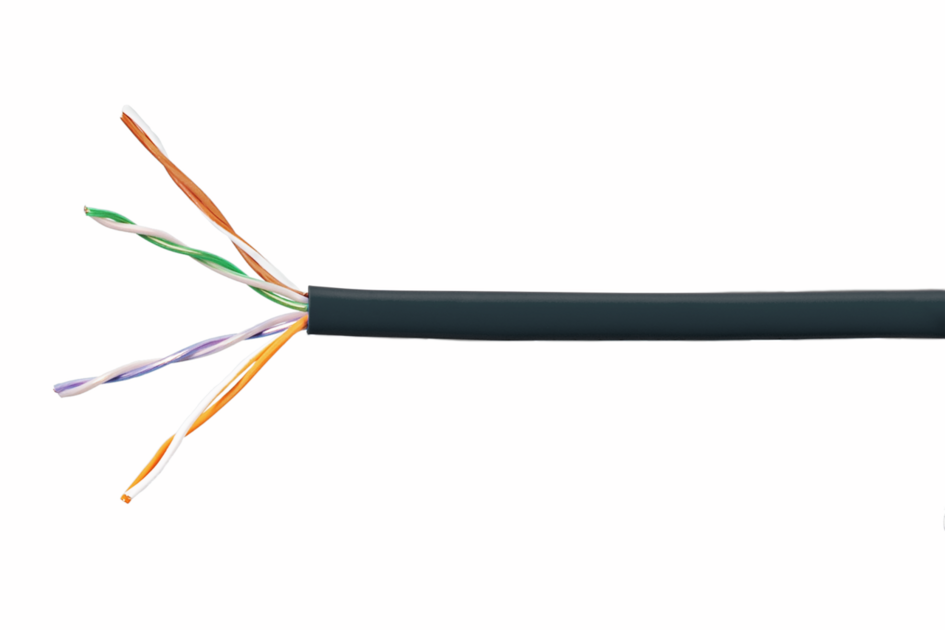

5NF4

  • ANSI/TIA Category 5e

    Cable Component Type Horizontal

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D

  • Diameter Over Jacket, nominal 5.207 mm | 0.205 in

    Jacket Thickness 0.508 mm | 0.02 in

    Conductor Gauge, singles 24 AWG

  • 1427278-3 | 3061B Cat5e U/UTP WHT 25/24 R4000

    • 3061B Cat5e U/UTP Cable, LSZH, White Jacket, 25 pair count, 4000 ft (1220 M) length reel

    4286144/60 | 5NF4 BLACK REEL 6K

    • 5NF4 Category 5e U/UTP filled Cable, outdoor direct burial, black jacket, 4 pair count, 6000 ft (1829 m) length, reel

    4286184/30 | 5NF4 BLACK REEL 3K

    • 5NF4 Category 5e U/UTP filled Cable, outdoor direct burial, black jacket, 4 pair count, 3000 ft (914 m) length, reel

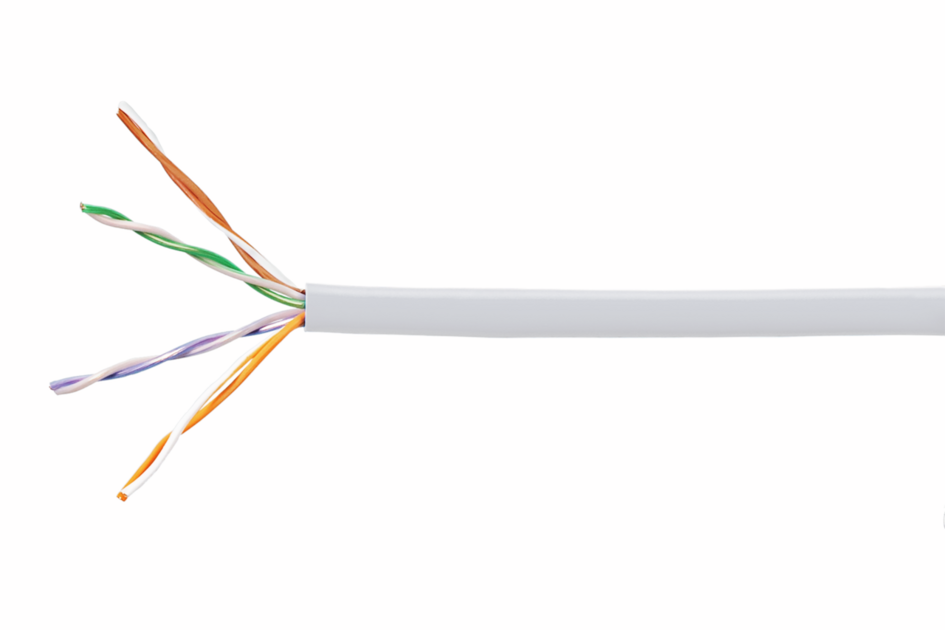

CS24P

  • General Specifications

    ANSI/TIA Category 5e

    Cable Component Type Horizontal:

    Cable Type U/UTP (unshielded)

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D

  • Diameter Over Jacket, nominal 5.207 mm | 0.205 in

    Jacket Thickness 0.508 mm | 0.02 in

    Conductor Gauge, singles 24 AWG

  • 874017114/10 | CS24P VLT C5E 4/24 U/UTP CPK 1KFT

    • ETL Verified Category 5e U/UTP Cable, plenum, violet jacket, 4 pair count, 1000 ft (305 m) length, CommPak

    874027314/10 | CS24P WHT C5E 4/24 U/UTP CPK 1KFT

    • ETL Verified Category 5e U/UTP Cable, plenum, white jacket, 4 pair count, 1000 ft (305 m) length, CommPak

    874027384/30 | CS24P WHT C5E 4/24 U/UTP RL 3KFT

    • ETL Verified Category 5e U/UTP Cable, plenum, white jacket, 4 pair count, 3000 ft (914 m) length, reel

    874029014/10 | CS24P YEL C5E 4/24 U/UTP CPK 1KFT

    • ETL Verified Category 5e U/UTP Cable, plenum, yellow jacket, 4 pair count, 1000 ft (305 m) length, CommPak

    874029804/10 | CS24P WHT C5E 4/24 F/UTP RL 1KFT

    • Category 5e F/UTP Cable, plenum, white jacket, 4 pair count, 1000 ft (305 m) length, reel

    874029884/30 | CS24P WHT C5E 4/24 F/UTP RL 3KFT

    • Category 5e F/UTP Cable, plenum, white jacket, 4 pair count, 3000 ft (914 m) length, reel

CS24R

  • Product Number CS24R

    ANSI/TIA Category 5e

    Cable Component Type Horizontal

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D

  • Diameter Over Jacket, nominal 5.207 mm | 0.205 in

    Jacket Thickness 0.508 mm | 0.02 in

    Conductor Gauge, singles 24 AWG

  • 6-57826-2 | CS24R WHT C5E 4/24 U/UTP CPK 1KFT

    • Copper Cable, category 5e, 4 pair, UTP, 350 MHz, CMR rated, 1000 ft pull-box, white

    6-57826-4 | CS24R GRY C5E 4/24 U/UTP CPK 1KFT

    • Copper Cable, category 5e, 4 pair, UTP, 350 MHz, CMR rated, 1000 ft pull-box, gray

    6-57826-6 | CS24R BLU C5E 4/24 U/UTP CPK 1KFT

    • Copper Cable, category 5e, 4 pair, UTP, 350 MHz, CMR rated, 1000 ft pull-box, blue

    884020214/10 | CS24R PNK C5E 4/24 U/UTP CPK 1KFT

    • ETL Verified Category 5e U/UTP Cable, non-plenum, pink jacket, 4 pair count, 1000 ft (305 m) length, CommPak

    884020314/10 | CS24R YEL C5E 4/24 U/UTP CPK 1KFT

    • ETL Verified Category 5e U/UTP Cable, non-plenum, yellow jacket, 4 pair count, 1000 ft (305 m) length, CommPak

    884020404/10 | CS24R BLU C5E 4/24 F/UTP RL 1KFT

    • Category 5e F/UTP Cable, non-plenum, blue jacket, 4 pair count, 1000 ft (305 m) length, reel

    884020484/30 | CS24R BLU C5E 4/24 F/UTP RL 3KFT

    • Category 5e F/UTP Cable, non-plenum, blue jacket, 4 pair count, 3000 ft (914 m) length, reel

CS27P

  • Product Number CS27P

    ANSI/TIA Category 5e

    Cable Component Type Horizontal

    Cable Type U/UTP (unshielded)

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D

  • Conductor Gauge, singles 24 AWG

  • 874017814/10 | CS27P VLT C5E 4/24 U/UTP CPK 1KFT

    • ETL Verified Category 5e U/UTP Cable, plenum, violet jacket, 4 pair count, 1000 ft (305 m) length, CommPak

    874018914/10 | CS27P RED C5E 4/24 U/UTP CPK 1KFT

    • ETL Verified Category 5e U/UTP Cable, plenum, red jacket, 4 pair count, 1000 ft (305 m) length, CommPak

    874031414/10 | CS27P BLU C5E 4/24 U/UTP CPK 1KFT

    • ETL Verified Category 5e U/UTP Cable, plenum, blue jacket, 4 pair count, 1000 ft (305 m) length, CommPak

    874031484/30 | CS27P BLU C5E 4/24 U/UTP RL 3KFT

    • ETL Verified Category 5e U/UTP Cable, plenum, blue jacket, 4 pair count, 3000 ft (914 m) length, reel

    874032914/10 | CS27P GRN C5E 4/24 U/UTP CPK 1KFT

    • ETL Verified Category 5e U/UTP Cable, plenum, green jacket, 4 pair count, 1000 ft (305 m) length, CommPak

    874034514/10 | CS27P PNK C5E 4/24 U/UTP CPK 1KFT

    • ETL Verified Category 5e U/UTP Cable, plenum, pink jacket, 4 pair count, 1000 ft (305 m) length, CommPak

CS27R

  • ANSI/TIA Category 5e

    Cable Component Type Horizontal

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D

  • Diameter Over Jacket, nominal 5.207 mm | 0.205 in

    Jacket Thickness 0.508 mm | 0.02 in

    Conductor Gauge, singles 24 AWG

  • 884015414/10 | CS27R ORG C5E 4/24 U/UTP CPK 1KFT

    • ETL Verified Category 5e U/UTP Cable, non-plenum, orange jacket, 4 pair count, 1000 ft (305 m) length, CommPak

    884016014/10 | CS27R GRN C5E 4/24 U/UTP CPK 1KFT

    • ETL Verified Category 5e U/UTP Cable, non-plenum, green jacket, 4 pair count, 1000 ft (305 m) length, CommPak

    884018114/10 | CS27R BLK C5E 4/24 U/UTP CPK 1KFT

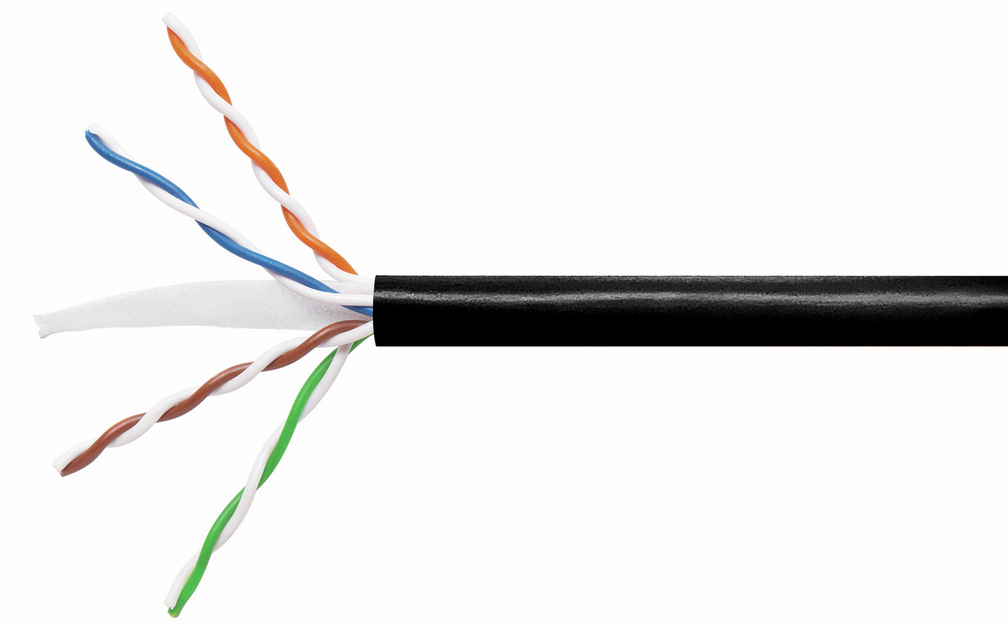

    • ETL Verified Category 5e U/UTP Cable, non-plenum, black jacket, 4 pair count, 1000 ft (305 m) length, CommPak

    884022014/10 | CS27R PNK C5E 4/24 U/UTP CPK 1KFT

    • ETL Verified Category 5e U/UTP Cable, non-plenum, pink jacket, 4 pair count, 1000 ft (305 m) length, CommPak

    884022114/10 | CS27R RED C5E 4/24 U/UTP CPK 1KFT

    • ETL Verified Category 5e U/UTP Cable, non-plenum, red jacket, 4 pair count, 1000 ft (305 m) length, CommPak

    884023614/10 | CS27R WHT C5E 4/24 U/UTP CPK 1KFT

    • ETL Verified Category 5e U/UTP Cable, non-plenum, white jacket, 4 pair count, 1000 ft (305 m) length, CommPak
