Category 6A Cables

$0.00

CommScope Cat 6A Solutions

CommScope offers a robust family of Category 6A (Cat 6A) structured cabling solutions which are engineered to address the evolving needs of modern enterprise networks. Cat 6A cabling provides enhanced performance, enabling networks to support 10 Gigabit Ethernet (10 GbE) channels up to 100 meters, nearly three times longer than Category 6 cables. Whether it’s IoT, Wi-Fi 6/6E/7, four-pair PoE, smart lighting, or in-building cellular, Cat 6A is the go-to choice for future-proofing your network infrastructure.

CommScope Cat 6A Solutions

CommScope offers a robust family of Category 6A (Cat 6A) structured cabling solutions which are engineered to address the evolving needs of modern enterprise networks. Cat 6A cabling provides enhanced performance, enabling networks to support 10 Gigabit Ethernet (10 GbE) channels up to 100 meters, nearly three times longer than Category 6 cables. Whether it’s IoT, Wi-Fi 6/6E/7, four-pair PoE, smart lighting, or in-building cellular, Cat 6A is the go-to choice for future-proofing your network infrastructure.

Why Choose CommScope Cat 6A Cable:

  • Reliable Performance: CommScope’s Cat 6A solutions adhere to rigorous standards, ensuring reliable data transmission and minimal signal loss.

  • Scalability: With the increasing number of connected devices and systems, Cat 6A provides the scalability needed to accommodate network growth.

  • Future-Ready: As technology advances, Cat 6A remains the recommended infrastructure for new builds. Its ability to support high-speed applications positions it as the predominant enabler for tomorrow’s more connected and capable enterprise networks12.

When it comes to building resilient, high-performance networks, CommScope Cat 6A cable is the smart choice for businesses aiming to stay ahead in the digital landscape.

Products

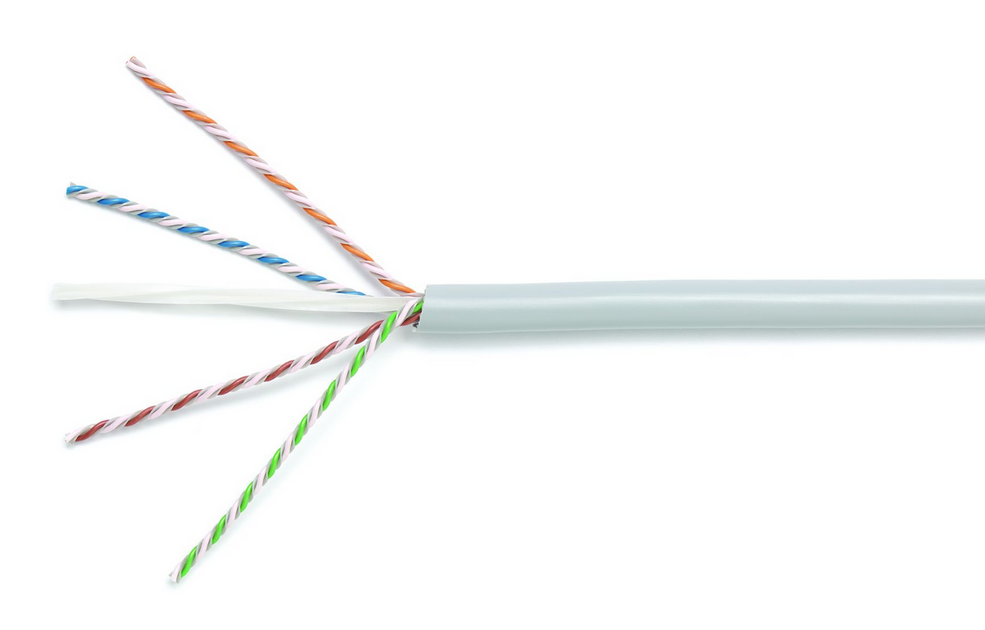

1091B

  • ANSI/TIA Category 6A

    Cable Component Type Horizontal

    Cable Type U/UTP (unshielded)

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Separator Type Isolator

    Transmission Standards ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA

  • Diameter Over Insulated Conductor 0.864 mm | 0.034 in

    Diameter Over Jacket, nominal 7.239 mm | 0.285 in

    Jacket Thickness 1.295 mm | 0.051 in

    Conductor Gauge, singles 23 AWG

  • 760105114 | 1091B SLT C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 1091B ETL Verified Category 6A U/UTP Cable, non-plenum, slate jacket, 4 pair count, 1000 ft (305 m) length, reel

    760105742 | 1091B BLK C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 1091B ETL Verified Category 6A U/UTP Cable, black jacket, 4 pair count, 1000 ft (305 m) length, reel

    760105759 | 1091B BLU C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 1091B ETL Verified Category 6A U/UTP Cable, blue jacket, 4 pair count, 1000 ft (305 m) length, reel

    760105767 | 1091B LBL C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 1091B ETL Verified Category 6A U/UTP Cable, light blue jacket, 4 pair count, 1000 ft (305 m) length, reel

    760105775 | 1091B GRN C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 1091B ETL Verified Category 6A U/UTP Cable, green jacket, 4 pair count, 1000 ft (305 m) length, reel

    760105783 | 1091B ORG C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 1091B ETL Verified Category 6A U/UTP Cable, orange jacket, 4 pair count, 1000 ft (305 m) length, reel

    760105791 | 1091B RED C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 1091B ETL Verified Category 6A U/UTP Cable, red jacket, 4 pair count, 1000 ft (305 m) length, reel

    760105817 | 1091B WHT C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 1091B ETL Verified Category 6A U/UTP Cable, white jacket, 4 pair count, 1000 ft (305 m) length, reel

1091B-UTG

  • ANSI/TIA Category 6A

    Cable Component Type Horizontal

    Cable Type U/UTP (unshielded)

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Separator Type Isolator

    Transmission Standards ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA

  • Diameter Over Insulated Conductor 0.864 mm | 0.034 in

    Diameter Over Jacket, nominal 7.239 mm | 0.285 in

    Jacket Thickness 1.295 mm | 0.051 in

    Conductor Gauge, singles 23 AWG

  • UTG760250787 | 1091B-UTG SLT C6A 4/23 U/UTP W1000

    • GigaSPEED X10D® 1091B-UTG ETL Verified Category 6A U/UTP Cable, slate jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    UTG760250788 | 1091B-UTG BLU C6A 4/23 U/UTP W1000

    • GigaSPEED X10D® 1091B-UTG ETL Verified Category 6A U/UTP Cable, blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    UTG760250789 | 1091B-UTG WHT C6A 4/23 U/UTP W1000

    • GigaSPEED X10D® 1091B-UTG ETL Verified Category 6A U/UTP Cable, white jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    UTG760250790 | 1091B-UTG PNK C6A 4/23 U/UTP W1000

    • GigaSPEED X10D® 1091B-UTG ETL Verified Category 6A U/UTP Cable, pink jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    UTG760250791 | 1091B-UTG YEL C6A 4/23 U/UTP W1000

    • GigaSPEED X10D® 1091B-UTG ETL Verified Category 6A U/UTP Cable, yellow jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    UTG760250792 | 1091B-UTG ORG C6A 4/23 U/UTP W1000

    • GigaSPEED X10D® 1091B-UTG ETL Verified Category 6A U/UTP Cable, orange jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    UTG760250793 | 1091B-UTG BLK C6A 4/23 U/UTP W1000

    • GigaSPEED X10D® 1091B-UTG ETL Verified Category 6A U/UTP Cable, black jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

1091L

  • Product Number 1091B

    ANSI/TIA Category 6A

    Cable Component Type Horizontal

    Cable Type U/UTP (unshielded)

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Separator Type Isolator

    Transmission Standards ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA

  • Diameter Over Insulated Conductor 0.864 mm | 0.034 in

    Diameter Over Jacket, nominal 7.239 mm | 0.285 in

    Jacket Thickness 1.295 mm | 0.051 in

    Conductor Gauge, singles 23 AWG

1091SD

  • ANSI/TIA Category 6A

    Cable Component Type Horizontal

    Cable Type U/UTP (unshielded)

    Conductor Type, singles Solid

    Conductors, quantity 8

    Note Consult ANSI/TIA-568-C.2 Annex G for length de-rating guidance for cable installation in higher temperature environments

    Pairs, quantity 4

    Separator Type Isolator

    Transmission Standards ANSI/TIA-568.2-D

  • Diameter Over Insulated Conductor 1.148 mm | 0.0452 in

    Diameter Over Jacket, nominal 6.731 mm | 0.265 in

    Jacket Thickness 0.406 mm | 0.016 in

    Conductor Gauge, singles 23 AWG

  • 760240218 | 1091SD BLU C6A 4/23 U/UTP R1000

    • SYSTIMAX GigaSPEED X10D® 1091SD ETL Verified Category 6A U/UTP Cable, blue jacket, 4 pair count, 1000 ft (305 m) length, reel

    760240219 | 1091SD BLU C6A 4/23 U/UTP R3000

    • GigaSPEED X10D® 1091SD ETL Verified Category 6A U/UTP Cable, blue jacket, 4 pair count, 3000 ft (914 m) length, reel

    760240220 | 1091SD WHT C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 1091SD ETL Verified Category 6A U/UTP Cable, white jacket, 4 pair count, 1000 ft (305 m) length, reel

    760240221 | 1091SD WHT C6A 4/23 U/UTP R3000

    • GigaSPEED X10D® 1091SD ETL Verified Category 6A U/UTP Cable, white jacket, 4 pair count, 3000 ft (914 m) length, reel

    760240222 | 1091SD SLT C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 1091SD ETL Verified Category 6A U/UTP Cable, slate jacket, 4 pair count, 1000 ft (305 m) length, reel

    760240223 | 1091SD SLT C6A 4/23 U/UTP R3000

    • GigaSPEED X10D® 1091SD ETL Verified Category 6A U/UTP Cable, slate jacket, 4 pair count, 3000 ft (914 m) length, reel

1291B

  • ANSI/TIA Category 6A

    Cable Component Type Horizontal

    Cable Type F/UTP (shielded)

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Separator Type Isolator

  • 760081364 | 1291B BLU C6A 4/23 F/UTP R1000

    • GigaSPEED X10D® 1291B ETL Verified Category 6A F/UTP Cable, non-plenum, blue jacket, 4 pair count, 1000 ft (305 m) length, reel

    760081372 | 1291B GRN C6A 4/23 F/UTP R1000

    • GigaSPEED X10D® 1291B ETL Verified Category 6A F/UTP Cable, non-plenum, green jacket, 4 pair count, 1000 ft (305 m) length, reel

    760081380 | 1291B ORG C6A 4/23 F/UTP R1000

    • GigaSPEED X10D® 1291B ETL Verified Category 6A F/UTP Cable, non-plenum, orange jacket, 4 pair count, 1000 ft (305 m) length, reel

    760081398 | 1291B SLT C6A 4/23 F/UTP R1000

    • GigaSPEED X10D® 1291B ETL Verified Category 6A F/UTP Cable, non-plenum, slate jacket, 4 pair count, 1000 ft (305 m) length, reel

    760081406 | 1291B WHT C6A 4/23 F/UTP R1000

    • GigaSPEED X10D® 1291B ETL Verified Category 6A F/UTP Cable, non-plenum, white jacket, 4 pair count, 1000 ft (305 m) length, reel

    760104729 | 1291B SLT C6A 4/23 F/UTP R3000

    • GigaSPEED X10D® 1291B ETL Verified Category 6A F/UTP Cable, non-plenum, slate jacket, 4 pair count, 3000 ft (914 m) length, reel

    760131540 | 1291B LBL C6A 4/23 F/UTP R3000

    • GigaSPEED X10D® 1291B ETL Verified Category 6A F/UTP Cable, non-plenum, light blue jacket, 4 pair count, 3000 ft (914 m) length, reel

    760161646 | 1291B RED C6A 4/23 F/UTP R1000

    • GigaSPEED X10D® 1291B ETL Verified Category 6A F/UTP Cable, non-plenum, red jacket, 4 pair count, 1000 ft (305 m) length, reel

2091B

  • Product Number 3061A

    ANSI/TIA Category 5e

    Cable Component Type Horizontal

    Cable Type U/UTP (unshielded)

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D

  • Diameter Over Jacket, nominal 5.207 mm | 0.205 in

    Jacket Thickness 0.508 mm | 0.02 in

    Conductor Gauge, singles 24 AWG

  • 2091B-4/23

    • GigaSPEED X10D® 2091B ETL Verified Category 6A U/UTP Cable, 4 pair count

    760105338 | 2091B BLU C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 2091B ETL Verified Category 6A U/UTP Cable, blue jacket, 4 pair count, 1000 ft (305 m) length, reel

    760105890 | 2091B GRN C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 2091B ETL Verified Category 6A U/UTP Cable, green jacket, 4 pair count, 1000 ft (305 m) length, reel

    760105908 | 2091B ORG C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 2091B ETL Verified Category 6A U/UTP Cable, orange jacket, 4 pair count, 1000 ft (305 m) length, reel

    760105924 | 2091B RED C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 2091B ETL Verified Category 6A U/UTP Cable, red jacket, 4 pair count, 1000 ft (305 m) length, reel

    760105932 | 2091B SLT C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 2091B ETL Verified Category 6A U/UTP Cable, slate jacket, 4 pair count, 1000 ft (305 m) length, reel

    760105940 | 2091B WHT C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 2091B ETL Verified Category 6A U/UTP Cable, white jacket, 4 pair count, 1000 ft (305 m) length, reel

    760105957 | 2091B YEL C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 2091B ETL Verified Category 6A U/UTP Cable, yellow jacket, 4 pair count, 1000 ft (305 m) length, reel

2091B-UTG

  • ANSI/TIA Category 6A

    Cable Component Type Horizontal

    Cable Type U/UTP (unshielded)

    Conductor Type, singles Solid

    Conductors, quantity 8

    Note Consult ANSI/TIA-568-C.2 Annex G for length de-rating guidance for cable installation in higher temperature environments

    Pairs, quantity 4

    Separator Type Isolator

    Transmission Standards ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA | UTG-20

  • Diameter Over Insulated Conductor 0.889 mm | 0.035 in

    Diameter Over Jacket, nominal 7.239 mm | 0.285 in

    Jacket Thickness 1.295 mm | 0.051 in

    Conductor Gauge, singles 23 AWG

  • UTG760245107 | 2091B-UTG BLK C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 2091B-UTG ETL Verified Category 6A U/UTP Cable, black jacket, 4 pair count, 1000 ft (305 m) length, reel

    UTG760245108 | 2091B-UTG BLK C6A 4/23 U/UTP R3000

    • GigaSPEED X10D® 2091B-UTG ETL Verified Category 6A U/UTP Cable, black jacket, 4 pair count, 3000 ft (914 m) length, reel

    UTG760245109 | 2091B-UTG BLK C6A 4/23 U/UTP W1000

    • GigaSPEED X10D® 2091B-UTG ETL Verified Category 6A U/UTP Cable, black jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    UTG760245110 | 2091B-UTG BLU C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 2091B-UTG ETL Verified Category 6A U/UTP Cable, blue jacket, 4 pair count, 1000 ft (305 m) length, reel

    UTG760245111 | 2091B-UTG BLU C6A 4/23 U/UTP R2000 (SL)

    • GigaSPEED X10D® 2091B-UTG ETL Verified Category 6A U/UTP Cable, blue jacket, 4 pair count, 2000 ft (610 m) length, reel

    UTG760245112 | 2091B-UTG BLU C6A 4/23 U/UTP R3000

    • GigaSPEED X10D® 2091B-UTG ETL Verified Category 6A U/UTP Cable, blue jacket, 4 pair count, 3000 ft (914 m) length, reel

2291B

  • ANSI/TIA Category 6A

    Cable Component Type Horizontal

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Separator Type Isolator

  • Environmental Space Indoor | Plenum

    Fire Safety Listing CMP | FT6

    Flame Test Method CMP/FT6 | NFPA 262 | UL 444 | UL 910

    Safety Standard UL 444

    Smoke Test Method CMP/FT6 | NFPA 262

  • 760122630 | 2291B BLU C6A 4/23 F/UTP R1000

    • GigaSPEED X10D® 2291B ETL Verified Category 6A F/UTP Cable, plenum, blue jacket, 4 pair count, 1000 ft (305 m) length, reel

    760122648 | 2291B WHT C6A 4/23 F/UTP R1000

    • GigaSPEED X10D® 2291B ETL Verified Category 6A F/UTP Cable, plenum, white jacket, 4 pair count, 1000 ft (305 m) length, reel

    760122655 | 2291B SLT C6A 4/23 F/UTP R1000

    • GigaSPEED X10D® 2291B ETL Verified Category 6A F/UTP Cable, plenum, slate jacket, 4 pair count, 1000 ft (305 m) length, reel

    760122663 | 2291B GRN C6A 4/23 F/UTP R1000

    • GigaSPEED X10D® 2291B ETL Verified Category 6A F/UTP Cable, plenum, green jacket, 4 pair count, 1000 ft (305 m) length, reel

    760122671 | 2291B ORG C6A 4/23 F/UTP R1000

    • GigaSPEED X10D® 2291B ETL Verified Category 6A F/UTP Cable, plenum, orange jacket, 4 pair count, 1000 ft (305 m) length, reel

    760171017 | 2291B RED C6A 4/23 F/UTP R1000

    • GigaSPEED X10D® 2291B ETL Verified Category 6A F/UTP Cable, plenum, red jacket, 4 pair count, 1000 ft (305 m) length, reel

    760171025 | 2291B BLK C6A 4/23 F/UTP R1000

    • GigaSPEED X10D® 2291B ETL Verified Category 6A F/UTP Cable, plenum, black jacket, 4 pair count, 1000 ft (305 m) length, reel

3091B

  • ANSI/TIA Category 6A

    Cable Component Type Horizontal

    Cable Type U/UTP (unshielded)

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Separator Type Isolator

    Transmission Standards ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA

  • Diameter Over Insulated Conductor 0.864 mm | 0.034 in

    Diameter Over Jacket, nominal 7.239 mm | 0.285 in

    Jacket Thickness 1.295 mm | 0.051 in

    Conductor Gauge, singles 23 AWG

  • 760105122 | 3091B WHT C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 3091B ETL Verified Category 6A U/UTP Cable, white jacket, 4 pair count, 1000 ft (305 m) length, reel

    760106039 | 3091B BLU C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 3091B ETL Verified Category 6A U/UTP Cable, blue jacket, 4 pair count, 1000 ft (305 m) length, reel

    760106047 | 3091B SLT C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 3091B ETL Verified Category 6A U/UTP Cable, slate jacket, 4 pair count, 1000 ft (305 m) length, reel

    760106054 | 3091B WHT C6A 4/23 U/UTP R3000

    • GigaSPEED X10D® 3091B ETL Verified Category 6A U/UTP Cable, white jacket, 4 pair count, 3000 ft (914 m) length, reel

    760106062 | 3091B BLU C6A 4/23 U/UTP R3000

    • GigaSPEED X10D® 3091B ETL Verified Category 6A U/UTP Cable, blue jacket, 4 pair count, 3000 ft (914 m) length, reel

    760106070 | 3091B SLT C6A 4/23 U/UTP R3000

    • GigaSPEED X10D® 3091B ETL Verified Category 6A U/UTP Cable, slate jacket, 4 pair count, 3000 ft (914 m) length, reel

    760107318 | 3091B WHT C6A 4/23 U/UTP W1000

    • GigaSPEED X10D® 3091B ETL Verified Category 6A U/UTP Cable, white jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    760107326 | 3091B BLU C6A 4/23 U/UTP W1000

    • GigaSPEED X10D® 3091B ETL Verified Category 6A U/UTP Cable, blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

3091B-UTG

  • ANSI/TIA Category 6A

    Cable Component Type Horizontal

    Cable Type U/UTP (unshielded)

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Separator Type Isolator

    Transmission Standards ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA

  • Diameter Over Insulated Conductor 0.864 mm | 0.034 in

    Diameter Over Jacket, nominal 7.239 mm | 0.285 in

    Jacket Thickness 1.295 mm | 0.051 in

    Conductor Gauge, singles 23 AWG

  • UTG760250731 | 3091B-UTG WHT C6A 4/23 U/UTP W1000

    • GigaSPEED X10D® 3091B-UTG ETL Verified Category 6A U/UTP Cable, white jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    UTG760250732 | 3091B-UTG SLT C6A 4/23 U/UTP W1000

    • GigaSPEED X10D® 3091B-UTG ETL Verified Category 6A U/UTP Cable, slate jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    UTG760250733 | 3091B-UTG BLU C6A 4/23 U/UTP W1000

    • GigaSPEED X10D® 3091B-UTG ETL Verified Category 6A U/UTP Cable, blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    UTG760250734 | 3091B-UTG BLK C6A 4/23 U/UTP W1000

    • GigaSPEED X10D® 3091B-UTG ETL Verified Category 6A U/UTP Cable, black jacket, 4 pair count, 1,000 ft (305 m) WE TOTE® box

    UTG760250735 | 3091B-UTG YEL C6A 4/23 U/UTP W1000

    • GigaSPEED X10D® 3091B-UTG ETL Verified Category 6A U/UTP Cable, yellow jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    UTG760250736 | 3091B-UTG GRN C6A 4/23 U/UTP W1000

    • GigaSPEED X10D® 3091B-UTG ETL Verified Category 6A U/UTP Cable, green jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

    UTG760251112 | 3091B-UTG SLT C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 3091B-UTG ETL Verified Category 6A U/UTP Cable, slate jacket, 4 pair count, 1000 ft (305 m) length, reel

3091SD

  • ANSI/TIA Category 6A

    Cable Component Type Horizontal

    Cable Type U/UTP (unshielded)

    Conductor Type, singles Solid

    Conductors, quantity 8

    Note Consult ANSI/TIA-568-C.2 Annex G for length de-rating guidance for cable installation in higher temperature environments

    Pairs, quantity 4

    Separator Type Isolator

    Transmission Standards ANSI/TIA-568.2-D

  • Diameter Over Insulated Conductor 1.148 mm | 0.0452 in

    Diameter Over Jacket, nominal 6.731 mm | 0.265 in

    Jacket Thickness 0.406 mm | 0.016 in

    Conductor Gauge, singles 23 AWG

  • 760261312 | 3091SD WHI C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 3091SD Category 6A U/UTP Cable, white jacket, 4 pair count, 1000 ft (305 m) length, reel

    760261314 | 3091SD BLU C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 3091SD Category 6A U/UTP Cable, blue jacket, 4 pair count, 1000 ft (305 m) length, reel

    760261314 | 3091SD SLA C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 3091SD Category 6A U/UTP Cable, slate jacket, 4 pair count, 1000 ft (305 m) length, reel

3291B

  • ANSI/TIA Category 6A

    Cable Component Type Horizontal

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Separator Type Isolator

  • Environmental Space Indoor | Plenum

    Fire Safety Listing CMP | FT6

    Flame Test Method CMP/FT6 | NFPA 262 | UL 444 | UL 910

    Safety Standard UL 444

    Smoke Test Method CMP/FT6 | NFPA 262

  • 760081315 | 3291B BLU C6A 4/23 F/UTP R1000

    • GigaSPEED X10D® 3291B Category 6A F/UTP Cable, low smoke zero halogen, blue jacket, 4 pair count, 1000 ft (305 m) length, reel

    760081323 | 3291B WHT C6A 4/23 F/UTP R1000

    • GigaSPEED X10D® 3291B Category 6A F/UTP Cable, low smoke zero halogen, white jacket, 4 pair count, 1000 ft (305 m) length, reel

    760139873 | 3291B WHT C6A 4/23 F/UTP R3000

    • GigaSPEED X10D® 3291B Category 6A F/UTP Cable, low smoke zero halogen, white jacket, 4 pair count, 3000 ft (914 m) length, reel

    760168377 | 3291B SLT C6A 4/23 F/UTP R1000

    • GigaSPEED X10D® 3291B Category 6A F/UTP Cable, low smoke zero halogen, slate jacket, 4 pair count, 1000 ft (305 m) length, reel

    760194753 | 3291B YEL C6A 4/23 F/UTP R1000

    • GigaSPEED X10D® 3291B Category 6A F/UTP Cable, low smoke zero halogen, yellow jacket, 4 pair count, 1000 ft (305 m) length, reel

    760237886 | 3291B-B WHT C6A 4/23 F/UTP R1000

    • GigaSPEED X10D® 3291B-B Category 6A F/UTP Cable, low smoke zero halogen, white jacket, 4 pair count, 1000 ft (305 m) length, reel

1592A

  • ANSI/TIA Category 6A

    Cable Component Type Horizontal

    Cable Type F/UTP (shielded)

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Separator Type Isolator

    Transmission Standards ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA

  • Diameter Over Jacket, nominal 8.382 mm | 0.33 in

    Inner Jacket Thickness 0.457 mm | 0.018 in

    Jacket Thickness 0.686 mm | 0.027 in

    Conductor Gauge, singles 23 AWG

  • 760178129 | 1592A BLK C6A 4/23 F/UTP R1000

    • 1592A Category 6A F/UTP filled cable, outdoor, black jacket, aluminum tape shield, inner jacket, 4 pair count, 1000 ft (305 m) length, reel

2091SDB

  • ANSI/TIA Category 6A

    Cable Component Type Horizontal

    Cable Type U/UTP (unshielded)

    Conductor Type, singles Solid

    Conductors, quantity 8

    Note Consult ANSI/TIA-568-C.2 Annex G for length de-rating guidance for cable installation in higher temperature environments

    Pairs, quantity 4

    Separator Type Isolator

    Transmission Standards ANSI/TIA-568.2-D

  • Diameter Over Insulated Conductor 0.561 mm | 0.0221 in

    Diameter Over Jacket, nominal 6.325 mm | 0.249 in

    Jacket Thickness 0.406 mm | 0.016 in

    Conductor Gauge, singles 23 AWG

  • 760253621 | 2091SDB BLU C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 2091SDB ETL verified Category 6A U/UTP Cable, plenum, blue jacket, 4 pair count, 1000 ft (305 m) length, reel

    760253622 | 2091SDB WHT C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 2091SDB ETL verified Category 6A U/UTP Cable, plenum, White jacket, 4 pair count, 1000 ft (305 m) length, reel

    760253623 | 2091SDB SLT C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 2091SDB ETL Verified Category 6A U/UTP Cable, plenum, slate jacket, 4 pair count, 1000 ft (305 m) length, reel

    760253624 | 2091SDB YEL C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 2091SDB ETL Verified Category 6A U/UTP Cable, plenum, yellow jacket, 4 pair count, 1000 ft (305 m) length, reel

    760253625 | 2091SDB GRN C6A 4/23 U/UTP R1000

    • GigaSPEED X10D® 2091SDB ETL verified Category 6A U/UTP Cable, plenum, green jacket, 4 pair count, 1000 ft (305 m) length, reel

CS41CM

  • Product Number CS41CM

    ANSI/TIA Category 6A

    Cable Component Type Horizontal

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Separator Type Isolator

  • 884037504/10 | CS41CM WHT C6A 4/24 U/UTP RL 305M

    • CS41CM, ETL Verified Category 6A U/UTP Cable, non-plenum, white jacket, 4 pair count, 1000 ft (305 m) length reel

    884044904/10 | CS41CM GRY C6A 4/24 U/UTP RL 305M

    • CS41CM, ETL Verified Category 6A U/UTP Cable, non-plenum, gray jacket, 4 pair count, 1000 ft (305 m) length reel

    884048304/10 | CS41CM BLU C6A 4/24 U/UTP RL 305M

    • CS41CM, ETL Verified Category 6A U/UTP Cable, non-plenum, blue jacket, 4 pair count, 1000 ft (305 m) length reel

    884056804/10 | CS41CM WHT C6A 4/23 U/UTP RL 305M

    • CS41CM, ETL Verified Category 6A U/UTP Cable, non-plenum, white jacket, 4 pair count, 1000 ft (305 m) length reel

    884062904/10 | CS41CM GRY C6A 4/23 U/UTP RL 305M

    • CS41CM, ETL Verified Category 6A U/UTP Cable, non-plenum, gray jacket, 4 pair count, 1000 ft (305 m) length reel

    884064004/10 | CS41CM BLU C6A 4/23 U/UTP RL 305M

    • CS41CM, ETL Verified Category 6A U/UTP Cable, non-plenum, blue jacket, 4 pair count, 1000 ft (305 m) length reel

CS41O

  • ANSI/TIA Category 6A

    Cable Component Type Horizontal

    Conductor Type, singles Solid

    Conductors, quantity 8

    Pairs, quantity 4

    Separator Type Isolator

  • 884012208/10 | CS41O GRY C6A 4/23 U/UTP RL 1KFT

    • CS41O Category 6A U/UTP Cable, outdoor, gray jacket, 4 pair count, 1000 ft (305 m) length, reel

    884040308/10

    • CS41O Category 6A S/FTP Cable, outdoor, armor, black jacket, 4 pair count, 1000 ft (305 m) length, reel

    884042408/10

    • CS41O Category 6A U/UTP Cable, outdoor, black jacket, 4 pair count, 1000 ft (305 m) length, reel
