Category 7 Cables

$0.00

Category 7 (Cat 7) cables are shielded, high-performance Ethernet cables designed for 10Gbps+ speeds and bandwidths up to 600MHz. They feature stringent shielding (S/FTP) for individual pairs and the overall cable to eliminate interference, making them ideal for data centers, gaming, and high-definition streaming.

Common Applications

Server rooms and high-performance network environments.

High-speed gaming and 4K video streaming.

Connects routers, switches, network printers, and workstations.

Common Applications

Server rooms and high-performance network environments.

High-speed gaming and 4K video streaming.

Connects routers, switches, network printers, and workstations.

Key Features & Specifications

Performance: Supports 10Gbps data transmission, often up to 100 meters.
Bandwidth: Supports frequencies up to 600 MHz.
Shielding: Primarily uses Screened Foiled Twisted Pair (S/FTP) or Foiled Shielded Twisted Pair (F/STP), protecting against EMI/RFI.
Structure: Typically 4-pair 23-26AWG construction.
Compatibility: Backward compatible with Cat5e, Cat6, and Cat6a

Key Key Benefits:

Superior Signal Quality: Advanced shielding minimizes crosstalk and noise.
Durability: Often designed with robust materials (e.g., nylon braided jackets) for longevity.
Design Options: Available in standard, heavy-duty, or flat designs for easy, hidden installations under carpets or along walls

CommScope cables are known for reliable performance and often feature reverse footage markers for easier installation. They are available in various colors, including white, blue, and black.

Products

1711005-1

ANSI/TIA Category 7
Cable Component Type Horizontal
Cable Type S/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 16
Jacket Color White
Pairs, quantity 8
Transmission Standards CENELEC EN 50288-4-1 | IEC 61156-5 | IEC 61156-5 Cat 7 | ISO/IEC 11801 Class F
Cable Length 500 m | 1640.42 ft
Diameter Over Jacket, nominal 16.002 mm | 0.63 in
Conductor Gauge, singles 23 AWG

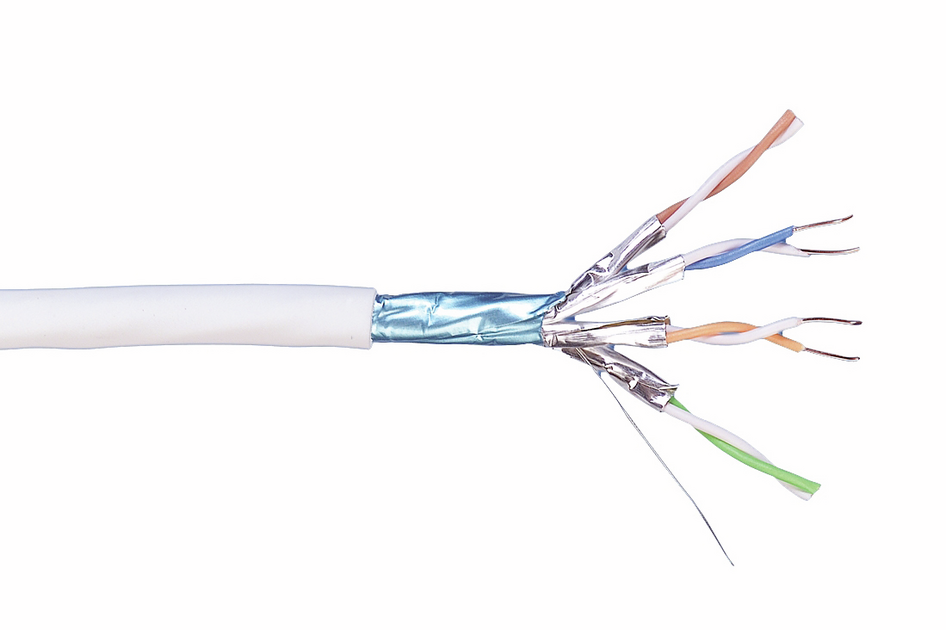

1711163-1 | CS54Z3 WHT C7 4/23 F/FTP RL 500M

CS54Z3 Category 7 F/FTP Cable, low smoke zero halogen, white jacket, 4 pair count, 1640 ft (500 m) length, reel
ANSI/TIA Category 7
Cable Component Type Horizontal
Cable Type F/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color White
Pairs, quantity 4
Transmission Standards CENELEC EN 50288-4-1 | IEC 61156-5 Cat 7 | ISO/IEC 11801 Class F
Cable Length 500 m | 1640.42 ft
Diameter Over Insulated Conductor 1.501 mm | 0.0591 in
Diameter Over Jacket, nominal 7.399 mm | 0.2913 in
Conductor Gauge, singles 23 AWG

1711163-2 | CS54Z3 WHT C7 4/23 F/FTP RL 1KM

CS54Z3 Category 7 F/FTP Cable, low smoke zero halogen, white jacket, 4 pair count, 3280 ft (1000 m) length, reel
ANSI/TIA Category 7
Cable Component Type Horizontal
Cable Type F/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color White
Pairs, quantity 4
Transmission Standards CENELEC EN 50288-4-1 | IEC 61156-5 Cat 7 | ISO/IEC 11801 Class F
Cable Length 1000 m | 3280.84 ft
Diameter Over Insulated Conductor 1.501 mm | 0.0591 in
Diameter Over Jacket, nominal 7.399 mm | 0.2913 in
Conductor Gauge, singles 23 AWG

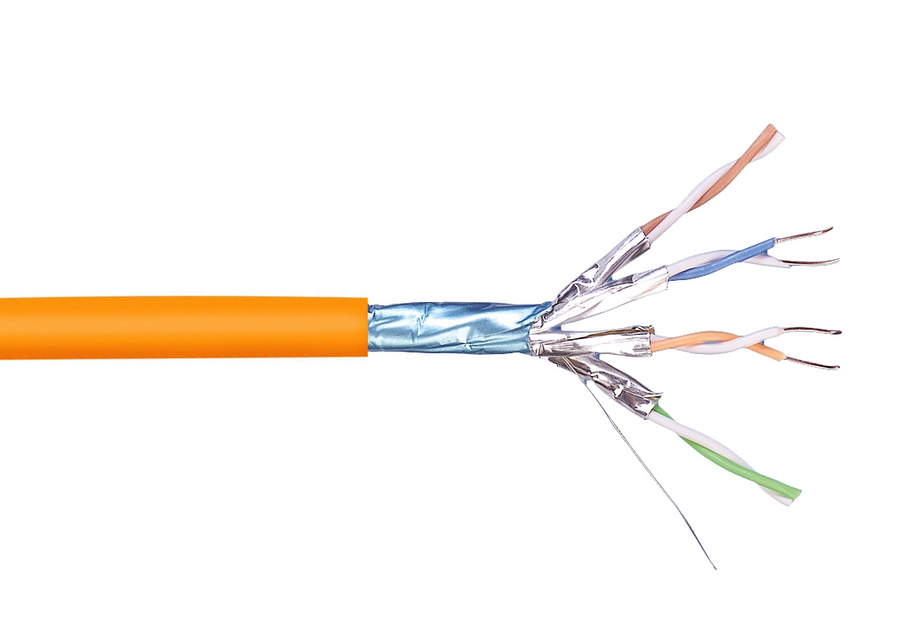

1061L

CS54Z3 Category 7 F/FTP Cable, low smoke zero halogen, orange jacket, 4 pair count, 1640 ft (500 m) length, reel
Cable Component Type Horizontal
Cable Type F/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color Orange
Pairs, quantity 4
Transmission Standards CENELEC EN 50288-4-1 | IEC 61156-5 | IEC 61156-5 Cat 7 | ISO/IEC 11801 Class F
Cable Length 500 m | 1640.42 ft
Diameter Over Insulated Conductor 1.501 mm | 0.0591 in
Diameter Over Jacket, nominal 7.399 mm | 0.2913 in
Conductor Gauge, singles 23 AWG

1711195-1

Copper Cable, category 7, 4 pair duplex, F/FTP, LSZH, PiMF600, 23 AWG solid, 500 m, white
ANSI/TIA Category 7
Cable Component Type Horizontal
Cable Type F/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 16
Jacket Color White
Pairs, quantity 8
Transmission Standards CENELEC EN 50288-4-1 | IEC 61156-5 Cat 7 | ISO/IEC 11801 Class F
Cable Length 500 m | 1640.42 ft
Diameter Over Jacket, nominal 15.011 mm | 0.591 in
Conductor Gauge, singles 23 AWG

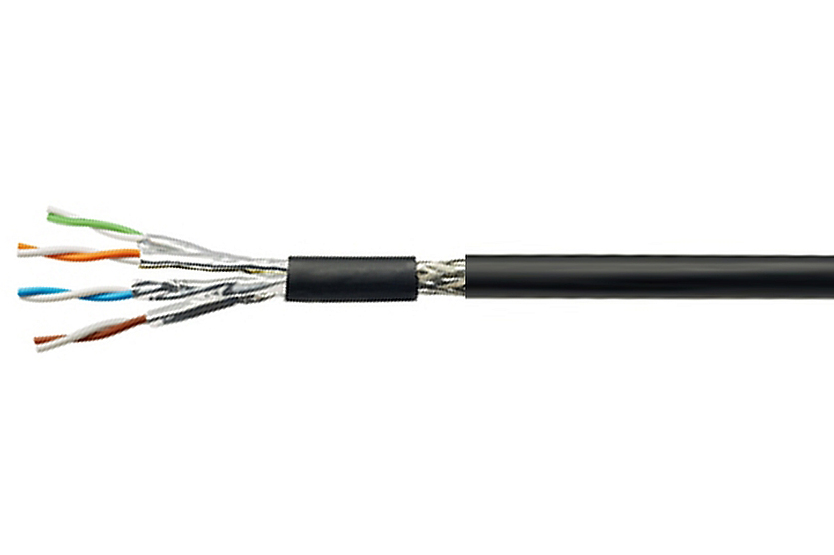

4-2153161-1 | C7 OUT PR4 S/FTP PE/LSZH BLK 23 SOL 500

Copper Cable, category 7, S/FTP, 4-pair, 23 AWG, black
ANSI/TIA Category 7
Cable Component Type Horizontal
Cable Type S/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color Black
Pairs, quantity 4
Transmission Standards CENELEC EN 50288-4-1 | IEC 61156-5 Cat 7 | ISO/IEC 11801 Class F
Cable Length 500 m | 1640.42 ft
Diameter Over Jacket, nominal 9.652 mm | 0.38 in
Conductor Gauge, singles 23 AWG

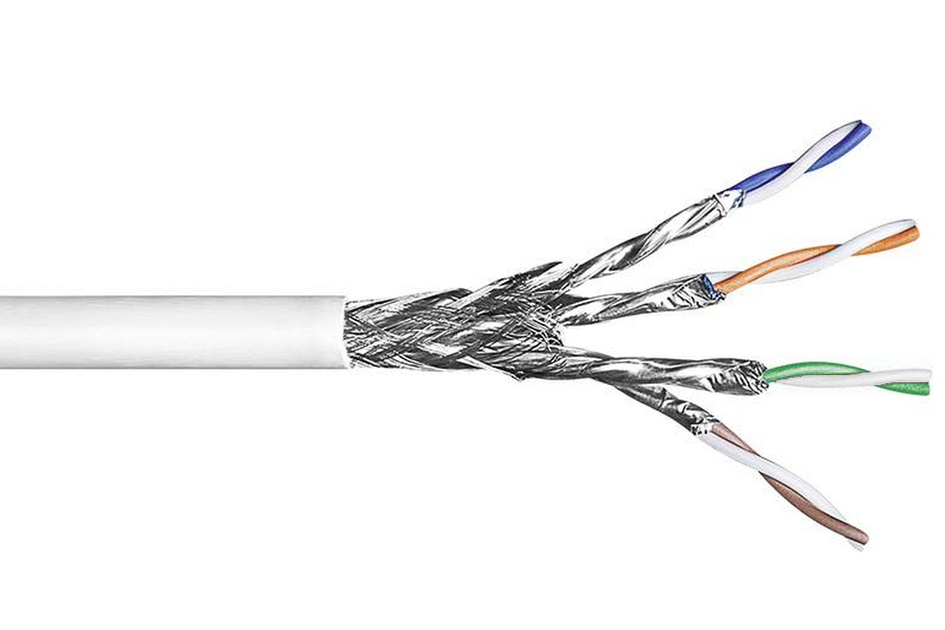

57893-1 | CS54Z3 WHT C7 4/23 S/FTP RL 1000M

Copper Cable, category 7, 4 pair simplex, S/FTP, LSFRZH, XG, 23 AWG solid, 1000 m, white
ANSI/TIA Category 7
Cable Component Type Horizontal
Cable Type S/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color White
Pairs, quantity 4
Transmission Standards CENELEC EN 50288-4-1 | IEC 61156-5 Cat 7 | ISO/IEC 11801 Class F
Cable Length 1000 m | 3280.84 ft
Diameter Over Insulated Conductor 1.501 mm | 0.0591 in
Diameter Over Jacket, nominal 7.29 mm | 0.287 in
Conductor Gauge, singles 23 AWG

57893-2 | CS54Z3 WHT C7 4/23 S/FTP RL 500M

Copper Cable, category 7, 4 pair simplex, S/FTP, LSFRZH, XG, 23 AWG solid, 500 m, white
ANSI/TIA Category 7
Cable Component Type Horizontal
Cable Type S/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color White
Pairs, quantity 4
Transmission Standards CENELEC EN 50288-4-1 | IEC 61156-5 Cat 7 | ISO/IEC 11801 Class F
Cable Length 500 m | 1640.42 ft
Diameter Over Insulated Conductor 1.501 mm | 0.0591 in
Diameter Over Jacket, nominal 7.29 mm | 0.287 in
Conductor Gauge, singles 23 AWG

57893-3 | CS54Z3 WHT C7 4/23 S/FTP RL 305M

Copper Cable, category 7, 4 pair simplex, S/FTP, LSFRZH, XG, 23 AWG solid, 305 m, white
ANSI/TIA Category 7
Cable Component Type Horizontal
Cable Type S/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color White
Pairs, quantity 4
Transmission Standards CENELEC EN 50288-4-1 | IEC 61156-5 Cat 7 | ISO/IEC 11801 Class F
Cable Length 304.8 m | 1000 ft
Diameter Over Insulated Conductor 1.501 mm | 0.0591 in
Diameter Over Jacket, nominal 7.29 mm | 0.287 in
Conductor Gauge, singles 23 AWG

57893-7 | CS54Z3 ORG C7 4/23 S/FTP RL 1000M

Copper Cable, category 7, 4 pair simplex, S/FTP, LSFRZH, XG, 23 AWG solid, 1000 m, orange
ANSI/TIA Category 7
Cable Component Type Horizontal
Cable Type S/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color Orange
Pairs, quantity 4
Transmission Standards CENELEC EN 50288-4-1 | IEC 61156-5 Cat 7 | ISO/IEC 11801 Class F
Cable Length 1000 m | 3280.84 ft
Diameter Over Insulated Conductor 1.501 mm | 0.0591 in
Diameter Over Jacket, nominal 7.29 mm | 0.287 in
Conductor Gauge, singles 23 AWG

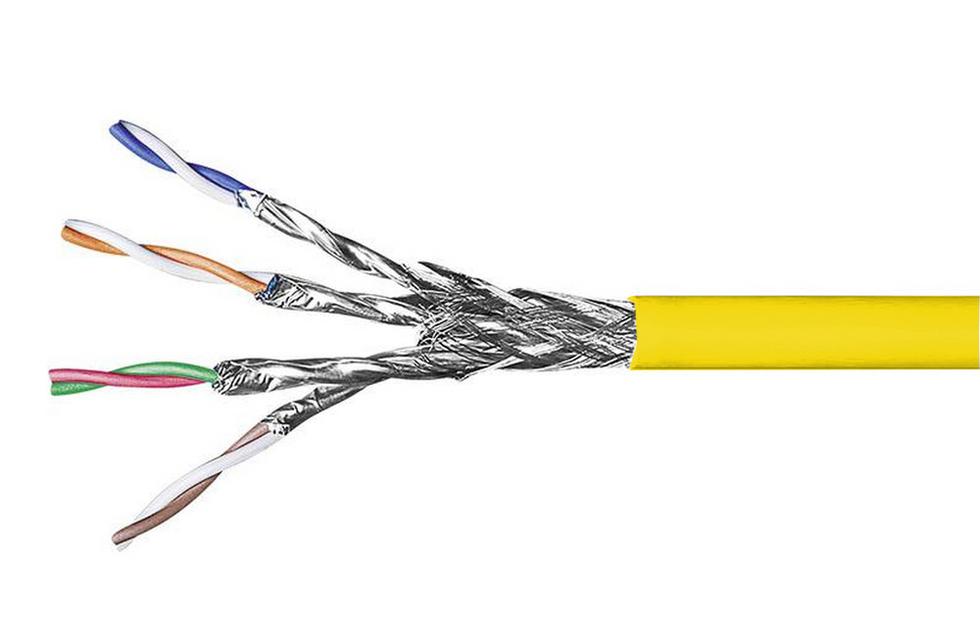

57893-9 | CS54Z3 YEL C7 4/23 S/FTP RL 1000M

Copper Cable, category 7, 4 pair simplex, S/FTP, LSFRZH, XG, 23 AWG solid, 1000 m, yellow
ANSI/TIA Category 7
Cable Component Type Horizontal
Cable Type S/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color Yellow
Pairs, quantity 4
Transmission Standards CENELEC EN 50288-4-1 | IEC 61156-5 Cat 7 | ISO/IEC 11801 Class F
Cable Length 1000 m | 3280.84 ft
Diameter Over Insulated Conductor 1.501 mm | 0.0591 in
Diameter Over Jacket, nominal 7.29 mm | 0.287 in
Conductor Gauge, singles 23 AWG

760159988 | 3297B WH 4/23 R1640

3297B Category 7 S/FTP Cable, low smoke zero halogen, white jacket, 4 pair count, 1640 ft (500 m) length, reel
Product Number 3297B
ANSI/TIA Category 7
Cable Component Type Horizontal
Cable Type S/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color White
Note All electrical transmission tests include swept frequency measurements
Pairs, quantity 4
Transmission Standards CENELEC EN 50288-4-1 | IEC 61156-5 Cat 7 | ISO/IEC 11801 Class F
Cable Length 500 m | 1640.42 ft
Cable Length Tolerance ±5%
Diameter Over Insulated Conductor 1.501 mm | 0.0591 in
Diameter Over Jacket, nominal 7.391 mm | 0.291 in
Jacket Thickness 0.635 mm | 0.025 in
Conductor Gauge, singles 23 AWG
