Category 7A Cables

$0.00

Category 7A (Cat7A) cables are high-performance, enhanced Ethernet cables designed for data centers and industrial environments, offering superior bandwidth up to 1000–1500 MHz and speeds up to 10 Gbps and beyond. Featuring rigorous S/FTP shielding (individual pair shielding and overall braid), they excel at minimizing EMI and crosstalk

Key Features & Specifications

Performance: Supports frequencies up to 1500 MHz, significantly higher than standard Cat7 (600 MHz).

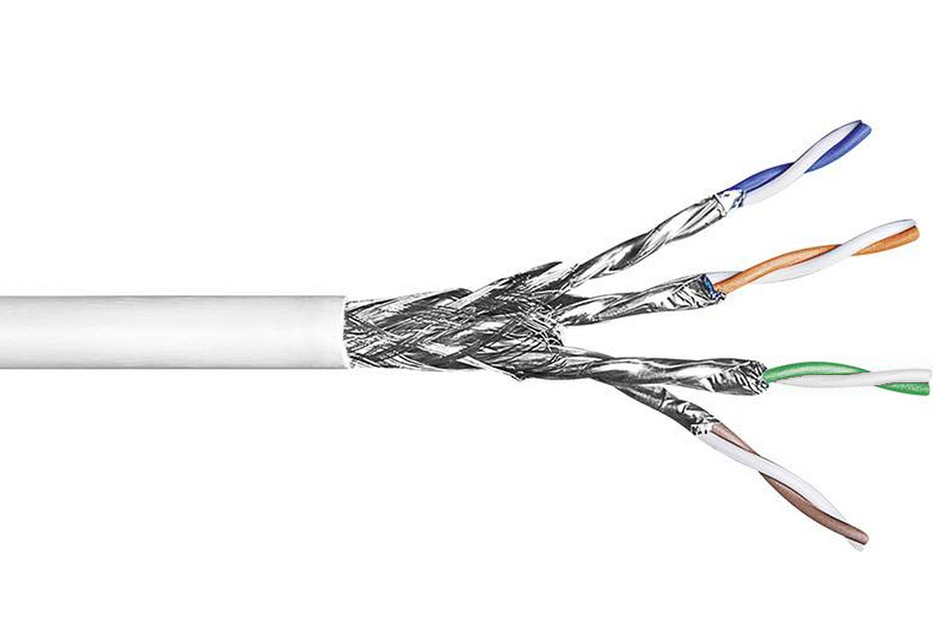

Shielding: Uses S/FTP (Screened Foiled Twisted Pair) construction, reducing interference and enabling installation near high-voltage electrical lines.
Distance/Speed: Reliable 10 Gbps speeds over 100 meters.
Construction: Typically features robust 22–23 AWG copper conductors for improved durability and performance.
Future-Proofing: Ideal for high-density, demanding networks needing long-term performance stability.
Application: Ideal for industrial Ethernet, data centers, and advanced residential setups requiring high data loads.

Installation and Connectors

Connectors: While backward compatible, they are often used with specialized GG45 or TERA connectors for maximum performance.
Standards: Compliant with standards like ISO/IEC 11801 and DIN EN 50288-9-1.
Durability: Their robust design is suitable for harsh environments, such as rail vehicles, requiring reliable industrial ethernet

Cat7 vs. Cat7A Differences

While Cat7 offers 600 MHz, Cat7A (Augmented Category 7) provides enhanced bandwidth up to 1000 MHz or higher (up to 1500 MHz, according to some manufacturers). Cat7A is designed for stricter crosstalk and EMI protection.

Products

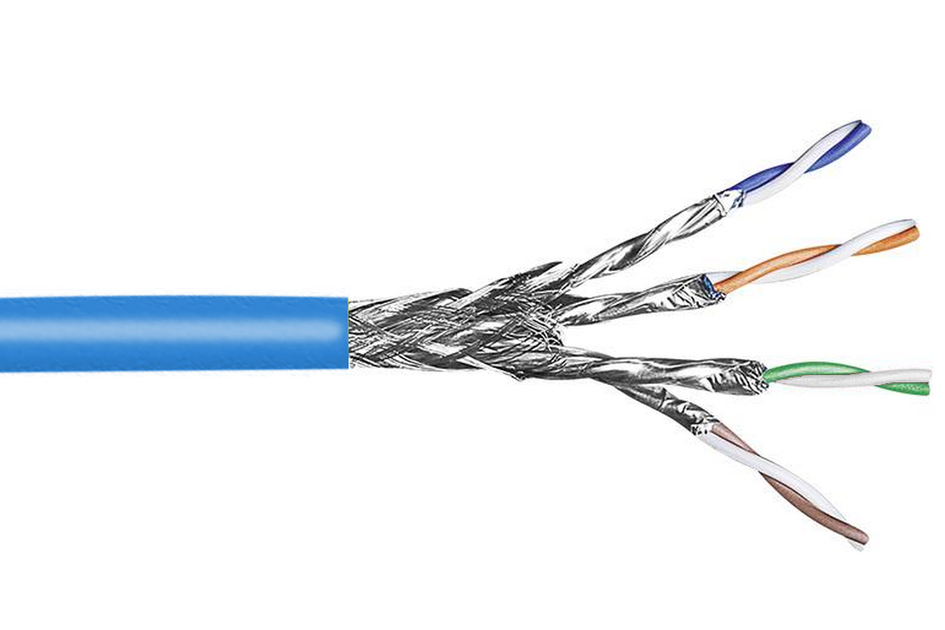

884043158/16 | CS54ZB BLU C7 4/23 S/FTP RL 500M

CS54ZB Category 7 S/FTP Cable, low smoke zero halogen, blue jacket, 4 pair count, 1640 ft (500 m) length, reel
ANSI/TIA Category 7
Cable Component Type Horizontal
Cable Type S/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color Blue
Note All electrical transmission tests include swept frequency measurements
Pairs, quantity 4
Transmission Standards CENELEC EN 50288-4-1 | IEC 61156-5 Cat 7 | ISO/IEC 11801 Class F
Cable Length 500 m | 1640.42 ft
Cable Length Tolerance ±5%
Diameter Over Jacket, nominal 7.399 mm | 0.2913 in
Jacket Thickness 0.635 mm | 0.025 in
Conductor Gauge, singles 23 AWG

884010958/16

CS54ZB Category 7 F/FTP Cable, low smoke zero halogen, white jacket, 8 pair count, 2 x 4 pair cables in a duplex style configuration,1640 ft (500 m) length, reel
Product Number CS54ZC
ANSI/TIA Category 7
Cable Component Type Horizontal
Cable Type F/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 16
Jacket Color White
Pairs, quantity 8
Transmission Standards IEC 61156-5 Cat 7 | ISO/IEC 11801 Class FA
Cable Length 500 m | 1640.42 ft
Cable Length Tolerance ±5%
Diameter Over Jacket, nominal 7.595 mm | 0.299 in
Jacket Thickness 0.635 mm | 0.025 in
Conductor Gauge, singles 23 AWG

884026058/16

CS67ZB-IO Category 7A S/FTP Cable, low smoke zero halogen, indoor/outdoor with rodent protection layer, black jacket, 4 pair count, 1640 ft (500 m) length, reel
ANSI/TIA Category 7A
Cable Component Type Horizontal
Cable Type S/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color Black
Pairs, quantity 4
Transmission Standards CENELEC EN 50288-9-1 | IEC 61156-5 Type I
Cable Length 1000 m | 3280.84 ft
Cable Length Tolerance ±5%
Diameter Over Jacket, nominal 11.989 mm | 0.472 in
Jacket Thickness 0.635 mm | 0.025 in
Conductor Gauge, singles 22 AWG

884096354/16 | CS54ZB GRN C7 4/23 S/FTP RL 500M

CS54ZB Category 7 S/FTP Cable, low smoke zero halogen, green jacket, 4 pair count, 1640 ft (500 m) length, reel
ANSI/TIA Category 7
Cable Component Type Horizontal
Cable Type S/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color Green
Note All electrical transmission tests include swept frequency measurements
Pairs, quantity 4
Transmission Standards CENELEC EN 50288-4-1 | IEC 61156-5 Cat 7 | ISO/IEC 11801 Class F
Cable Length 500 m | 1640.42 ft
Cable Length Tolerance ±5%
Diameter Over Jacket, nominal 7.399 mm | 0.2913 in
Jacket Thickness 0.635 mm | 0.025 in
Conductor Gauge, singles 23 AWG

884048808/10

CS54ZB1 Category 7 F/FTP Cable, low smoke zero halogen, white jacket, 4 pair count, 1000 ft (305 m) length, reel
ANSI/TIA Category 7
Cable Component Type Horizontal
Cable Type F/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color White
Pairs, quantity 4
Transmission Standards CENELEC EN 50288-4-1 | IEC 61156-5 Cat 7 | ISO/IEC 11801 Class F
Cable Length 304.8 m | 1000 ft
Diameter Over Insulated Conductor 1.3 mm | 0.0512 in
Diameter Over Jacket, nominal 7.399 mm | 0.2913 in
Conductor Gauge, singles 23 AWG

884048858/16

CS54ZB1 Category 7 F/FTP Cable, low smoke zero halogen, white jacket, 4 pair count, 1640 ft (500 m) length, reel
ANSI/TIA Category 7
Cable Component Type Horizontal
Cable Type F/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color White
Pairs, quantity 4
Transmission Standards CENELEC EN 50288-4-1 | IEC 61156-5 Cat 7 | ISO/IEC 11801 Class F
Cable Length 499.872 m | 1640 ft
Diameter Over Insulated Conductor 1.3 mm | 0.0512 in
Diameter Over Jacket, nominal 7.399 mm | 0.2913 in
Conductor Gauge, singles 23 AWG

1499101-3

CS67Z3 ORG C7A 4/22 S/FTP RL 1KM
ANSI/TIA Category 7A
Cable Component Type Horizontal
Cable Type S/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color Orange
Pairs, quantity 4
Transmission Standards ANSI/TIA-568.2-D | IEC 61156-7 | ISO/IEC 11801 Class FA
Cable Length 1000 m | 3280.84 ft
Cable Length Tolerance ±5%
Diameter Over Insulated Conductor 1.501 mm | 0.0591 in
Diameter Over Jacket, nominal 7.595 mm | 0.299 in
Jacket Thickness 0.635 mm | 0.025 in
Conductor Gauge, singles 22 AWG

1499101-4

CS67Z3 Category 7A S/FTP Cable, low smoke zero halogen, blue jacket, 4 pair count, 3280 ft (1000 m) length, reel
ANSI/TIA Category 7A
Cable Component Type Horizontal
Cable Type S/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color Blue
Pairs, quantity 4
Transmission Standards ANSI/TIA-568.2-D | IEC 61156-7 | ISO/IEC 11801 Class FA
Cable Length 1000 m | 3280.84 ft
Cable Length Tolerance ±5%
Diameter Over Insulated Conductor 1.501 mm | 0.0591 in
Diameter Over Jacket, nominal 7.595 mm | 0.299 in
Jacket Thickness 0.635 mm | 0.025 in
Conductor Gauge, singles 22 AWG
