Products List
| Nexans Ref. | Country Ref. | Name | Outer sheath | Colour | Length [m] |
|---|---|---|---|---|---|
| N100.561300 | 17654 | CAT5e U/UTP CMX 4P 24AWG AZC 100 | PVC - CMX | Blue | 100 |
| N100.561100 | 17658 | CAT5e U/UTP CMX 4P 24AWG BC 100 | PVC - CMX | White | 100 |
| N100.561201 | 17676 | CAT5e U/UTP CMX 4P 24AWG PT 100 I/O | PVC - CMX | Black | 100 |
| N100.561330 | 17490 | CAT5e U/UTP CMX 4P 24AWG AZC 305 | PVC - CMX | Blue | 305 |
| N100.561130 | 17493 | CAT5e U/UTP CMX 4P 24AWG BC 305 | PVC - CMX | White | 305 |
| N100.561730 | 17492 | CAT5e U/UTP CMX 4P 24AWG CZ 305 | PVC - CMX | Grey | 305 |
| N100.561231 | 17520 | CAT5e U/UTP CMX 4P 24AWG PT 305 I/O | PVC - CMX | Black | 305 |
| N100.562330 | 17562 | CAT5e U/UTP CM 4P 24AWG AZC 305 | PVC - CM | Blue | 305 |
| N100.562730 | 17582 | CAT5e U/UTP CM 4P 24AWG CZ 305 | PVC - CM | Grey | 305 |
| N100.564330 | 17549 | CAT5e U/UTP LSZH 4P 24AWG AZC 305 | LSZH | Blue | 305 |
| N100.564130 | 17584 | CAT5e U/UTP LSZH 4P 24AWG BC 305 | LSZH | White | 305 |
APPLICATION
The Nexans CAT5e cable line is the 100MHz bandwidth offer for class D applications up to 1Gbits. Nexans CAT5e cables are designed for horizontal applications in structured cabling networks to connect the user outlet to the administration panel or to interconnect administration panels. Their application is limited to 100MHz bandwidth, Class D applications.
• FAST ETHERNET 100BASE-TX
• GIGABIT ETHERNET 1000BASE-T
• TOKEN RING (100 Mbps)
• ATM LAN (155 Mbps & 622 Mbps)
• ISDN
• POE - POWER OVER ETHERNET
• POE+ - POWER OVER ETHERNET PLUS
• ANALOGUE AND DIGITAL COMMUNICATION FOR VIDEO AND VOICE
CONSTRUCTION AND INSTALLATION
CONSTRUCTION

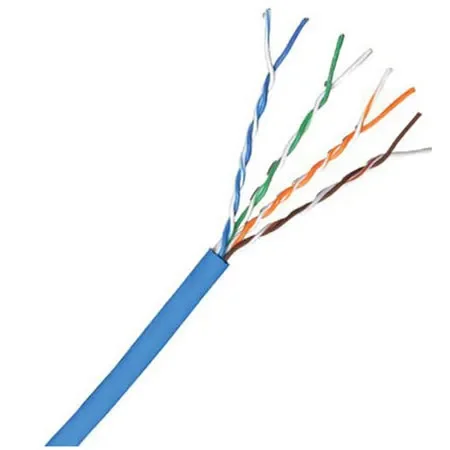

• Category 5e U/UTP;
• PVC: CMX | CM or LSZH; 4 twisted pairs matching the colour pattern Blue / Light Blue, Orange / White, Green /Light Green, Brown / Light Brown, as for pair insulation.
• 24 AWG;
• Composed of bare copper conductors, insulated in high density thermoplastic polyethylene.
INSTALLATION
Environment:
Indoor - non-aggressive (7 standard colors : Blue, Red, Grey, Black, White,
Yellow, Green e other colours on request)
Indoor/Outdoor- non-aggressive (only the CMX black shealth)
PACKAGING
• Box of 100m (CMX)

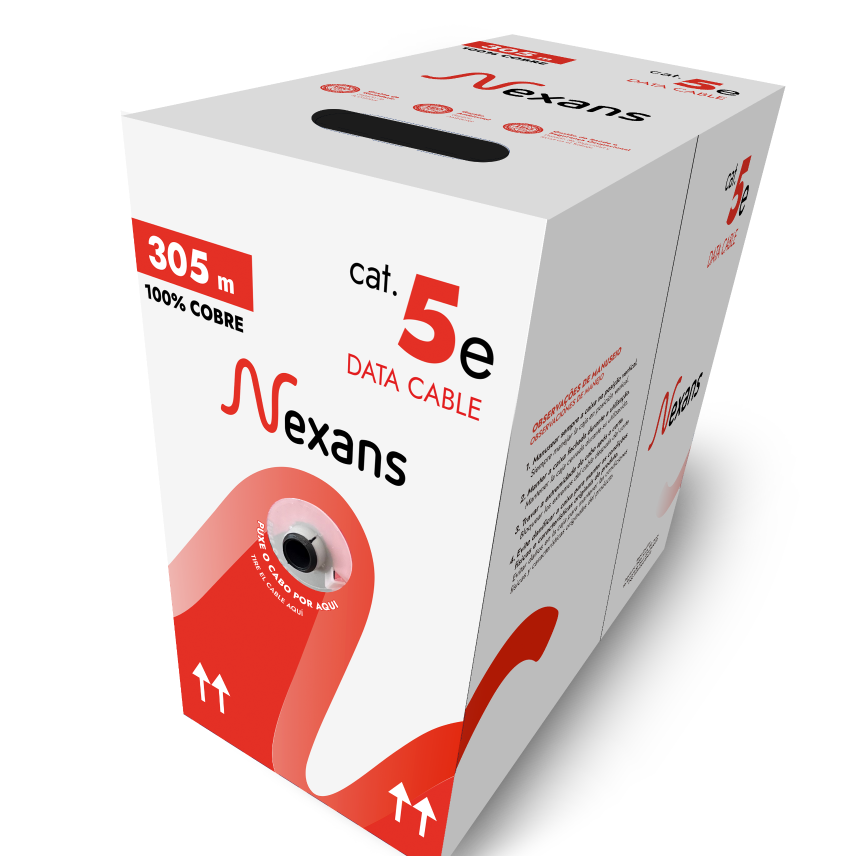

• Box of 305m (CMX / CM / LSZH)
