Nexans CAT6A

$0.00

F/UTP Cat.6A Cable Ideal cable for 10GBase-T application Full compliance to latest standards for Category 6A and Class EA Guaranteed performance up to 500MHz Global or individual pair shielding offering Alien Crosstalk immunity

Product:

  • LM CAT6A F1/UTP LSZH 4P 23AWG CZ 500m

F/UTP Cat.6A Cable Ideal cable for 10GBase-T application Full compliance to latest standards for Category 6A and Class EA Guaranteed performance up to 500MHz Global or individual pair shielding offering Alien Crosstalk immunity

Product:

  • LM CAT6A F1/UTP LSZH 4P 23AWG CZ 500m

Product

  • ANSI/TIA-568-C.2; EN 50173-1; EN 50288-4-1; IEC 61156-5

International

ISO/IEC 11801

The CAT6A cable line is the 500MHz bandwidth offering for EA-class applications up to 10Gbits. The range has been designed specifically to support the higher frequencies required for 10 Gigabit Ethernet, while maintaining full backwards compatibility with today's needs. All CAT6A cables are shielded, in order to ensure immunity to Alien Crosstalk and other external interferences.

APPLICATION

  • 10Base-T Ethernet

  • 100Base-TX Fast Ethernet

  • 1000Base-TX Gigabit Ethernet

  • 10GBase-T 10 Gigabit Ethernet IEEE 802.3

  • 155 Mbit ATM

  • 1.2 Gbit ATM

  • Future Cat 6A and Class EA applications

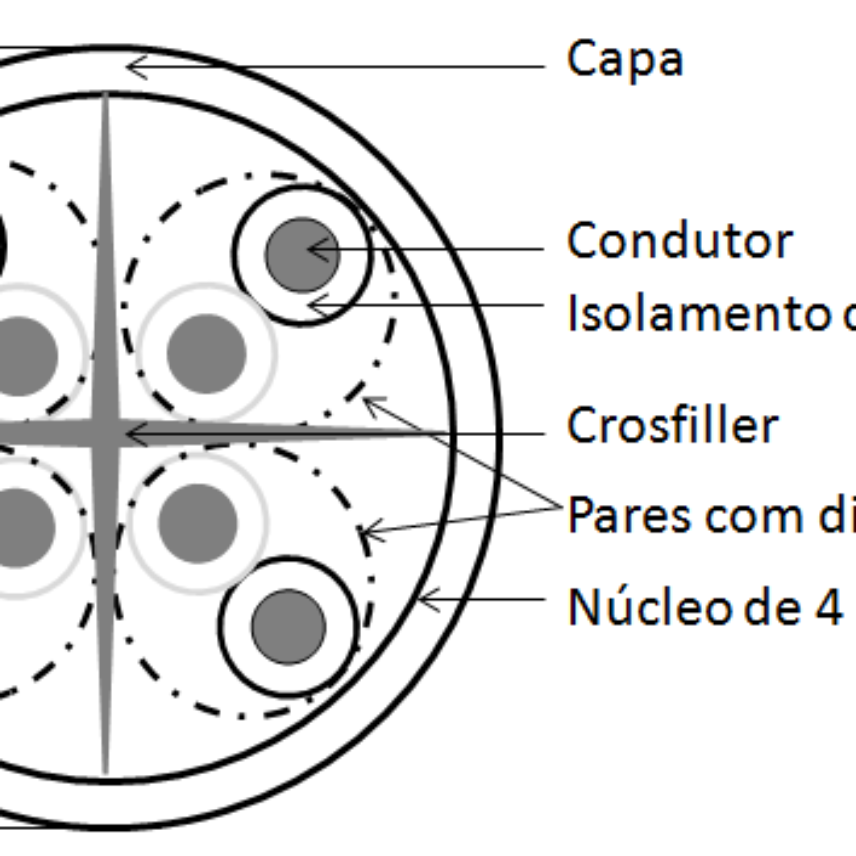

CONSTRUCTION

  • Category 6A F/UTP;

  • LSZH cable sheath;

  • 23 AWG;

  • Composed of bare copper conductors, insulated in high density thermoplastic polyethylene;

  • Sheet with aluminum side facing outwards providing easy mass contact with the connector Available in grey;

  • Cable with crossfiller that maintains the equidistance of the pairs and reduces the loss of performance in curves;
