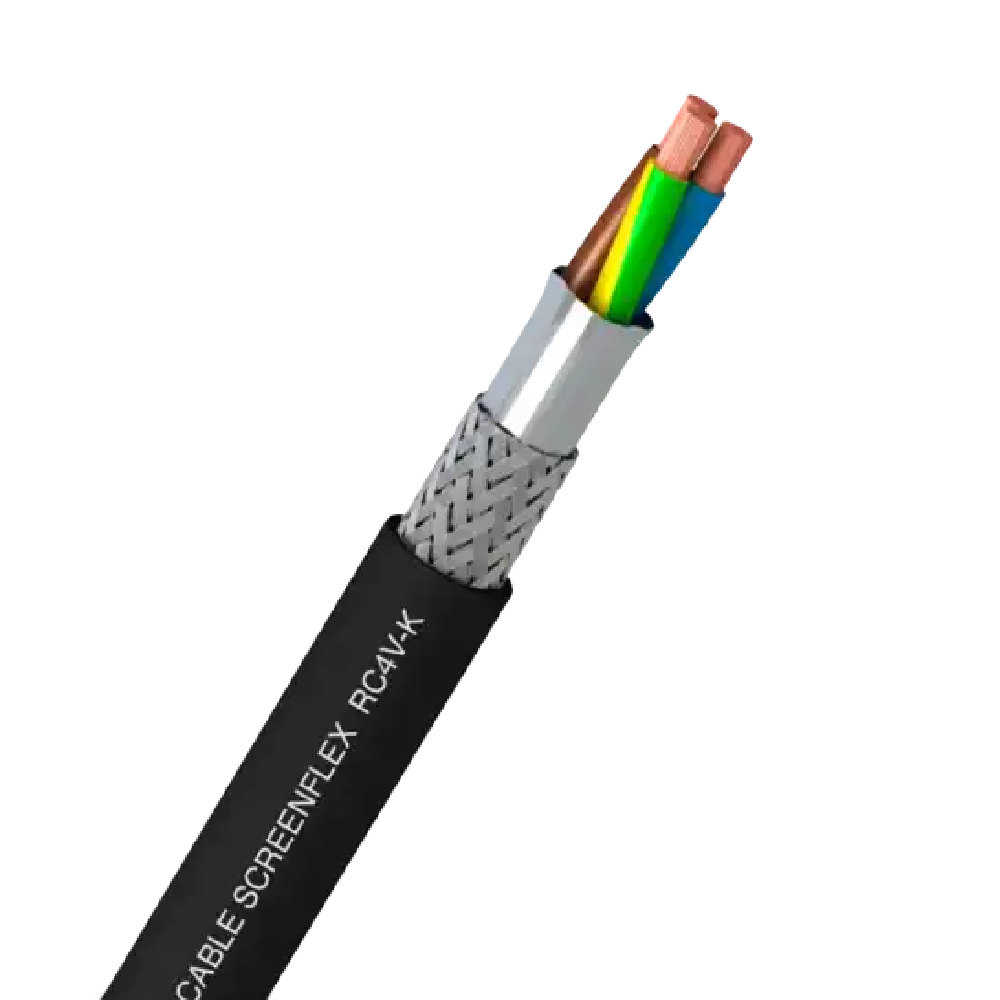

SCREENFLEX® RC4V-K

$0.00

Industrial flexible and screened power cable.

ACCORDING TO: IEC 60502-1

Screenflex® RC4V-K is a screened flexible cable, particularly suitable on difficult tracks.

  • Screen 100% shielding coverage

  • For VFD applications

  • EMI protection

Industrial flexible and screened power cable.

ACCORDING TO: IEC 60502-1

Screenflex® RC4V-K is a screened flexible cable, particularly suitable on difficult tracks.

  • Screen 100% shielding coverage

  • For VFD applications

  • EMI protection

Application

creenflex® RC4V-K is a screened flexible cable. Suitable for instrumentation and control, signalling and measurements in areas with a significant level of interference due to electric or electromagnetic fields. The screen formed by the braid of threads and the overlapping aluminium-polyester tape protects against possible electromagnetic interference caused by nearby circuits. Its flexibility makes it particularly suitable on difficult tracks.

Characteristics

  • Copper, class 5 (flexible).

    • 0,6/1 kV

    • Maximum conductor temperature: 90ºC.

    • Maximum short-circuit temperature: 250ºC (max. 5 s).

    • Minimum service temperature: -40ºC (static, with protection).

    • Minimum installation and handling temperature: 0°C (on thesurface of the cable).

    • Flame non-propagation according to EN 60332-1 / IEC 60332-1.

    • Reaction to fire CPR: Eca according to EN 50575.

    • Reduced halogen emission. Chlorine < 15%.

    • Minimum bending radius during installation: 5x cable diameter.

    • Impact resistance: AG2 Medium severity.

    • Chemical & Oil resistance: Good.

    • UV Resistant according to UNE 211605.

    • Open Air.

    • Buried.

    • In conduit.

    • In tray

Typical applications of

SCREENFLEX® RC4V-K

  • SCREENFLEX® RC4V-K cable is suitable for fixed installations with complex layouts where flexible cables are required.

  • CREENFLEX® RC4V-K delivers robust EMI/RFI shielding and mechanical resilience, ensuring signal integrity in electrically noisy and physically demanding industrial environments.
