Category 6 Cables

$0.00

CommScope Category 6 (Cat 6) cables are an integral part of structured cabling systems, ensuring reliable data transmission in various applications. We offer a comprehensive range of Cat 6 cables designed to meet the demands of modern networking environments. These cables adhere to stringent industry standards, making them ideal for both residential and commercial installations.

Key Features & Specifications

Performance Excellence: Provide exceptional performance, exceeding channel specifications. They offer 1dB headroom for PSNEXT (Power Sum Near-End Crosstalk), 1dB headroom for PSELFEXT (Power Sum Equal-Level Far-End Crosstalk), and improved insertion loss.
Variety of Types: Whether you need F/FTP (Foiled/Foiled Twisted Pair), F/UTP (Foiled/Unshielded Twisted Pair), or U/UTP (Unshielded Twisted Pair) cables, CommScope has you covered.
Lead-Free Jacketing: Feature environmentally friendly, lead-free jacketing materials.
Packaging Options: Available on reels or reel-in-a-box, with standard put-ups of 1000 ft splice-free lengths.

CommScope Cat 6 cables combine robust construction, performance excellence, and versatility, making them a trusted choice for modern networking solutions.

Products

1073A

Product Number 1073A
ANSI/TIA Category 6
Cable Component Type Horizontal
Cable Type U/UTP (unshielded)
Conductor Type, singles Solid
Conductors, quantity 8
Pairs, quantity 4
Separator Type Isolator | Tape separator
Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E
Diameter Over Jacket, nominal 6.731 mm | 0.265 in
Jacket Thickness 0.635 mm | 0.025 in
Conductor Gauge, singles 21 AWG
760258509 | 1073A BLU C6 4/21 U/UTP R1000
- GigaREACH™ XL "EXTENDED DISTANCE" 1073A Category 6 U/UTP Cable, CMR Riser, blue jacket, 4 pair count, 1000 ft (305 m) length, reel
760258510 | 1073A WHT C6 4/21 U/UTP R1000
- GigaREACH™ XL "EXTENDED DISTANCE" 1073A Category 6 U/UTP Cable, CMR Riser, white jacket, 4 pair count, 1000 ft (305 m) length, reel
760259248 | 1073A BLU C6 4/21 U/UTP R3000
- GigaREACH™ XL "Extended Distance" 1073A Category 6 U/UTP Cable, CMR Riser, blue jacket, 4 pair count, 3000 ft (915 m) length, reel
760259249 | 1073A WHT C6 4/21 U/UTP R3000
- GigaREACH™ XL "Extended Distance" 1073A Category 6 U/UTP Cable, CMR Riser, white jacket, 4 pair count, 3000 ft (915 m) length, reel

2073A

Product Number 2073A
ANSI/TIA Category 6
Cable Component Type Horizontal
Cable Type U/UTP (unshielded)
Conductor Type, singles Solid
Conductors, quantity 8
Pairs, quantity 4
Separator Type Isolator | Tape separator
Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E
Diameter Over Jacket, nominal 6.706 mm | 0.264 in
Jacket Thickness 0.635 mm | 0.025 in
Conductor Gauge, singles 21 AWG
760258513 | 2073A BLU C6 4/21 U/UTP R1000
- GigaREACH™ XL 2073A Category 6 U/UTP Cable, CMP Plenum, blue jacket, 4 pair count, 1000 ft (305 m) length, reel
760258514 | 2073A WHT C6 4/21 U/UTP R1000
- GigaREACH™ XL 2073A Category 6 U/UTP Cable, CMP Plenum, white jacket, 4 pair count, 1000 ft (305 m) length, reel
760259925 | 2073A BLU C6 4/21 U/UTP R3000
- GigaREACH™ XL 2073A Category 6 U/UTP Cable, CMP Plenum, blue jacket, 4 pair count, 3000 ft (915 m) length, reel
760259926 | 2073A WHT C6 4/21 U/UTP R3000
- GigaREACH™ XL 2073A Category 6 U/UTP Cable, CMP Plenum, white jacket, 4 pair count, 3000 ft (915 m) length, reel

3073A

ANSI/TIA Category 6
Cable Component Type Horizontal
Cable Type U/UTP (unshielded)
Conductor Type, singles Solid
Conductors, quantity 8
Pairs, quantity 4
Separator Type Isolator | Tape separator
Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E
Diameter Over Jacket, nominal 6.782 mm | 0.267 in
Jacket Thickness 0.635 mm | 0.025 in
Conductor Gauge, singles 21 AWG
760258511 | 3073A BLU C6 4/21 U/UTP R1000
- GigaREACH™ XL 3073A Category 6 U/UTP Cable, low smoke zero halogen, blue jacket, 4 pair count, 1000 ft (305 m) length, reel
760258512 | 3073A WHT C6 4/21 U/UTP R1000
- GigaREACH™ XL 3073A Category 6 U/UTP Cable, low smoke zero halogen, white jacket, 4 pair count, 1000 ft (305 m) length, reel
760259259 | 3073A BLU C6 4/21 U/UTP R3000
- GigaREACH™ XL 3073A Category 6 U/UTP Cable, low smoke zero halogen, blue jacket, 4 pair count, 3000ft (915 m) length, reel
760259260 | 3073A WHT C6 4/21 U/UTP R3000
- GigaREACH™ XL 3073A Category 6 U/UTP Cable, low smoke zero halogen, white jacket, 4 pair count, 3000 ft (915 m) length, reel
760259357 | 3073A-B BLU C6 4/21 U/UTP R1000
- GigaREACH™ XL 3073A-C Category 6 U/UTP Cable, low smoke zero halogen, blue jacket, 4 pair count, 1000 ft (305 m) length, reel
760259358 | 3073A-B WHT C6 4/21 U/UTP R1000
- GigaREACH™ XL 3073A-B Category 6 U/UTP Cable, low smoke zero halogen, white jacket, 4 pair count, 1000 ft (305 m) length, reel
760259359 | 3073A-B BLU C6 4/21 U/UTP R3000
- GigaREACH™ XL 3073A-B Category 6 U/UTP Cable, low smoke zero halogen, blue jacket, 4 pair coun
760259360 | 3073A-B WHT C6 4/21 U/UTP R3000
- GigaREACH™ XL 3073A-B Category 6 U/UTP Cable, low smoke zero halogen, white jacket, 4 pair count, 3000 ft (915 m) length, reelt, 3000 ft (915 m) length, reel

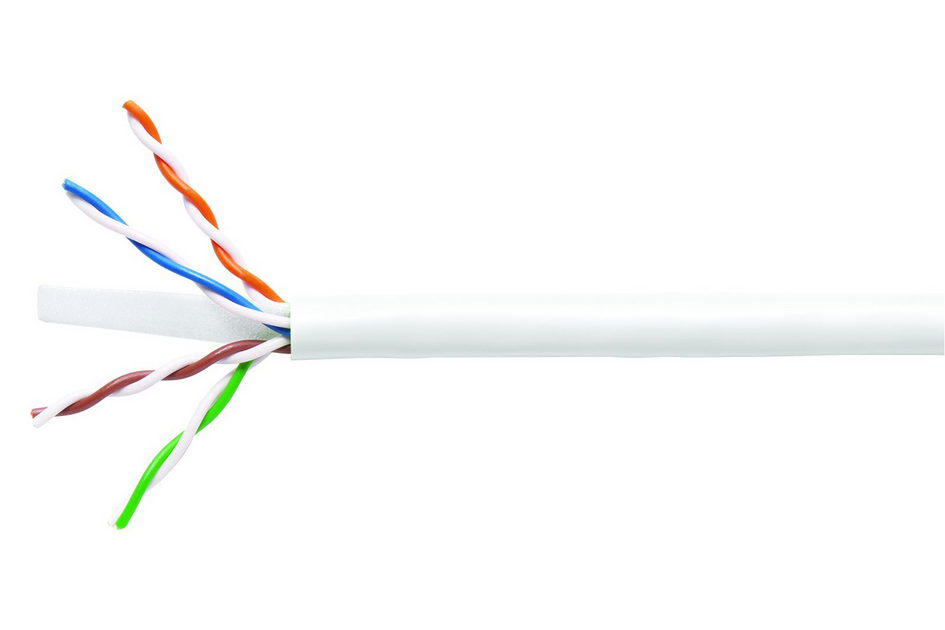

1071E

Product Number 1061L
ANSI/TIA Category 5e
Cable Component Type Horizontal
Cable Type U/UTP (unshielded)
Conductor Type, singles Solid
Conductors, quantity 8
Pairs, quantity 4
Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D
Diameter Over Jacket, nominal 5.207 mm | 0.205 in
Jacket Thickness 0.508 mm | 0.02 in
Conductor Gauge, singles 24 AWG
700211923 | 1071E SLT C6 4/23 U/UTP R1000
- GigaSPEED XL® 1071E ETL Verified Category 6 U/UTP Cable, non-plenum, slate jacket, 4 pair count, 1000 ft (305 m) length, reel
700211931 | 1071E SLT C6 4/23 U/UTP W1000
- GigaSPEED XL® 1071E ETL Verified Category 6 U/UTP Cable, non-plenum, slate jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box
700211931 | 1071E SLT C6 4/23 U/UTP W1000
- GigaSPEED XL® 1071E ETL Verified Category 6 U/UTP Cable, non-plenum, slate jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box
700211964 | 1071E LBL C6 4/23 U/UTP W1000
- GigaSPEED XL® 1071E ETL Verified Category 6 U/UTP Cable, non-plenum, light blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box
700211980 | 1071E YEL C6 4/23 U/UTP R1000
- GigaSPEED XL® 1071E ETL Verified Category 6 U/UTP Cable, non-plenum, yellow jacket, 4 pair count, 1000 ft (305 m) length, reel
700211998 | 1071E YEL C6 4/23 U/UTP W1000
- GigaSPEED XL® 1071E ETL Verified Category 6 U/UTP Cable, non-plenum, yellow jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box
700212012 | 1071E RED C6 4/23 U/UTP R1000
- GigaSPEED XL® 1071E ETL Verified Category 6 U/UTP Cable, non-plenum, red jacket, 4 pair count, 1000 ft (305 m) length, reel
700212020 | 1071E RED C6 4/23 U/UTP W1000
- GigaSPEED XL® 1071E ETL Verified Category 6 U/UTP Cable, non-plenum, red jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

1071E-UTG

ANSI/TIA Category 6
Cable Component Type Horizontal
Cable Type U/UTP (unshielded)
Conductor Type, singles Solid
Conductors, quantity 8
Pairs, quantity 4
Separator Type Bisector
Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E
Diameter Over Insulated Conductor 1.029 mm | 0.0405 in
Diameter Over Jacket, nominal 5.893 mm | 0.232 in
Jacket Thickness 0.559 mm | 0.022 in
Conductor Gauge, singles 23 AWG
UTG760250764 | 1071E-UTG SLT C6 4/23 U/UTP W1000
- GigaSPEED XL® 1071E-UTG ETL Verified Category 6 U/UTP Cable, non-plenum, slate jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box
UTG760250765 | 1071E-UTG LBL C6 4/23 U/UTP W1000
- GigaSPEED XL® 1071E-UTG ETL Verified Category 6 U/UTP Cable, non-plenum, light blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box
UTG760250766 | 1071E-UTG BLU C6 4/23 U/UTP W1000
- GigaSPEED XL® 1071E-UTG ETL Verified Category 6 U/UTP Cable, non-plenum, blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box
UTG760250767 | 1071E-UTG WHT C6 4/23 U/UTP W1000
- GigaSPEED XL® 1071E-UTG ETL Verified Category 6 U/UTP Cable, non-plenum, white jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box
UTG760250768 | 1071E-UTG SGR C6 4/23 U/UTP W1000
- GigaSPEED XL® 1071E-UTG ETL Verified Category 6 U/UTP Cable, non-plenum, spring green jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

2071E

Product Number 3061A
ANSI/TIA Category 5e
Cable Component Type Horizontal
Cable Type U/UTP (unshielded)
Conductor Type, singles Solid
Conductors, quantity 8
Pairs, quantity 4
Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D
Diameter Over Jacket, nominal 5.207 mm | 0.205 in
Jacket Thickness 0.508 mm | 0.02 in
Conductor Gauge, singles 24 AWG
700208093 | 2071E BLU C6 4/23 U/UTP W1000
- SYSTIMAX GigaSPEED XL® 2071E ETL Verified Category 6 U/UTP Cable, plenum, blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box
700208101 | 2071E WHT C6 4/23 U/UTP W1000
- GigaSPEED XL® 2071E ETL Verified Category 6 U/UTP Cable, plenum, white jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box
700210008 | 2071E ORG C6 4/23 U/UTP R1000
- GigaSPEED XL® 2071E ETL Verified Category 6 U/UTP Cable, plenum, orange jacket, 4 pair count, 1000 ft (305 m) length, reel
700210024 | 2071E ORG C6 4/23 U/UTP W1000
- GigaSPEED XL® 2071E ETL Verified Category 6 U/UTP Cable, plenum, orange jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box
700210032 | 2071E WHT C6 4/23 U/UTP R1000
- GigaSPEED XL® 2071E ETL Verified Category 6 U/UTP Cable, plenum, white jacket, 4 pair count, 1000 ft (305 m) length, reel
700210057 | 2071E WHT C6 4/23 U/UTP R3000
- GigaSPEED XL® 2071E ETL Verified Category 6 U/UTP Cable, plenum, white jacket, 4 pair count, 3000 ft (914 m) length, reel
700210081 | 2071E BLU C6 4/23 U/UTP R1000
- GigaSPEED XL® 2071E ETL Verified Category 6 U/UTP Cable, plenum, blue jacket, 4 pair count, 1000 ft (305 m) length, reel

2071E-UTG

ANSI/TIA Category 6
Cable Component Type Horizontal
Cable Type U/UTP (unshielded)
Conductor Type, singles Solid
Conductors, quantity 8
Pairs, quantity 4
Separator Type Bisector
Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E
Diameter Over Insulated Conductor 1.016 mm | 0.04 in
Diameter Over Jacket, nominal 5.74 mm | 0.226 in
Jacket Thickness 0.559 mm | 0.022 in
Conductor Gauge, singles 23 AWG
UTG760245081 | 2071E-UTG BLK C6 4/23 U/UTP R1000
- GigaSPEED XL® 2071E-UTG ETL Verified Category 6 U/UTP Cable, plenum, black jacket, 4 pair count, 1000 ft (305 m) length, reel
UTG760245082 | 2071E-UTG BLK C6 4/23 U/UTP W1000
- GigaSPEED XL® 2071E-UTG ETL Verified Category 6 U/UTP Cable, plenum, black jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box
UTG760245083 | 2071E-UTG BLU C6 4/23 U/UTP R1000
- GigaSPEED XL® 2071E-UTG ETL Verified Category 6 U/UTP Cable, plenum, blue jacket, 4 pair count, 1000 ft (305 m) length, reel
UTG760245084 | 2071E-UTG BLU C6 4/23 U/UTP R3000
- GigaSPEED XL® 2071E-UTG ETL Verified Category 6 U/UTP Cable, plenum, blue jacket, 4 pair count, 3000 ft (914 m) length, reel
UTG760245085 | 2071E-UTG BLU C6 4/23 U/UTP W1000
- GigaSPEED XL® 2071E-UTG ETL Verified Category 6 U/UTP Cable, plenum, blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

3071E

ANSI/TIA Category 6
Cable Component Type Horizontal
Cable Type U/UTP (unshielded)
Conductor Type, singles Solid
Conductors, quantity 8
Pairs, quantity 4
Separator Type Bisector
Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E
Diameter Over Insulated Conductor 1.041 mm | 0.041 in
Diameter Over Jacket, nominal 5.918 mm | 0.233 in
Jacket Thickness 0.508 mm | 0.02 in
Conductor Gauge, singles 23 AWG
700216419 | 3071E SLT C6 4/23 U/UTP R1000
- GigaSPEED XL® 3071E ETL Verified Category 6 U/UTP Cable, low smoke zero halogen, slate jacket, 4 pair count, 1000 ft (305 m) length, reel
700216443 | 3071E WHT C6 4/23 U/UTP R1000
- GigaSPEED XL® 3071 ETL Verified Category 6 U/UTP Cable, low smoke zero halogen, white jacket, 4 pair count, 1000 ft (305 m) length, reel
700216450 | 3071E WHT C6 4/23 U/UTP W1000
- GigaSPEED XL® 3071 ETL Verified Category 6 U/UTP Cable, low smoke zero halogen, white jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box
700216484 | 3071E BLU C6 4/23 U/UTP R1000
- GigaSPEED XL® 3071 ETL Verified Category 6 U/UTP Cable, low smoke zero halogen, blue jacket, 4 pair count, 1000 ft (305 m) length, reel
700216492 | 3071E BLU C6 4/23 U/UTP W1000
- GigaSPEED XL® 3071 ETL Verified Category 6 U/UTP Cable, low smoke zero halogen, blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

3071E-UTG

ANSI/TIA Category 6
Cable Component Type Horizontal
Cable Type U/UTP (unshielded)
Conductor Type, singles Solid
Conductors, quantity 8
Pairs, quantity 4
Separator Type Bisector
Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E
Diameter Over Insulated Conductor 1.041 mm | 0.041 in
Diameter Over Jacket, nominal 5.918 mm | 0.233 in
Jacket Thickness 0.508 mm | 0.02 in
Conductor Gauge, singles 23 AWG
UTG760250747 | 3071E-UTG WHT C6 4/23 U/UTP W1000
- GigaSPEED XL® 3071-UTG ETL Verified Category 6 U/UTP Cable, low smoke zero halogen, white jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box
UTG760250748 | 3071E-UTG SLT C6 4/23 U/UTP W1000
- GigaSPEED XL® 3071-UTG ETL Verified Category 6 U/UTP Cable, low smoke zero halogen, slate jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box
UTG760250749 | 3071E-UTG BLU C6 4/23 U/UTP W1000
- GigaSPEED XL® 3071-UTG ETL Verified Category 6 U/UTP Cable, low smoke zero halogen, blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box
UTG760250750 | 3071E-UTG YEL C6 4/23 U/UTP W1000
- GigaSPEED XL® 3071-UTG ETL Verified Category 6 U/UTP Cable, low smoke zero halogen, yellow jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

3081B

ANSI/TIA Category 6
Cable Component Type Horizontal
Cable Type U/UTP (unshielded)
Conductor Type, singles Solid
Conductors, quantity 8
Pairs, quantity 4
Separator Type Bisector
Supported Application Fully Supports 2.5/5GBASE-T applications in a 4 connector channel @ 100 meters
Transmission Standards 10/100/1000/2.5G/5GBASE-T | ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E
Diameter Over Insulated Conductor 1.041 mm | 0.041 in
Diameter Over Jacket, nominal 5.969 mm | 0.235 in
Jacket Thickness 0.508 mm | 0.02 in
Conductor Gauge, singles 23 AWG
760258447 | 3081B BLU C6 4/23 U/UTP W1000
- GigaSPEED XL5™ 3081B ETL Verified Category 6 U/UTP Cable, low smoke zero halogen, blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box
760258448 | 3081B SLT C6 4/23 U/UTP W1000
- GigaSPEED XL5™ 3081B ETL Verified Category 6 U/UTP Cable, low smoke zero halogen, slate jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box
760258449 | 3081B WHT C6 4/23 U/UTP W1000
- GigaSPEED XL5™ 3081B ETL Verified Category 6 U/UTP Cable, low smoke zero halogen, white jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

1571A

ANSI/TIA Category 6
Cable Component Type Horizontal
Cable Type U/UTP (unshielded)
Conductor Type, singles Solid
Conductors, quantity 8
Pairs, quantity 4
Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E
Diameter Over Jacket, nominal 6.604 mm | 0.26 in
Jacket Thickness 0.635 mm | 0.025 in
Conductor Gauge, singles 24 AWG
760008888 | 1571A BLK 4/24 R1000
- GigaSPEED XL® 1571 Category 6 U/UTP Cable, outdoor, black jacket, 4 pair count, 1000 ft (305 m) length, reel
760090043 | 1571A BK 4/24 R3000
- GigaSPEED XL® 1571 Category 6 U/UTP Cable, outdoor, black jacket, 4 pair count, 3000 ft (914 m) length, reel

1572A

ANSI/TIA Category 6
Cable Component Type Horizontal
Cable Type F/UTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Pairs, quantity 4
Separator Type Isolator
Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E
Diameter Over Jacket, nominal 8.382 mm | 0.33 in
Inner Jacket Thickness 0.457 mm | 0.018 in
Jacket Thickness 0.686 mm | 0.027 in
Conductor Gauge, singles 23 AWG
760170886 | 1572A BK 4/23 R1000
1572A Category 6 F/UTP filled cable, outdoor, black jacket, aluminum tape shield, inner jacket, 4 pair count, 1000 ft (305 m) length, reel
