TOPFLEX® V-K H05V-K & H07V-K

$0.00

Cable for electric cabinet wiring and domestic use.

ACCORDING TO: EN 50525-2-31., IEC 60227-3.

TOPFLEX® H05V-K & H07V-K is a flexible cable for complex layouts.

  • Enhanced flexibility and ease of Installation

  • Electrical panel wiring

  • 300/500V 450/750V

Cable for electric cabinet wiring and domestic use.

ACCORDING TO: EN 50525-2-31., IEC 60227-3.

TOPFLEX® H05V-K & H07V-K is a flexible cable for complex layouts.

  • Enhanced flexibility and ease of Installation

  • Electrical panel wiring

  • 300/500V 450/750V

Application

TOPFLEX® H05V-K & H07V-K cable has been specially designed for installations that require a flexible cable due to the complex nature of their layout. This cable is specially suitable for domestic wiring. It may also be used for equipment wiring, distributors, cabinets and lighting. It is also recommended for installation under false ceilings. Cables with cross section up to 1 mm2 are especially suited for signalling and monitoring installations.

Characteristics

  • Copper, class 5 (flexible).

    • 300/500V (ES05Z1-K/H05Z-K up to 1mm2)

    • 450/750 V (H07Z-K from 1,5mm2)

    • Maximum conductor temperature: 70ºC.

    • Maximum short-circuit temperature: 160ºC (max. 5 s).

    • Minimum installation and handling temperature: 5ºC.

    • Minimum service temperature: -40ºC (fixed and protected installations).

  • Flame non-propagation according to EN 60332-1 and IEC 60332-1.Reaction to fire CPR: Eca according to EN 50575.Reduced halogen emission. Chlorine <15%.

  • Minimum bending radius: x5 cable diameter.

  • Chemical & Oil resistance: Acceptable.

  • In conduit.

  • Meter by meter marking (from 10 mm2 onwards).

Typical applications of

TOPFLEX® V-K H05V-K & H07V-K

  • TOPFLEX® H07V-K cables are ideal for lighting systems, providing superior flexibility and durability for seamless installation in residential and commercial applications.

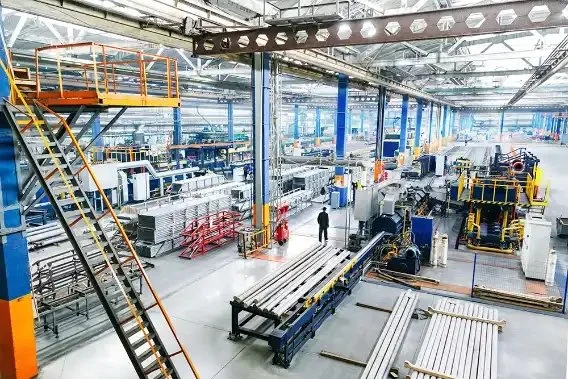

  • TOPFLEX® Tri-rated H07V2-K cables excel in industrial facilities, combining high flexibility and compact routing for reliable power distribution. They meet UL, CSA, BE and UNE specifications.

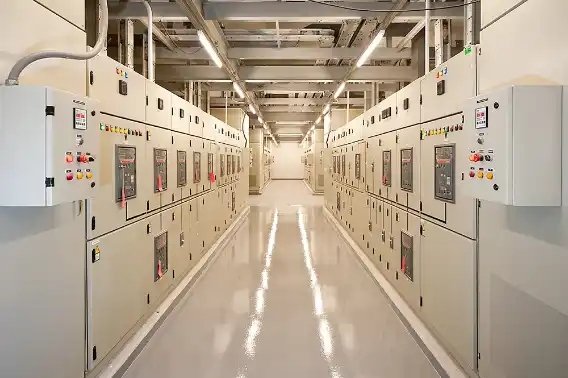

  • TOPFLEX® H07V-K cables excel in switchgear, combining high flexibility, compact routing, and strict safety compliance for reliable power distribution.
