Synology Enterprise Series 2.5" SATA SSD

$0.00

Model: SAT5210-7000G, SAT5220 1920GB, SAT5220 960GB, SAT5221-1920G, SAT5221-3840G, SAT5221-480G, SAT5210 480 GB, SAT5210-1920G

Enterprise solid-state drives

  • High sustained performance

  • Enterprise-grade endurance and reliability

  • One-click drive firmware updates through DSM

Synology SAT5200 Series SATA SSDs offer stable I/O performance while reducing the latency of critical services and applications. They are built to handle mixed and intensive 24/7 workloads without compromising on endurance, providing a streamlined storage experience on Synology systems with minimal service disruptions.

Model:

Model: SAT5210-7000G, SAT5220 1920GB, SAT5220 960GB, SAT5221-1920G, SAT5221-3840G, SAT5221-480G, SAT5210 480 GB, SAT5210-1920G

Enterprise solid-state drives

  • High sustained performance

  • Enterprise-grade endurance and reliability

  • One-click drive firmware updates through DSM

Synology SAT5200 Series SATA SSDs offer stable I/O performance while reducing the latency of critical services and applications. They are built to handle mixed and intensive 24/7 workloads without compromising on endurance, providing a streamlined storage experience on Synology systems with minimal service disruptions.

Enterprise solid-state drives

Synology SAT5200 Series SATA SSDs offer stable I/O performance while reducing the latency of critical services and applications. They are built to handle mixed and intensive 24/7 workloads without compromising on endurance, providing a streamlined storage experience on Synology systems with minimal service disruptions.

Performance

Up to 67,000 4K random write IOPS

Endurance

Up to 10,000 TBW for 24/7 enterprise workloads

Analytics

Actionable insight for optimal performance and longevity

Updates

One-click drive firmware updates through DSM

Specification:

Enterprise Series 2.5" SATA SSD

SSD Hardware Specifications Table Slider
Hardware Specifications

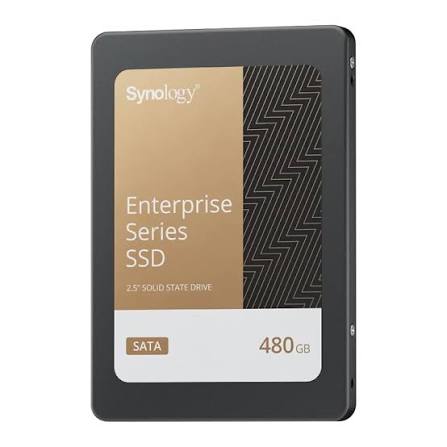

SAT5221-480G SAT5221-480G
SAT5221-960G SAT5221-960G
SAT5221-1920G SAT5221-1920G
SAT5221-3840G SAT5221-3840G

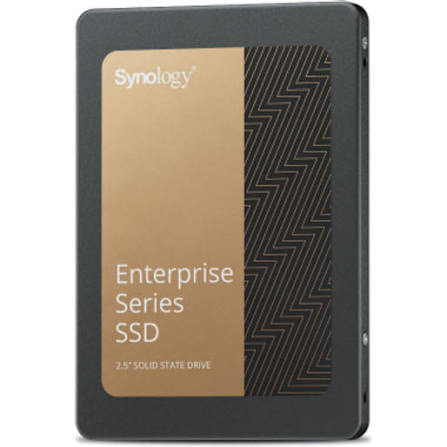

SAT5210-7000G SAT5210-7000G
General Capacity 480 GB 960 GB 1.92 TB 3.84 TB 7 TB
Form Factor 2.5" 7mm 2.5" 7mm 2.5" 7mm 2.5" 7mm 2.5" 7mm
Interface SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s
Performance Sustained Sequential read (128 KB, QD32) 500 MB/s 500 MB/s 500 MB/s 500 MB/s 530 MB/s
Sustained Sequential write (128 KB, QD32) 500 MB/s 500 MB/s 500 MB/s 500 MB/s 500 MB/s
Sustained Random Read (4KB, QD32) 90,000 IOPS 90,000 IOPS 90,000 IOPS 90,000 IOPS 97,000 IOPS
Sustained Random Write (4KB, QD32) 30,000 IOPS 30,000 IOPS 30,000 IOPS 30,000 IOPS 50,000 IOPS
Notes
  • Performance specifications represent single-unit SSD performance results obtained from Synology's testing environment; actual performance may vary according to the host system's hardware and software setup.
  • The specifications have undergone thorough review and verification by Synology to ensure they meet the performance demands and compatibility standard of each Synology system while providing high reliability.
  • All performance measurements refer to sustained performance achieved in a steady state, as defined by test specifications in accordance with the Storage Networking Industry Association (SNIA).
  • Synology reserves the right to replace SSD modules with components from different suppliers based on product life cycle status and supply availability. All replacements are rigorously tested to the same standards to ensure equivalent compatibility, stability, and performance.
Endurance and Reliability Terabytes Written (TBW)* >900 TB >1,700 TB >3,500 TB >7,000 TB >10,000 TB
Power Loss Protection ✓ ✓ ✓ ✓ ✓
Warranty* 5 Years 5 Years 5 Years 5 Years 5 Years
