Handle Data Center Workloads with Proven Technology
The combination of field-proven hardware with the latest innovative technologies delivers the performance, capacity and reliability needed to handle high-intensity workloads in 24×7 multi-user data center environments.
Grow Capacity while Lowering Costs
Western Digital’s energy-assisted perpendicular magnetic recording (ePMR) technology enables customers to grow capacities while lowering TCO (total cost of ownership) including both $/TB and OpEx.
Rapid qualification and integration
Leveraging hardware designs from generations of highly successful products ensures easy qualification, seamless integration and rapid adoption by existing customers.
Reliability You Can Trust
Built off the same platform that is deployed in thousands of data centers around the world, these drives deliver superior dependability and field-proven reliability for hassle free data storage.
Increase Density with Low Power
Western Digital’s Triple-Stage Actuator (TSA) increases tracks-per-inch (TPI) while providing greater control over the actuator arm, enabling the highest capacities with low power.
Meet Eco Goals with Helium
The stable internal environment created by our HelioSeal® technology enables this high-capacity helium drive to deliver one of the lowest power profiles in the industry.
Protected Against Vibration & Shock
Disturbances caused by increased vibration are anticipated and proactively counteracted by Rotation Vibration (RV) sensors and subtle shock events are automatically detected by multi-axis shock sensors and compensated for with dynamic fly height technology to maintain performance and protect data.
Trusted Reliability, Quality and World-Class Support
As an industry-leading hard drive manufacturer, Western Digital stands behind their Ultrastar hard drives with the assurance of a projected 2.5M-hour MTBF2 rating, a 5-year limited warranty3 and world-class support services to help create environments for data to thrive.
Available Models
-

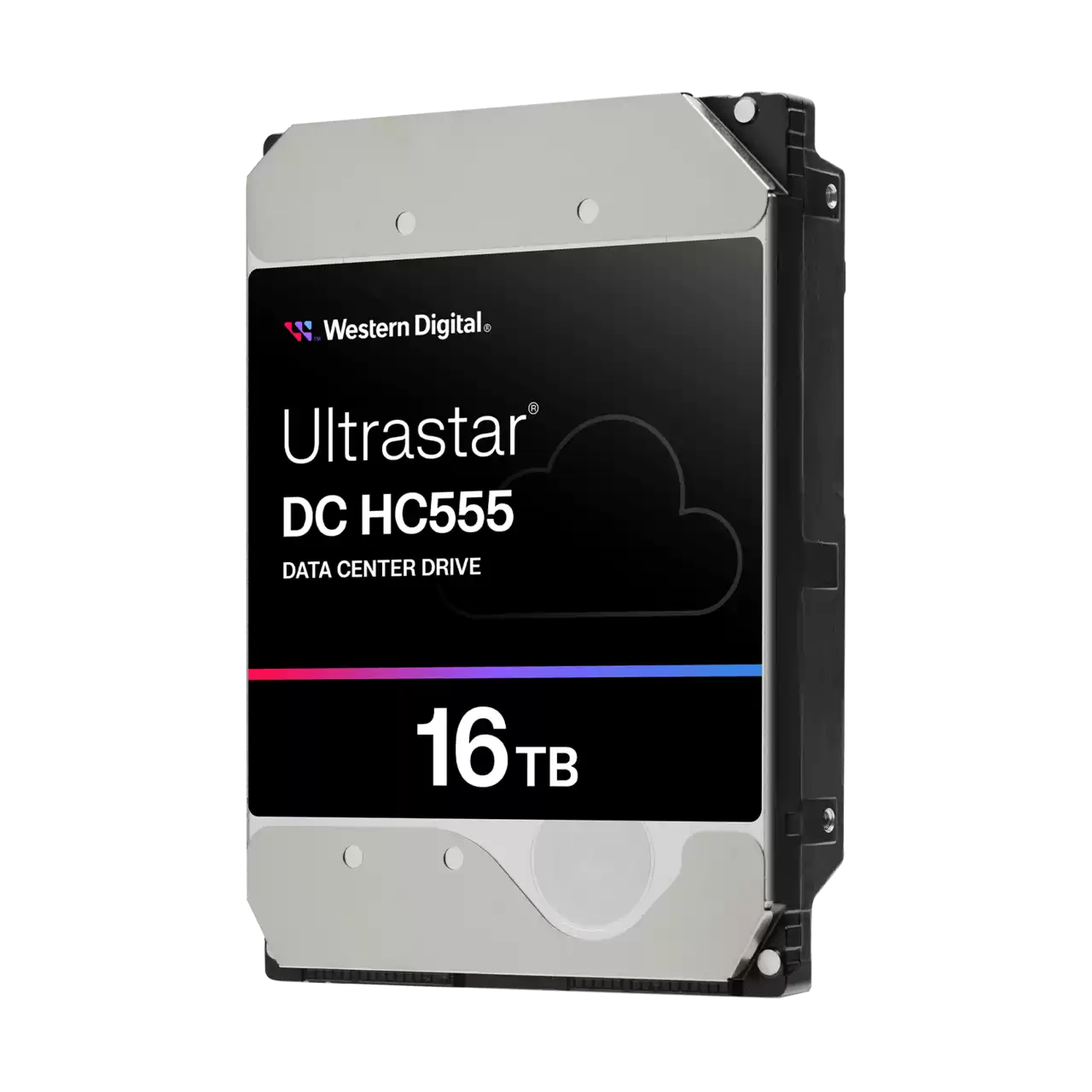

Key Specifications & Features:
Capacity: 16TB
Form Factor: 3.5-inch
Interface: SATA 6Gb/s
Rotational Speed: 7200 RPM
Cache: 512 MB
Model Number: WUH722016CLE6L4
Part Number: 0B48722
Technology: Helium-sealed, EAMR (Energy-Assisted Magnetic Recording), 512e format
Workload/Reliability: Designed for high-endurance, 24x7 enterprise environments
-

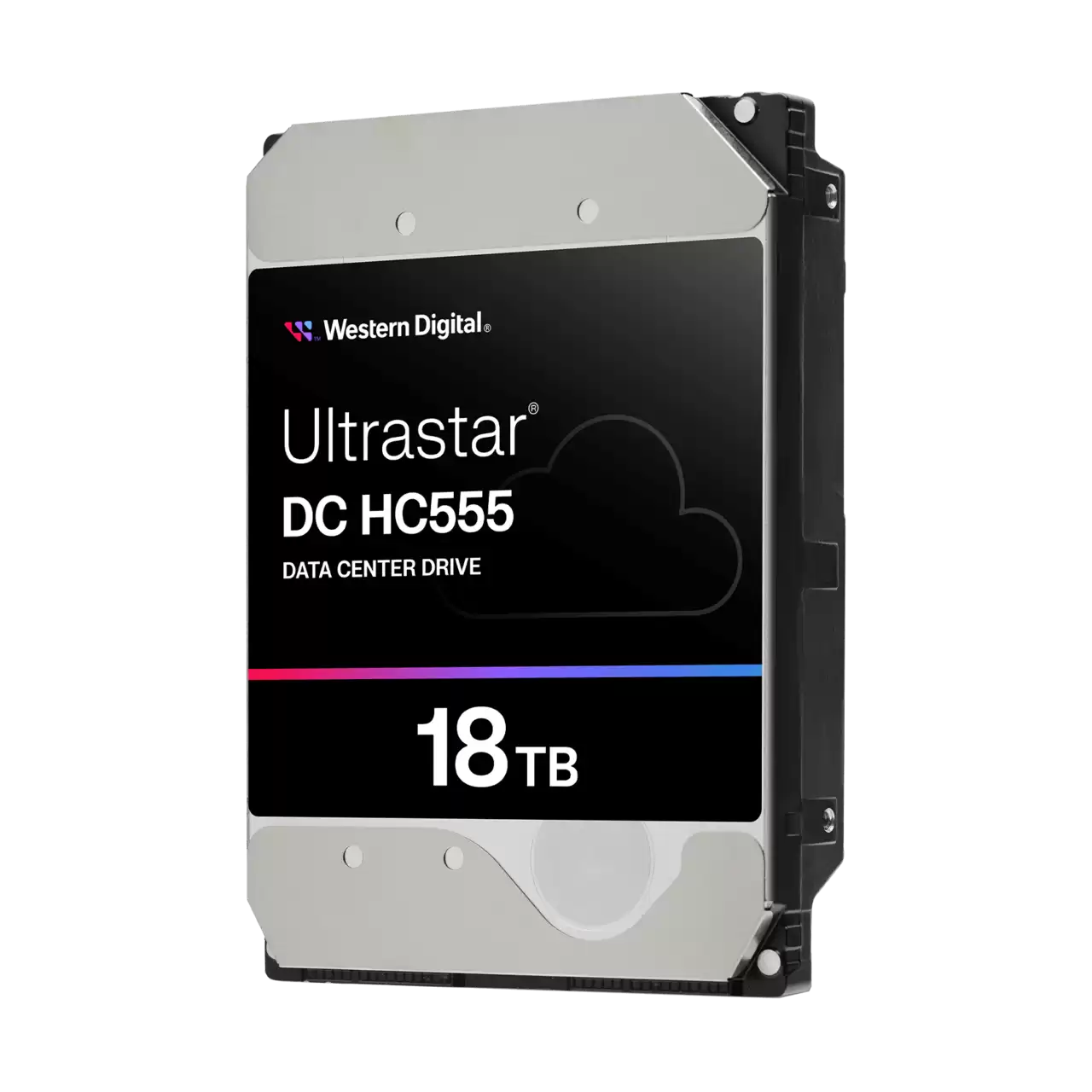

Key Features and Specifications:
Model/SKU: 0B48723 / WUH722018CLE6L4
Capacity: 18 TB
Form Factor: 3.5-inch
Interface: SATA III (6Gb/s)
Speed: 7200 RPM
Cache: 512 MB
Recording Technology: CMR (Conventional Magnetic Recording) with EAMR
Reliability: Designed for high-density environments, featuring a Triple-stage Actuator (TSA) for better positioning accuracy and data integrity.
Security: 512e SE (Secure Erase)
-

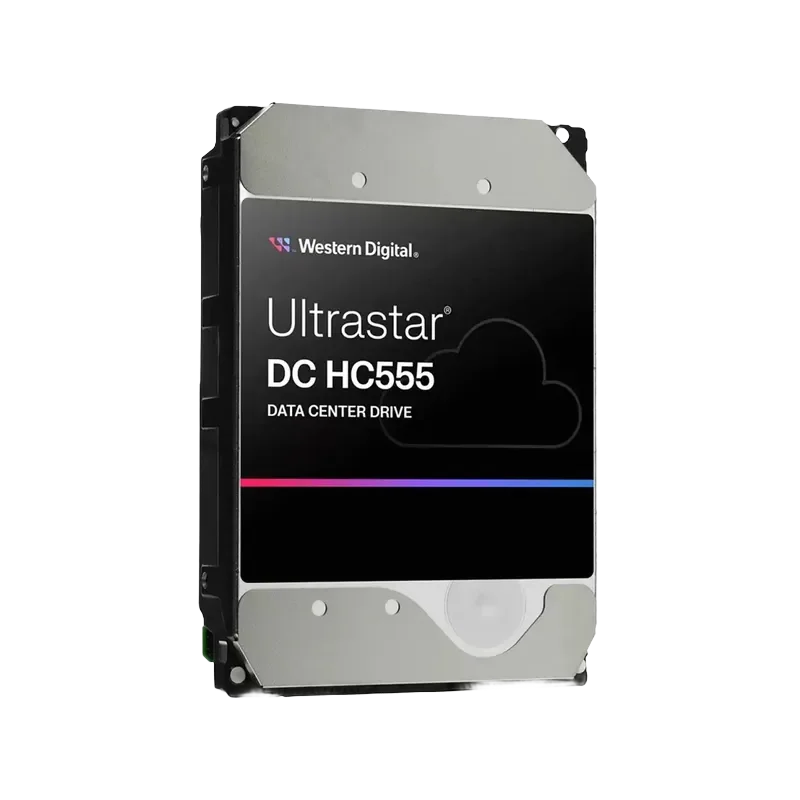

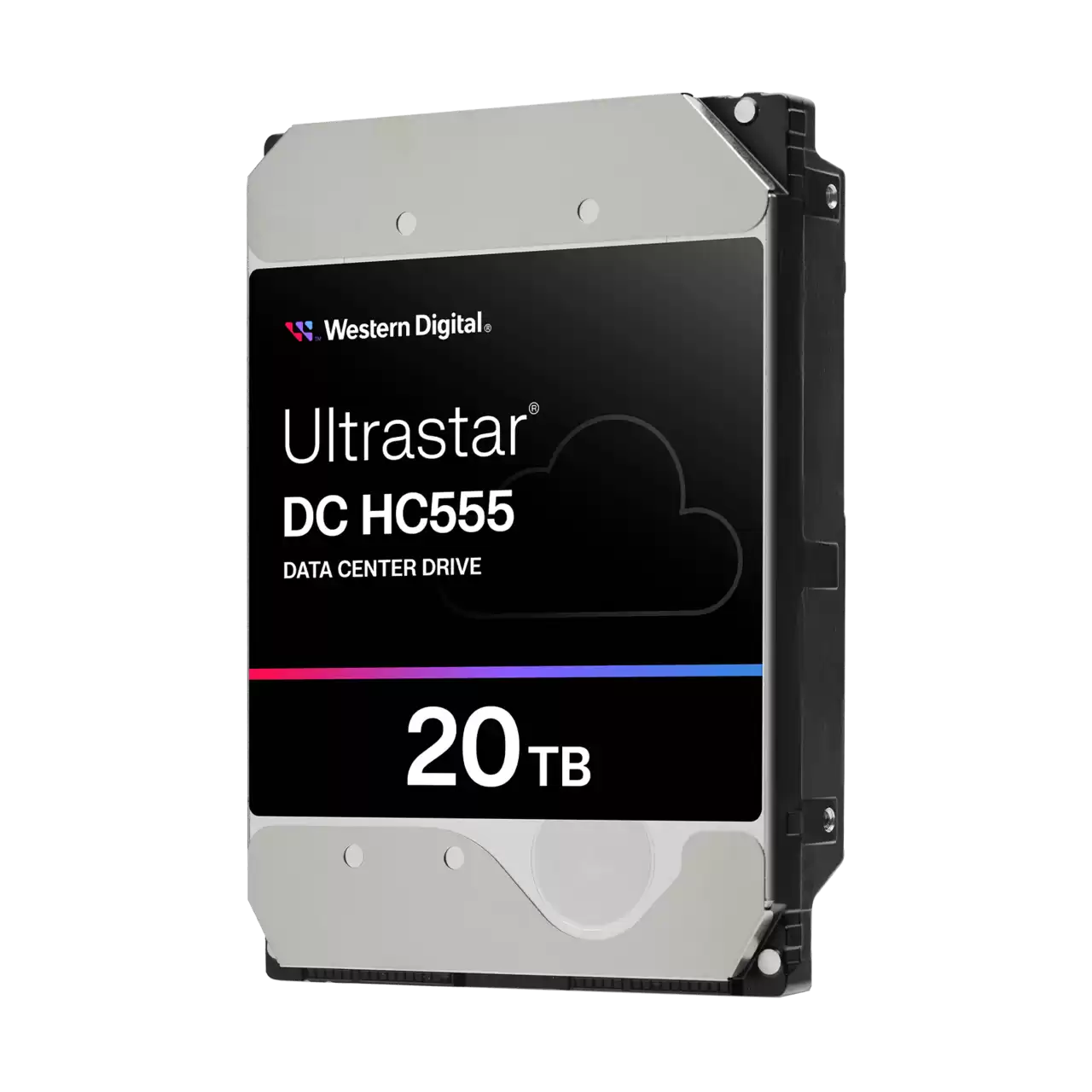

Western Digital Ultrastar HC555 Data Center HDD Storage, 3.5" Form Factor, 20TB SATA Interface, SE Security, Up to 285 MB/s Transfer Rate, 512MB Cache Size, EAMR Recording Technology | WUH722020CLE6L4
Engineered for maximized performance to meet data-intensive workloads
Superior reliability of field-proven hardware and firmware designs
Seamless integration with existing applications & environments
