Model: AC/DC - Constant-Voltage (C.V)
APV-8
8W Single Output Switching Power Supply
-
Output Modes: Constant Voltage (CV) design.
Universal Input: Accepts 90 ~ 264VAC (and 127 ~ 370VDC).
Design & Build: Fully isolated flame-retardant plastic case (Class II power unit).
Cooling: Free-air convection (no noisy internal fans).
Eco-friendly: Standby power consumption of <0.5W.
Safety & Protections: Built-in short circuit, overload (constant current limiting, auto-recovery), and over-voltage protections.
Reliability: Passes 100% full-load burn-in testing, rated for operation in wide ambient temperatures (-30°C to +70°C).
-
APV-8-5: 5V DC Output @ 0 ~ 1.4A (Max Power: 7.0W)
APV-8-12: 12V DC Output @ 0 ~ 0.67A (Max Power: 8.04W)
APV-8-24: 24V DC Output @ 0 ~ 0.34A (Max Power: 8.16W)
APV-12
12W Single Output Switching Power Supply
-
Output Modes: Constant Voltage (CV) design available in standard voltages (5V, 12V, 15V, and 24V).
Input Range: Universal AC input (90~264VAC).
Compact Design: Features a miniature, low-profile footprint (typically 77 mm × 40 mm × 29 mm) with a fully isolated case.
Built-in Protections: Auto-recovery safeguards against short circuits, overloads, and overvoltage.
Thermal Range: Capable of operating reliably in harsh environments between -30°C and +70°C utilizing free air convection (passive cooling).
-
APV-12-5: 5V DC Output @ 0 ~ 2.0A
APV-12-12: 12V DC Output @ 0 ~ 1.0A (Most common for standard 12V LED strips)
APV-12-15: 15V DC Output @ 0 ~ 0.8A
APV-12-24: 24V DC Output @ 0 ~ 0.5A (Most common for 24V LED strip installations)
APV-16
16W Single Output Switching Power Supply
-
Output Voltages: Available in 5V, 12V, 15V, and 24V single-output models.
Input Range: Supports 90 ~ 264VAC (universal AC input) or 127 ~ 370VDC.
Compact Design: Fully isolated plastic case, measuring just 77mm (L) x 40mm (W) x 29mm (H).
Environmental Protection: Rated IP42 for protection against solid objects larger than 1mm and dripping water.
Reliability & Efficiency: Features up to 83% efficiency, low no-load power consumption (<0.5W), and undergoes a 100% full load burn-in test.
Built-in Protections: Equipped with auto-recovery protections against short circuits, overloads, and overvoltages.
Cooling: Relies entirely on free-air convection (no noisy internal fans).
Safety & Standards: Class II power supply (no FG / earth pin required). Features global safety certifications including UL and CE. [1, 2, 3, 4, 5, 6, 7, 8]
-
The APV-16 series offers four standard fixed-voltage configurations:
APV-16-5: 5V DC Output @ 0 ~ 2.6A (Max Power: 13.0W)
APV-16-12: 12V DC Output @ 0 ~ 1.25A (Max Power: 15.0W)
APV-16-15: 15V DC Output @ 0 ~ 1.0A (Max Power: 15.0W)
APV-16-24: 24V DC Output @ 0 ~ 0.67A (Max Power: 16.08W)

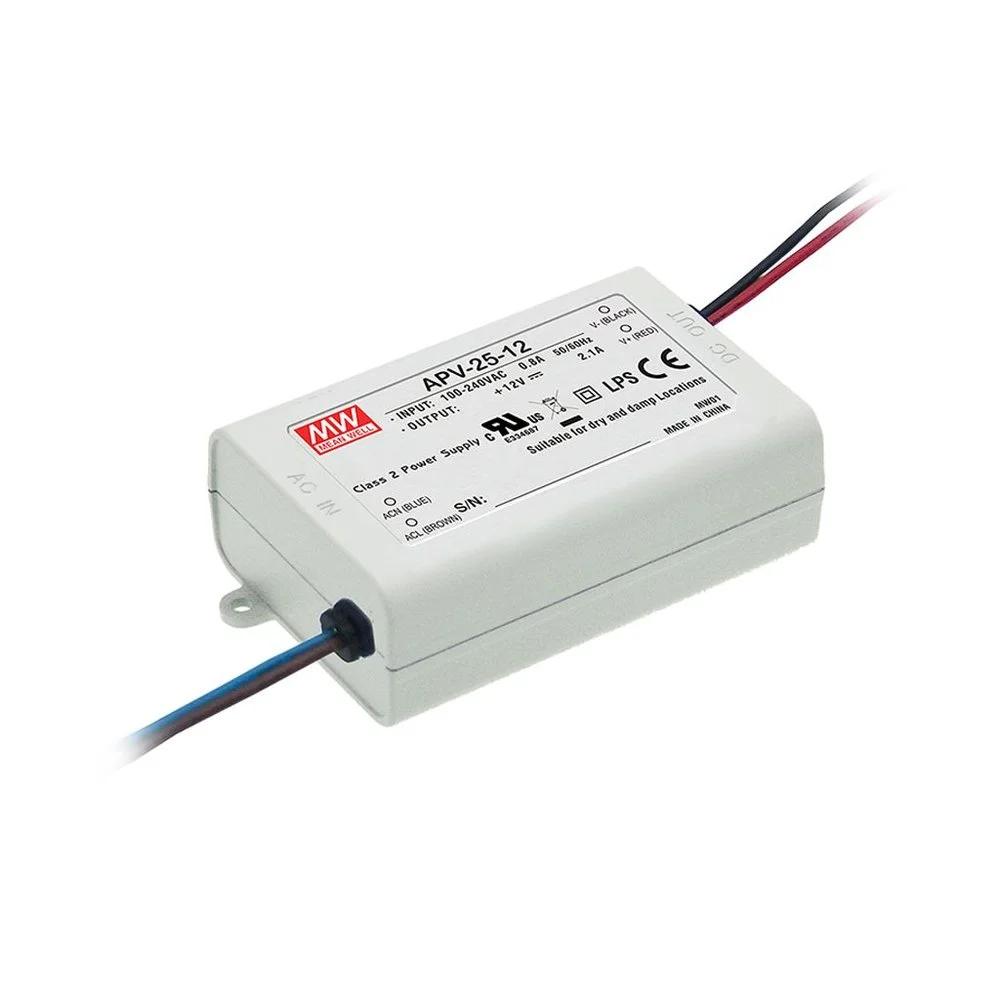

APV-25
25W Single Output Switching Power Supply
-
Output Modes: Constant voltage design.
Voltage Options: Available in 5V, 12V, 15V, 24V, 36V, and 48V models.
Input Voltage: Universal AC input (90~264VAC).
Energy Efficiency: Up to 84% high efficiency.
Design: Fully isolated plastic enclosure with a compact size.
Cooling: Free air convection (no noisy internal fans). [1, 2, 3, 4]
-
The APV-25 series is split into four distinct models. Choose the variant that matches the fixed voltage of your lighting system:
APV-25-5: 5V DC Output | 0 ~ 3.5A Rated Current | 17.5W Max Power
APV-25-12: 12V DC Output | 0 ~ 2.1A Rated Current | 25.2W Max Power
APV-25-15: 15V DC Output | 0 ~ 1.68A Rated Current | 25.2W Max Power
APV-25-24: 24V DC Output | 0 ~ 1.05A Rated Current | 25.2W Max Power
APV-35
35W Single Output Switching Power Supply
-
Output & Efficiency: Constant voltage (CV) mode with models available in 5V, 12V, 15V, 24V, and 36V outputs. Features up to 84% high efficiency. [1, 2, 3]
Input Range: Universal AC input (90 to 264VAC) with the ability to withstand a 300VAC surge input for 5 seconds. [1, 2]
Protections: Built-in safeguards against short circuits, overloads, and overvoltages. [1, 2]
Design & Cooling: Compact plastic enclosure with an IP30 or IP42 rating. Cooled by free-air convection (no noisy cooling fans required). [1, 2, 3, 4, 5]
Safety & Compliance: Class II power unit (no earth pin needed), passes LPS (Limited Power Source), and features 94V-0 rated fire-retardant casing. [1]
Durability: Fully tested with a 100% full load burn-in test. [1, 2]
-
APV-35-5: 5V DC Output | 0 ~ 5.0A Current | 25W Max Power
APV-35-12: 12V DC Output | 0 ~ 3.0A Current | 36W Max Power
APV-35-15: 15V DC Output | 0 ~ 2.4A Current | 36W Max Power
APV-35-24: 24V DC Output | 0 ~ 1.5A Current | 36W Max Power
Model: AC/DC - Constant Current (C.C)
APC-8
8W Single Output Switching Power Supply
-
Constant Current Design: Provides a stable, reliable current output without dimming capabilities.
Universal Input: Accepts a full AC input range from 90V to 264V.
Safety & Housing: Features a fully isolated, Class II design (no earth/FG pin) inside a 94V-0 flame-retardant plastic case.
Compact & Efficient: Boasts low no-load power consumption (<0.5W) and a small footprint for tight installations.
Durability: Rated IP42 for indoor use and actively cooled by free air convection.
-
APC-8-250: 250mA output
APC-8-350: 350mA output
APC-8-500: 500mA output
APC-8-700: 700mA output
APC-12
12W Single Output Switching Power Supply
-
Output Mode: Constant current design
Input: Universal AC input (90~264VAC full range)
Protection: Built-in short circuit and over-voltage protections (auto-recovery)
Build: Fully isolated plastic case (IP42 rating for indoor use)
Design: Class II power unit (no FG earth required)
Efficiency: Up to 82% efficiency depending on the model
Cooling: Free air convection (fanless)
Other: Pass LPS (Limited Power Source); ultra-low <0.5W no-load power consumption [1, 2, 3, 4, 5]
-
APC-12-350: 350mA Constant Current | 9V ~ 36V DC Voltage Range | 12.6W Max
APC-12-700: 700mA Constant Current | 9V ~ 18V DC Voltage Range | 12.6W Max
APC-16
16W Single Output Switching Power Supply
-
Design: Constant current mode
Input Voltage: Universal AC input / Full range (90 ~ 264VAC)
Cooling: Free air convection
Protections: Short-circuit and over-voltage
Safety & Class: Class II power unit (no FG), Class 2 power unit, passes LPS (Limited Power Source)
Reliability: 100% full-load burn-in test, high reliability, low cost
Operating Temperature: -30°C ~ +70°C
-
APC-16-350:350mA Constant Current | 12V ~ 48V DC Voltage Window | 16.8W Max
APC-16-700:700mA Constant Current | 9V ~ 24V DC Voltage Window | 16.8W Max
APC-16-1050:1050mA Constant Current | 9V ~ 15V DC Voltage Window | 15.75W Max
APC-25
25W Single Output Switching Power Supply
-
Output Type: Constant Current (CC) mode
Electrical Protections: Short circuit, over-load, and over-voltage
Design: Fully isolated plastic case (fire-retardant level UL 94V-0); no FG (frame ground) required
Cooling & Durability: Cooled by free air convection, capable of operating between -30°C to +70°C
Safety & Reliability: Class 2 power unit, pass LPS (Limited Power Source), and 100% full load burn-in test
-
APC-25-350: 350mA Constant Current | 25V ~ 70V DC Voltage Range | 24.5W Max
APC-25-500: 500mA Constant Current | 15V ~ 50V DC Voltage Range | 25.0W Max
APC-25-700: 700mA Constant Current | 11V ~ 36V DC Voltage Range | 25.2W Max
APC-35
35W Single Output Switching Power Supply
-
Constant Current Mode: Provides a stable output current for LEDs, ensuring consistent brightness.
Universal AC Input: Full range 90~264VAC input.
Surge Protection: Can withstand a 300VAC surge input for up to 5 seconds.
Durable Build: Features a fully isolated, compact plastic case (IP42 design).
Protections: Equipped with short-circuit and over-voltage protections.
Cooling: Relies on free-air convection.
Reliability: 100% full load burn-in test
-
APC-35-500: 500mA Constant Current | 24V ~ 70V DC Voltage Range | 35.0W Max
APC-35-700: 700mA Constant Current | 15V ~ 50V DC Voltage Range | 35.0W Max
APC-35-1050: 1050mA (1.05A) Constant Current | 11V ~ 33V DC Voltage Range | 34.6W Max
