UHP Series

$0.00

Wattage : 200W~2500W

Features　:

  • Slim and Low profile

  • Fanless design, free air convection

  • Built-in active PFC function

  • High voltage output available for HV type

  • DC OK active signal and redundant function(option)

  • Operating altitude up to 5000 meter

  • LED indicator for power on

Wattage : 200W~2500W

Features　:

  • Slim and Low profile

  • Fanless design, free air convection

  • Built-in active PFC function

  • High voltage output available for HV type

  • DC OK active signal and redundant function(option)

  • Operating altitude up to 5000 meter

  • LED indicator for power on

Key Features Table

Key Features

Feature Description
Power Range 200W – 2500W
Design Slim, low-profile metal enclosure
Cooling Fanless design with free-air convection
Power Factor Correction Built-in Active PFC
Peak Load Capability 150% peak load for 100 ms (UHP-200 to UHP-500)
High Voltage Version Available (UHP-1500-HV)
Remote Functions DC OK active signal, Remote ON/OFF (≥1000W), Optional redundant function (R models)
Programmability Adjustable output voltage & constant current (≥1000W models)
Communication Optional PMBus or CANBus (selected ≥1500W models)
Operating Altitude Up to 5000 meters
Protection Short Circuit, Overload, Over Voltage, Over Temperature
LED Indicator Power ON indicator
Warranty 3 years (200–750W), 5 years (1000–2500W)
UHP Series Models

UHP Series Models

Picture Series Power Rating Description

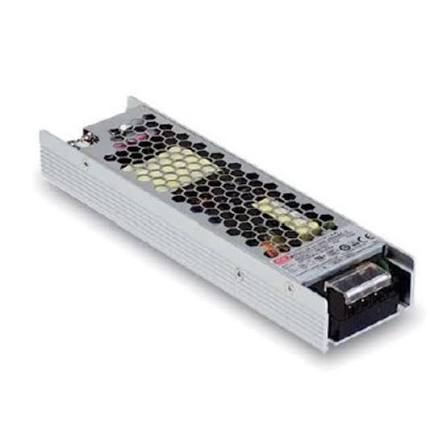

UHP-200(R) UHP-200(R) 200W Fanless slim power supply with optional redundant version
UHP-200(R) UHP-200A 200W 5V/4.2V version designed for LED display applications
UHP-350(R) UHP-350(R) 350W Slim fanless power supply with optional redundancy
UHP-500(R) UHP-500(R) 500W High-efficiency fanless power supply
UHP-750 UHP-750 750W Industrial slim enclosed power supply

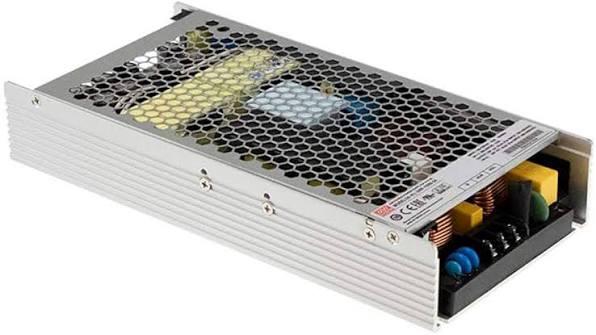

UHP-1000 UHP-1000 1000W Programmable output voltage and constant current
UHP-1500 UHP-1500 1500W High-power programmable industrial power supply

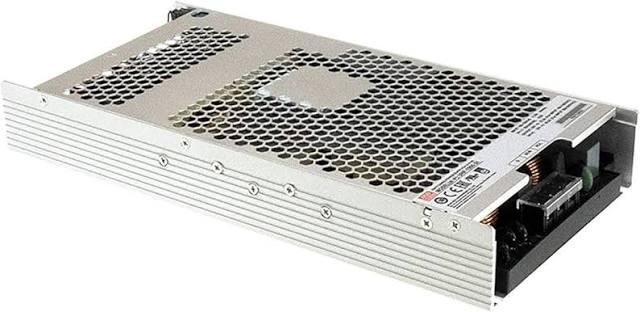

UHP-1500-HV UHP-1500-HV 1500W High-voltage output version for specialized applications
UHP-2500 UHP-2500 2500W Flagship ultra-high-power fanless supply with optional PMBus/CANBus

Complete UHP Product List

Model Family Models
Standard Models UHP-200(R), UHP-200A, UHP-350(R), UHP-500(R), UHP-750, UHP-1000, UHP-1500, UHP-1500-HV, UHP-2500

Typical Applications

  • Industrial Automation

  • Factory Control Panels

  • Robotics

  • Telecommunications Equipment

  • Battery Charging Systems

  • Laser Equipment

  • LED Display Systems

  • Test & Measurement Equipment

  • CNC Machines

  • Smart Manufacturing Systems

The UHP Series is recognized for its ultra-slim profile, silent fanless operation, high efficiency, and robust industrial performance, making it a preferred choice where space-saving, reliability, and high power density are critical.
