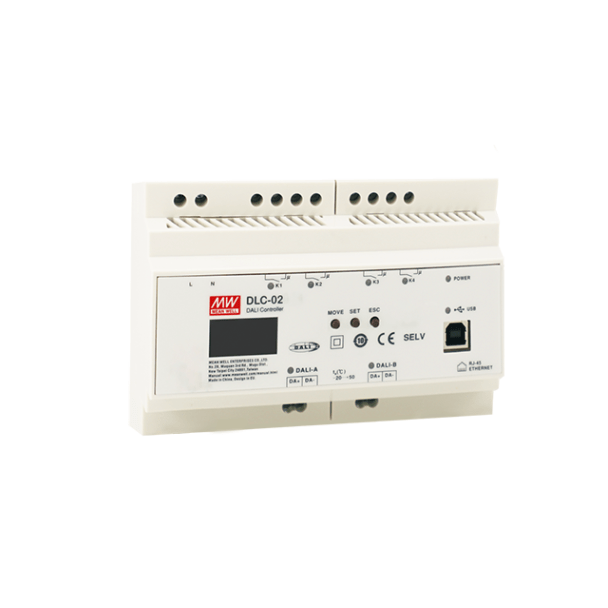

DLC-02

$0.00

Wattage : 8W

Features　:

  • Comply with IEC 62386 DALI-2, and Part 101/103/207/208/301/302/303/304

  • 2 x channels of DALI bus, for control gear and control device using

  • 4 x programmable relays, for electrical switch or curtains control

  • DLC software for system settings or remotely through internet

  • Built-in LCD display and control buttons to set and view settings

  • Built-in timer IC, commission schedule

  • Communication interface: RJ-45 and KNX, for connection expansion with other building automation systems

  • DIN-Rail mounting, compact design 8SU width (144x 90x 58.4mm)

Datasheet: DLC-02 / DLC-02-KN

Model:

Wattage : 8W

Features　:

  • Comply with IEC 62386 DALI-2, and Part 101/103/207/208/301/302/303/304

  • 2 x channels of DALI bus, for control gear and control device using

  • 4 x programmable relays, for electrical switch or curtains control

  • DLC software for system settings or remotely through internet

  • Built-in LCD display and control buttons to set and view settings

  • Built-in timer IC, commission schedule

  • Communication interface: RJ-45 and KNX, for connection expansion with other building automation systems

  • DIN-Rail mounting, compact design 8SU width (144x 90x 58.4mm)

Datasheet: DLC-02 / DLC-02-KN

Model:

DLC-02

DALI Digital Lighting Controller

    • Multi-Master Controller: DALI-2 application controller (Part 103 compliant).

    • Dual-Channel DALI Output: Two independent DALI bus channels with built-in power supply (up to 250mA per bus).

    • Capacity: Supports up to 2 × 64 DALI control gears and 2 × 12 input devices.

    • Device Integration: Built-in 4 × 250V/5A relays for switching non-dimmable loads or curtains.

    • User Interface: OLED display with physical buttons (Move, Set, Esc) for local configuration and status monitoring.

    • Connectivity: Features RJ45 (TCP/IP) and USB interfaces for PC-based configuration and remote management.

    • Automation Capabilities: Integrated timer for scheduling events; supports sequences, scenes, and grouping.

    • DALI-2 Protocol Support: Compliant with parts 207 (LED), 208 (Relay), 301–304 (Input devices), and DT8 (Color control/Tunable white).

    • Mounting: Compact DIN-Rail mounting design (144mm width/8SU).

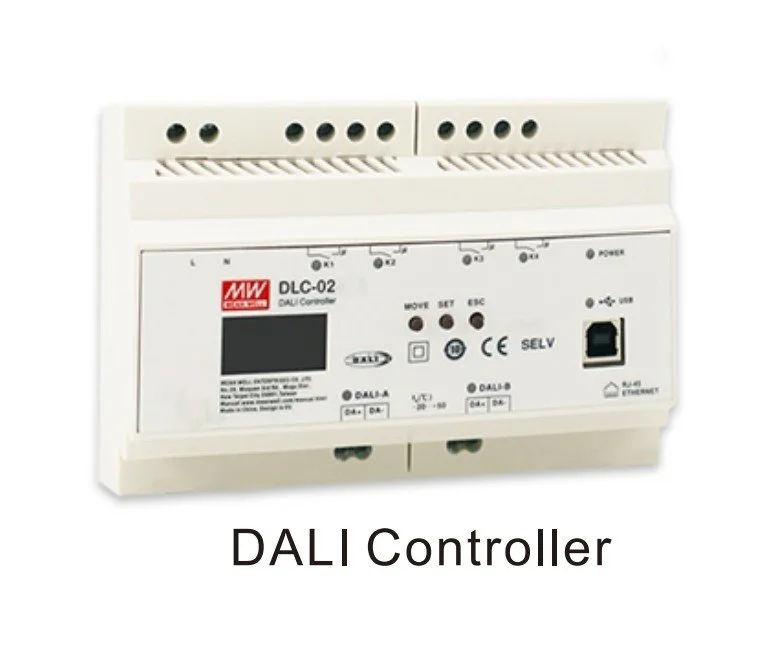

    • DLC-02: Standard DALI-2 application controller.

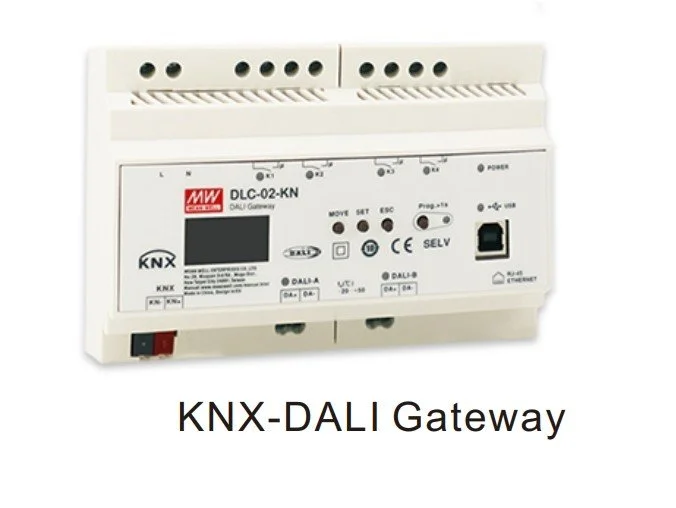

    • DLC-02-KN: KNX-to-DALI gateway (enables integration of DALI digital lighting systems into a KNX building management system).

DLC-02-KN

DALI Digital Lighting Controller

  • Gateway Functionality: Acts as a KNX to DALI-2 gateway for integrating DALI lighting systems into KNX building automation.

    Dual-Channel DALI Bus: Two independent DALI bus channels with built-in power supply (up to 250mA per bus).

    Capacity: Supports up to 128 DALI ECGs (64 per channel) and up to 24 DALI input devices (12 per channel).

    Integrated Relays: Includes 4 built-in relays (250V/5A) for controlling non-dimmable lighting or electrical devices (e.g., curtains).

    Local Interface: Features an OLED display with LED indicators and buttons (MOVE, SET, ESC) for local configuration and status monitoring.

    Programming & Commissioning:

    • Configurable via ETS software (for KNX integration).

    • Commissioning possible via built-in web server (RJ-45) or dedicated PC software.

    Advanced Control: Supports 16 scenes and groups per channel, timer functions, and sequence effects.

    Standard Compliance: Complies with DALI-2 standards (Part 103/207/208/301/302/303/304).

    Design: DIN-Rail mounting design, 8SU width (144mm).

    • DLC-02: DALI-2 multi-master application controller (without native KNX gateway functionality).

    • DLC-02-KN: KNX to DALI gateway version (includes all features of the DLC-02 plus KNX bus connectivity).
