Model: AC/DC - Constant Current (C.C)
ELG-75-C
60~75W Constant Current Mode LED Driver
-
Input Range: 100~305VAC
High Efficiency: Up to 91% with a fanless design
Reliability: Built-in active PFC, standby power < 0.5W, and protection against short-circuiting, over-voltage, and over-temperature
Durability: Robust IP65/IP67 metal housing and Type "HL" rated for use in hazardous Class I, Division 2 locations
-
ELG-100-C
70~100W Constant Current Mode LED Driver
-
Output Type: Constant Current (CC) mode
Input Voltage: 100~305VAC (142~431VDC)
Efficiency: Up to 92%
Protection: Short circuit, over voltage, over temperature
Environment: IP65 or IP67 ratings for indoor/outdoor; Type "HL" for Class I, Division 2 hazardous locations
-
ELG-100-C350: 100W, 350mA output (143 ~ 286V)
ELG-100-C500: 100W, 500mA output (100 ~ 200V)
ELG-100-C700: 100W, 700mA output (72 ~ 143V)
ELG-100-C1050: 100W, 1050mA output (48 ~ 95V)
ELG-100-C1400: 100W, 1400mA output (36 ~ 72V)
ELG-150-C
105~150W Constant Current Mode LED Driver
-
Universal Input & Active PFC: Operates on a wide input range of 100~305VAC with built-in active PFC function.
Weatherproof & Durable: IP65 or IP67 ratings for harsh indoor/outdoor environments.
Multiple Protections: Includes built-in short circuit, over-voltage, and over-temperature protections.
Safety & Reliability: Type HL rated for hazardous (Class I, Division 2) locations; <0.5W standby power consumption.
-
ELG-150-C500: $500\text{ mA}$ rated current | Output voltage range: $150\text{ to }300\text{ V DC}$
ELG-150-C700: $700\text{ mA}$ rated current | Output voltage range: $107\text{ to }214\text{ V DC}$
ELG-150-C1050: $1050\text{ mA}$ rated current | Output voltage range: $72\text{ to }143\text{ V DC}$
ELG-150-C1400: $1400\text{ mA}$ rated current | Output voltage range: $54\text{ to }107\text{ V DC}$
ELG-150-C1750: $1750\text{ mA}$ rated current | Output voltage range: $43\text{ to }86\text{ V DC}$
ELG-150-C2100: $2100\text{ mA}$ rated current | Output voltage range: $36\text{ to }72\text{ V DC}$

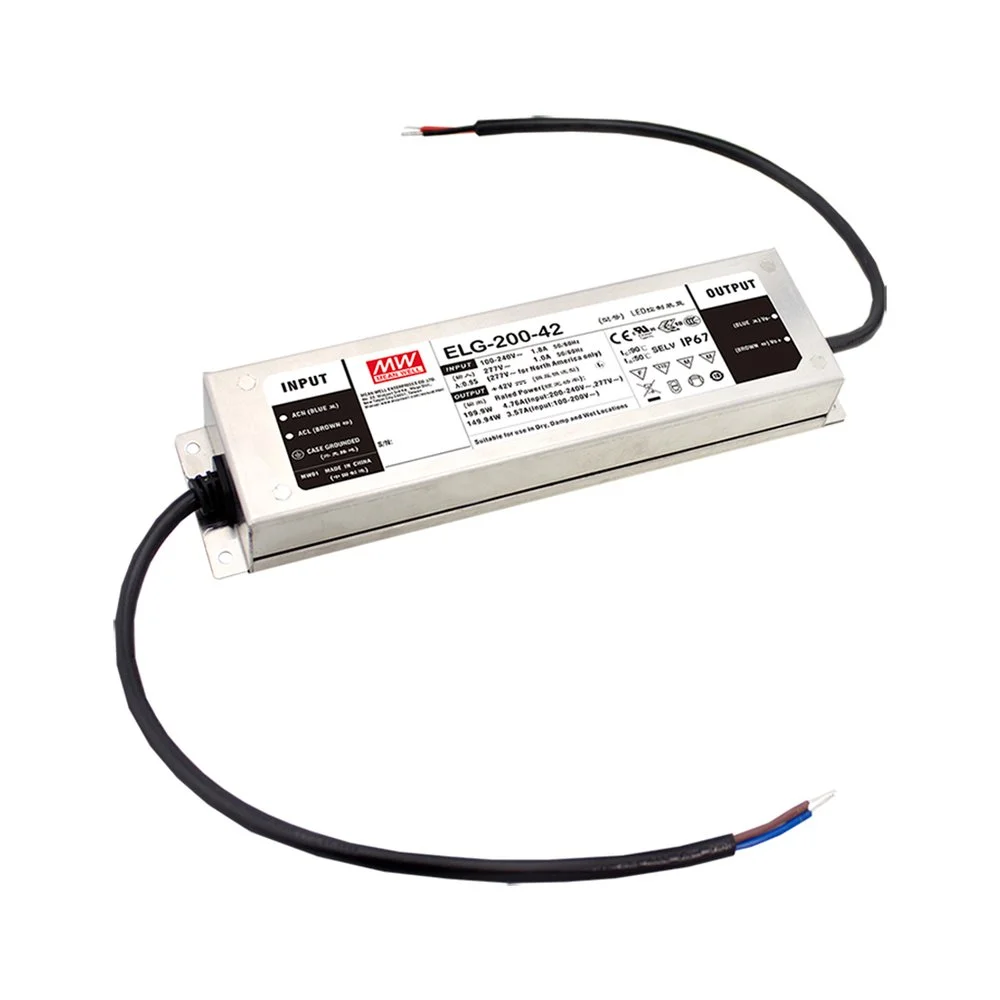

ELG-200-C
150~200W Constant Current Mode LED Driver
-
Input Range: 100 ~ 305VAC (142 ~ 431VDC)
High Efficiency: Up to 93% with a fanless design; operates in -40°C to +85°C case temperatures via free air convection.
Built-in Protections: Short circuit, over voltage, and over temperature.
Standby Power: Less than 0.5W, making it highly energy-efficient.
Safety & Approvals: UL 8750, ENEC, EN61000-3-2 Class C (for harmonic current), and Class I, Division 2 for hazardous locations.
-
ELG-200-C700: 700mA rated current | 142 ~ 286 VDC output voltage | 200.2W max power
ELG-200-C1050: 1050mA rated current | 95 ~ 190 VDC output voltage | 199.5W max power
ELG-200-C1400: 1400mA rated current | 71 ~ 142 VDC output voltage | 198.8W max power
ELG-200-C1750: 1750mA rated current | 57 ~ 114 VDC output voltage | 199.5W max power
ELG-200-C2100: 2100mA rated current | 48 ~ 96 VDC output voltage | 201.6W max power
ELG-240-C
178.5~240W Constant Current Mode LED Driver
-
Input Voltage: 100 ~ 305VAC with built-in active PFC.
Output Modes: Operates in Constant Current (CC) mode.
Design Rating: Metal housing with IP65 or IP67 ratings for indoor/outdoor resilience.
Efficiency: High energy conversion up to 93%.
Safety & Protections: Short circuit, over-voltage, over-temperature, and over-current protection.
-
ELG-240-C700: * Rated Current: $700\text{ mA}$
Voltage Range: $172\text{ V}$ to $343\text{ VDC}$
Total Power: $240.1\text{ W}$
ELG-240-C1050: * Rated Current: $1050\text{ mA}$
Voltage Range: $114\text{ V}$ to $228\text{ VDC}$
Total Power: $239.4\text{ W}$
ELG-240-C1400: * Rated Current: $1400\text{ mA}$
Voltage Range: $86\text{ V}$ to $171\text{ VDC}$
Total Power: $239.4\text{ W}$
ELG-240-C1750: * Rated Current: $1750\text{ mA}$
Voltage Range: $69\text{ V}$ to $137\text{ VDC}$
Total Power: $239.75\text{ W}$
ELG-240-C2100: * Rated Current: $2100\text{ mA}$
Voltage Range: $57\text{ V}$ to $115\text{ VDC}$
Total Power: $241.5\text{ W}$
Model: AC/DC - Constant-Voltage (C.V)
ELGC-300
300W Constant Power Mode LED Drive
-
Constant Power Mode (CP): Provides full output wattage across a wide voltage range.
High Efficiency: Delivers up to 94.5% efficiency, reducing energy waste and thermal output.
Built-in PFC: Features active Power Factor Correction.
Robust Protections: Auto-recovery safeguards against short circuits, over-voltage, and over-temperature.
Surge Protection: Withstands up to 6kV (line-earth) and 4kV (line-line) power surges.
Long Lifespan: MTBF > 50,000 hours with a manufacturer-backed 5-year warranty.
-
L-Type (Low Current / High Voltage):
Full Power Current Range: 1300 ~ 2000mA
Constant Current Region: 116 ~ 232V
Current Adjustment Range: 650 ~ 2000mA
M-Type (Medium Current / Medium Voltage):
Full Power Current Range: 2600 ~ 4000mA
Constant Current Region: 56 ~ 116V
Current Adjustment Range: 1300 ~ 4000mA
H-Type (High Current / Low Voltage):
Full Power Current Range: 5200 ~ 8000mA
Constant Current Region: 29 ~ 58V
Current Adjustment Range: 2600 ~ 8000mA
