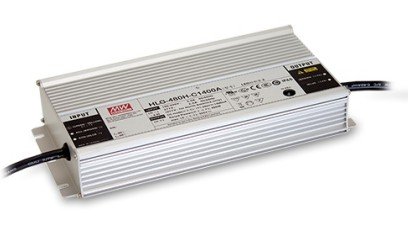

HLG-C Series

$0.00

Wattage : 70W~480W

Features　:

  • 90~305VAC input, built-in active PFC function

  • Constant current output with high output voltage >60VDC

  • Metal case, IP67/IP65 design for indoor or outdoor installations

  • Function options:
    output adjustable via potentiometer; 3 in 1 dimming (1~10Vdc or 10V PWM signal or resistance); timer dimming; smart timer dimming

  • Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (HLG-240H-C/320H-C only)

  • Suitable for LED street lighting and outdoor LED lighting

Datasheet:

C.C.：HLG-60H-C / HLG-80H-C / HLG-120H-C / HLG-185H-C / HLG-240H-C / HLG-320H-C / HLG-480H-C

Model:

Wattage : 70W~480W

Features　:

  • 90~305VAC input, built-in active PFC function

  • Constant current output with high output voltage >60VDC

  • Metal case, IP67/IP65 design for indoor or outdoor installations

  • Function options:
    output adjustable via potentiometer; 3 in 1 dimming (1~10Vdc or 10V PWM signal or resistance); timer dimming; smart timer dimming

  • Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (HLG-240H-C/320H-C only)

  • Suitable for LED street lighting and outdoor LED lighting

Datasheet:

C.C.：HLG-60H-C / HLG-80H-C / HLG-120H-C / HLG-185H-C / HLG-240H-C / HLG-320H-C / HLG-480H-C

Model: C.V.+C.C.

HLG-40H

40W Constant Voltage + Constant Current LED Driver

    • Constant current design

    • Universal AC input / Full range (up to 305VAC)

    • Built-in active PFC function

    • High efficiency up to 91%

    • Protections: Short circuit / Over voltage / Over temperature

    • Cooling by free air convection

    • IP67 / IP65 design for indoor or outdoor installations

    • Type A: IP65 rated, current adjustable through internal potentiometer

    • Type B: IP67 rated, 3-in-1 dimming function (1~10Vdc, 10V PWM signal, or resistance)

    • Type AB: IP65 rated, current adjustable through internal potentiometer and 3-in-1 dimming function

    • Type D (option): IP67 rated, timer dimming function

    • HLG-60H-C350

    • HLG-60H-C700

HLG-60H

60W Constant Voltage + Constant Current LED Driver

    • Constant Voltage (CV) + Constant Current (CC) mode output

    • Universal AC input / Full range (up to 305VAC)

    • Built-in active PFC (Power Factor Correction) function

    • Class 2 power unit

    • High efficiency up to 90.5%

    • Fanless design cooled by free air convection

    • IP67 / IP65 rating for indoor or outdoor installations

    • Protections: Short circuit, Over current, Over voltage, Over temperature

    • Type "HL" for use in Class I, Division 2 hazardous locations

    • HLG-60H-15 (15V)

    • HLG-60H-20 (20V)

    • HLG-60H-24 (24V)

    • HLG-60H-30 (30V)

    • HLG-60H-36 (36V)

    • HLG-60H-42 (42V)

    • HLG-60H-48 (48V)

    • HLG-60H-54 (54V)

HLG-80H

80W Constant Voltage + Constant Current LED Driver

    • Constant Voltage (CV) + Constant Current (CC) dual-mode output

    • Universal AC input range: 90 to 305 VAC (also accepts 127 to 431 VDC)

    • Built-in active PFC (Power Factor Correction) function

    • High power efficiency up to 91%

    • Fanless design with free air convection cooling

    • Wide operating temperature range: -40°C to +80°C case temperature

    • Rugged metal housing

    • Ingress protection level: IP67 or IP65 (depending on the model option)

    • Protections: Short circuit, Over current, Over voltage, and Over temperature

    • Class 2 power unit

    • HLG-80H-12 (12V, 5.0A, 60W max)

    • HLG-80H-15 (15V, 5.0A, 75W max)

    • HLG-80H-20 (20V, 4.0A, 80W max)

    • HLG-80H-24 (24V, 3.4A, 81.6W max)

    • HLG-80H-30 (30V, 2.7A, 81W max)

    • HLG-80H-36 (36V, 2.3A, 82.8W max)

    • HLG-80H-42 (42V, 1.95A, 81.9W max)

    • HLG-80H-48 (48V, 1.7A, 81.6W max)

    • HLG-80H-54 (54V, 1.5A, 81W max)

HLG-100H

100W Constant Voltage + Constant Current LED Driver

    • Constant Voltage (CV) + Constant Current (CC) dual-mode output

    • Universal AC input from 90 Volts AC up to 305 Volts AC

    • Built-in active Power Factor Correction (PFC) function

    • High efficiency up to 93%

    • Fanless design with cooling by free air convection

    • Operating case temperature range of -40°C to +80°C

    • Metal housing with IP67 or IP65 ingress protection rating

    • Built-in protections: Short circuit, Over current, Over voltage, Over temperature

    • 4kV surge immunity level compliance (IEC61000-4-5)

    • HLG-100H-20 (20V)

    • HLG-100H-24 (24V)

    • HLG-100H-30 (30V)

    • HLG-100H-36 (36V)

    • HLG-100H-42 (42V)

    • HLG-100H-48 (48V)

    • HLG-100H-54 (54V)

HLG-120H

120W Constant Voltage + Constant Current LED Driver

    • Dual Mode Output: Constant voltage and constant current output options.

    • Metal Housing: Class I design with a rugged, IP67/IP65-rated metal enclosure for indoor and outdoor installations.

    • Built-in Active PFC: High power factor correction function.

    • High Efficiency: Up to 93.5% efficiency.

    • Dimming Options: 3-in-1 dimming function (0-10Vdc, 10V PWM signal, or resistance) available on specific models.

    • Protections: Short circuit, over current, over voltage, and over temperature protection.

    • HLG-120H-12 (12V)

    • HLG-120H-15 (15V)

    • HLG-120H-20 (20V)

    • HLG-120H-24 (24V)

    • HLG-120H-30 (30V)

    • HLG-120H-36 (36V)

    • HLG-120H-42 (42V)

    • HLG-120H-48 (48V)

    • HLG-120H-54 (54V)

HLG-150H

150W Constant Voltage + Constant Current LED Driver

    • Dual Mode Output: Operates in both Constant Voltage (CV) and Constant Current (CC) modes.

    • Input Voltage Range: Universal AC input from 90~305VAC (also accepts 127~431VDC).

    • High Efficiency: Up to 94% efficiency with a fanless design utilizing free air convection cooling.

    • Rugged Enclosure: Heavy-duty metal housing with IP65 or IP67 ingress protection for indoor and outdoor installations.

    • Working Temperature: Wide case temperature operating range of -40°C to +90°C.

    • Built-in Power Factor Correction: Active PFC ($PF > 0.9$ at 60% load or higher).

    • Surge Immunity: Withstands 4KV surge levels (IEC61000-4-5).

    • Comprehensive Protections: Built-in short circuit, over-current, over-voltage, and over-temperature protection.

    • HLG-150H-12: 12V Output (12.5A max)

    • HLG-150H-15: 15V Output (10A max)

    • HLG-150H-20: 20V Output (7.5A max)

    • HLG-150H-24: 24V Output (6.3A max)

    • HLG-150H-30: 30V Output (5A max)

    • HLG-150H-36: 36V Output (4.2A max)

    • HLG-150H-42: 42V Output (3.6A max)

    • HLG-150H-48: 48V Output (3.2A max)

    • HLG-150H-54: 54V Output (2.8A max)

HLG-185H

185W Constant Voltage + Constant Current LED Driver

    • Output Modes: Dual mode constant voltage (CV) and constant current (CC) output.

    • Input Range: Universal AC input from 90VAC up to 305VAC (also supports 127VDC to 431VDC).

    • Power Efficiency: High efficiency up to 94%.

    • Power Factor Correction: Built-in active PFC function (PF > 0.9 for 60% load or higher).

    • Environmental Protection: Rugged metal housing with IP65 or IP67 ingress protection options for indoor and outdoor installations.

    • Cooling: Fanless design utilizing free air convection cooling.

    • Operating Temperature: Wide working case temperature range of -40°C to +90°C.

    • Surge Immunity: Withstands 4kV surge immunity levels (IEC 61000-4-5 compliance).

    • Integrated Protections: Short circuit, over current, over voltage, and over temperature protection with auto-recovery.

    • HLG-185H-12: 12V output (Adjustable 10.8V–13.5V), 13A maximum rated current, 156W

    • HLG-185H-15: 15V output (Adjustable 13.5V–17V), 11.5A maximum rated current, 172.5W

    • HLG-185H-20: 20V output (Adjustable 17V–22V), 9.3A maximum rated current, 186W

    • HLG-185H-24: 24V output (Adjustable 22V–27V), 7.8A maximum rated current, 187.2W

    • HLG-185H-30: 30V output (Adjustable 27V–33V), 6.2A maximum rated current, 186W

    • HLG-185H-36: 36V output (Adjustable 33V–40V), 5.2A maximum rated current, 187.2W

    • HLG-185H-42: 42V output (Adjustable 38V–46V), 4.4A maximum rated current, 184.8W

    • HLG-185H-48: 48V output (Adjustable 43V–53V), 3.9A maximum rated current, 187.2W

    • HLG-185H-54: 54V output (Adjustable 49V–58V), 3.45A maximum rated current, 186.3W

HLG-240H

240W Constant Voltage + Constant Current LED Driver

    • Dual Mode Output: Works in both Constant Voltage (CV) and Constant Current (CC) modes.

    • Universal AC Input: Accepts full-range input from 90V AC to 305V AC (also accepts 127V DC to 431V DC).

    • Active PFC: Built-in active Power Factor Correction function ($PF > 0.95$ at 230V AC full load).

    • High Efficiency: Up to 93.5% energy efficiency.

    • Environmental Protection: Metal housing with IP65 or IP67 ingress protection rating depending on the specific model type.

    • Cooling: Natural cooling by free air convection (fanless design).

    • Built-in Protections: Short circuit, over-current, over-voltage, and over-temperature safety cut-offs.

    • Surge Immunity: Withstands up to 4kV surge levels (compliance with IEC61000-4-5).

    • HLG-240H-12: 12V DC output / 16.0A maximum / 192W rated power

    • HLG-240H-15: 15V DC output / 15.0A maximum / 225W rated power

    • HLG-240H-20: 20V DC output / 12.0A maximum / 240W rated power

    • HLG-240H-24: 24V DC output / 10.0A maximum / 240W rated power

    • HLG-240H-30: 30V DC output / 8.0A maximum / 240W rated power

    • HLG-240H-36: 36V DC output / 6.7A maximum / 241.2W rated power

    • HLG-240H-42: 42V DC output / 5.72A maximum / 240.2W rated power

    • HLG-240H-48: 48V DC output / 5.0A maximum / 240W rated power

    • HLG-240H-54: 54V DC output / 4.45A maximum / 240.3W rated power

HLG-320H

320W Constant Voltage + Constant Current LED Driver

    • ual Mode Output: Operates in both Constant Voltage (CV) and Constant Current (CC) modes.

    • Robust Enclosure: Metal housing with Class I design, suitable for indoor and outdoor use.

    • Environmental Protection: IP65 or IP67 ingress protection rating (depending on the function option).

    • High Efficiency: Up to 95% efficiency with a fanless design utilizing free air convection cooling.

    • Wide Input Range: Universal AC input spanning from 90VAC up to 305VAC (also accepts 127VDC to 431VDC).

    • Power Management: Built-in active Power Factor Correction (PFC) function.

    • Integrated Safety Protections: Internal safeguards against short circuit, over-current, over-voltage, and over-temperature.

    • Advanced Dimming (B & AB Types): Features 3-in-1 dimming capable of accepting 1–10VDC, 10V PWM signals, or resistance.

    • Durability: Rated typical lifetime exceeding 62,000 hours, backed by a 7-year manufacturer warranty.

    • HLG-320H-12: 12V output / 22A rated current (264W maximum power)

    • HLG-320H-15: 15V output / 19A rated current (285W maximum power)

    • HLG-320H-20: 20V output / 15A rated current (300W maximum power)

    • HLG-320H-24: 24V output / 13.34A rated current (320.16W maximum power)

    • HLG-320H-30: 30V output / 10.7A rated current (321W maximum power)

    • HLG-320H-36: 36V output / 8.9A rated current (320.4W maximum power)

    • HLG-320H-42: 42V output / 7.65A rated current (321.3W maximum power)

    • HLG-320H-48: 48V output / 6.7A rated current (321.6W maximum power)

    • HLG-320H-54: 54V output / 5.95A rated current (321.3W maximum power)

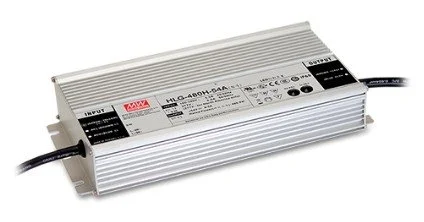

HLG-480H

480W Constant Voltage + Constant Current LED Driver

    • Dual-Mode Output: Works in both Constant Voltage (CV) and Constant Current (CC) modes.

    • High Efficiency: Up to 95.5% efficiency with built-in active Power Factor Correction (PFC) function.

    • Rugged Design: Robust metal housing with a fanless design utilizing free air convection cooling.

    • Environmental Resistance: Operating case temperature range of -40°C to +90°C.

    • Wide Input Range: Supports 90~305VAC or 127~431VDC.

    • High Surge Immunity: Line-to-Earth protection up to 4KV and Line-to-Line up to 2KV.

    • Built-in Protections: Short circuit, over-current, over-voltage, and over-temperature safety cut-offs.

    • HLG-480H-24: 24V output (Rated current 20A, 480W)

    • HLG-480H-30: 30V output (Rated current 16A, 480W)

    • HLG-480H-36: 36V output (Rated current 13.3A, 478.8W)

    • HLG-480H-42: 42V output (Rated current 11.4A, 478.8W)

    • HLG-480H-48: 48V output (Rated current 10A, 480W)

    • HLG-480H-54: 54V output (Rated current 8.9A, 480.6W)

HLG-600H

600W Constant Voltage + Constant Current LED Driver

    • Dual-Mode Output: Works in both Constant Voltage (C.V.) and Constant Current (C.C.) modes.

    • High Output Power: Delivers a maximum rated power of up to 600W.

    • Wide Input Range: Accepts universal AC input voltages from 90VAC up to 305VAC (also supports 127VDC to 431VDC).

    • High Efficiency: Achieves electrical efficiency levels up to 96%.

    • Fanless Cooling Design: Operates completely silently using free air convection cooling.

    • Rugged Environmental Protection: Encased in a durable metal housing with IP65 or IP67 ingress ratings for indoor and outdoor installations.

    • Wide Operating Temperature: Functions reliably in extreme case temperatures ranging from -40°C to +90°C.

    • Power Factor Correction: Features a built-in active PFC function ($PF > 0.9$ for loads at or above 60%).

    • Surge Immunity: Offers heavy-duty surge protection up to 4KV (Line-to-Earth) and 2KV (Line-to-Line) meeting IEC61000-4-5 compliance.

    • Robust Vibration Resistance: Certified to withstand up to 5G anti-vibration testing.

    • Integrated Safety Protections: Built-in safeguards against Short Circuit, Over Current, Over Voltage, and Over Temperature.

    • Auxiliary Output: Includes a built-in 5V standby power supply ($5\text{VSB @ } 0.5\text{A}$).

    • Remote Management: Equipped with an integrated remote ON/OFF control mechanism.

    • HLG-600H-12: 12V output voltage (Adjustable 10.2V ~ 12.6V) | 40A rated current | 480W maximum power

    • HLG-600H-15: 15V output voltage (Adjustable 12.7V ~ 15.8V) | 36A rated current | 540W maximum power

    • HLG-600H-20: 20V output voltage (Adjustable 17V ~ 21V) | 28A rated current | 560W maximum power

    • HLG-600H-24: 24V output voltage (Adjustable 20.4V ~ 25.2V) | 25A rated current | 600W maximum power

    • HLG-600H-30: 30V output voltage (Adjustable 25.5V ~ 31.5V) | 20A rated current | 600W maximum power

    • HLG-600H-36: 36V output voltage (Adjustable 30.6V ~ 37.8V) | 16.7A rated current | 601.2W maximum power

    • HLG-600H-42: 42V output voltage (Adjustable 35.7V ~ 44.1V) | 14.3A rated current | 600.6W maximum power

    • HLG-600H-48: 48V output voltage (Adjustable 40.8V ~ 50.4V) | 12.5A rated current | 600W maximum power

    • HLG-600H-54: 54V output voltage (Adjustable 45.9V ~ 56.7V) | 11.2A rated current | 604.8W maximum power
