Features
| Specification | Details |
|---|---|
| Power Range | 35W – 1200W |
| Product Type | AC/DC Enclosed Switching Power Supply |
| Cooling | Free-air convection (35–200W); Built-in DC fan (350–1200W) |
| Design | Ultra-compact 1U Low Profile |
| Input | Universal AC input / Selectable input depending on model |
| Peak Power | Up to 200% peak power on N2 models |
| Operating Temperature | Up to 70°C |
| Surge Protection | 300VAC input surge for 5 seconds |
| No-load Power Consumption | 0.2W–0.75W |
| Operating Altitude | Up to 5000 meters |
| Protection | Short Circuit / Overload / Over Voltage / Over Temperature (150W and above) |
| Reliability | 5G vibration tested |
| Warranty | 3 Years |
LRS Series Product Models
| Series | Representative Picture | Power Rating | Description |
|---|---|---|---|
| LRS-35 | 35W | Compact entry-level industrial power supply | |
| LRS-50 | 50W | Economical enclosed power supply | |

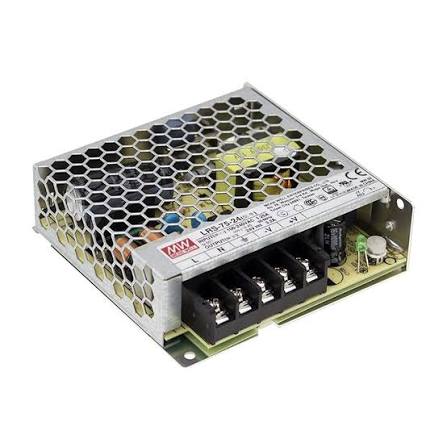

| LRS-75 | 75W | Universal AC input | |
| LRS-100 | 100W | High efficiency, fanless | |

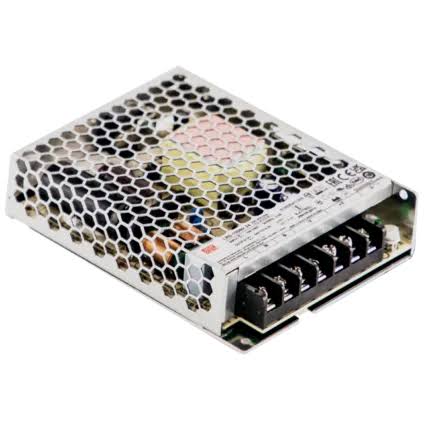

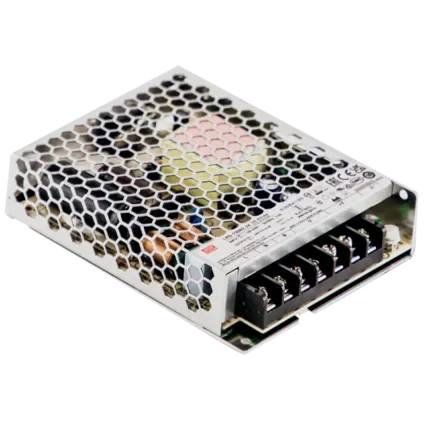

| LRS-100N2 | 100W | 200% peak power version | |

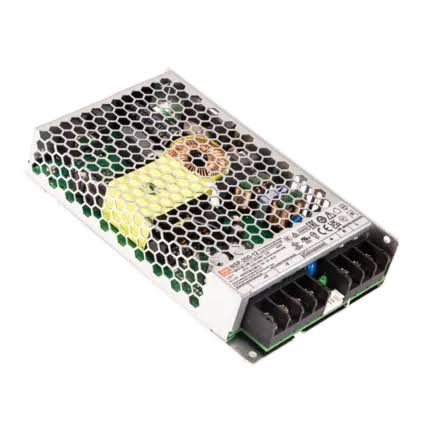

| LRS-150 | 150W | Low-profile industrial PSU | |

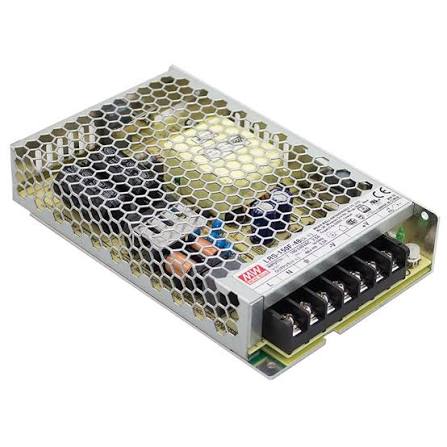

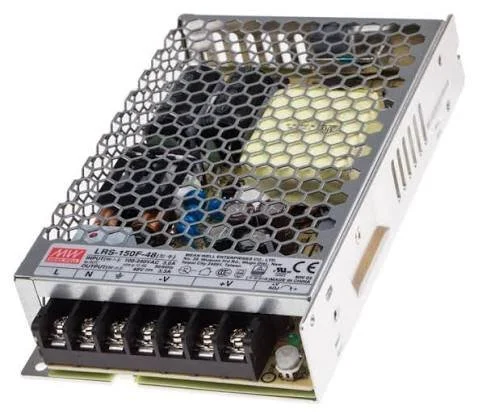

| LRS-150F | 150W | Full-range AC input version | |

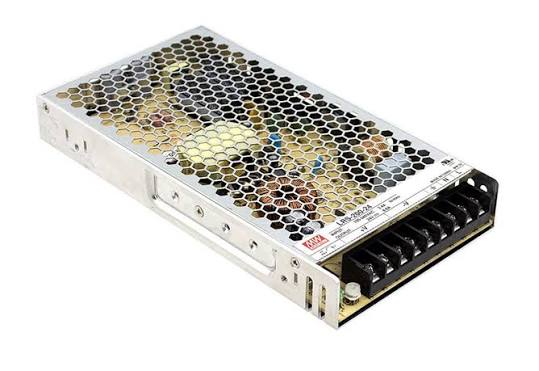

| LRS-200 | 200W | Free-air convection cooling | |
| LRS-200N2 | 200W | 200% peak power version | |

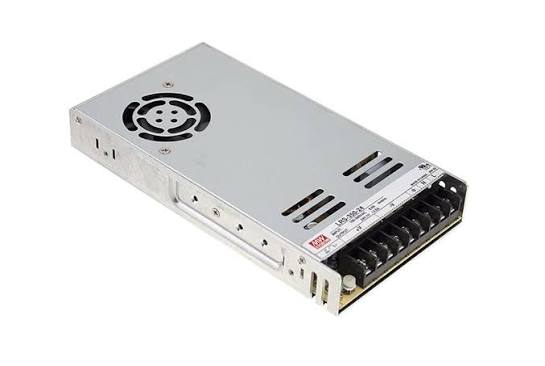

| LRS-350 | 350W | Built-in smart cooling fan | |
| LRS-350N2 | 350W | High peak-power industrial model | |
| LRS-450 | 450W | High-power enclosed supply | |

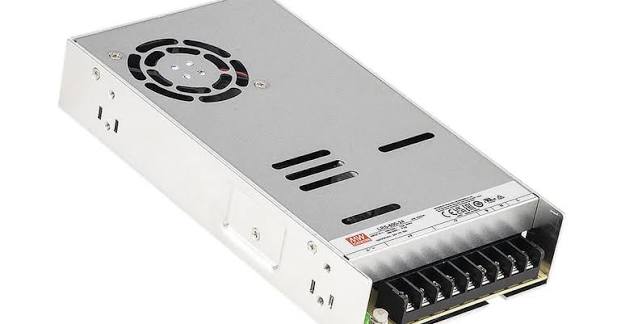

| LRS-600 | 600W | Heavy-duty industrial power supply | |

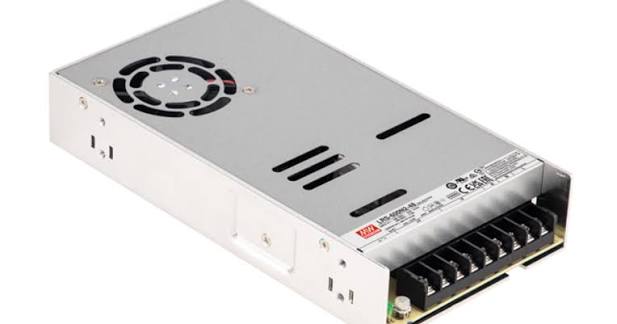

| LRS-600N2 | 600W | 200% peak power version | |
| LRS-1200 | 1200W | Flagship high-power enclosed power supply with remote control, remote sense, and DC OK signal |
