The HRP Series (High Reliability Power Supply) is MEAN WELL's high-performance enclosed AC/DC switching power supply family with Active PFC, designed for industrial automation, factory equipment, communication systems, instrumentation, and demanding applications requiring high efficiency and reliability. The series covers 75W to 1000W power ratings.
Key Features
| Feature | Description |
|---|---|
| Power Range | 75W – 1000W |
| Input Voltage | Universal AC input (85–264VAC) |
| Power Factor Correction | Built-in Active PFC |
| Efficiency | High efficiency with <0.5W–0.75W no-load power consumption |
| Cooling | Free-air convection (≤200W); Built-in DC fan (≥300W) |
| Protection | Short Circuit, Overload, Over Voltage, Over Temperature (model dependent) |
| Remote Functions | DC OK signal (≥200W), Remote Sense, Remote ON/OFF (selected models) |
| Standby Output | Built-in 5V / 0.3A standby output (HRPG models) |
| Current Sharing | Available on selected high-power HRPG models |
| LED Indicator | Power ON indicator |
| Warranty | 5 Years |
Typical Applications
Industrial Automation
Factory Control Systems
Robotics
CNC Machines
Test & Measurement Equipment
Communication Systems
Semiconductor Equipment
Battery Charging Systems
Process Control
Industrial Instrumentation
The HRP Series is well suited for applications requiring high efficiency, Active PFC, low standby power, remote control functions, and long-term reliability, while the N3 models provide exceptional peak power capability for demanding startup conditions.
HRP Series Product Models
| Picture | Model | Power Rating | Description |
|---|---|---|---|

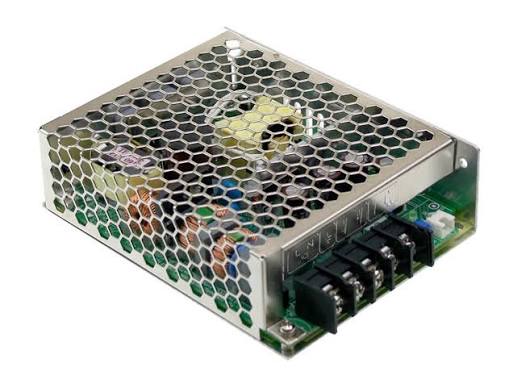

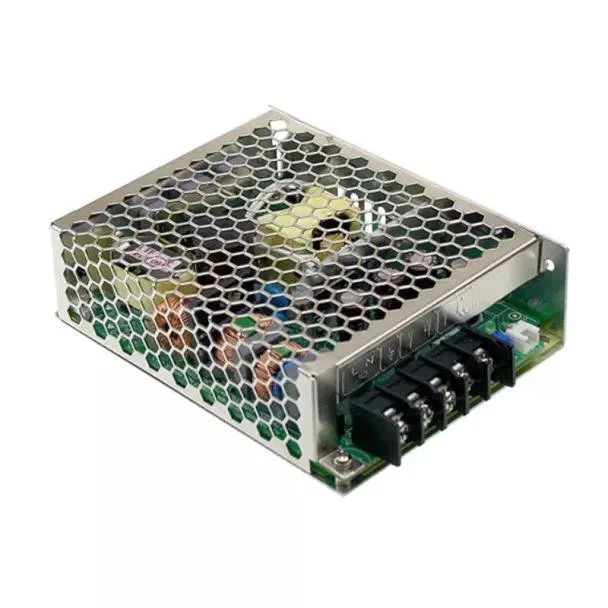

| HRP-75 | 75W | High-reliability enclosed power supply with Active PFC | |

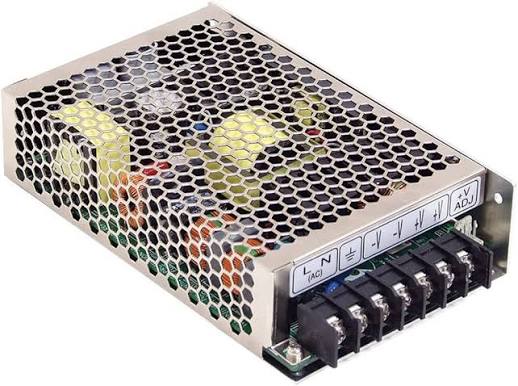

| HRP-100 | 100W | Compact enclosed power supply with convection cooling | |
| HRP-150 | 150W | Standard high-reliability model | |
 |

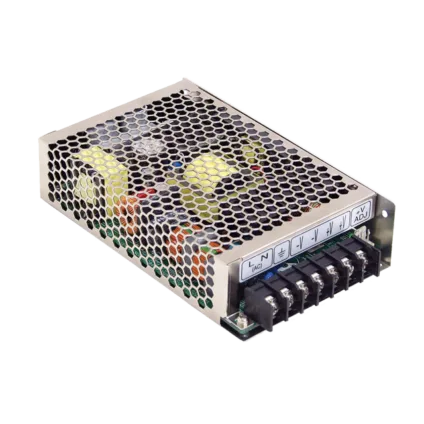

HRPG-150 | 150W | Remote ON/OFF and 5V standby output |

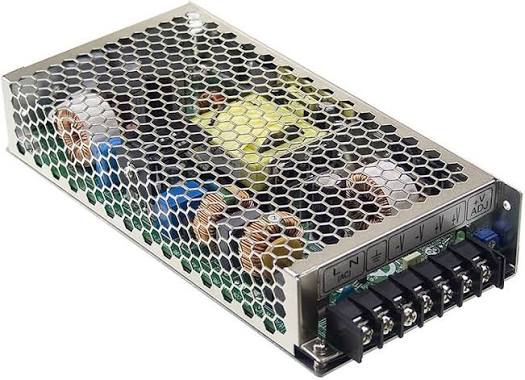

| HRP-200 | 200W | High-efficiency industrial power supply | |
 |

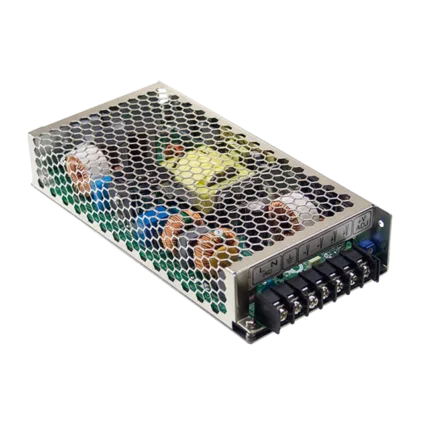

HRPG-200 | 200W | Enhanced version with standby output |
 |
HRP-300 | 300W | Built-in cooling fan for higher power |
|

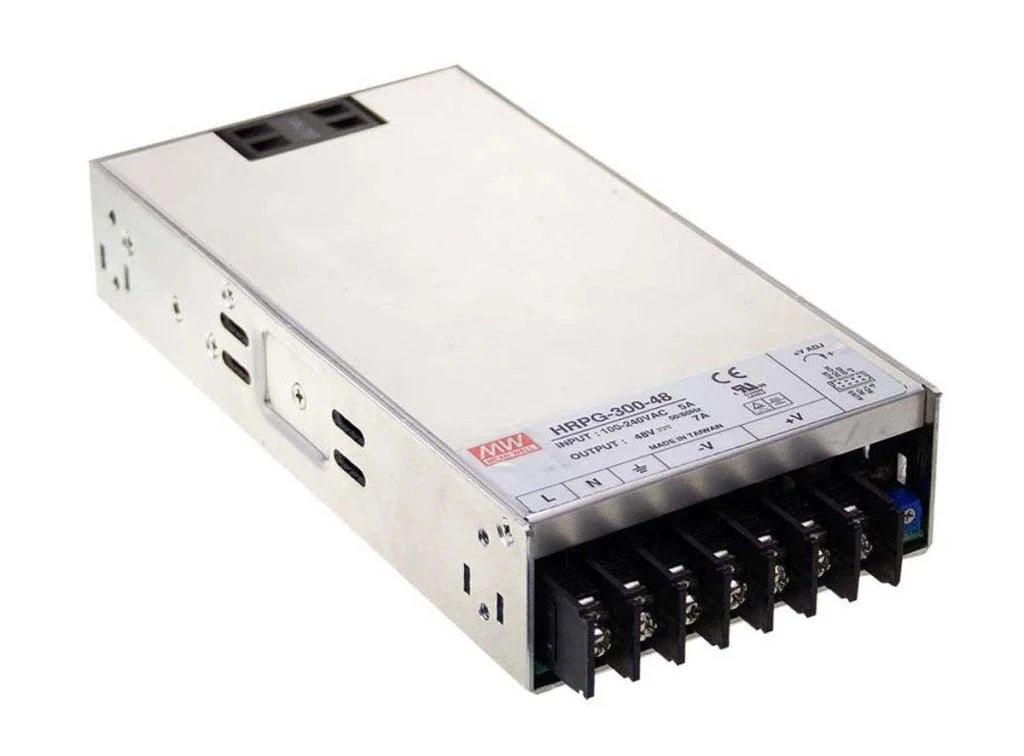

HRPG-300 | 300W | Remote control and standby output |

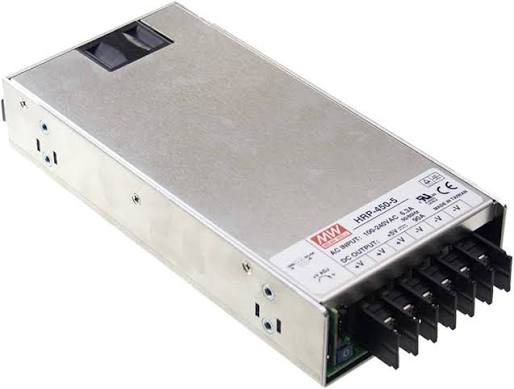

| HRP-450 | 450W | High-power industrial enclosed PSU | |
 |

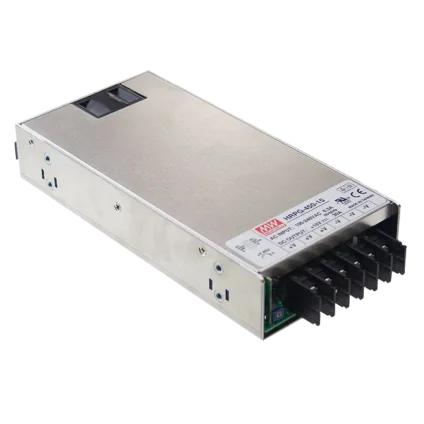

HRPG-450 | 450W | Enhanced industrial version |
 |

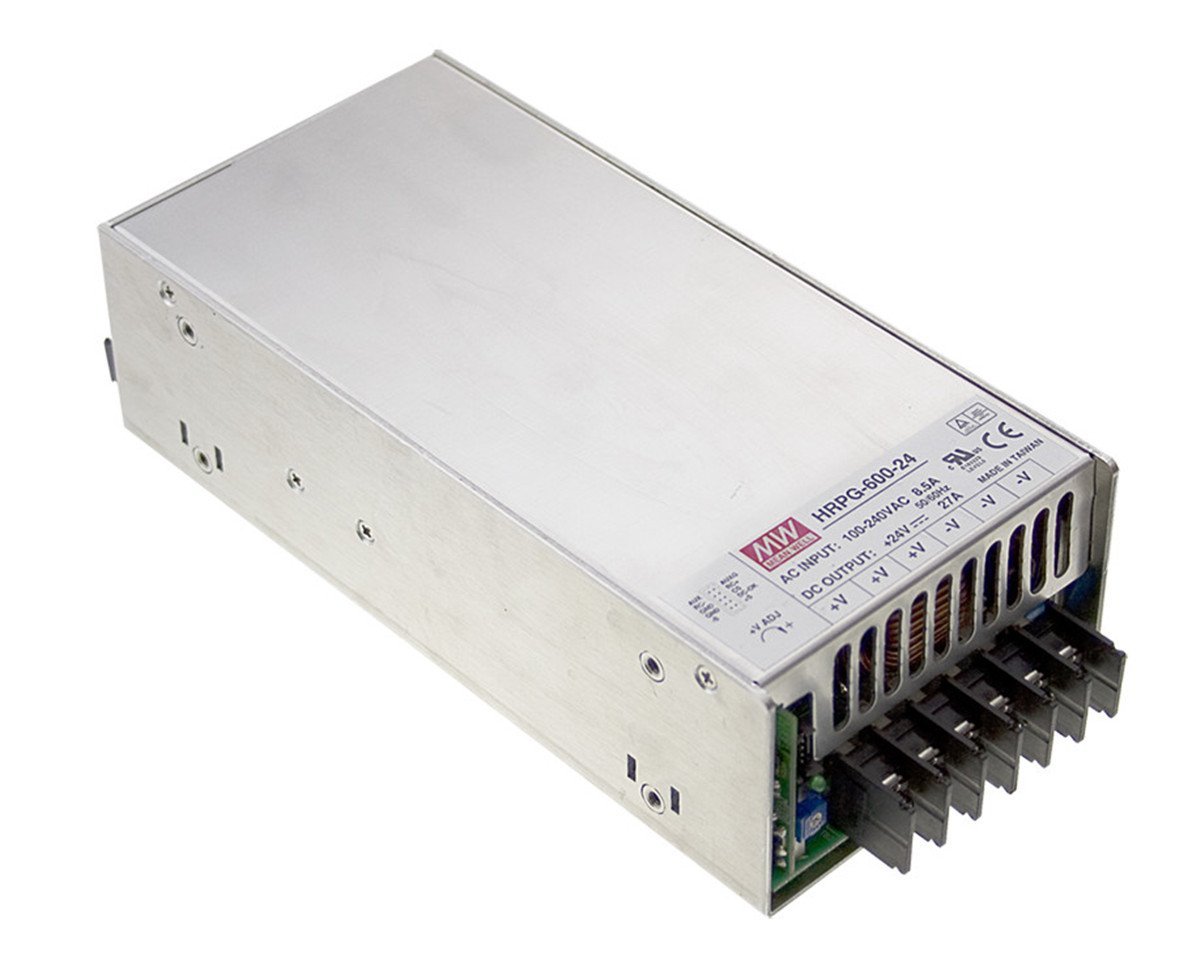

HRP-600 | 600W | High-current enclosed power supply |
 |
HRPG-600 | 600W | Current sharing with standby output |
 |

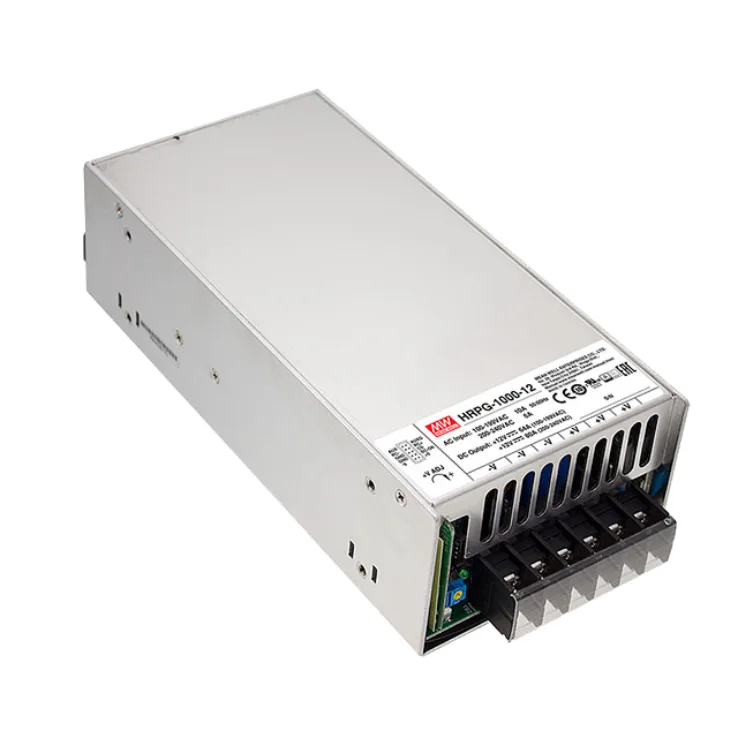

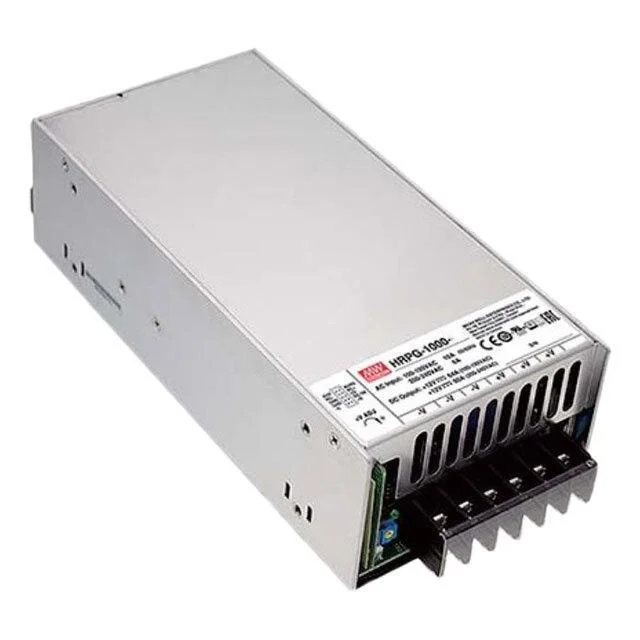

HRPG-1000 | 1000W | Flagship high-power enclosed power supply |
350% Peak Power Models (N3 Series)
These models are designed to deliver up to 350% peak power, making them suitable for applications with high startup or inrush current requirements, such as motors and inductive loads.
