Model: 3 in 1 Dimming

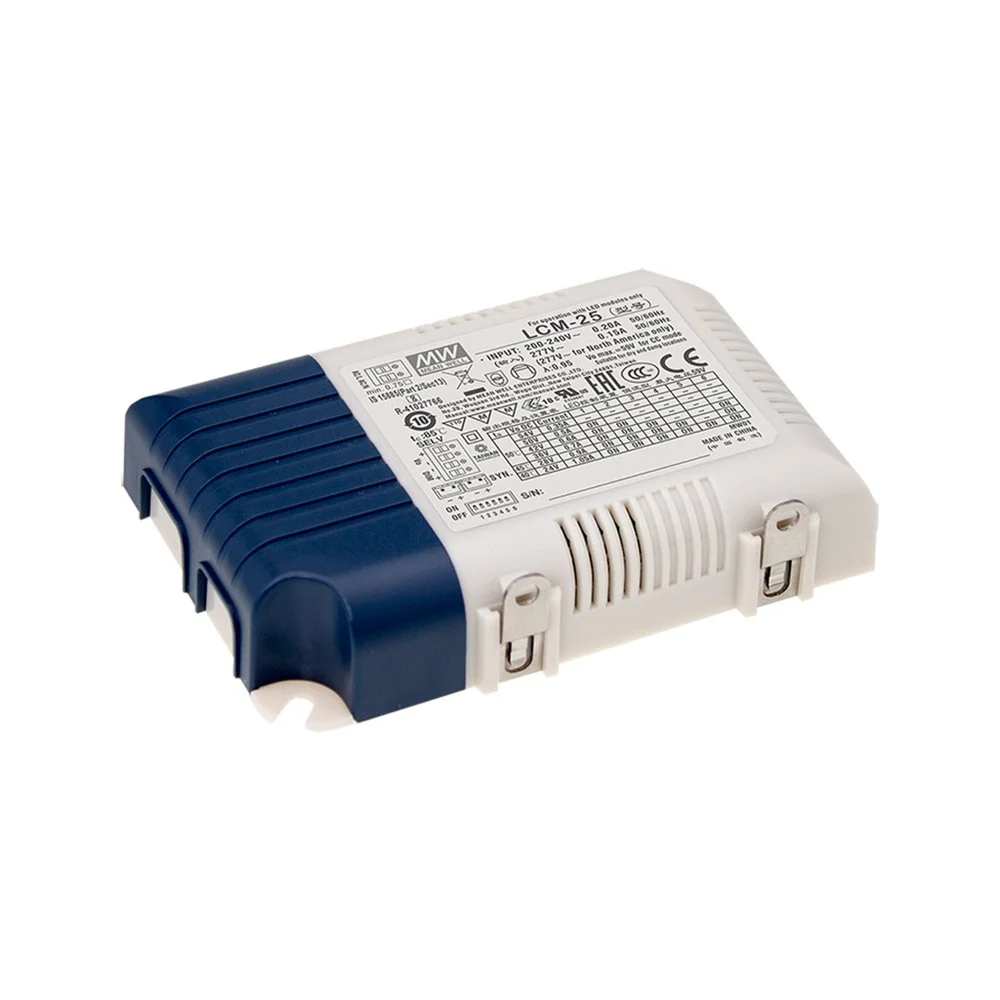

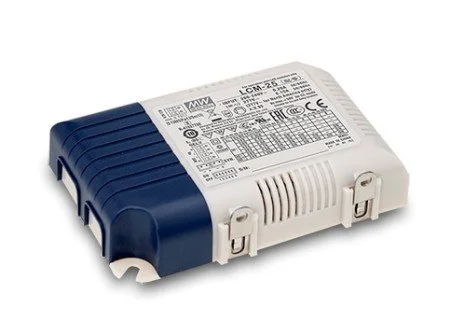

LCM-25
25W Multiple-Stage Constant Current Mode LED Drivey
-
Output Mode: Multiple-stage constant current mode, selectable via DIP switch.
Input Voltage Range: 180~277VAC (or 254~392VDC).
Dimming Function: Built-in 2-in-1 dimming (0~10VDC and PWM signal).
PFC: Built-in active Power Factor Correction.
Protection: Short circuit, over-voltage, and over-temperature (auto-recovery).
Housing: Low-profile, fully insulated plastic enclosure (IP20 rated).
Safety: Class II power unit (no FG/earthing required).
Standby Power: Low no-load power consumption (<0.5W).
Cooling: Free air convection.
Design: Multiple units can be synchronized (Master/Slave operation).
Available Models
-
LCM-25: Standard model with 2-in-1 dimming.
LCM-25DA: Model with DALI interface and push dimming.
LCM-25DA2: Model with DALI-2 interface and push dimming.
LCM-25BLE: Model with Bluetooth Low Energy (Casambi) wireless control interfac
LCM-40(EO)
40W Multiple-Stage Constant Current Mode LED Driver
-
MEAN WELL LCM-40(EO) Features
Wireless Protocol: Built-in EnOcean energy harvesting wireless module (operating at standard 868 MHz).
Output Mode: Multiple-stage Constant Current (CC) output, selectable via an integrated DIP switch (350mA, 500mA, 600mA, 700mA default, 900mA, and 1050mA).
Synchronization: Master/Slave synchronization control function for up to 10 power supply units.
Auxiliary Output: Built-in 12V/50mA auxiliary power output (primarily used for driving small cooling fans).
Input Voltage Range: 180~295VAC input only.
PFC: Built-in active Power Factor Correction (PFC) function.
Protections: Comprehensive safety features including short circuit, over-voltage, and over-temperature protections.
Housing & Insulation: Fully isolated plastic case design qualifying as a Class II power unit (no frame ground/earthing required).
Cooling: Free air convection cooling (fanless design).
Temperature Compensation: Built-in temperature compensation function via an optional external NTC resistor connection.
Standby Efficiency: Low no-load power consumption (<1W).
-
LCM-40: Standard base model (features 3-in-1 dimming via 0-10Vdc, PWM signal, or resistance).
LCM-40(EO): Wireless model with integrated EnOcean module.
LCM-40DA: Model featuring a built-in DALI interface and push-dimming function.
LCM-40DA2: Model upgraded to support the DALI-2 smart interface protocol.
LCM-60(EO)
60W Multiple-Stage Constant Current Mode LED Driver
-
Wireless Protocol: Built-in EnOcean wireless module (supports EnOcean standard 868 MHz protocol for smart building integration).
Output Mode: Constant Current (CC) with multiple levels selectable via on-board DIP switch.
Output Flexibility: Supports selectable output current levels (500mA, 600mA, 700mA, 900mA, 1050mA, and 1400mA).
Software Configuration: Supports Navigan software for commissioning and wireless setup.
PFC: Built-in active Power Factor Correction.
Synchronization: Master/Slave synchronization function allows control of up to 10 units simultaneously.
Auxiliary Output: Built-in 12V/50mA auxiliary DC output (typically used for driving small cooling fans or sensor accessories).
Temperature Control: Temperature compensation function via an external Negative Temperature Coefficient (NTC) thermistor.
Protection: Built-in protections for short circuit, over-voltage, and over-temperature.
Housing: Fully isolated plastic case, Class II power design (no frame ground/earthing required).
Efficiency: Highly efficient design up to 92% with fanless free air convection cooling.
-
LCM-60EO
Model: DALI Dimming

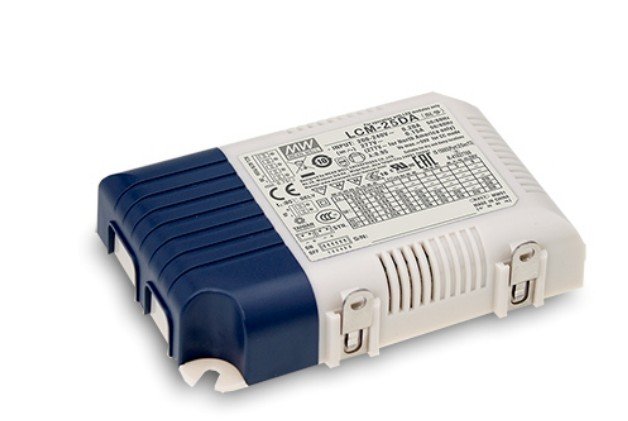

LCM-25DA
25W Multiple-Stage Constant Current Mode LED Driver
-
MEAN WELL LCM-25DA Features
Output Mode: Constant Current (CC) with multiple levels selectable via DIP switch.
Dimming Interface: DALI interface (compliant with IEC62386).
Additional Dimming: Push dimming function.
Synchronization: Master/Slave synchronization available for up to 10 units.
PFC: Built-in active Power Factor Correction.
Protection: Short circuit, over-voltage, and over-temperature protections.
Housing: Class II power unit (no FG/earthing required); IP20-rated plastic enclosure.
Standby Power: Low no-load power consumption (<0.5W).
Efficiency: High efficiency (up to 86%).
Design: Fanless cooling (free air convection).
-
LCM-25DA: Standard model with DALI interface.
LCM-25DA2: Advanced version featuring DALI-2 interface.

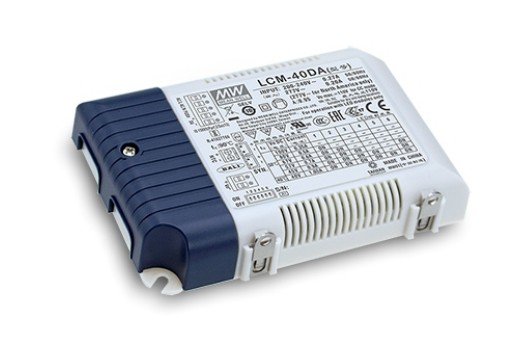

LCM-40DA
40W Multiple-Stage Constant Current Mode LED Driver
-
Output Mode: Multiple-stage constant current mode with current levels selectable via DIP switch (350/500/600/700/900/1050mA).
Dimming Interface: Built-in DALI interface (compliant with IEC62386-207).
Additional Dimming: Push dimming function.
Synchronization: Master/Slave synchronization available for up to 10 units.
PFC: Built-in active Power Factor Correction (PFC).
Auxiliary Output: Built-in 12V/50mA auxiliary power output.
Temperature Compensation: Supports external NTC for LED temperature compensation.
Protection: Short circuit, over-voltage, and over-temperature protection.
Housing: Class II plastic housing (no FG required).
Efficiency: High efficiency design (up to 91%).
Standby Power: Low no-load power consumption (<0.5W).
-
LCM-40DA: Standard model with DALI and push dimming functionality.
LCM-40DA-AUX: Model equipped with an additional 12V/50mA auxiliary power output (note: this feature is standard on most units in this series).

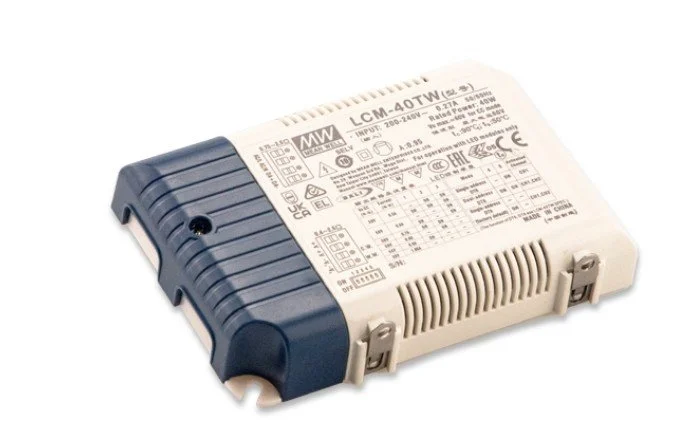

LCM-40TW
40W Constant Power Mode With Tunable White LED Driver
-
utput Mode: 40W constant power with two independent output channels.
Application: Specifically designed for Tunable White LED lighting.
Dimming Protocols: Supports DALI-2 DT8 (Tunable White) and DT6 (independent channel control).
Manual Control: Built-in push-dimming functionality for light intensity and color temperature adjustment.
Current Adjustment: Output current adjustable via DIP switch (500mA–1050mA).
Design: Plastic housing with Class II (no FG/earthing) insulation.
PFC: Built-in active Power Factor Correction.
Standby Power: Low no-load power consumption (<0.5W).
Operating Conditions: Wide operating temperature range (-30°C to +85°C case temperature) and fanless cooling.
Protection: Short circuit, over-voltage, over-temperature, and overload protection.
-
LCM-40TW: Standard 40W two-channel tunable white DALI-2 LED driver.

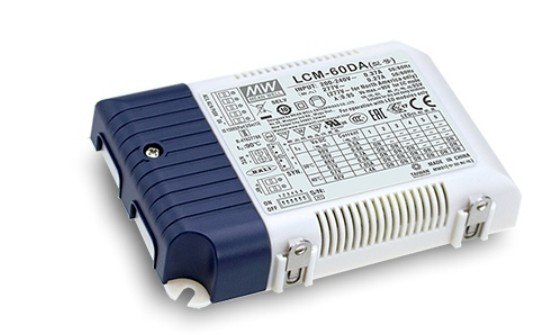

LCM-60DA
60W Multiple-Stage Constant Current Mode LED Driver
-
Output Mode: Constant Current (CC) with multiple stages selectable via DIP switch.
Dimming Interface: Built-in DALI interface (compliant with IEC62386) and Push dimming function.
Dimming Curves: Selectable logarithm or linear dimming curves.
Synchronization: Supports master/slave synchronization for up to 10 units.
PFC: Built-in active Power Factor Correction (PFC).
Protection: Short circuit, over-voltage, and over-temperature protections.
Design: Class II power unit (no FG/earthing required) with a fully isolated plastic case.
Temperature Compensation: Supports external NTC for temperature regulation.
Efficiency: High-efficiency design with fanless operation (free air convection).
Standby Power: Low no-load power consumption.
Operating Voltage: 180~295VAC.
-
LCM-60DA: Standard model.
LCM-60DA-AUX: Model equipped with an additional 12V/50mA auxiliary power output.
