The MSP Series is MEAN WELL's medical-grade enclosed AC/DC switching power supply family. It is designed for medical equipment requiring high reliability, low leakage current, and compliance with international medical safety standards. The series covers power ratings from 100W to 1600W with output voltages from 3.3V to 48V.
Key Features
| Feature | Description |
|---|---|
| Power Range | 100W – 1600W |
| Product Type | Medical-grade AC/DC Enclosed Switching Power Supply |
| Input Voltage | Universal AC input with built-in Active PFC |
| Medical Safety | 100–600W: MOOP approved; 1000–1600W: MOOP approved and suitable for BF applications |
| Efficiency | High efficiency with low heat generation |
| No-load Power Consumption | <0.5W–0.8W (model dependent) |
| Auxiliary Output | Built-in 5V auxiliary power |
| Remote Functions | Remote ON/OFF control, DC OK signal |
| Parallel Operation | Supported on selected models |
| Protection | Short Circuit, Overload, Over Voltage, Over Temperature |
| Warranty | 5 Years |
Typical Applications
- Medical imaging systems
- Diagnostic equipment
- Laboratory analyzers
- Patient monitoring systems
- Clinical treatment equipment
- Healthcare instrumentation
- Industrial systems requiring medical-grade power supplies
MSP Series Models
| Picture | Model | Power Rating | Description |
|---|---|---|---|
|
|

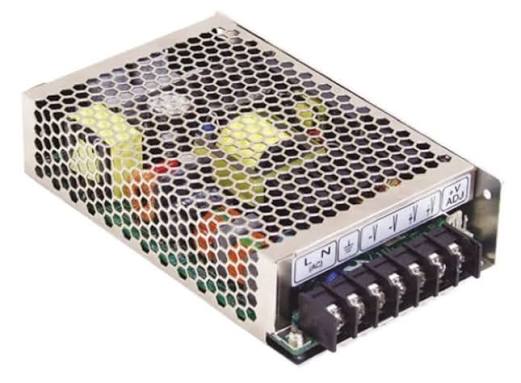

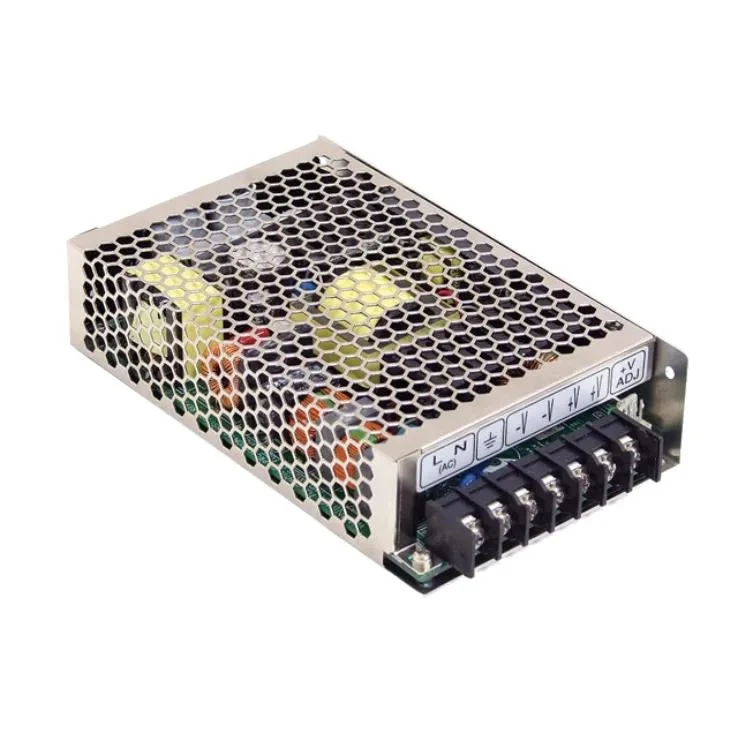

MSP-100 | 100W | Compact medical-grade enclosed power supply |
|
MSP-200 | 200W | Active PFC medical power supply |
|

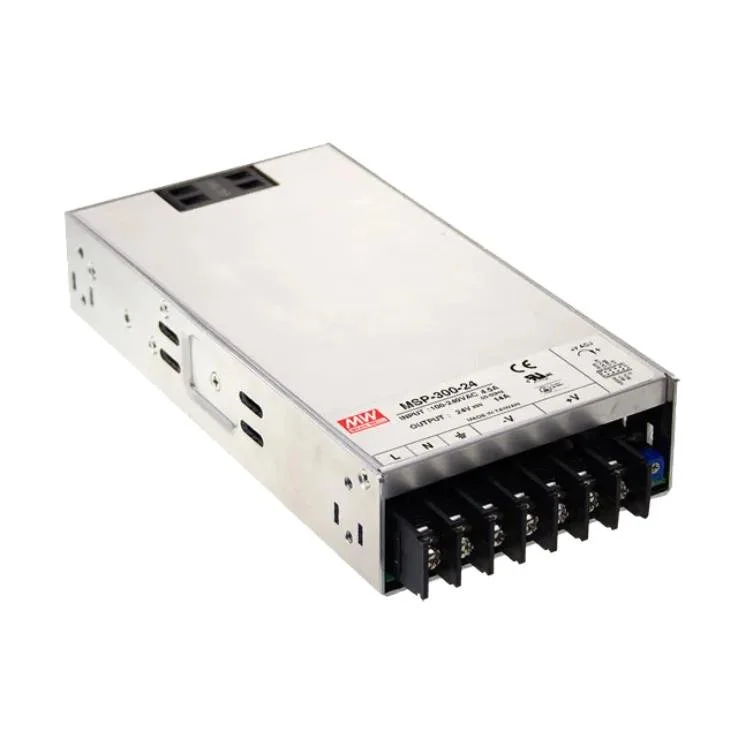

MSP-300 | 300W | High-efficiency medical AC/DC power supply |
|
|

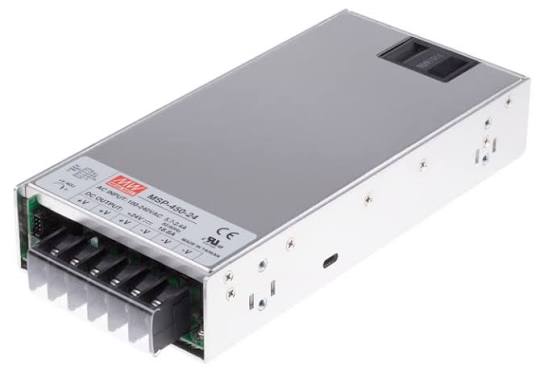

MSP-450 | 450W | Medical-grade enclosed PSU with remote control |
|

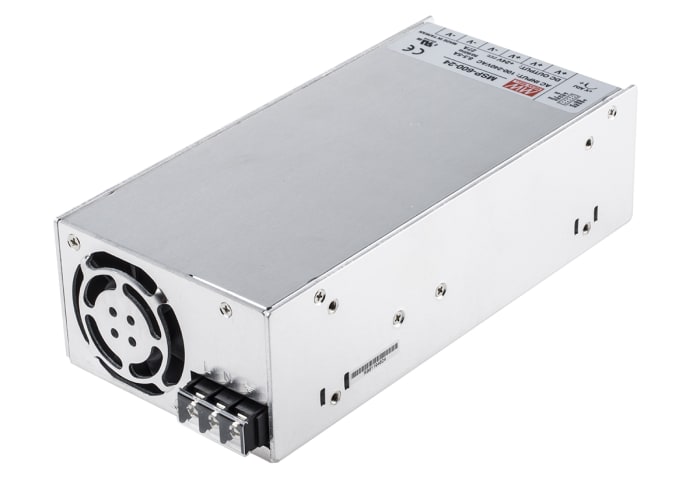

MSP-600 | 600W | High-power medical power supply with auxiliary output |
|

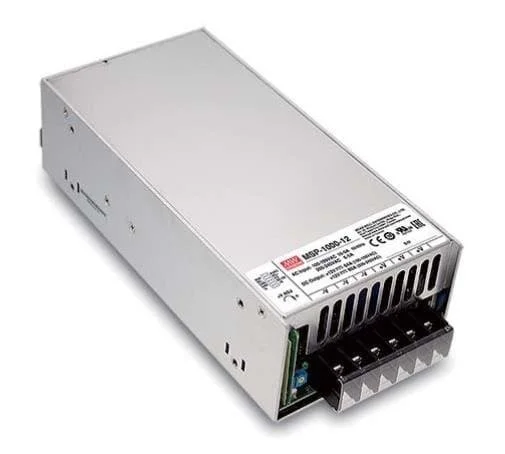

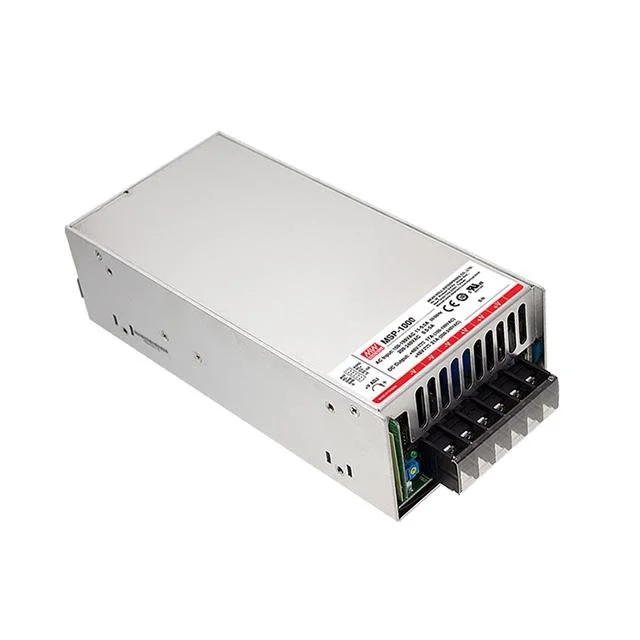

MSP-1000 | 1000W | High-power medical PSU suitable for BF applications |
|

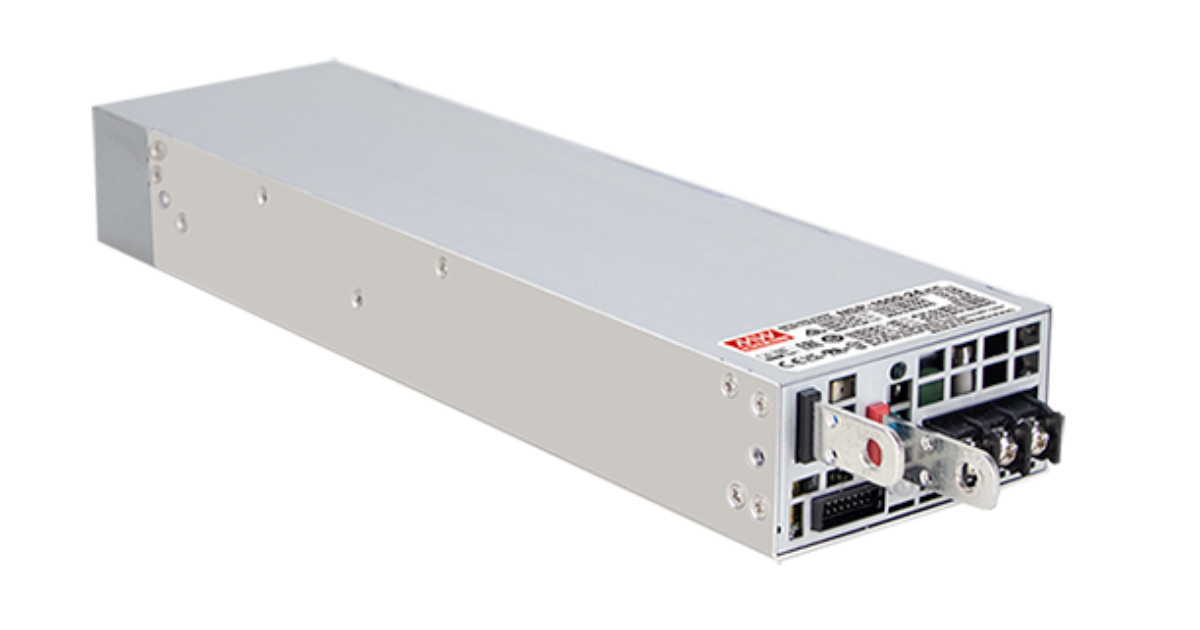

MSP-1600 | 1600W | Flagship medical enclosed power supply with multiple industrial and medical safety certifications |
