Model:
PLP-30
30W Single Output LED Power Supply
-
Output Mode: Constant Voltage (CV) + Constant Current (CC)
Input Range: Universal AC input (90~264VAC) / Full range (also supports 127~370VDC)
PFC: Built-in active Power Factor Correction (PF > 0.9 at 75% load or higher)
Output Adjustment: Built-in potentiometer for adjustable output current level
Cooling: Free air convection
Protections: Short circuit, over-current, and over-voltage
Design: Open-frame / PCB type; suitable for built-in applications
Certification: Class 2 power unit; compliant with various safety and EMC lighting standards
Reliability: 100% full load burn-in test; 2-year warranty
-
PLP-30-12: 12V / 0~2.5A
PLP-30-24: 24V / 0~1.3A
PLP-30-48: 48V / 0~0.63A

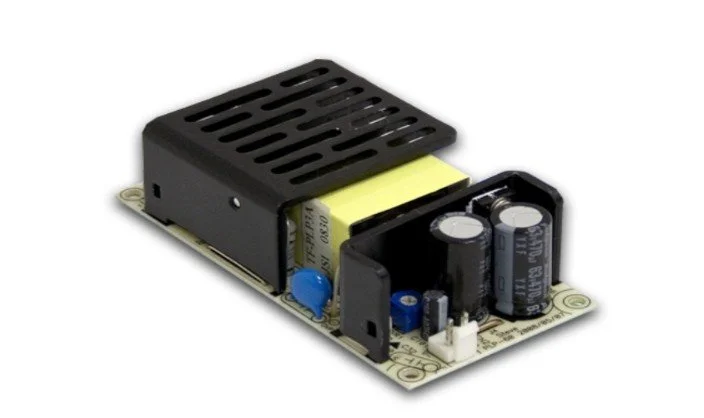

PLP-60
60W Single Output LED Power Supply
-
Design: Open-frame, PCB-type LED driver designed for built-in applications.
Operating Modes: Constant Voltage (CV) + Constant Current (CC).
Input Range: Universal AC input (90~264VAC).
Active PFC: Built-in active Power Factor Correction function.
Adjustability: Output current level is adjustable via a built-in potentiometer.
Protection: Short circuit, over-current, over-voltage, and over-temperature protections.
Cooling: Free air convection.
-
PLP-60-12 (12V Output)
PLP-60-24 (24V Output)
PLP-60-48 (48V Output)
