Key Features
| Feature | Description |
|---|---|
| Power Range | 75W – 500W |
| Power Factor Correction | Built-in Active PFC |
| Input Voltage | Universal 90–264VAC input |

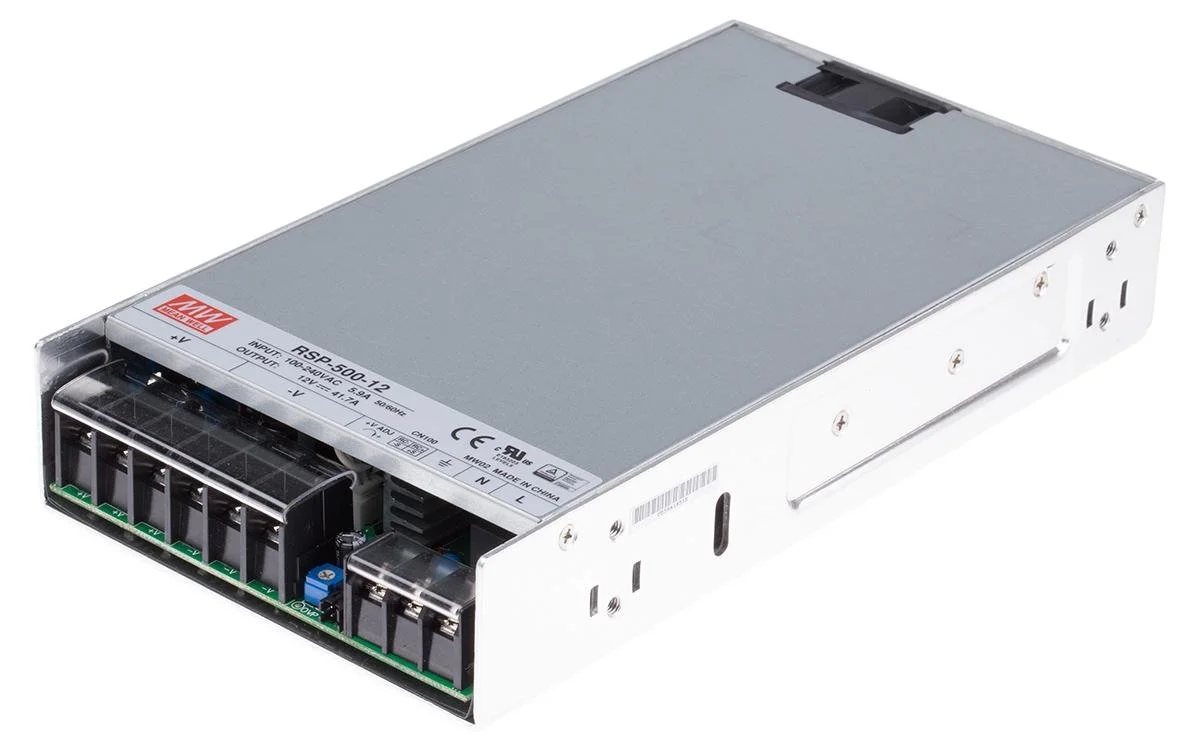

| Low Profile Design | 1U height: 30 mm (RSP-75 to RSP-320), 40.5 mm (RSP-500) |

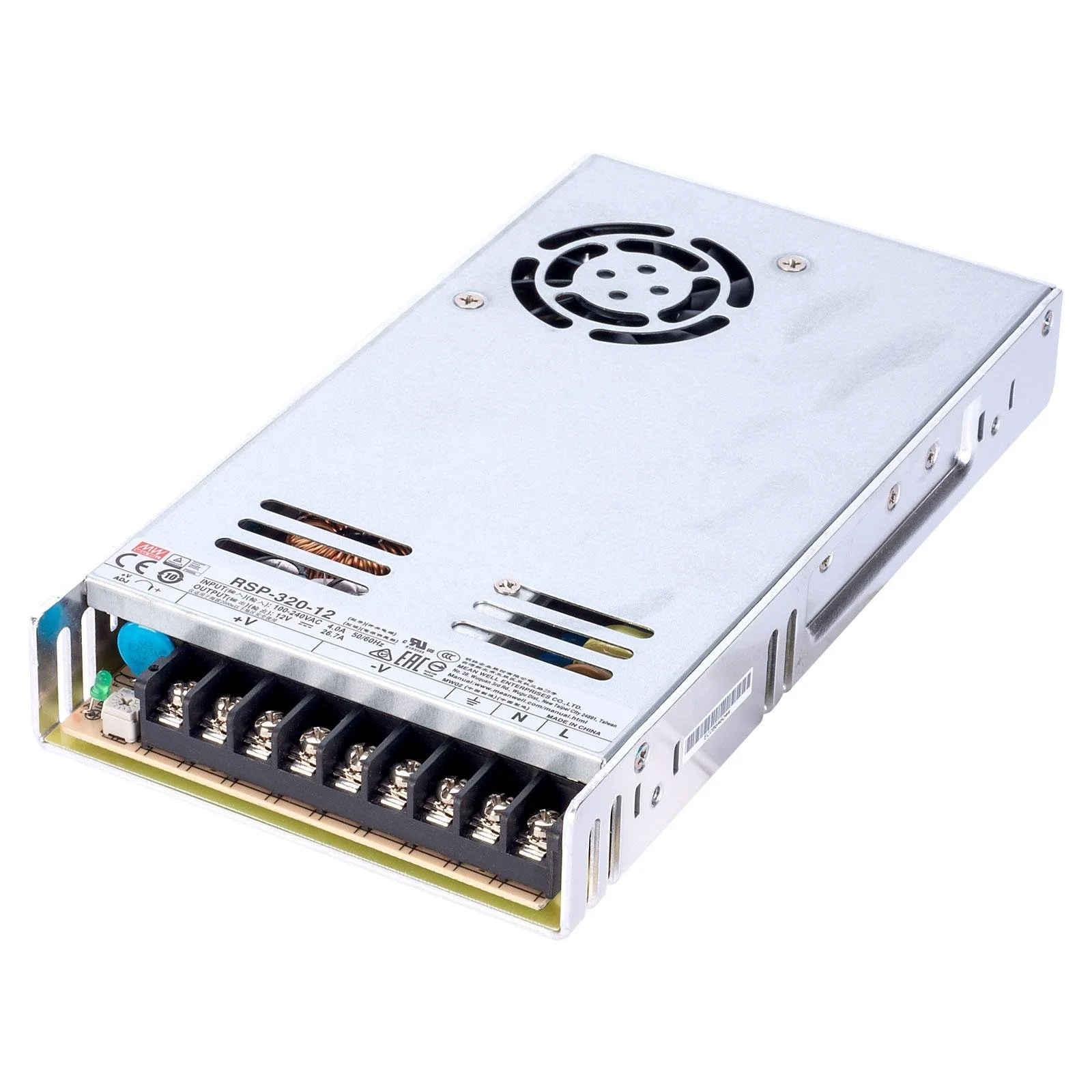

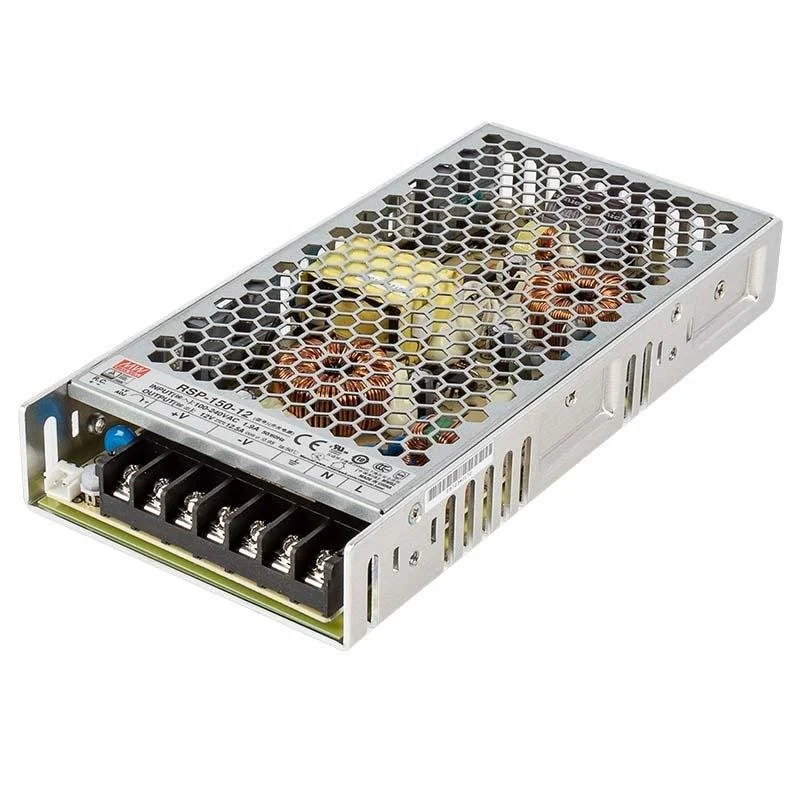

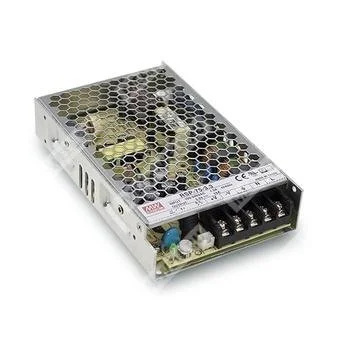

| Cooling | Free-air convection (RSP-75/100/150/200); Built-in DC fan (RSP-320/500) |
| Remote ON/OFF | Available on RSP-75 / RSP-100 / RSP-150 / RSP-500 |
| Remote Sense | Available on RSP-500 |
| DC OK Signal | Available on RSP-500 |
| Constant Current Limiting | Built-in on RSP-75 / RSP-100 / RSP-150 |
| Protection | Short Circuit, Overload, Over Voltage, Over Temperature |
| Power Indicator | LED indicator |
| Warranty | 3 Years |
Typical Applications
Industrial Automation
PLC & Control Panels
Factory Equipment
Telecommunications
Test & Measurement Systems
LED Displays & Signage
Security Systems
CNC Machines
Process Control Equipment
The RSP-75~500 Series is ideal for applications requiring a compact 1U form factor, high efficiency, and Active PFC, while offering industrial features such as remote ON/OFF, constant current limiting, and remote sensing (RSP-500).
UHP Series Models
| Picture | Series | Power Rating | Description |
|---|---|---|---|
 |

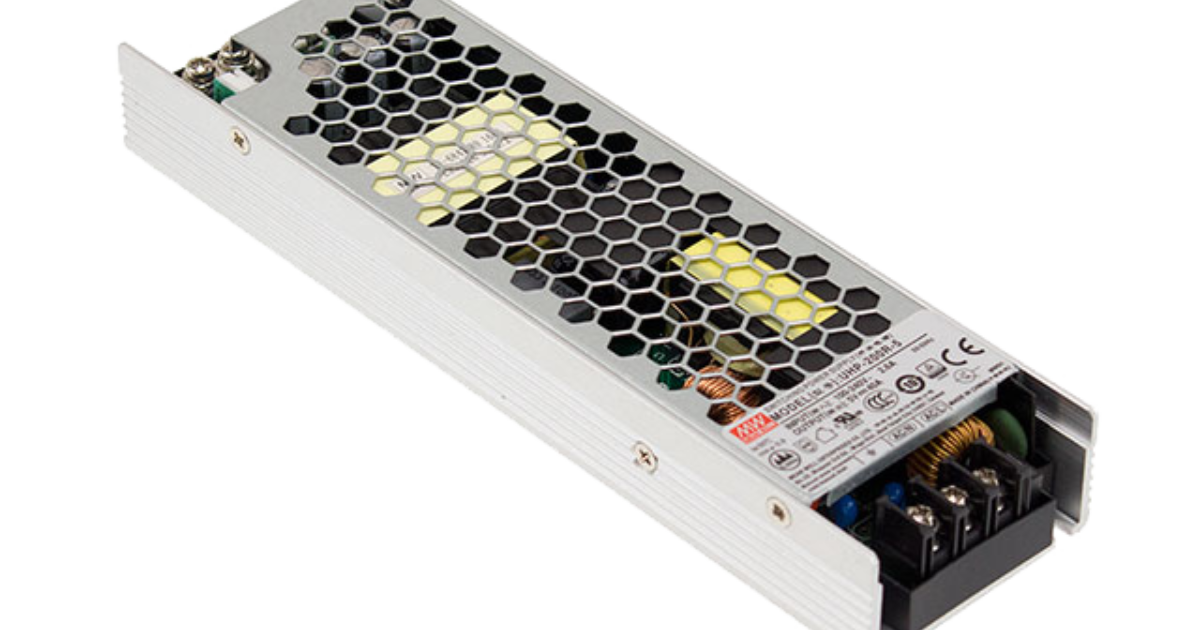

UHP-200(R) | 200W | Fanless slim power supply with optional redundant version |
 |
UHP-200A | 200W | 5V/4.2V version designed for LED display applications |
 |
UHP-350(R) | 350W | Slim fanless power supply with optional redundancy |
 |
UHP-500(R) | 500W | High-efficiency fanless power supply |
 |
UHP-750 | 750W | Industrial slim enclosed power supply |
 |
UHP-1000 | 1000W | Programmable output voltage and constant current |
 |
UHP-1500 | 1500W | High-power programmable industrial power supply |
 |
UHP-1500-HV | 1500W | High-voltage output version for specialized applications |
 |
UHP-2500 | 2500W | Flagship ultra-high-power fanless supply with optional PMBus/CANBus |
Complete UHP Product List
The RSP-75~500 Series is a family of high-performance enclosed AC/DC switching power supplies featuring Active PFC, a 1U low-profile design, and industrial-grade reliability. It is designed for applications such as industrial automation, factory control, telecommunications, LED systems, instrumentation, and test equipment.
