Typical Applications
Industrial automation equipment
Factory machinery
CNC machines
Laser equipment
Test and measurement systems
Telecommunications equipment
Security and surveillance systems
Battery charging equipment
Large LED display systems
The SE Series is a cost-effective choice when high output power, forced-air cooling, and dependable industrial performance are required. It supports a wide range of output voltages and includes advanced features such as remote sensing and remote ON/OFF on the higher-power models.
Features
| Specification | Details |
|---|---|
| Power Range | 35W – 1200W |
| Product Type | AC/DC Enclosed Switching Power Supply |
| Cooling | Free-air convection (35–200W); Built-in DC fan (350–1200W) |
| Design | Ultra-compact 1U Low Profile |
| Input | Universal AC input / Selectable input depending on model |
| Peak Power | Up to 200% peak power on N2 models |
| Operating Temperature | Up to 70°C |
| Surge Protection | 300VAC input surge for 5 seconds |
| No-load Power Consumption | 0.2W–0.75W |
| Operating Altitude | Up to 5000 meters |
| Protection | Short Circuit / Overload / Over Voltage / Over Temperature (150W and above) |
| Reliability | 5G vibration tested |
| Warranty | 3 Years |
SE Series Models
| Picture | Series | Rated Power | Typical Output Voltage Options |
|---|---|---|---|

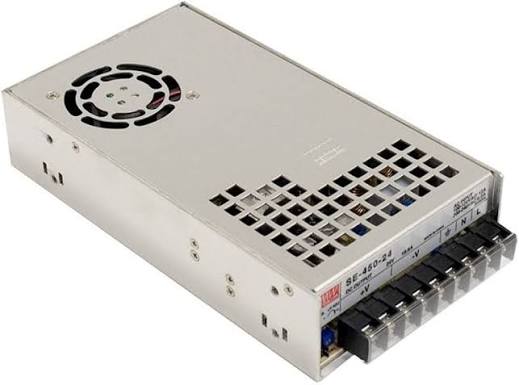

| SE-450 | 450W | 3.3V, 5V, 12V, 15V, 24V, 36V, 48V | |
 |

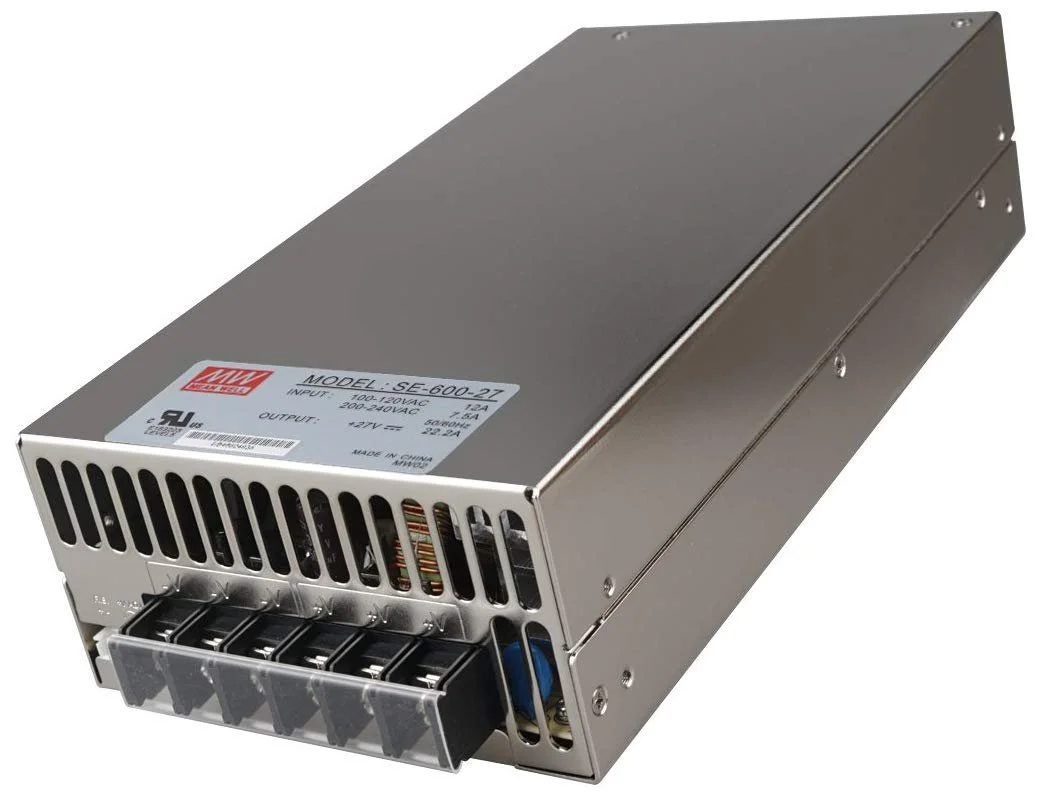

SE-600 | 600W | 5V, 12V, 15V, 24V, 27V, 36V, 48V |

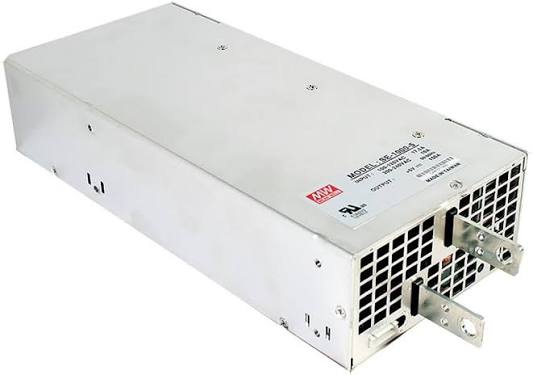

| SE-1000 | 1000W | 5V, 9V, 12V, 15V, 24V, 48V | |
 |

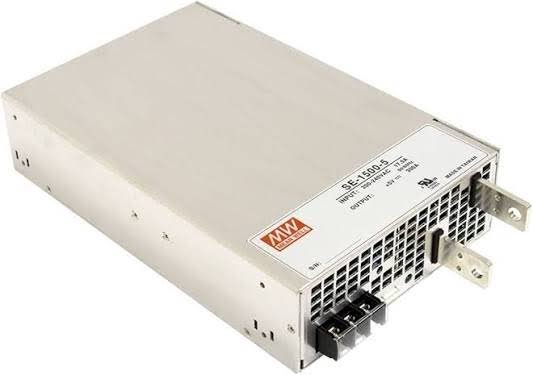

SE-1500 | 1500W | 5V, 12V, 15V, 24V, 27V, 48V |
