XLC Series

$0.00

Wattage : 25W~60W

Features　:

  • Constant power design with wide range current adjustable (H type)

  • Constant voltage output models available (12V/24V/48V)

  • Full voltage input 110~305VAC (with PFC function)

  • Plastic case with double insulation and Class II/2 design

  • Compliant with IEEE 1789 and ErP flicker-free standards

  • Standby power consumption <0.5W

  • Minimum dimming brightness <0.1% (DALI-2 DT6)

  • Compliant with emergency lighting (EL) functions

  • Dimming function: 3 in 1(Dim-to-off), DALI-2+Push dimming

  • Output and dimming circuit comply with isolation design

  • Optional independent or built-in LED power supply

Datasheet: C.P.+C.V.：XLC-25 / XLC-40 / XLC-60

Model:

Wattage : 25W~60W

Features　:

  • Constant power design with wide range current adjustable (H type)

  • Constant voltage output models available (12V/24V/48V)

  • Full voltage input 110~305VAC (with PFC function)

  • Plastic case with double insulation and Class II/2 design

  • Compliant with IEEE 1789 and ErP flicker-free standards

  • Standby power consumption <0.5W

  • Minimum dimming brightness <0.1% (DALI-2 DT6)

  • Compliant with emergency lighting (EL) functions

  • Dimming function: 3 in 1(Dim-to-off), DALI-2+Push dimming

  • Output and dimming circuit comply with isolation design

  • Optional independent or built-in LED power supply

Datasheet: C.P.+C.V.：XLC-25 / XLC-40 / XLC-60

Model: C.V.

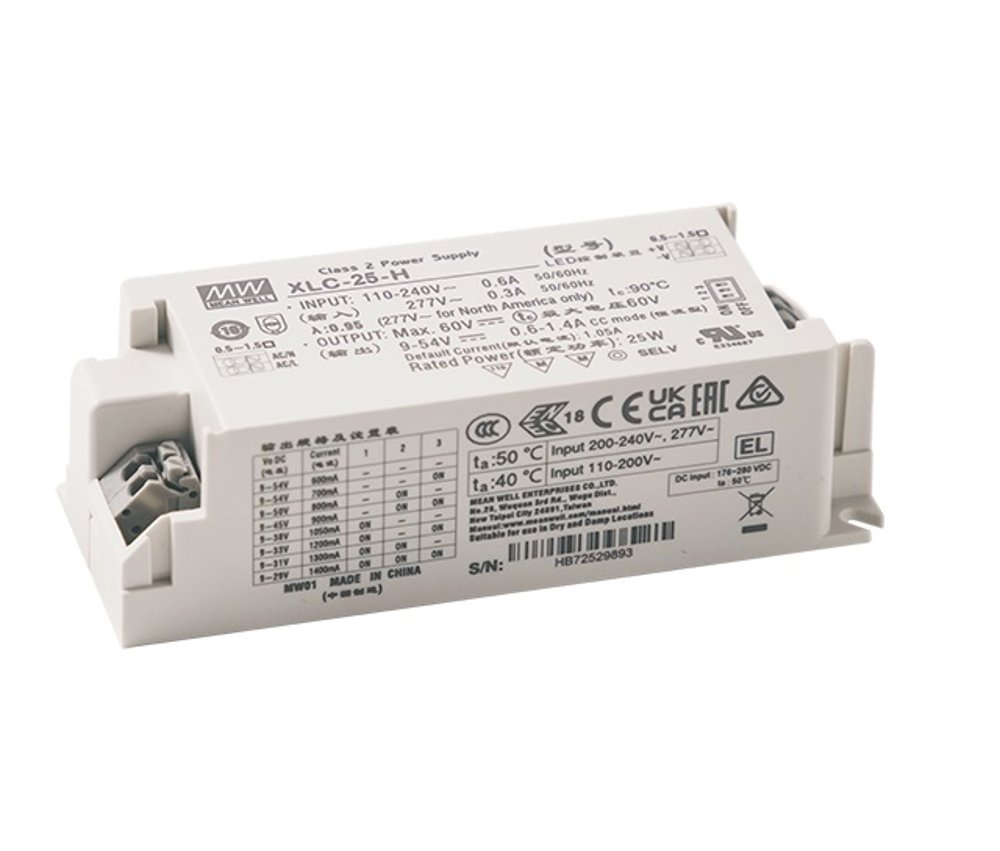

XLC-25

25W Multiple-Stage Constant Power/Constant Voltage LED Driver

    • Output Modes: Available in constant power (H-type) with adjustable current or constant voltage (12V/24V) models.

    • Input Voltage: Wide range of 100~305VAC.

    • Dimming & Control: Multiple options including 3-in-1 dimming (0-10V, PWM, resistance), DALI-2, Push Dimming, and Matter-certified wireless control (MA-series).

    • Adjustability: Output current for H-type models can be set via DIP switch or NFC (on select models).

    • Efficiency & Power: High efficiency (up to 88%) with low standby power consumption (<0.5W).

    • Housing Options: Available in standard (built-in) or with integrated strain relief (independent type).

    • Flicker-Free: Compliant with IEEE 1789 and ErP flicker-free standards.

    • XLC-25-12

    • XLC-25-12-S (with strain relief)

    • XLC-25-24

    • XLC-25-24-S (with strain relief)

XLC-40

40W Multiple-Stage Constant Power/Constant Voltage LED Driver

    • Design Type: Compact, plastic housing, Class II/2 design with double insulation.

    • Output Modes: Available in Constant Voltage (CV) and Constant Power/Constant Current (CC) modes.

    • Adjustability: Multi-stage constant power "H" models feature output current adjustable via DIP switches or NFC (on specific models).

    • Input Voltage: Wide range 100~305VAC with active PFC.

    • Dimming & Control: Supports various options including 3-in-1 (0-10V, PWM, resistance), DALI-2, KNX, Casambi, and Matter.

    • Reliability & Compliance: Flicker-free (IEEE 1789/ErP compliant), meets UL 8750 Class 2/Class P, and suitable for emergency lighting (EL) applications.

    • Efficiency & Power: Standby power consumption <0.5W.

    • Installation: Options for independent or built-in use; models available with or without strain relief.

    • Environmental: IP67-rated, fully encapsulated for protection against dust and moisture; wide operating temperature range (-25°C to +90°C).

  • Constant Voltage Models

    • XLC-40-12 (12V)

    • XLC-40-12-S (12V, with strain relief)

    • XLC-40-24 (24V)

    • XLC-40-24-S (24V, with strain relief)

XLC-60

60W Multiple-Stage Constant Power/Constant Voltage LED Driver

    • Design Flexibility: Available in both Constant Voltage (CV) and Constant Power (H-type) output modes.

    • Wide Input Range: 100~305VAC input voltage capability.

    • Adjustable Output (H-type): Output current is selectable via DIP switch or NFC (on specific models).

    • Dimming Options: Supports 3-in-1, DALI-2, KNX, and Matter wireless dimming protocols.

    • High Efficiency: Up to 90% efficiency.

    • Reliability: Flicker-free design, compliant with IEEE 1789 and ErP standards.

    • Housing Options: Available as "Built-in" type or "Independent" type (with strain relief).

    • Emergency Lighting: Compliant with emergency lighting (EL) applications.

    • Compact Form Factor: Slim design suitable for various lighting fixtures like downlights and panel lights

    • XLC-60-12 / XLC-60-12-S

    • XLC-60-24 / XLC-60-24-S

    • XLC-60-48 / XLC-60-48-S
