XLG Series

$0.00

Wattage: 20W~320W

Features:

Wide input range 100~305VAC (90~305VAC for XLG-20)

  • Constant power mode with adjustable output current (Constant current mode for XLG-20)

  • Built-in active PFC function and Efficiency up to 90%

  • Dimming functions: 3 in 1 / DALI

  • Protections: Short circuit/ Over voltage/ Over temperature

  • Surge protection with 6KV(L/N-FG)/4KV(L-N); 4KV(L/N-FG)/2KV(L-N) for XLG-20

Datasheet:

3-in-1 Dimming：XLG-20 / XLG-25 / XLG-50 / XLG-75 / XLG-100 / XLG-150 / XLG-200 / XLG-240 / XLG-320 / XLG-240-48-ABV / XLG-320-48-ABV

DALI Dimming：XLG-50-DA2 / XLG-75-DA2 / XLG-100-DA2 / XLG-150-DA2 / XLG-200-DA2 / XLG-240-DA2 / XLG-320-DA2

Model:

Wattage: 20W~320W

Features:

Wide input range 100~305VAC (90~305VAC for XLG-20)

  • Constant power mode with adjustable output current (Constant current mode for XLG-20)

  • Built-in active PFC function and Efficiency up to 90%

  • Dimming functions: 3 in 1 / DALI

  • Protections: Short circuit/ Over voltage/ Over temperature

  • Surge protection with 6KV(L/N-FG)/4KV(L-N); 4KV(L/N-FG)/2KV(L-N) for XLG-20

Datasheet:

3-in-1 Dimming：XLG-20 / XLG-25 / XLG-50 / XLG-75 / XLG-100 / XLG-150 / XLG-200 / XLG-240 / XLG-320 / XLG-240-48-ABV / XLG-320-48-ABV

DALI Dimming：XLG-50-DA2 / XLG-75-DA2 / XLG-100-DA2 / XLG-150-DA2 / XLG-200-DA2 / XLG-240-DA2 / XLG-320-DA2

Model: 3-in-1 Dimming

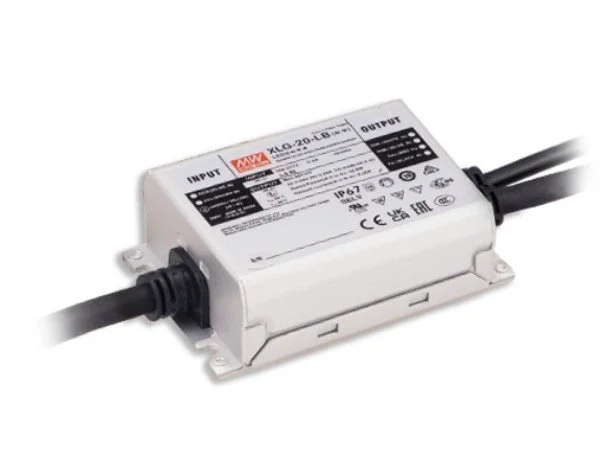

XLG-20

21W Constant Current Mode LED Driver

    • Constant Power Mode design (Constant Current Mode for XLG-20)

    • Ultra-compact metal housing

    • Wide input range: 90~305VAC

    • Built-in active PFC function

    • IP67 ingress protection rating

    • 3-in-1 dimming function (0-10VDC, 10V PWM signal, or resistance)

    • Isolated dimming circuit design

    • Surge protection: up to 6KV/4KV (4KV/2KV for XLG-20)

    • 5-year global warranty

  • XLG-20 Series (20W)

    • XLG-20-L

    • XLG-20-M

    • XLG-20-H

XLG-25

25W Constant Power Mode LED Driver

    • Constant Power Mode design (Constant Current Mode for XLG-20)

    • Ultra-compact metal housing

    • Wide input range: 90~305VAC

    • Built-in active PFC function

    • IP67 ingress protection rating

    • 3-in-1 dimming function (0-10VDC, 10V PWM signal, or resistance)

    • Isolated dimming circuit design

    • Surge protection: up to 6KV/4KV (4KV/2KV for XLG-20)

    • 5-year global warranty

  • XLG-25 Series (25W)

    • XLG-25-A

    • XLG-25-AB

    • XLG-25-A-I

    • XLG-25-AB-I

XLG-50

50W Constant Power Mode LED Driver

    • Constant Voltage (C.V.) Design: Delivers a stable, fixed voltage output ideal for LED strips and moving signs.

    • Economical Plastic Casing: Housed in a fully isolated, UL 94V-0 flame-retardant plastic enclosure.

    • Non-PFC Design: Optimized as a highly cost-effective, low-maintenance power solution without active power factor correction.

    • Complete Ingress Protection: Fully encapsulated to meet IP67 standards, shielding internal components from dust and wet/damp environments.

    • Class II Power Unit: Double-insulated design without a frame ground (no F.G. wire required).

    • Silent Cooling: Operates entirely without fans, utilizing free air natural convection cooling.

    • Input Surge Withstand: Engineered to tolerate a 300VAC input voltage surge for up to 5 seconds (applicable to LPV-20 through LPV-100 models).

    • Integrated Safety Protections: Automatic trip recovery safeguards against Short Circuit, Overload, and Over Voltage (with Over Temperature protection added on LPV-150/LPVL-150 models).

    • Reliability Testing: Subjected to a strict 100% full-load factory burn-in validation process.

  • LPV-35 Series (30W–36W Max | 90~264VAC Input)

    • LPV-35-5: 5V output voltage | 5.0A rated current (6A peak) | 30W maximum power

    • LPV-35-12: 12V output voltage | 3.0A rated current | 36W maximum power

    • LPV-35-15: 15V output voltage | 2.4A rated current | 36W maximum power

    • LPV-35-24: 24V output voltage | 1.5A rated current | 36W maximum power

    • LPV-35-36: 36V output voltage | 1.0A rated current | 36W maximum power

XLG-75

75W Constant Power Mode LED Driver

    • Constant Power Mode (on designated models)

    • Wide input range: 100~305VAC

    • Built-in active PFC function

    • IP67 metal enclosure for indoor or outdoor applications

    • Surge protection: 6KV/4KV (10KV/6KV optional on non-DALI models)

    • Protections: Short circuit, Over voltage, Over temperature, Over power

    • 3-in-1 dimming or DALI-2 options available

    • 5-year warranty

  • XLG-75 Series (75W)

    • XLG-75-12

    • XLG-75-24

    • XLG-75-L

    • XLG-75-H

XLG-100

100W Constant Power Mode LED Driver

    • Constant Power Mode (on designated models)

    • Wide input range: 100~305VAC

    • Built-in active PFC function

    • IP67 metal enclosure for indoor or outdoor applications

    • Surge protection: 6KV/4KV (10KV/6KV optional on non-DALI models)

    • Protections: Short circuit, Over voltage, Over temperature, Over power

    • 3-in-1 dimming or DALI-2 options available

    • 5-year warranty

  • XLG-100 Series (100W)

    • XLG-100-12

    • XLG-100-24

    • XLG-100-L

    • XLG-100-H

XLG-150

150W Constant Power Mode LED Driver

    • Constant Power Mode (on designated models)

    • Wide input range: 100~305VAC

    • Built-in active PFC function

    • IP67 metal enclosure for indoor or outdoor applications

    • Surge protection: 6KV/4KV (10KV/6KV optional on non-DALI models)

    • Protections: Short circuit, Over voltage, Over temperature, Over power

    • 3-in-1 dimming or DALI-2 options available

    • 5-year warranty

  • XLG-150 Series (150W)

    • XLG-150-12

    • XLG-150-24

    • XLG-150-L

    • XLG-150-M

    • XLG-150-H

XLG-200

200W Constant Power Mode LED Driver

    • Constant Power Mode (on designated models)

    • Wide input range: 100~305VAC

    • Built-in active PFC function

    • IP67 metal enclosure for indoor or outdoor applications

    • Surge protection: 6KV/4KV (10KV/6KV optional on non-DALI models)

    • Protections: Short circuit, Over voltage, Over temperature, Over power

    • 3-in-1 dimming or DALI-2 options available

    • 5-year warranty

    • XLG-200-12

    • XLG-200-24

    • XLG-200-L

    • XLG-200-M

    • XLG-200-H

XLG-240

240W Constant Power Mode LED Driver

    • 240W Constant Power Mode operation

    • Wide input range: 100–305V AC

    • High efficiency up to 93.5%

    • IP67 ingress protection rating

    • Metal housing with compact footprint

    • Fanless design (cooling by free air convection)

    • Working case temperature: -40°C to +90°C

    • Built-in active PFC function

    • Surge protection: 6kV / 4kV (10kV / 6kV optional)

    • Protections: OVP / SCP / OCP / OTP

    • Isolation design between dimming and output circuits

  • Core Voltage / Current Variants

    • XLG-240-L (High voltage, low current: 178–342V DC, 700–1050mA)

    • XLG-240-M (Medium voltage/current: 90–171V DC, 1400–2100mA)

    • XLG-240-H (Low voltage, high current: 27–56V DC, 2400–6660mA)

XLG-320

315W Constant Power Mode LED Driver

    • Power Output: 311W to 315W (nominal 320W)

    • Design Mode: Constant Power Mode (except V-Type/48V)

    • Input Voltage: Wide range 100~305VAC

    • Ingress Protection: IP67 rated (waterproof metal case)

    • Surge Protection: 6KV/4KV (Line-to-FG / Line-to-Line)

    • Protections: Over load (OLP), Short circuit (SCP), Over voltage (OVP), Over temperature (OTP)

    • Efficiency: Up to 94.5%

  • Constant Power & Output Types

    • XLG-320-L: Low current / High voltage output (1050 ~ 1400mA, 150 ~ 300V)

    • XLG-320-M: Medium current / Medium voltage output (2100 ~ 2800mA, 74 ~ 148V)

    • XLG-320-H: High current / Low voltage output (2800 ~ 7420mA, 30 ~ 56V)

    • XLG-320-V: Constant voltage output (12V at 216W / 24V at 312W)

    • XLG-320-48: Constant voltage output (48V at 312W)

XLG-240-48-ABV

240W Constant Power Mode LED Driver

    • Constant power mode

    • Wide input range (100~305VAC)

    • Built-in active PFC function

    • Compact size

    • Double-sided PCB layout

    • Isolated dimming circuit (3-in-1 / DALI-2)

    • Surge protection (6kV / 4kV)

    • IP67 rating

    • Global safety certifications (IEC/EN 61347, UL 8750)

    • XLG-240-L

    • XLG-240-M

    • XLG-240-H

    • XLG-240-12

    • XLG-240-24

    • XLG-240-48

    • XLG-240-48-ABV

XLG-320-48-ABV

315W Constant Power Mode LED Driver

    • Constant Voltage (CV) output mode

    • Flicker-free design (optimized for poultry lighting and studio environments)

    • Wide input range: 100 ~ 305VAC

    • Built-in active PFC function

    • 3-in-1 dimming function (0~10VDC, 10V PWM signal, or resistance)

    • Dimming circuit with isolation design

    • Metal housing with IP67 ingress protection rating

    • Wide operating temperature range: -40°C ~ +85°C

    • Protection types: Short circuit, Overload, Over voltage, Over temperature

    • Compliance with global lighting safety regulations (IEC61347, UL8750)

    • Typical lifetime > 50,000 hours

    • XLG-320-12-A (12V output, Constant Power Mode, Potentiometer adjustable)

    • XLG-320-24-A (24V output, Constant Power Mode, Potentiometer adjustable)

    • XLG-320-L (Low current output type, Constant Power Mode)

    • XLG-320-M (Medium current output type, Constant Power Mode)

    • XLG-320-H (High current output type, Constant Power Mode)

    • XLG-320-V (High current output type, Constant Power Mode)

Model: DALI Dimming

XLG-50-DA2

50W Constant Power Mode with DALI-2 LED Driver

    • 50W Constant Power Mode

    • Wide Input Range: 90 ~ 305VAC

    • Built-in Active PFC Function

    • DALI-2 Dimming Control

    • IP67 Rated Metal Housing

    • Surge Protection: 6KV (L/N-FG) / 4KV (L-N)

    • Standby Power Consumption < 0.5W

    • Adjustable Output Current (via built-in potentiometer)

    • Typical Lifetime > 50,000 Hours

    • XLG-50-L-DA2

    • XLG-50-H-DA2

    • XLG-50-I-L-DA2 (India Model)

    • XLG-50-I-H-DA2 (India Model)

XLG-75-DA2

75W Constant Power Mode with DALI-2 LED Driver

    • Wide input range 100~305VAC

    • Constant power mode

    • DALI-2 dimming function

    • Metal case with IP67 ingress protection

    • Surge protection: 6KV/4KV

    • Built-in active PFC function

    • Protections: Short circuit (SCP), Over temperature (OTP)

    • Lifetime >50,000 hours

    • XLG-75-L-DA2

    • XLG-75-H-DA2

    • XLG-75-I-L-DA2 (India version)

    • XLG-75-I-H-DA2 (India version)

XLG-100-DA2

100W Constant Power Mode with DALI-2 LED Driver

    • Constant power mode operation

    • DALI-2 dimming function (minimum level 8%)

    • Wide input range: 100~305VAC (Class I)

    • Metal case with IP67 rating

    • Surge protection: 6KV/4KV

    • Protections: Short-circuit (SCP) and Overtemperature (OTP)

    • Lifetime >50,000 hours

    • XLG-100-L-DA2

    • XLG-100-H-DA2

    • XLG-100-I-L-DA2 (India version)

    • XLG-100-I-H-DA2 (India version)

XLG-150-DA2

150W Constant Power Mode with DALI-2 LED Driver

    • 150W Constant Power Mode

    • Wide Input Range: 100–305VAC

    • DALI-2 Dimming Function (minimum level 8%)

    • IP67 Metal Housing

    • Surge Protection: 6KV/4KV

    • Built-in Auxiliary Power: 12V/250mA (Optional)

    • Operating Temperature: -40 to +90°C (case temperature)

    • Protections: Short Circuit (SCP) / Over Temperature (OTP)

    • Efficiency: Up to 93%

    • Lifetime: >50,000 hours

    • XLG-150-L-DA2

    • XLG-150-M-DA2

    • XLG-150-H-DA2

XLG-200-DA2

200W Constant Power Mode with DALI-2 LED Driver

    • Constant Power Mode operation

    • Wide input range: 100 ~ 305VAC (Class I)

    • Built-in DALI-2 digital dimming function (minimum level 8%)

    • Rugged metal case design

    • IP67 ingress protection rating

    • Surge protection compliance: 6KV (Line-to-Earth) / 4KV (Line-to-Line)

    • Protection functions: Short Circuit Protection (SCP), Over Temperature Protection (OTP)

    • Operational lifetime: >50,000 hours

    • XLG-200-L-DA2 (700~1050mA adjustable current range, 142~285VDC output)

    • XLG-200-H-DA2 (3500~5550mA adjustable current range, 27~56VDC output)

XLG-240-DA2

240W Constant Power Mode with DALI-2 LED Driver

    • Wide input range 100~305VAC (Class I)

    • Full power output at 70~100% constant power mode operation

    • Metal case with IP67 ingress protection

    • Surge protection with 6KV/4KV

    • DALI-2 dimming function (minimum level 8%)

    • Short Circuit Protection (SCP)

    • Over Temperature Protection (OTP)

    • Life time >50,000 hours

    • 5 years warranty

    • 12V/250mA auxiliary power available (optional)

    • India (EESL) version with input over voltage protection (optional)

    • XLG-240-L-DA2

    • XLG-240-M-DA2

    • XLG-240-H-DA2

XLG-320-DA2

315W Constant Power Mode with DALI-2 LED Driver

    • Wide input range 100~305VAC

    • Constant power mode output

    • Metal housing with functional ground

    • Built-in active PFC function

    • High efficiency up to 94.5%

    • DALI-2 digital dimming function

    • IP67 ingress protection rating

    • Protections: Short circuit / Over voltage / Over temperature

    • Surge protection with 6KV(L/N-FG) / 4KV(L-N)

    • Lifetime > 50,000 hours

    • XLG-320-L-DA2

    • XLG-320-M-DA2

    • XLG-320-H-DA2
