Ubiquiti Outdoor Wireless Access Points

$0.00

Ubiquiti outdoor wireless access points are enterprise-grade, weatherproof devices designed for large campuses, stadiums, and public spaces. Managed centrally through the unified UniFi dashboard, they offer high-density client support, mesh capabilities, and Power over Ethernet (PoE+) connectivity for seamless deployment.

Key Features and Capabilities

  • Weatherproof Design: Built with IP-rated (IPX6 to IP67) and UV-stabilized enclosures to endure extreme weather conditions, including rain, dust, and high winds. [1, 2, 3, 4, 5]

  • High Client Capacity: Equipped to handle 200 to 300+ concurrent clients, making them ideal for high-density environments. [1, 2]

  • Centralized Management: Configured and monitored through the UniFi Site Manager, which allows you to manage thousands of access points from a single interface. [1, 2]

  • Advanced Antennas: Many models feature the "Super-Antenna" architecture, combining omnidirectional coverage with directional, long-range capabilities. [1]

  • Next-Gen Standards: Devices like the U7 Pro Outdoor support the latest Wi-Fi 7 technologies, enabling multi-link operation (MLO) and throughput up to 8.6 Gbps. [1, 2, 3, 4, 5]

Model:

Ubiquiti outdoor wireless access points are enterprise-grade, weatherproof devices designed for large campuses, stadiums, and public spaces. Managed centrally through the unified UniFi dashboard, they offer high-density client support, mesh capabilities, and Power over Ethernet (PoE+) connectivity for seamless deployment.

Key Features and Capabilities

  • Weatherproof Design: Built with IP-rated (IPX6 to IP67) and UV-stabilized enclosures to endure extreme weather conditions, including rain, dust, and high winds. [1, 2, 3, 4, 5]

  • High Client Capacity: Equipped to handle 200 to 300+ concurrent clients, making them ideal for high-density environments. [1, 2]

  • Centralized Management: Configured and monitored through the UniFi Site Manager, which allows you to manage thousands of access points from a single interface. [1, 2]

  • Advanced Antennas: Many models feature the "Super-Antenna" architecture, combining omnidirectional coverage with directional, long-range capabilities. [1]

  • Next-Gen Standards: Devices like the U7 Pro Outdoor support the latest Wi-Fi 7 technologies, enabling multi-link operation (MLO) and throughput up to 8.6 Gbps. [1, 2, 3, 4, 5]

Resizable UniFi Outdoor/Mesh AP Comparison Table
100%
U7 Pro Outdoor
U7 Pro Outdoor
Outdoor rugged IP67 design with extended-range AFC 6 GHz support
New

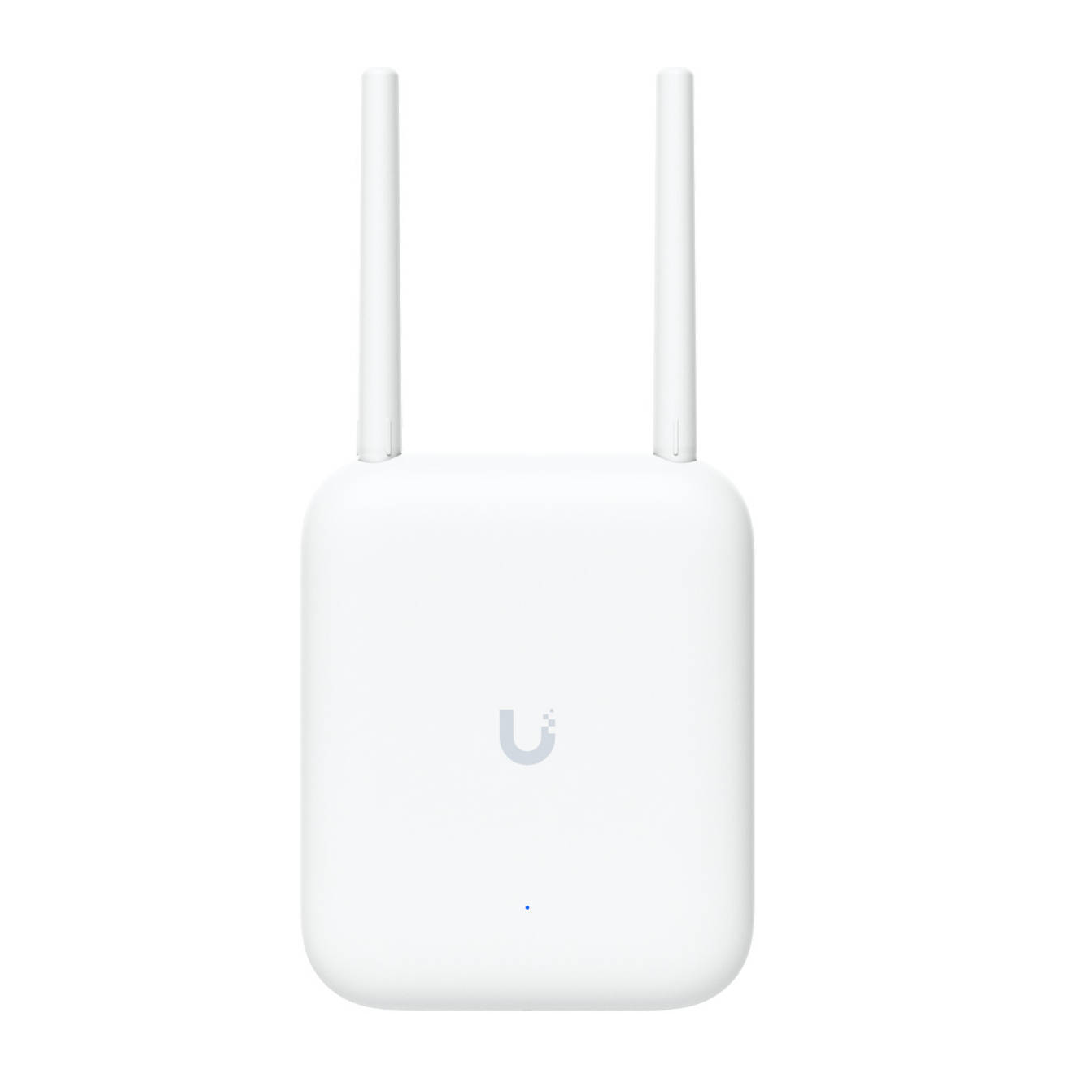

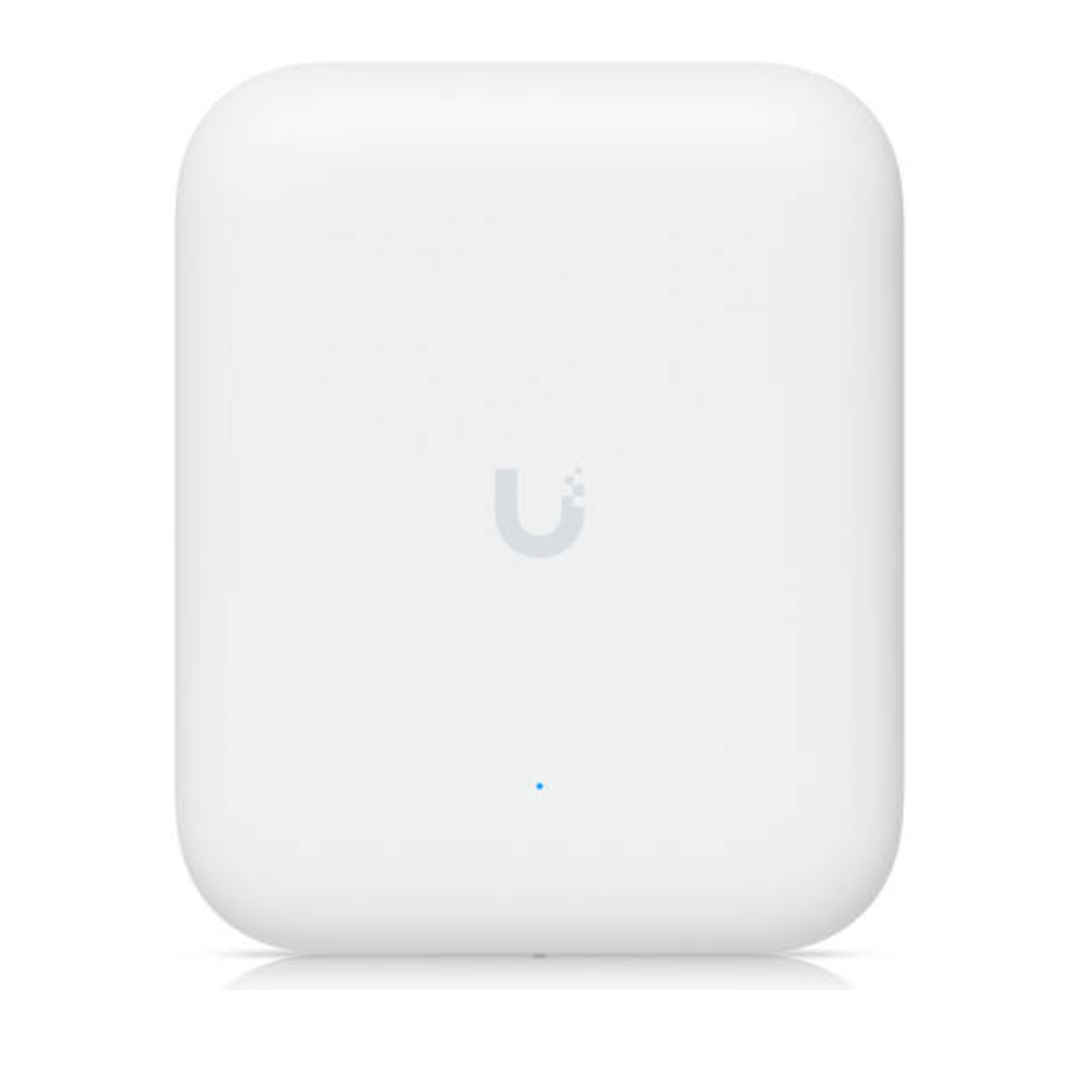

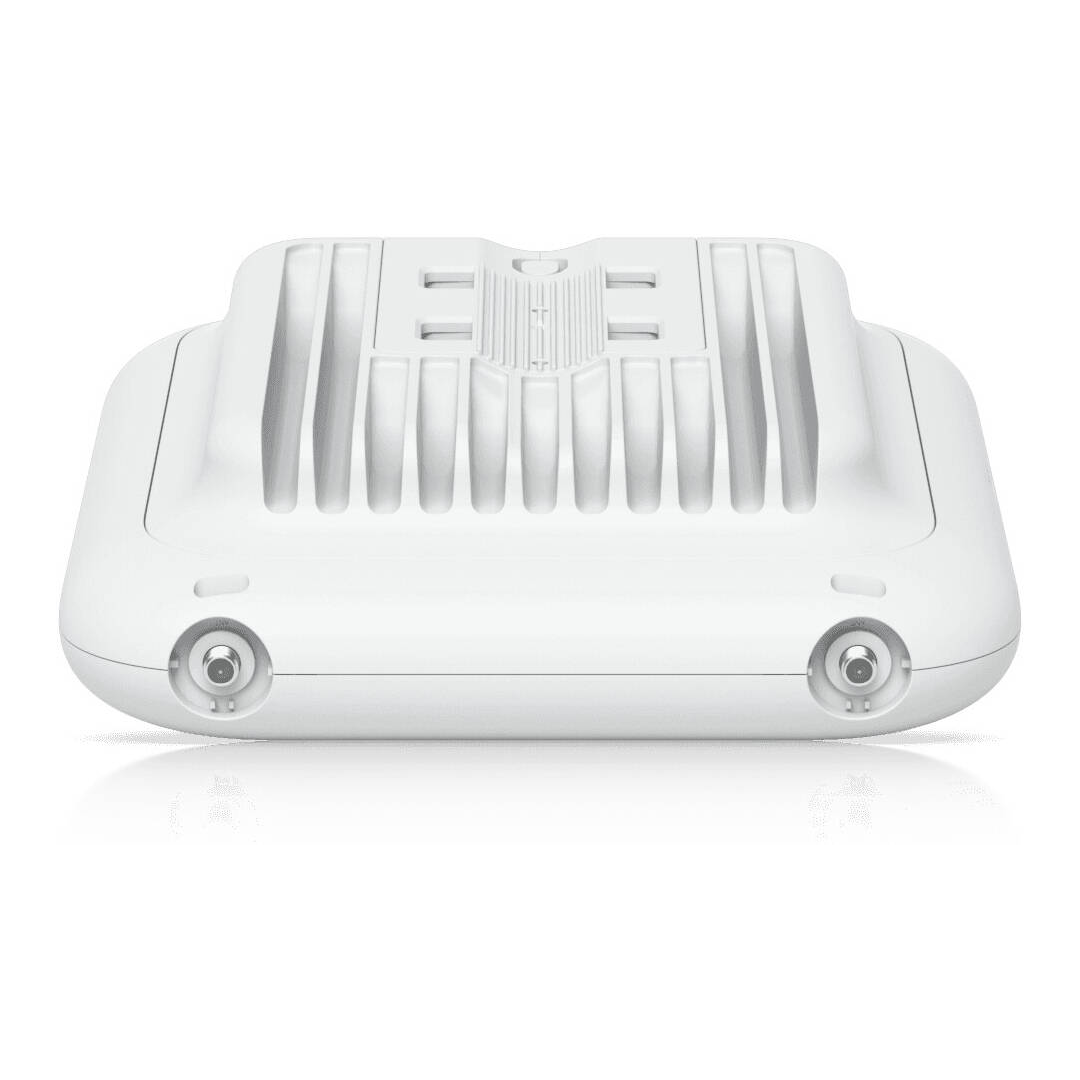

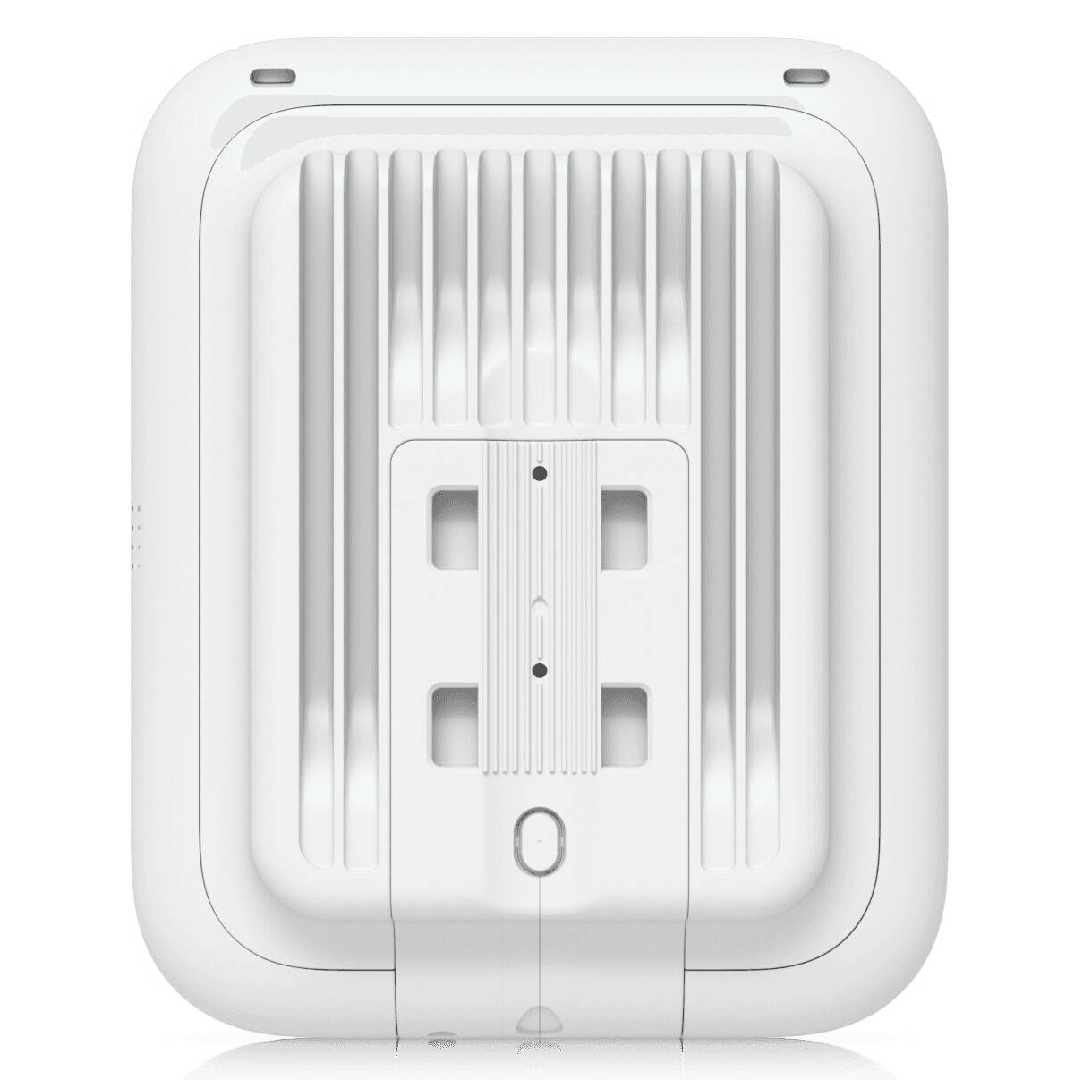

U7 Outdoor
U7 Outdoor
Integrated directional super antenna for long-range coverage
New
U7 Mesh
U7 Mesh
WiFi 7 AP with integrated long-range antenna system
New
📐 Dimensions Without mount: 170 x 208 x 66.5 mm
(6.7 x 8.2 x 2.6")

With mount: 170 x 208 x 121.8 mm
(6.7 x 8.2 x 4.8") 		170 x 208 x 54.5 mm
(6.7 x 8.2 x 2.1")		 Ø48.5 x 159.5 mm
(Ø1.9 x 6.3")
📶 WiFi Technology WiFi 7
Tri-radio 2.4 / 5 / 6* GHz
6 spatial streams		 WiFi 7
Dual-radio 2.4 / 5 GHz
4 spatial streams		 WiFi 7
Dual-radio 2.4 / 5 GHz
4 spatial streams
📈 6 GHz Radio ✓ * — —
🔄 6 GHz Extended Range Mode ✓ * — —
📡 Antenna Type Directional
Omnidirectional**		 Directional
Omnidirectional*		 Directional
Omnidirectional
🔲 Coverage Directional: 465 m² (5,000 ft²) open space
Omnidirectional: 160 m² (1,750 ft²) 		Directional: 465 m² (5,000 ft²) open space
Omnidirectional*: 160 m² (1,750 ft²) 		140 m² (1,500 ft²)
👥 Connected Devices 300+ 250+ 200+
💧 Weatherproofing IP67 IP66 IP66
⚡ Power Method PoE+ PoE+ PoE
🔗 Uplink 2.5 GbE 2.5 GbE 2.5 GbE
🔩 Mounting Wall
Pole		 Wall
Pole		 Wall
Pole
Table stand
(Mounts included)
Resizable UniFi Outdoor & Mesh AP Comparison Table
U7 Pro Outdoor
U7 Pro Outdoor
Outdoor rugged IP67 design with extended-range AFC 6 GHz support
New

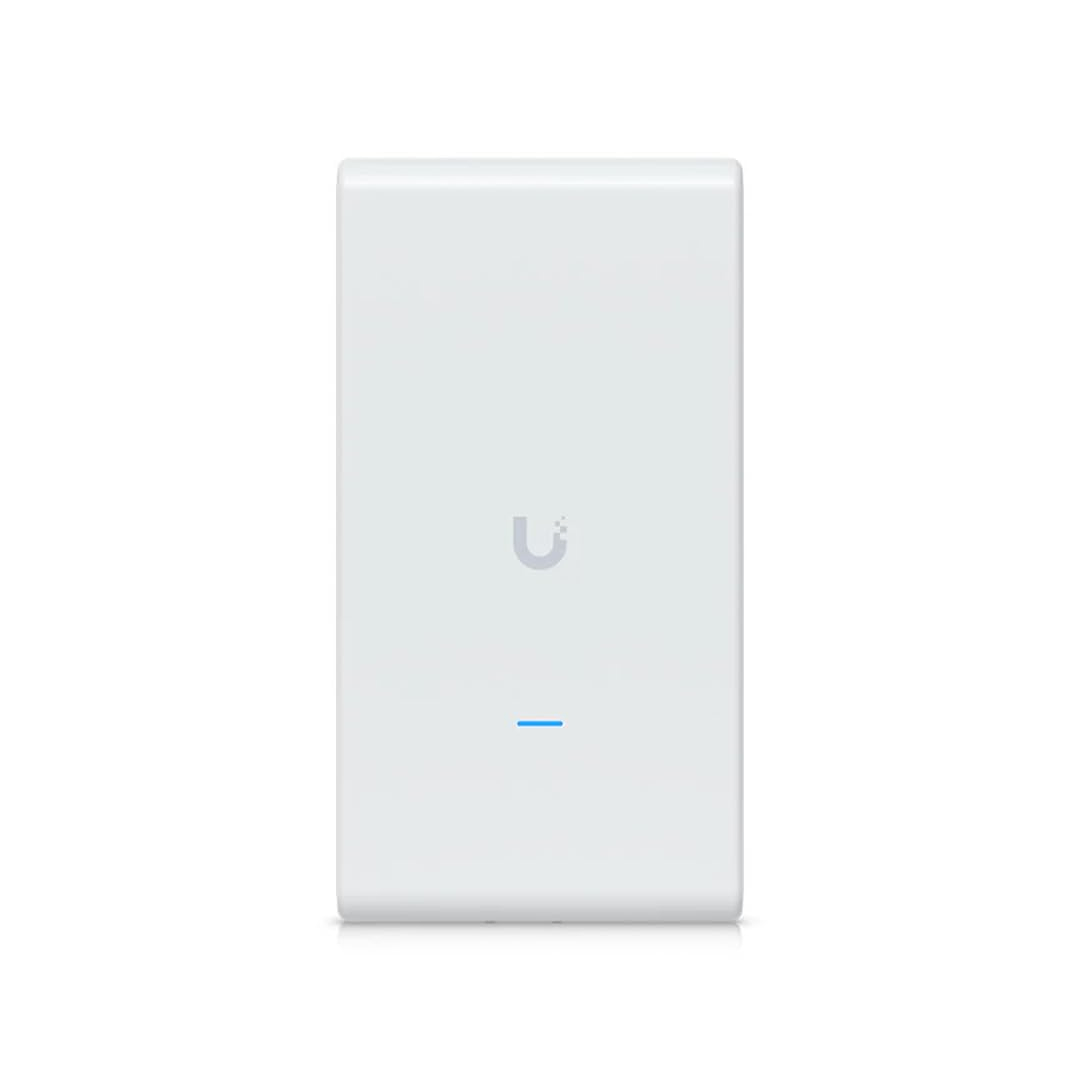

U6 Mesh Pro
U6 Mesh Pro
Integrated omni super antenna for extended range

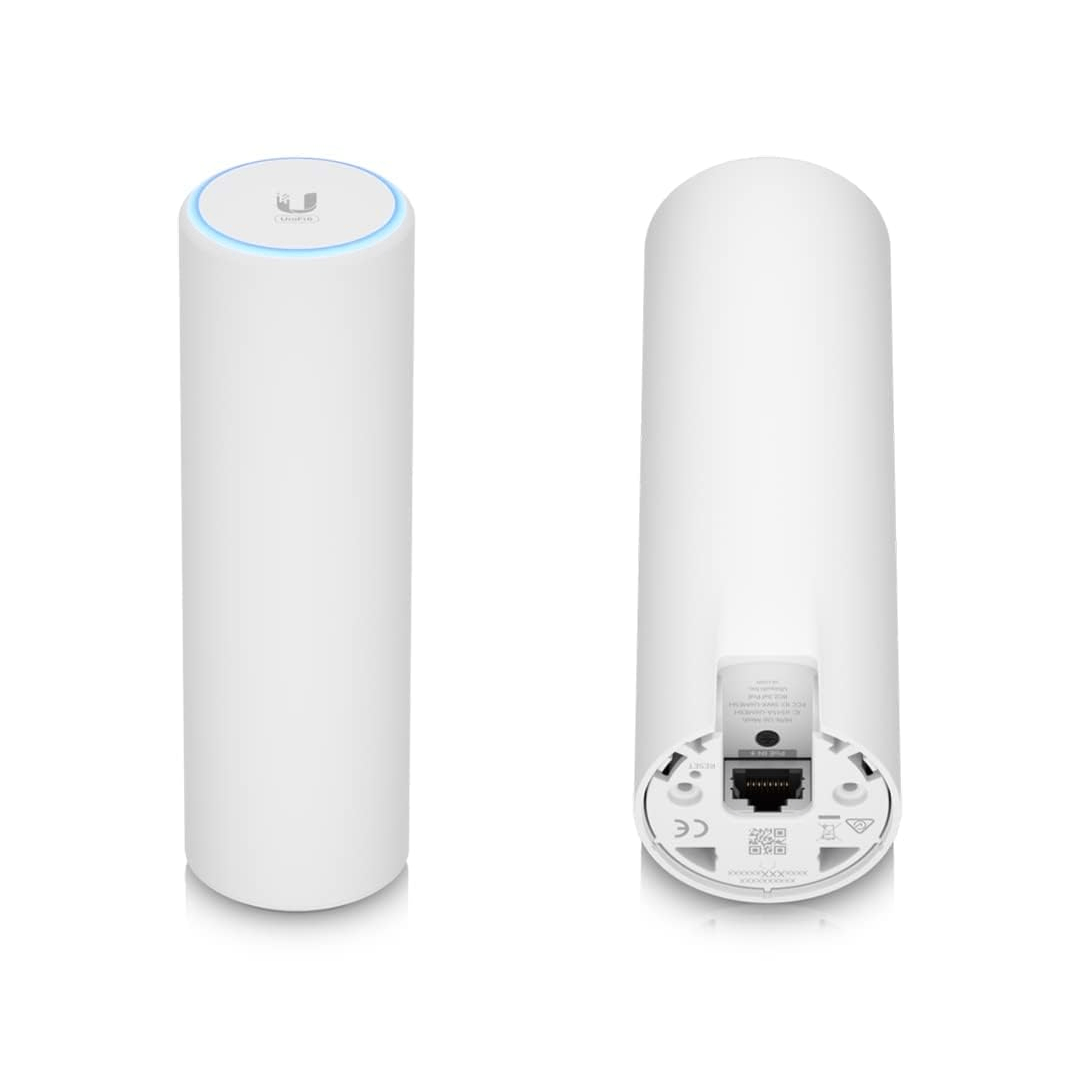

U6 Mesh
U6 Mesh
Sleek design for versatile indoor/outdoor installation

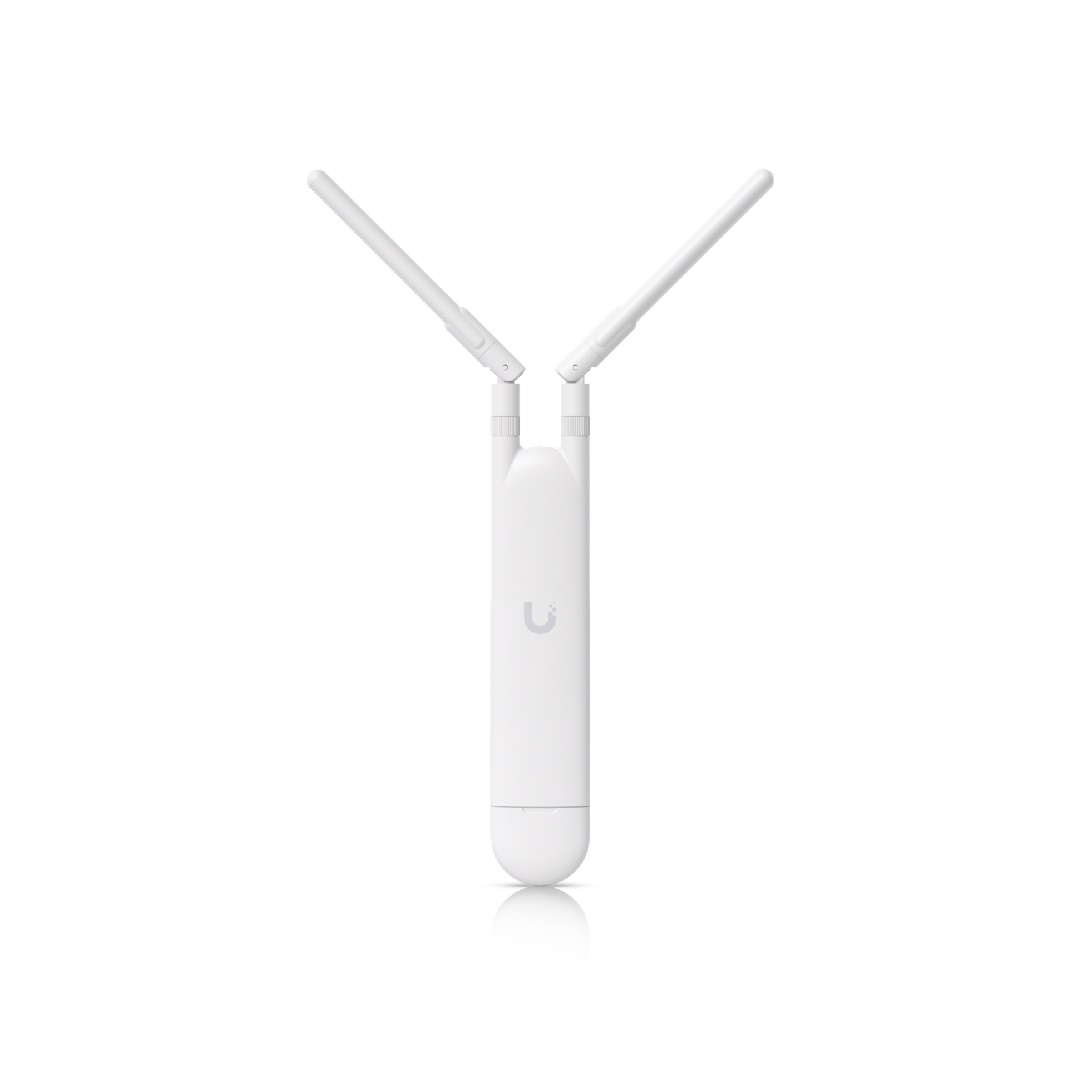

AC Mesh
AC Mesh
Compact with external antenna support for directional coverage

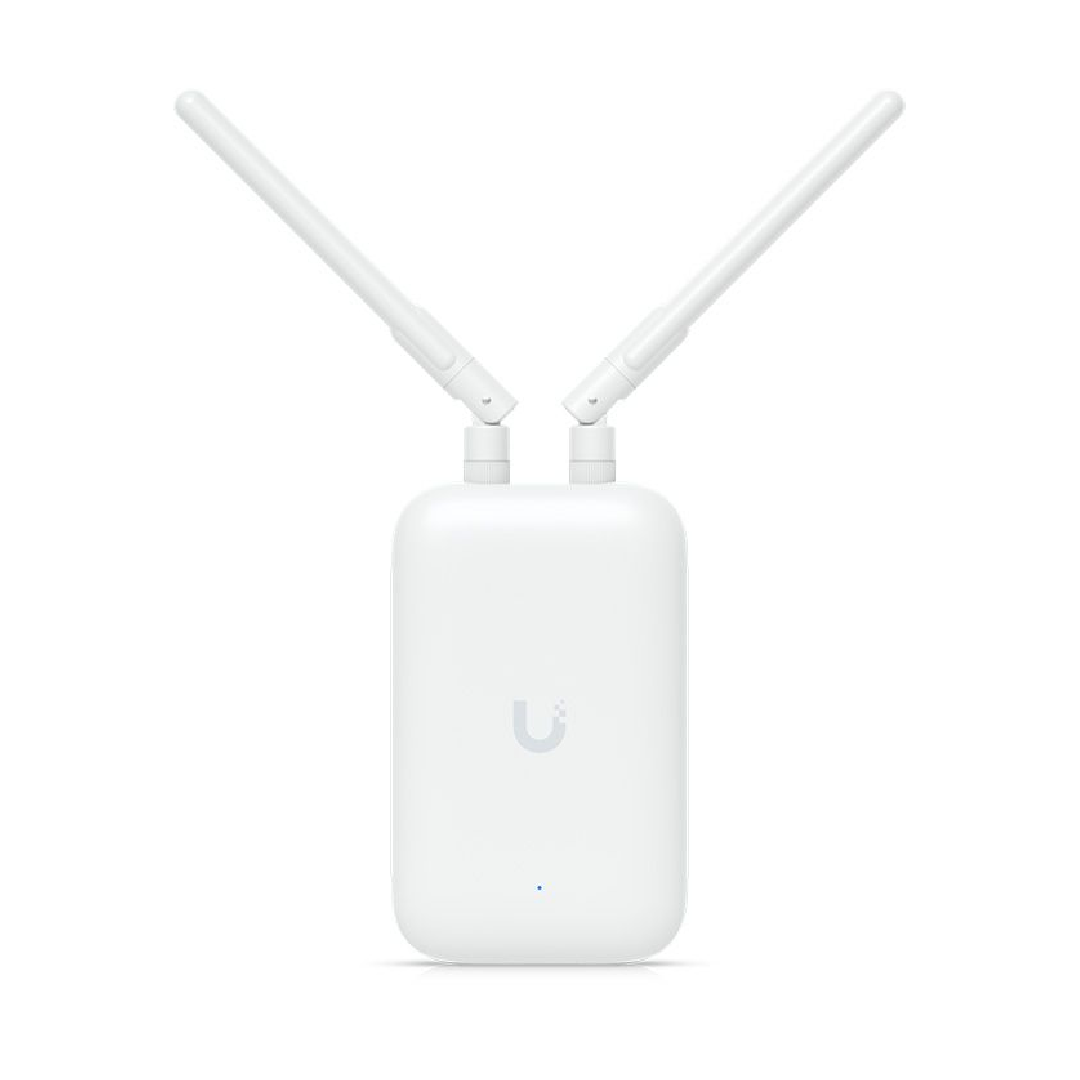

Swiss Army Knife
Swiss Army Knife
Ultra-compact with external antenna support and incredible value
📐 Dimensions Without mount: 170 x 208 x 66.5 mm
(6.7 x 8.2 x 2.6")

With mount: 170 x 208 x 121.8 mm
(6.7 x 8.2 x 4.8") 		343.2 x 181.2 x 60.2 mm
(13.5 x 7.1 x 2.4")		 Ø48.5 x 159.5 mm
(Ø1.9 x 6.3")		 353 x 46 x 34.4 mm
(13.9 x 1.8 x 1.4")		 137 x 84 x 34 mm
(5.4 x 3.3 x 1.3")
📶 WiFi Technology WiFi 7
Tri-radio 2.4 / 5 / 6* GHz
6 spatial streams		 WiFi 6
Dual-radio 2.4 / 5 GHz
4 spatial streams		 WiFi 6
Dual-radio 2.4 / 5 GHz
6 spatial streams		 WiFi 5
Dual-radio 2.4 / 5 GHz
4 spatial streams		 WiFi 5
Dual-radio 2.4 / 5 GHz
4 spatial streams
📈 6 GHz Radio ✓ * — — — —
🔄 6 GHz Extended Range Mode ✓ * — — — —
📡 Antenna Type Directional
Omnidirectional**		 Omnidirectional Omnidirectional Omnidirectional* Omnidirectional*
🔲 Coverage Directional: 465 m² (5,000 ft²) open space
Omnidirectional: 160 m² (1,750 ft²) 		185 m² (2,000 ft²) 140 m² (1,500 ft²) 140 m² (1,500 ft²) 115 m² (1,250 ft²)
👥 Connected Devices 300+ 250+ 300+ 200+ 200+
💧 Weatherproofing IP67 IPX6 IPX5 IPX4 IPX6
⚡ Power Method PoE+ PoE PoE PoE PoE
🔗 Uplink 2.5 GbE GbE GbE GbE GbE
🔩 Mounting Wall
Pole		 Wall
Pole		 Desktop
Wall
Pole
Ceiling*		 Wall
Pole		 Wall
Ceiling
Pole
Desktop**
*US & CA version only.
*Includes optional, external omni antennas / Layout depends on configuration.
**Includes optional, external omni antennas.
