Ubiquiti Wall-Mounted Access Points

$0.00

Ubiquiti’s wall-mounted (or "in-wall") Access Points are designed for discreet, room-level coverage and retrofit installations. They replace standard Ethernet wall jacks, delivering fast wireless while often providing built-in Gigabit switch ports for nearby wired devices

Key Features & Design

  • Discreet Aesthetics: These APs lie flat against the wall and are designed to blend elegantly into homes, hotels, and offices. Some models even feature paintable covers.

  • Built-In Switch: Many in-wall models function as a mini-switch, allowing you to plug in local wired devices (like TVs or gaming consoles) directly into the unit.

  • Room-Level Tuning: Because of their placement, they provide highly targeted room-level coverage, which minimizes interference and overlap between rooms in dense deployments.

  • Signal Direction: While they primarily project signal forward into the room they are installed in, the signal strength is often sufficient to penetrate drywall and provide usable coverage to adjacent spaces.

  • PoE Powered: They are powered via Power over Ethernet (PoE), eliminating the need for bulky, separate power adapters.

Applications

  • Hotels, Apartments, Dormitories, Offices

Model:

Ubiquiti’s wall-mounted (or "in-wall") Access Points are designed for discreet, room-level coverage and retrofit installations. They replace standard Ethernet wall jacks, delivering fast wireless while often providing built-in Gigabit switch ports for nearby wired devices

Key Features & Design

  • Discreet Aesthetics: These APs lie flat against the wall and are designed to blend elegantly into homes, hotels, and offices. Some models even feature paintable covers.

  • Built-In Switch: Many in-wall models function as a mini-switch, allowing you to plug in local wired devices (like TVs or gaming consoles) directly into the unit.

  • Room-Level Tuning: Because of their placement, they provide highly targeted room-level coverage, which minimizes interference and overlap between rooms in dense deployments.

  • Signal Direction: While they primarily project signal forward into the room they are installed in, the signal strength is often sufficient to penetrate drywall and provide usable coverage to adjacent spaces.

  • PoE Powered: They are powered via Power over Ethernet (PoE), eliminating the need for bulky, separate power adapters.

Applications

  • Hotels, Apartments, Dormitories, Offices

Product Comparison Table

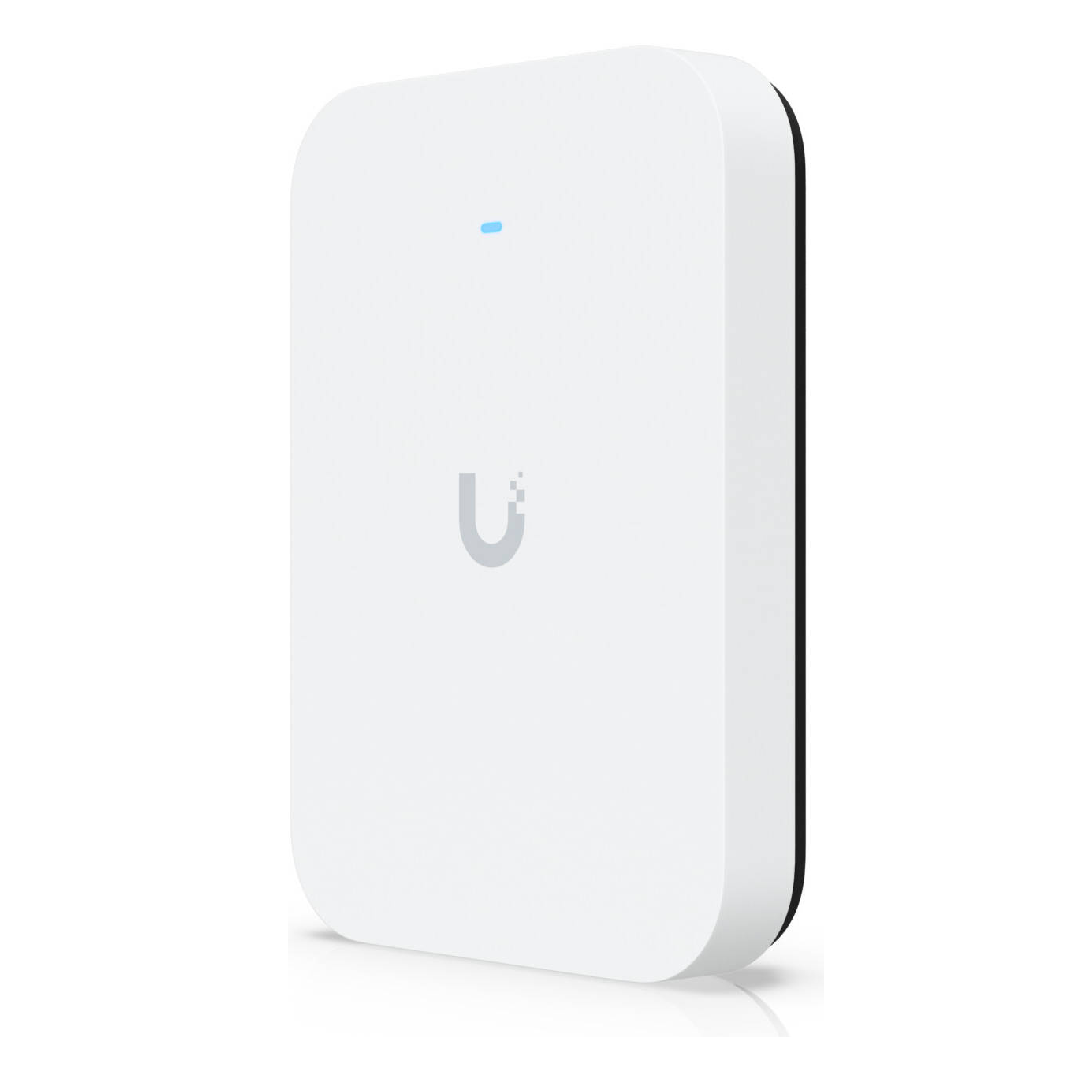

U7 Pro XG Wall U7 Pro XG Wall

6 GHz-ready WiFi 7 AP with 10 GbE support.

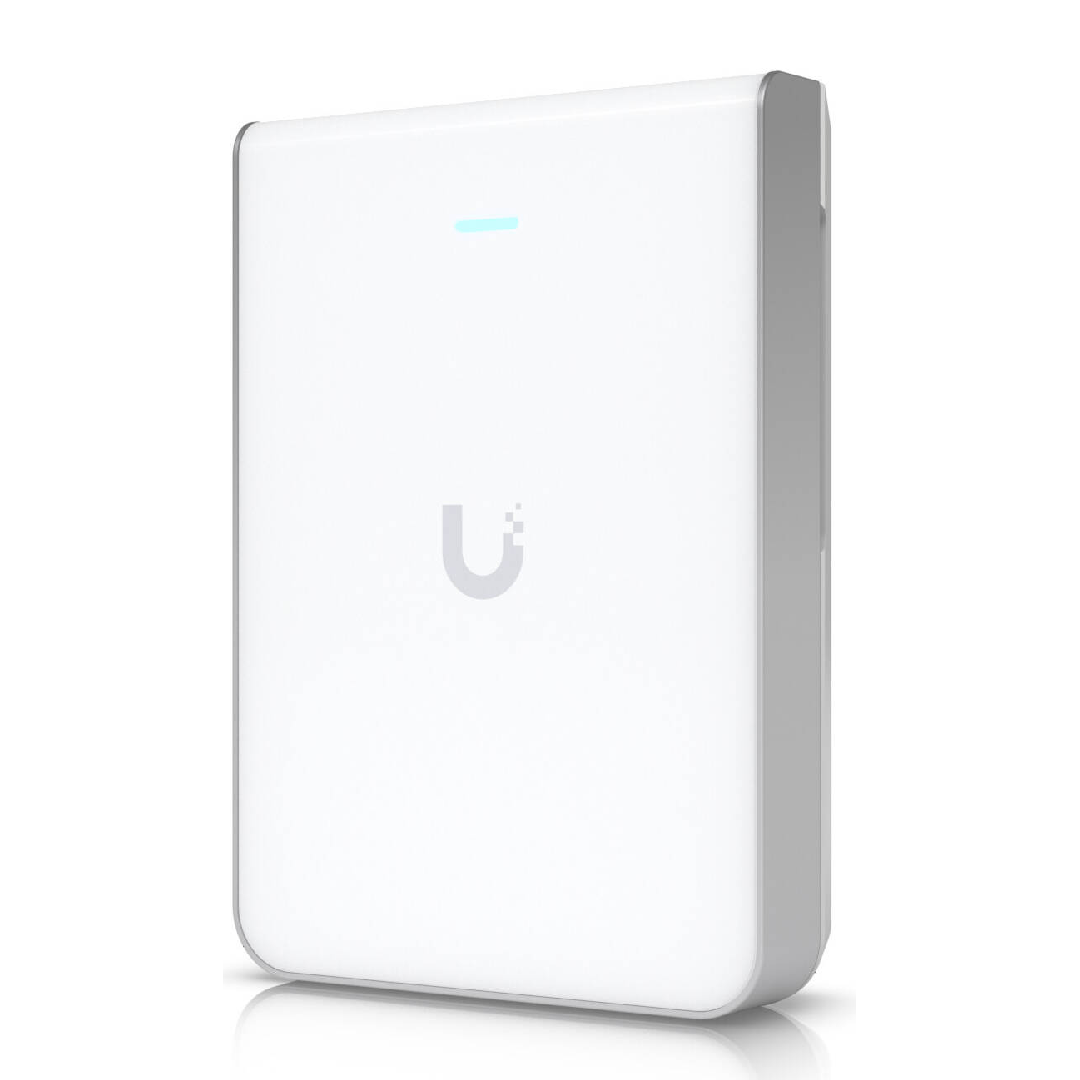

New 		U7 Pro Wall U7 Pro Wall

WiFi 7 and 6 GHz, tailored for interiors.

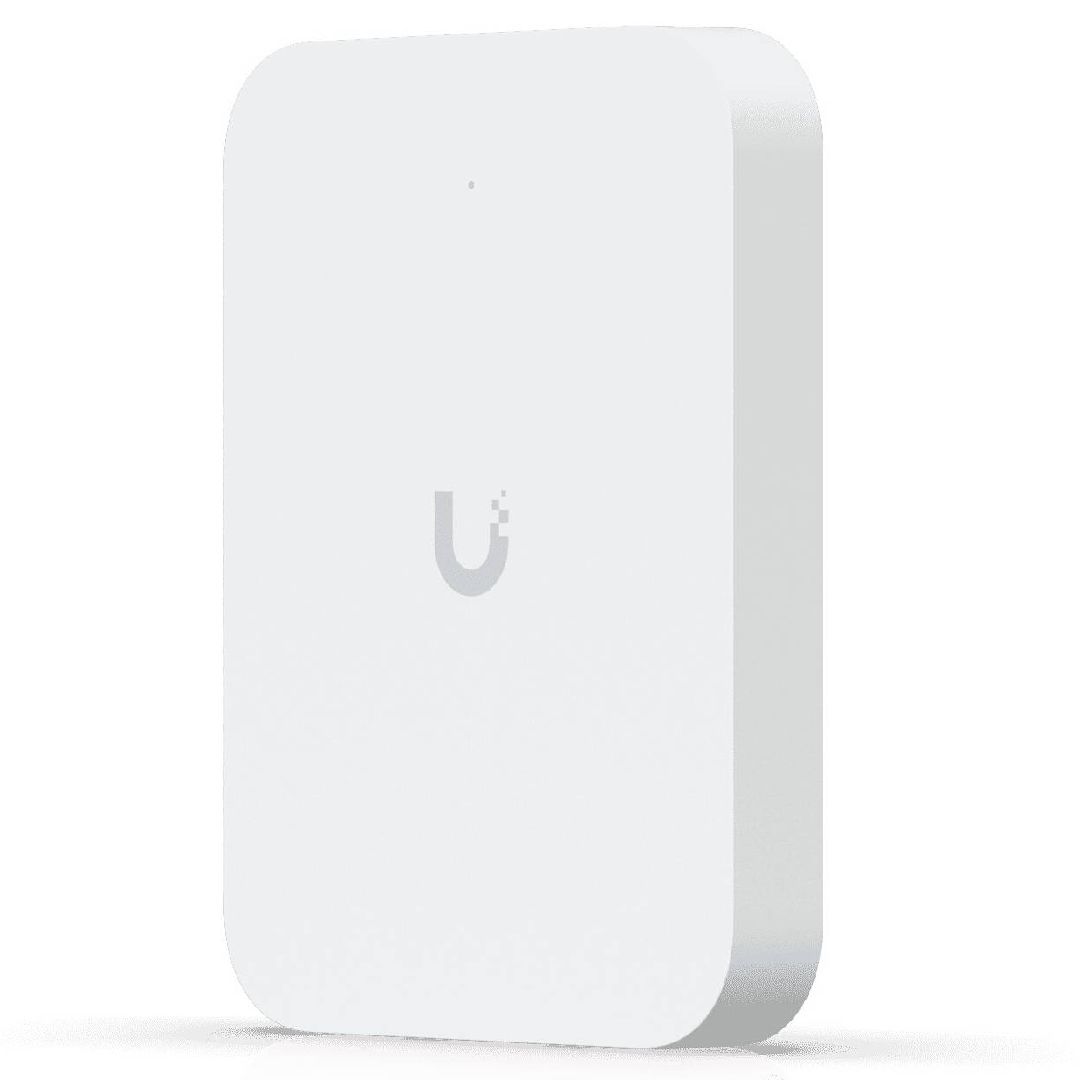

New 		U7 In-Wall U7 In-Wall

WiFi 7 AP with integrated 2.5 GbE PoE switch

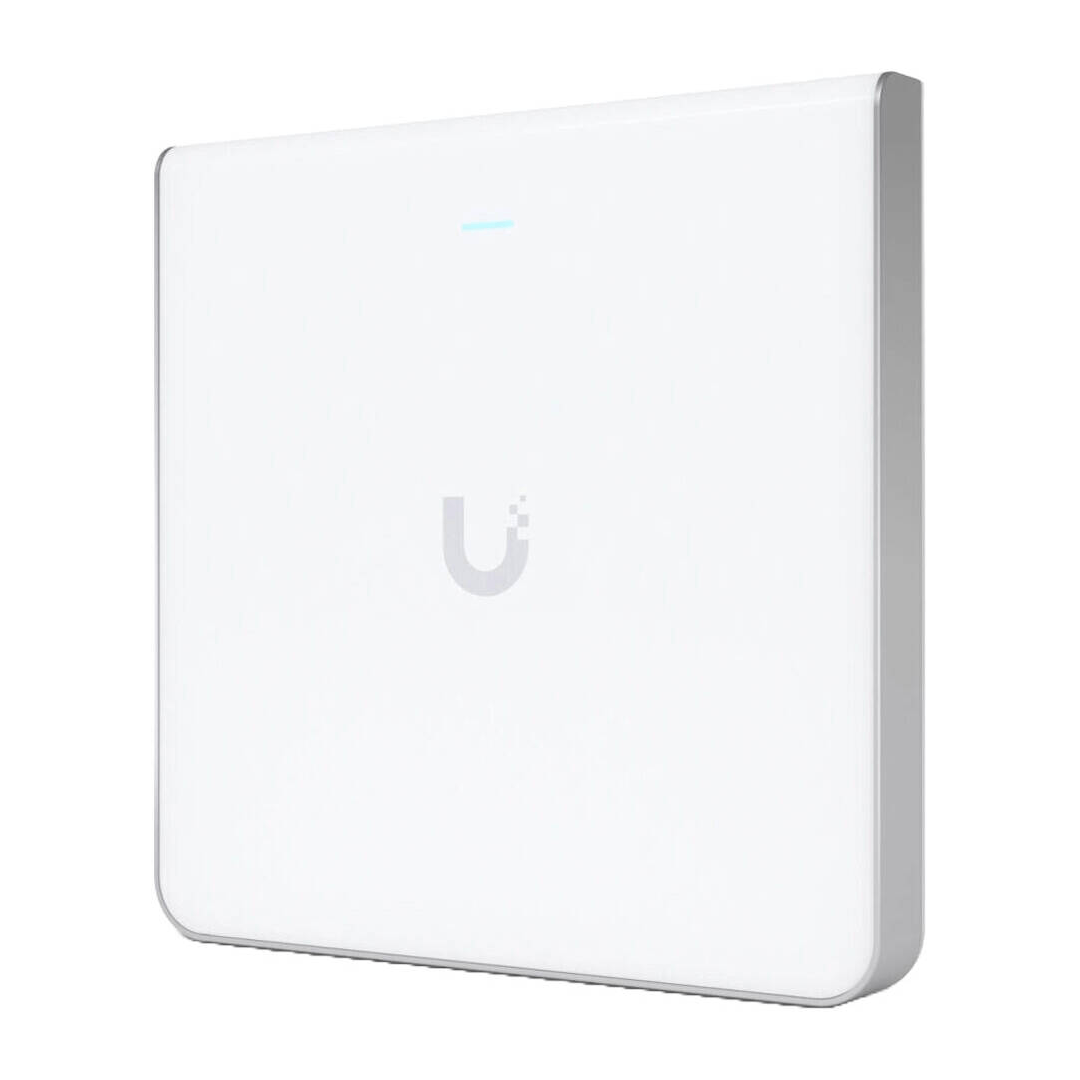

New 		U6 Enterprise In-Wall U6 Enterprise In-Wall

Additional 6 GHz radio for high-density environments

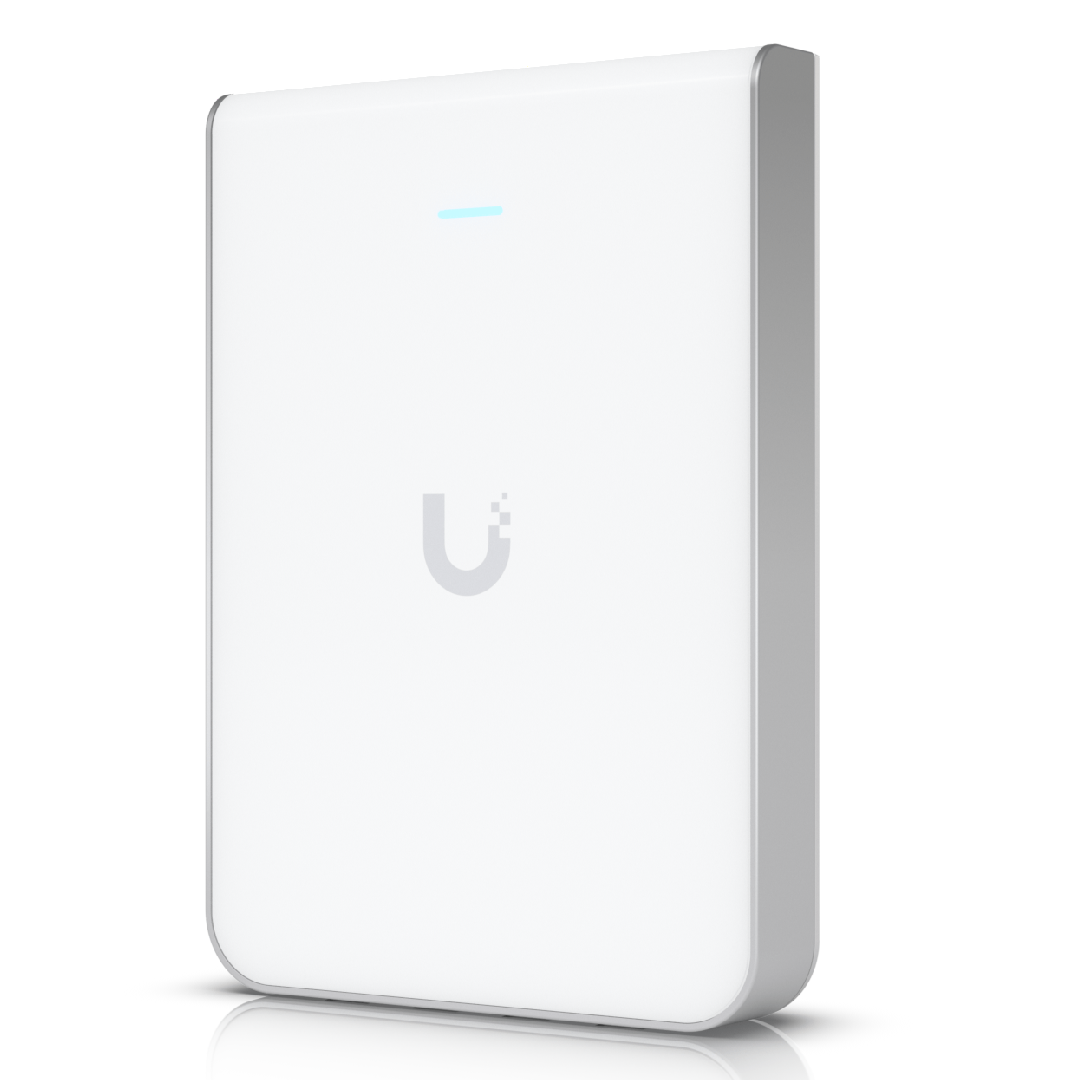

 U6 In-Wall

Low-profile WiFi 6 AP with a built-in PoE switch
Dimensions
155 x 108 x 33.5 mm(6.1 x 4.3 x 1.3") 150 x 103 x 36 mm(5.9 x 4.1 x 1.4") 137 x 98.7 x 30.2 mm(5.4 x 3.9 x 1.2") 159.7 x 156.7 x 33.8 mm(6.3 x 6.2 x 1.3") 139.7 x 96 x 31.2 mm(5.5 x 3.8 x 1.3")
Connected Devices
300+ 300+ 200+ 600+ 300+
Uplink
10 GbE 2.5 GbE 2.5 GbE 2.5 GbE GbE
Coverage
140 m² (1,500 ft²) 140 m² (1,500 ft²) 115 m² (1,250 ft²) 115 m² (1,250 ft²) 115 m² (1,250 ft²)
Power Method
PoE+ PoE+ PoE/PoE+* PoE+ / PoE++* PoE / PoE+*
WiFi Technology
WiFi 7Tri-radio 2.4 / 5 / 6 GHz6 spatial streams WiFi 7Tri-radio 2.4 / 5 / 6 GHz6 spatial streams WiFi 7Dual-radio 2.4 / 5 GHz4 spatial streams WiFi 6ETri-radio 2.4 / 5 / 6 GHz10 spatial streams WiFi 6Dual-radio 2.4 / 5 GHz6 spatial streams
6 GHz Radio
✓ ✓ — ✓ —
*With optional Table Stand accessory. *With optional Table Stand accessory. *PoE+ required for PoE out. *PoE++ required for PoE out. *PoE+ required for PoE out.
