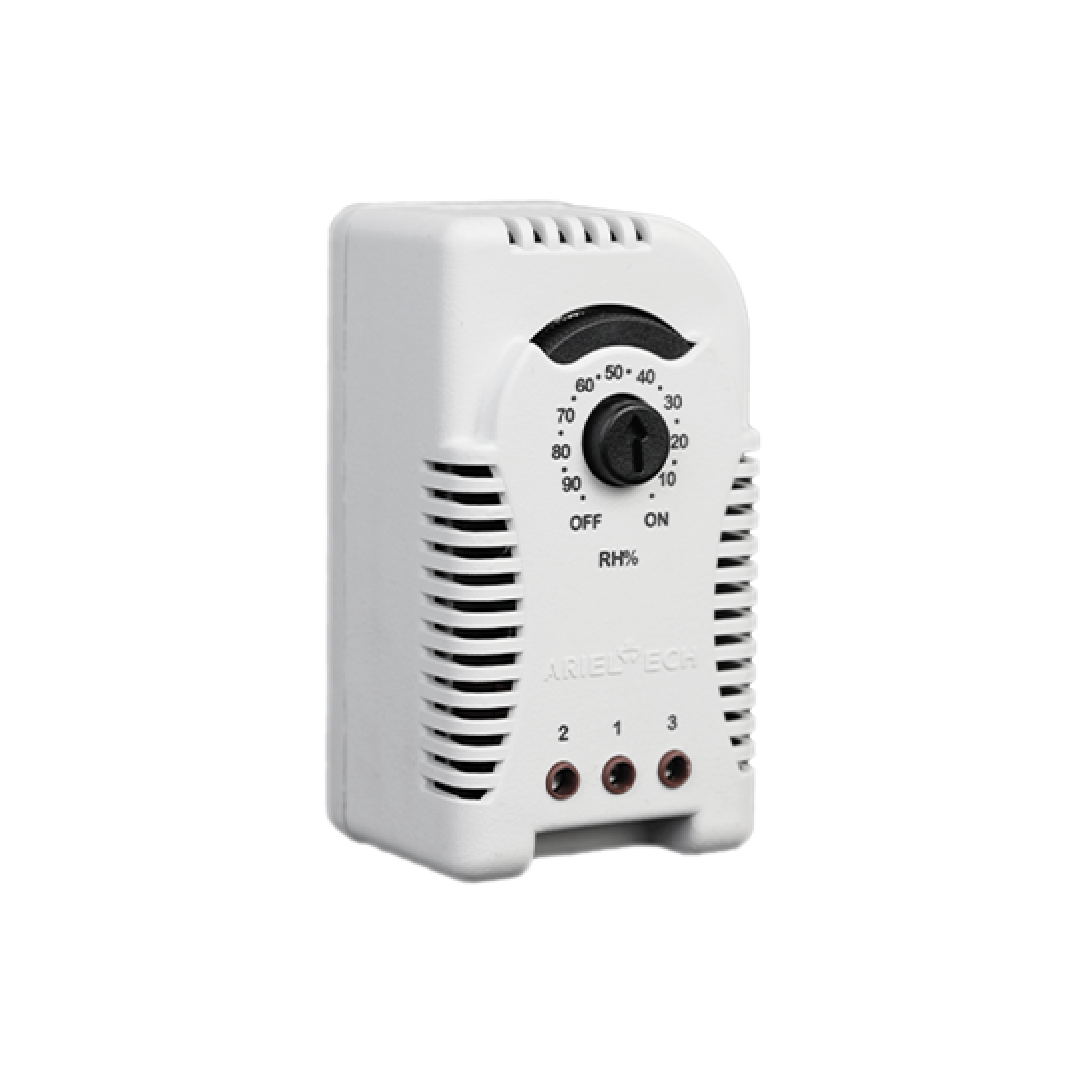

Humidistat (Mechanical Hygrostat)

$0.00

Brand: Arieltech

Features

• Controls a wide range of enclosure relative humidity from 10% to 90%
• Can be used for both applications; Humidifiers and Dehumidifiers
• Mechanical Hygrostat
• Mountable on 35 mm DIN Rail
• Flame retardant housing, UL 94-V0
• Operating Temperature: 0 °C to +60 °C / 32 °F to 140 °F

Brand: Arieltech

Features

• Controls a wide range of enclosure relative humidity from 10% to 90%
• Can be used for both applications; Humidifiers and Dehumidifiers
• Mechanical Hygrostat
• Mountable on 35 mm DIN Rail
• Flame retardant housing, UL 94-V0
• Operating Temperature: 0 °C to +60 °C / 32 °F to 140 °F

Certificates

• CSA and CSAus Listed, File Number 300557
• UL and cUL Recognized, File Number E484831
• CE Complian

Application

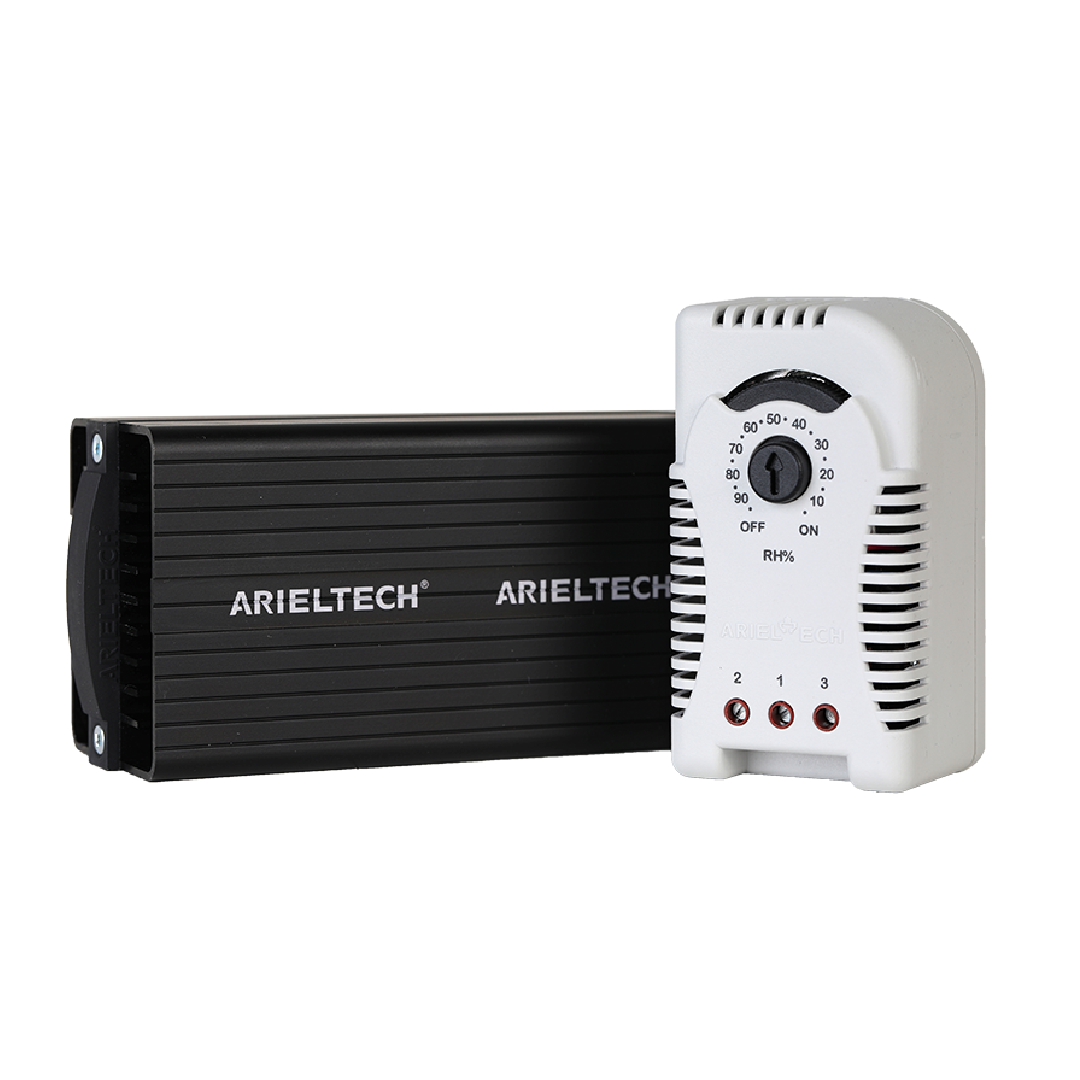

The HYTEC-100 is designed to control the relative humidity inside of enclosures and electrical panels. The HYTEC-100 starts the heater in order to avoid formation of condensation in enclosures. Designed to protect electronic circuits, preventing the absorption of moisture by electrical and electronic components inside of the enclosure.

Color

  • RAL 7035 – Light Gray

Specification Table Slider - HYTEC-100
HYTEC-100
Terminal Operated Between 1 & 2 Between 1 & 3
Voltage 240 VAC 120 VAC 240 VAC 120 VAC
Full Load 5.5A 10.5A 2.2 A 4.4 A
Locked Load 22.5 A 45 A 13.2 A 26.5 A
Resistive Load 6 A 12 A 3 A 6 A
Application Dehumidifier Humidifier
Normally Closed Normally Open
Heater Fan
Design and Test Standard UL 60730-1
UL 60730-2-9
UL 60730-2-13
CAN/CSA-E60730-1:15
CAN/CSA-E60730-2-9:15
Withstanding Voltage AC 1500 V 1 min or AC 1800 V 1 sec
Insulation Resistance Min 100 mΩ at DC 500 V
Calibration Point 42% RH at room temperature 23 °C ± 2 °C / 74 °F ± 2 °F
Mounting Rail 35 mm according to EN 50 022
Weight 170 gram / 0.375 lb
Dimensions 101 mm x 57 mm x 55 mm / 3.98" x 2.24" x 2.17"
Color RAL 7035
Electrical Connections 3-Pole screw terminal for wires section of .75/4 mm² – AWG 18/12
Housing Material PA 6 UL 94-V0
Environmental Indoor
Control Type Operating Control, Type 1
Rated Impulse Voltage 2500
Hysteresis Approx. 5% RH
Sensing Element Synthetic Fiber
Operating Temperature 0 °C to +60 °C / 32 °F to 140 °F
Shipping and Storage Temperature -40 °C to 60 °C / -40 °F to 140 °F
