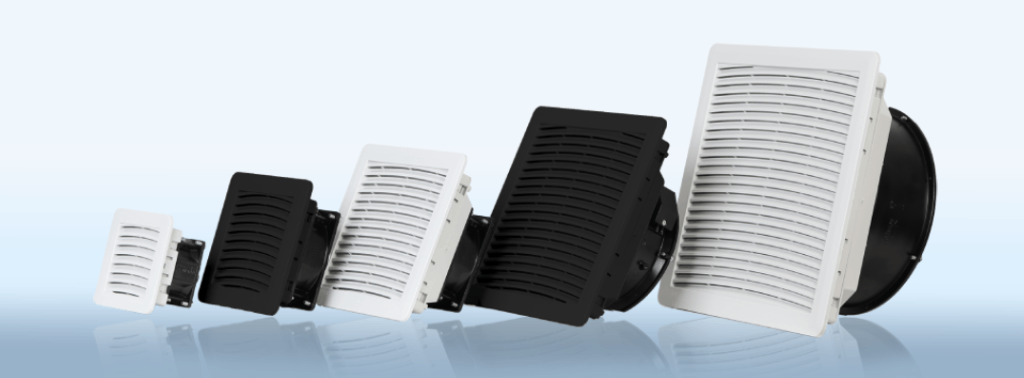

Fan Filters and Exhaust Filters

$0.00

Brand: Arieltech

Features

• Type 12 and Type 3R NEMA Rating-NO HOOD REQUIRED
• IP 54 using G3 filter mat and IP 55 using G4 filter mat
• 115 VAC, 230 VAC, 460 VAC, 12, 24, and 48 VDC available
• Flow capacity from 15 CFM to 625 CFM (26 m3/hr to 1060 m3/hr)
• Polyurethane sealing gasket
• Ball bearing Fan
• Easily snaps into place without the use of screws
• Washable and reusable filter mat
• Robust flame-retardant plastic housing, UL 94-V0
• Operating/Storage Temperature: -4 °F to +158 °F / -20 °C to +70 °C
• Durability: 50,000 – 90,000 hrs
• UV Resistant

Brand: Arieltech

Features

• Type 12 and Type 3R NEMA Rating-NO HOOD REQUIRED
• IP 54 using G3 filter mat and IP 55 using G4 filter mat
• 115 VAC, 230 VAC, 460 VAC, 12, 24, and 48 VDC available
• Flow capacity from 15 CFM to 625 CFM (26 m3/hr to 1060 m3/hr)
• Polyurethane sealing gasket
• Ball bearing Fan
• Easily snaps into place without the use of screws
• Washable and reusable filter mat
• Robust flame-retardant plastic housing, UL 94-V0
• Operating/Storage Temperature: -4 °F to +158 °F / -20 °C to +70 °C
• Durability: 50,000 – 90,000 hrs
• UV Resistant

Certificates

• CSA and CSAus Listed, File Number 300557
• UL and cUL Recognized, File Number E484831
• CE Complian

Application

FTEC series Fan Filter and Exhaust Filter are designed to supply forced convection filtered air for enclosures and electrical panels.

By using the unique filtering and cooling features, FTEC will cool down the inside of enclosures to a desired temperature to protect the electrical and electronic parts against heat.

Color

• RAL 7035 – Light Gray

Part Number Chart Slider
Part Number Chart
Fan Filter
Size Color IP Rating NEMA Rating Voltage Flow Direction Bearing Flow Capacity
10: 4"
16: 6"
20: 8"
26: 10"
32: 12"
L: Light Gray
D: Dark Gray
B: Black
O: Optional

4: IP 54
5: IP 55

X: NEMA 12
Z: NEMA 3R 		115: 115 Vac
230: 230 Vac
440: 460 Vac
12D: 12Vac
24D: 24 Vdc
48D: 48 Vdc

S: Standard
R: Reverse 		B: Ball Bearing
S: Small
( ): Standard
B: Big
G: Grande
Exhaust Filter
Size Color IP Rating NEMA Rating
10: 4"
16: 6"
20: 8"
26: 10"
32: 12"
L: Light Gray
D: Dark Gray
B: Black
O: Optional

4: IP 54
5: IP 55

X: NEMA 12
Z: NEMA 3R
Selection Chart - Fan Filters and Exhaust Filters
Selection Chart Slider
Selection Chart - Fan Filters and Exhaust Filters
Model No. Size Voltage NEMA Rating Type Rating Unimpeded Flow Capacity In combination Flow Capacity Certificates
Inch-mm VAC/VDC CFM-m³/hr CFM-m³/hr
FTEC10(*)4X Exhaust Filter 4-110X110 - TYPE 12 IP 54 - - UL-CSA-CE
FTEC10(*)4X-115SB Fan Filter 115 AC 15-26 11-19 UL-CSA-CE
FTEC10(*)4X-230SB Fan Filter 230 AC 15-26 11-19 UL-CSA-CE
FTEC10(*)4X-(**)SB Fan Filter 12/24/48 DC 38-65 26-45 UL-CSA-CE
FTEC10(*)5(***) Exhaust Filter - TYPE 12
or TYPE
3R		 IP 55 - - UL-CSA-CE
FTEC10(*)5(***)-115SB Fan Filter 115 AC 14-24 10-17 UL-CSA-CE
FTEC10(*)5(***)-230SB Fan Filter 230 AC 14-24 10-17 UL-CSA-CE
FTEC10(*)5(***)-(**)SB Fan Filter 12/24/48 DC 35-60 22-37 UL-CSA-CE
FTEC16(*)4X Exhaust Filter 6-116X116 - TYPE 12 IP 54 - - UL-CSA-CE
FTEC16(*)4X-115SB Fan Filter 115 AC 42-70 35-60 UL-CSA-CE
FTEC16(*)4X-230SB Fan Filter 230 AC 42-70 35-60 UL-CSA-CE
FTEC16(*)4X-(**)SB Fan Filter 12/24/48 DC 42-70 35-60 UL-CSA-CE
FTEC16(*)5(***) Exhaust Filter - TYPE 12
or TYPE
3R		 IP 55 - - UL-CSA-CE
FTEC16(*)5(***)-115SB Fan Filter 115 AC 35-60 30-50 UL-CSA-CE
FTEC16(*)5(***)-230SB Fan Filter 230 AC 35-60 30-50 UL-CSA-CE
FTEC16(*)5(***)-(**)SB Fan Filter 12/24/48 DC 35-60 30-50 UL-CSA-CE
FTEC20(*)4X Exhaust Filter 8-206X206 - TYPE 12 IP 54 - - UL-CSA-CE
FTEC20(*)4X-115SB Fan Filter 115 AC 95-160 70-120 UL-CSA-CE
FTEC20(*)4X-230SB Fan Filter 230 AC 95-160 70-120 UL-CSA-CE
FTEC20(*)4X-(**)SB Fan Filter 12/24/48 DC 90-152 70-120 UL-CSA-CE
