Brand: Arieltech
Features

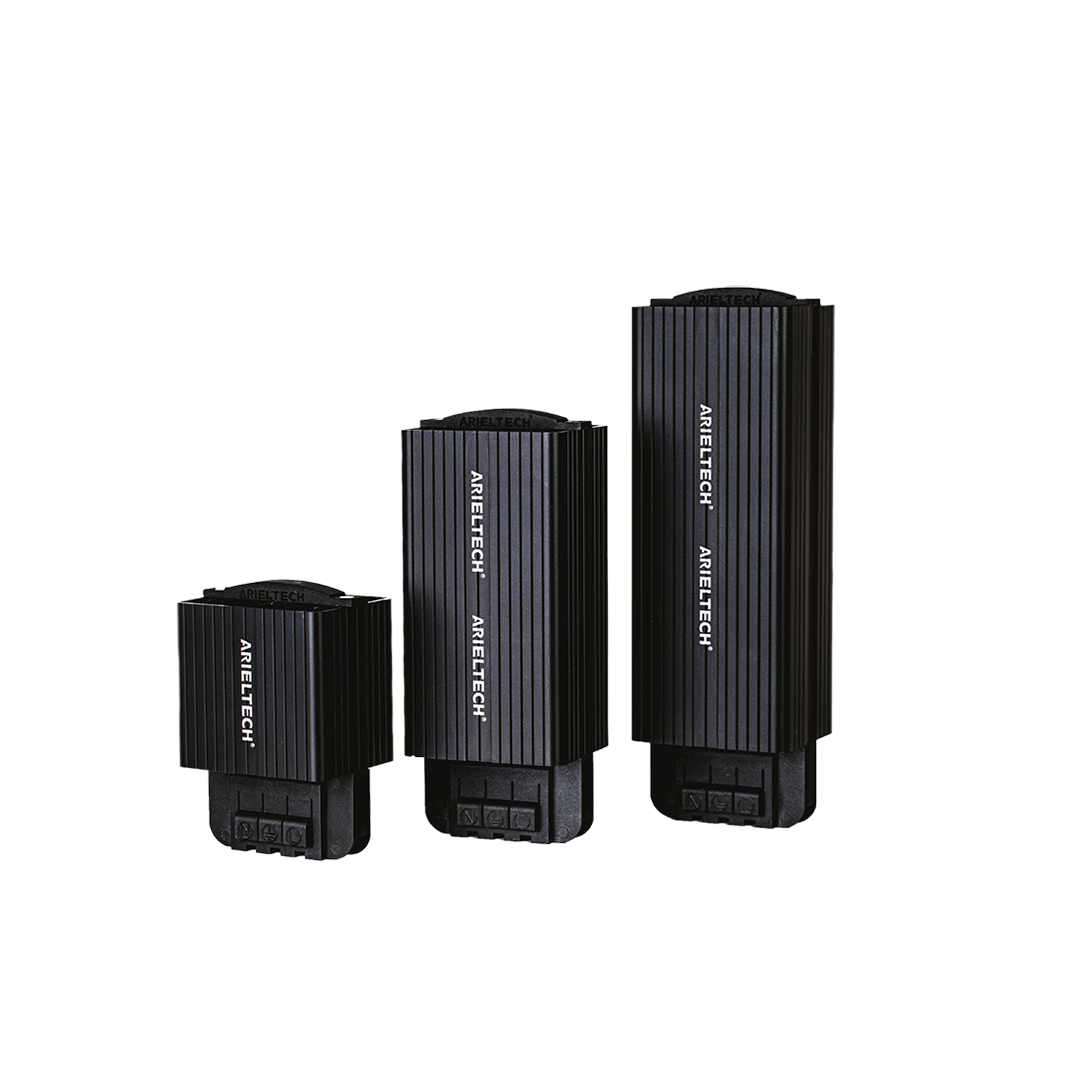

Safe, Reliable and consistent heat for long periods by means of PTC (Positive Temperature Coefficient) heater
Highly efficient and low profile
Connects easily with push connectors for 3 wires. From AWG 20 to AWG 16 (0.5 - 2.5 mm²).
Built in safety feature prevents overheating
Used with Normally Closed Thermostat and Hygrostat
Black anodized aluminum housing
Mounts easily on 35 mm DIN Rail EN 50 022
Available in 35 Watt to 150 Watt
Operating/storage temperature is -45 to + 70 °C (-49 to +158 °F)
Brand: Arieltech
Features
Safe, Reliable and consistent heat for long periods by means of PTC (Positive Temperature Coefficient) heater
Highly efficient and low profile
Connects easily with push connectors for 3 wires. From AWG 20 to AWG 16 (0.5 - 2.5 mm²).
Built in safety feature prevents overheating

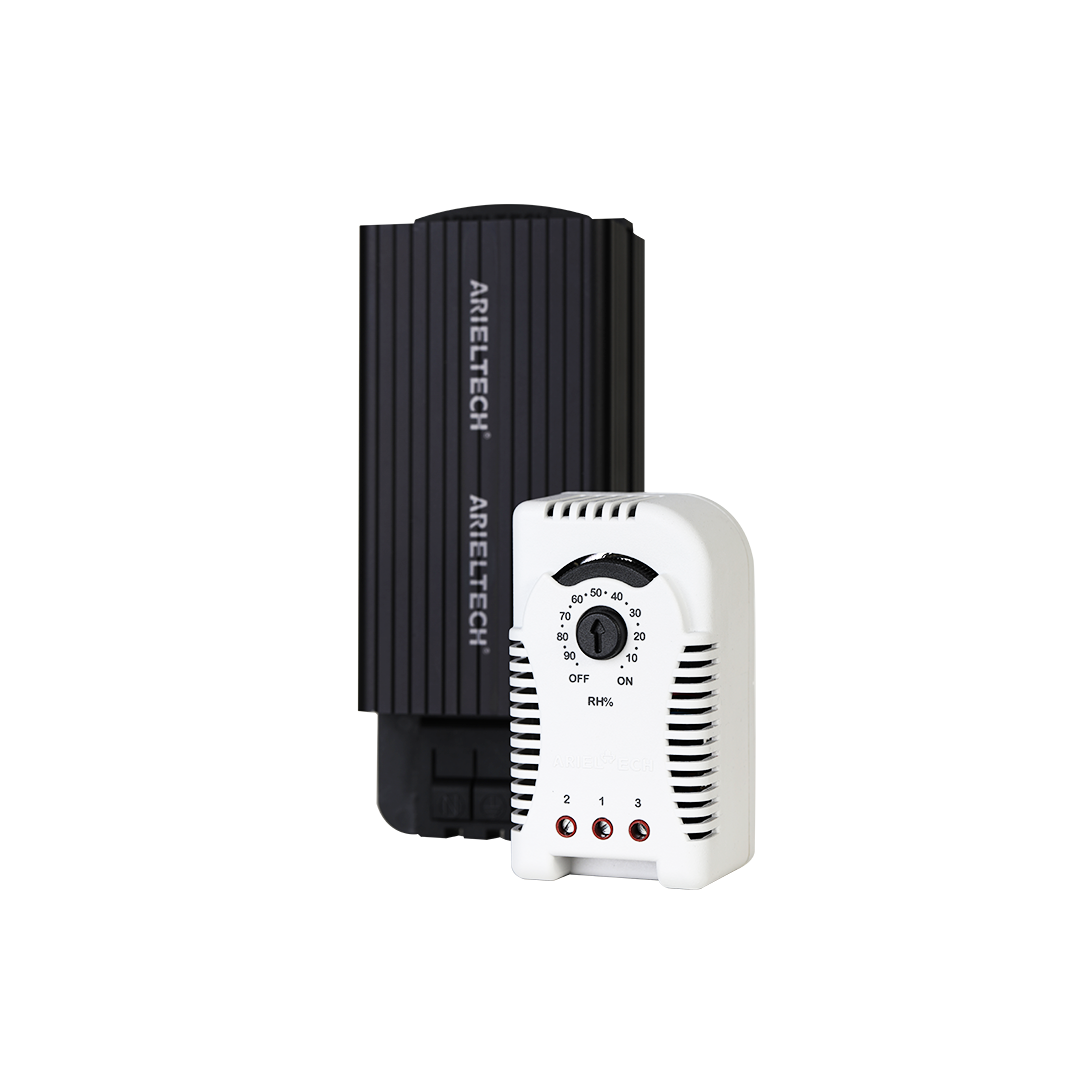

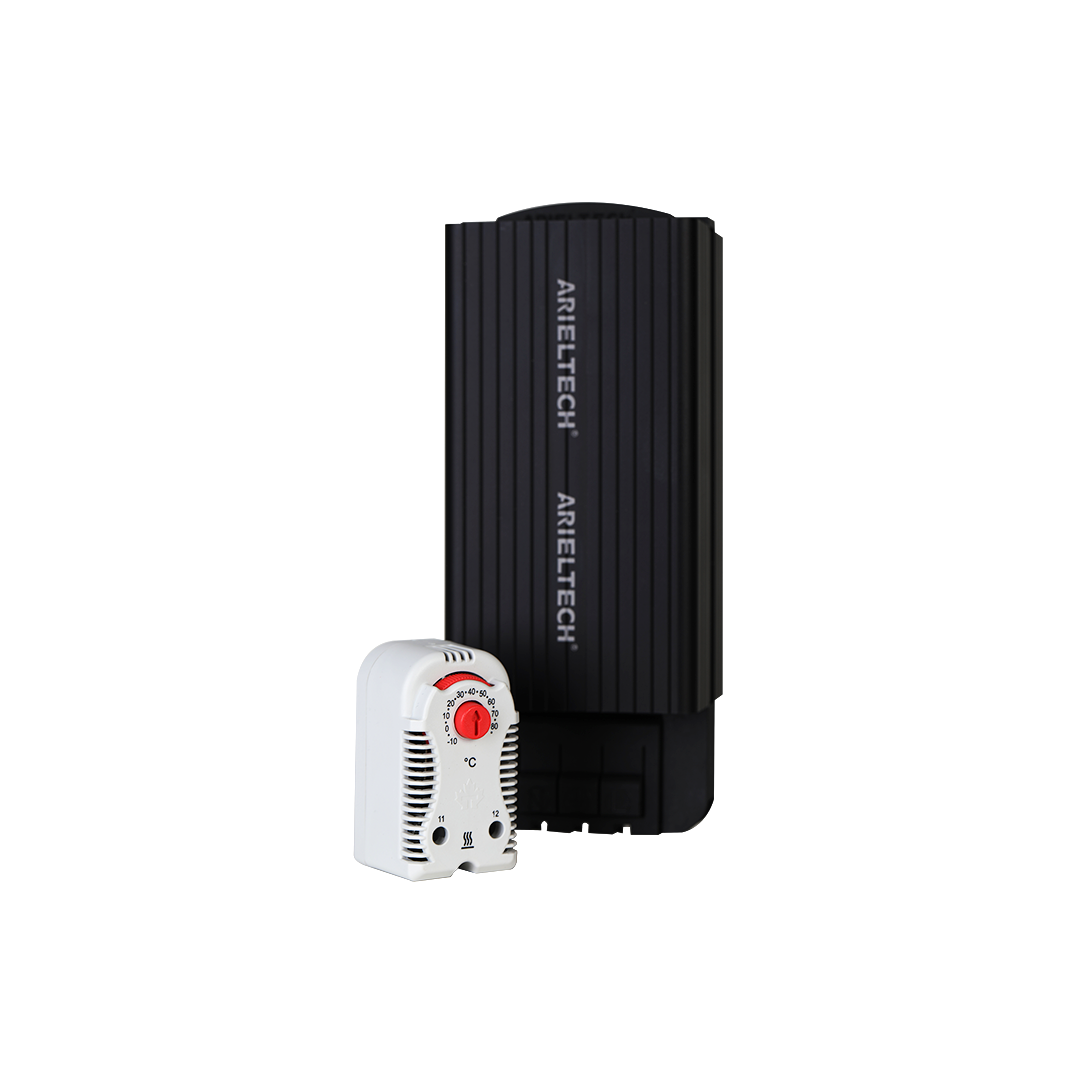

Used with Normally Closed Thermostat and Hygrostat
Black anodized aluminum housing
Mounts easily on 35 mm DIN Rail EN 50 022
Available in 35 Watt to 150 Watt
Operating/storage temperature is -45 to + 70 °C (-49 to +158 °F)
UL and cUL recognized, File Number E515368
CE Compliant
Provides protection from condensation and low temperatures in Control Panels, Electronic Enclosures, Hydraulic and Pneumatic machinery.
• Black
| Heater | Power* | Voltage | Inrush Current | Dimensions | Weight | Max surface temperature |
|---|---|---|---|---|---|---|
| Model No. | (WATT) | (VAC/VDC) | 110/240 VAC | mm (Inch) | KG(lb) | °C (°F) |
| HEATEC-035 | 35 | 110-240 | 1.2 A/2.5 A | 116x75x61(4.57×2.95×2.4) | 0.5 (1.1) | 100 (212) |
| HEATEC-045 | 45 | 110-240 | 1.8 A/3.5 A | 116x75x61(4.57×2.95×2.4) | 0.5 (1.1) | 110 (230) |
| HEATEC-060 | 60 | 110-240 | 2.0 A/3.8 A | 186x75x61(7.32×2.95×2.4) | 0.7 (1.55) | 90 (194) |
| HEATEC-080 | 80 | 110-240 | 2.2 A/4.2 A | 186x75x61(7.32×2.95×2.4) | 0.7 (1.55) | 100 (230) |
| HEATEC-100 | 100 | 110-240 | 3.5 A/6.5 A | 186x75x61(7.32×2.95×2.4) | 0.7 (1.55) | 115 (240) |
| HEATEC-130 | 130 | 110-240 | 4.0 A/ 7.0 A | 236x75x61(9.29×2.95×2.4) | 0.9 (2) | 110 (230) |
| HEATEC-150 | 150 | 110-240 | 4.8 A/8.8 A | 236x75x61(9.29×2.95×2.4) | 0.9 (2) | 120 (250) |
| Model No. | X | Y |
|---|---|---|
| HEATEC-035 | 78±0.5 mm (3 1/16"±3 15/16") | 20±1 mm (13/16"±1/16") |
| HEATEC-045 | ||
| HEATEC-060 | 148±0.5 mm (5 1/16"±3 15/16") | 55±1 mm (2 3/16"±1/16") |
| HEATEC-080 | ||
| HEATEC-100 | ||
| HEATEC-130 | 198±0.5 mm (7 13/16"±3 15/16") | 55±1 mm (2 3/16"±1/16") |
| HEATEC-150 |
