Mechanical Thermostats Normally Open & Normally Closed

$0.00

Brand: Ariel Tech

Features

• Controls a wide range of enclosure temperatures from 14 °F to 176 °F (-10 °C to +80 °C)
• Both are available in Fahrenheit or Celsius
• Mechanical NC and NO Thermostats
• Flame retardant housing, UL 94-V0
• Mountable on three different sized DIN Rails (DIN Rail 35 mm, DIN Rail 32 mm, and DIN Rail 15 mm)

Type:

Brand: Ariel Tech

Features

• Controls a wide range of enclosure temperatures from 14 °F to 176 °F (-10 °C to +80 °C)
• Both are available in Fahrenheit or Celsius
• Mechanical NC and NO Thermostats
• Flame retardant housing, UL 94-V0
• Mountable on three different sized DIN Rails (DIN Rail 35 mm, DIN Rail 32 mm, and DIN Rail 15 mm)

Certificates

  • CSA and CSAus Listed, File Number 300557

  • UL and cUL Recognized, File Number E484831

  • CE Compliant

Application

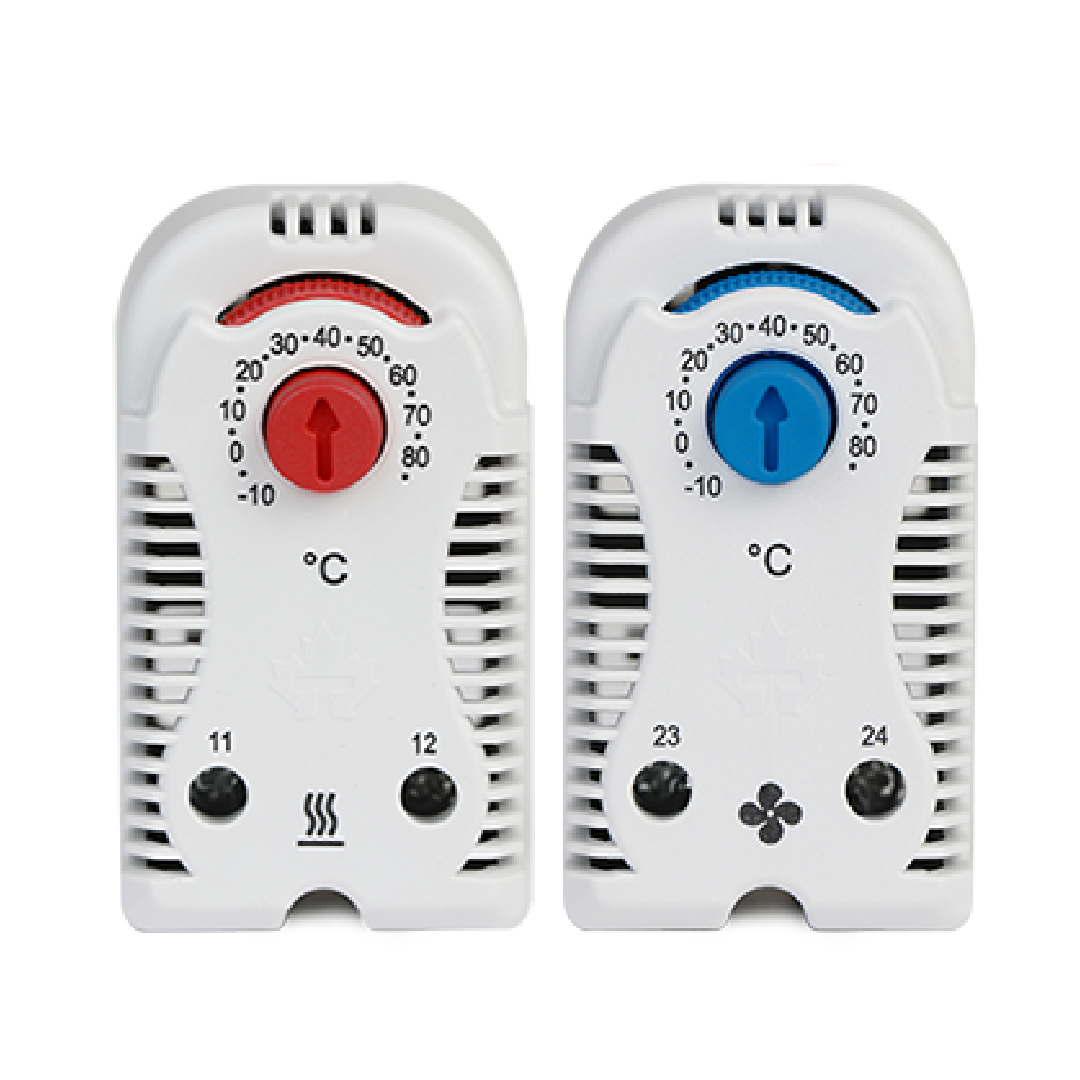

The TTEC series are thermostat controllers used to regulate the temperature inside industrial control panels or cabinets and control cabinet accessories. The TTEC series control fans, heaters, and switch loads. TTEC-100 and TTEC-200 are identical except the TTEC-100 (Red) is Normally Closed which opens at temperature rise, and turns the Heater off, the TTEC-200 (Blue) is Normally Open which closes at temperature rise, and turns the Fan/Fan Filter on

Color

• RAL 7035 – Light Gray

Mechanical Thermostats Technical Data

Specification Table Slider - TTEC Series
Type TTEC-100 TTEC-200
Function Normally Closed Normally Open
Terminal Operated Between 11 & 12 Between 23 & 24
VDE Rating 250 VAC, 14 A, 50 Hz
UL Rating 125 VAC, 15 A, 60 Hz
Setting Temperature -10 to +80 °C (+14 to 176 °F)
Design and Test Standard UL 60730-1
UL 60730-2-9
UL 60730-2-13
CAN/CSA-E60730-1:15
CAN/CSA-E60730-2-9:15
Hi-Pot Test 1800 VAC 0.5 mA, 1 sec
Mounting Rail 35 mm according to EN 50022
Rail 32 mm according to EN 50035
Rail 15 mm according to EN 50045
Weight 50 gram / 0.11 lb
Dimensions 60 mm X 34 mm X 47 mm (2.36" X 1.34" X 1.85")
Color RAL 7035-Light Grey
Electrical Connections 2-Pole for wires section of 12 AWG
Housing Material PA 6 UL 94-V0
Environmental Indoor
Hysteresis Approx. ± 5 °C
Sensing Element Bimetal
Control Type Operating Control, Type 1
Rated Impulse Voltage 2500
Operating temperature -20 to +80 °C / -4 to +176 °F
Shipping and Storage Temperature -40 to +80 °C / -40 to +176 °F
