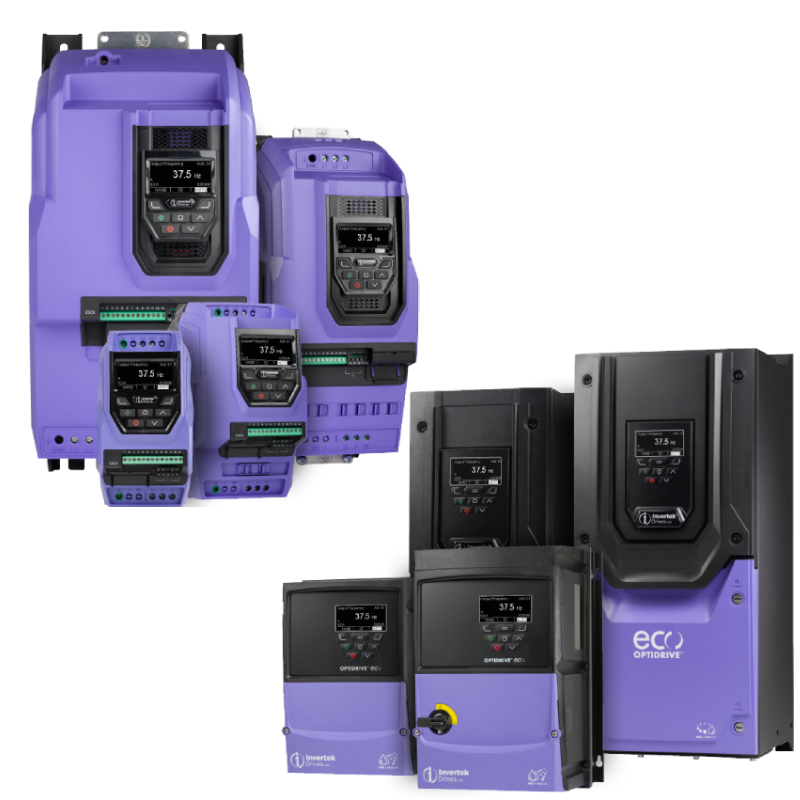

Optidrive Eco: AC Drives for Fan & Pump Control

$0.00

The Invertek Optidrive Eco is a high-efficiency Variable Frequency Drive (VFD) specifically designed for HVAC, pumping, ventilation, water systems, and energy optimization applications. It focuses on maximum energy savings, multi-pump control, and building automation integration (BACnet/Modbus). It is not a “machine control” drive like P2 or E4, but a process-optimized energy drive

Core Technical Range (Eco Series)

  • Input Voltage: 200–240V / 380–480V / 500–600V

  • Power Range:0.75 kW to 250 kW (up to 400 HP)

  • Enclosures: IP20 (panel), IP55 (industrial), IP66 / NEMA 4X (outdoor)

  • Motor Types Supported: IM, PM, BLDC, SynRM, LSPM

  • Control Focus: Energy-optimized sensorless vector control

  • Protocols: Modbus RTU, BACnet MS/TP (standard), optional Ethernet fieldbus

  • Key Function: Multi-pump cascade + HVAC automation logic

The Invertek Optidrive Eco is a high-efficiency Variable Frequency Drive (VFD) specifically designed for HVAC, pumping, ventilation, water systems, and energy optimization applications. It focuses on maximum energy savings, multi-pump control, and building automation integration (BACnet/Modbus). It is not a “machine control” drive like P2 or E4, but a process-optimized energy drive

Core Technical Range (Eco Series)

  • Input Voltage: 200–240V / 380–480V / 500–600V

  • Power Range:0.75 kW to 250 kW (up to 400 HP)

  • Enclosures: IP20 (panel), IP55 (industrial), IP66 / NEMA 4X (outdoor)

  • Motor Types Supported: IM, PM, BLDC, SynRM, LSPM

  • Control Focus: Energy-optimized sensorless vector control

  • Protocols: Modbus RTU, BACnet MS/TP (standard), optional Ethernet fieldbus

  • Key Function: Multi-pump cascade + HVAC automation logic

Best Features of Optidrive Eco

✔ Energy Saving Auto PID

✔ Sleep / Wake Mode

✔ Multi Pump Cascade Control

✔ Fire Mode

✔ BACnet Standard

✔ Quiet Motor Operation

✔ Sensorless Vector Control

Industries served by Optidrive Eco

Need and Recommended Model Type

  1. Small Water Pump: 0.75–2.2kW IP66

  2. AHU / HVAC Fan: 4–15kW IP20

  3. Booster Pump System: 18.5–37kW IP55

  4. Outdoor Cooling Tower: IP66 Series

  5. Heavy Industrial Pump: 75–250kW IP55

Optidrive Eco: Model Numbers Specification

Drive model numbers – IP20

200-240V ±10% - 1 Phase Input
kW ModelkWHP ModelHPOutput Current (A)Frame Size
ODP-2-22075-1KF42-SN0.75ODP-2-22010-1HF42-SN14.32
ODP-2-22150-1KF42-SN1.5ODP-2-22020-1HF42-SN272
ODP-2-22220-1KF42-SN2.2ODP-2-22030-1HF42-SN310.52
200-240V ±10% - 3 Phase Input
kW ModelkWHP ModelHPOutput Current (A)Frame Size
ODP-2-22075-3KF42-SN0.75ODP-2-22010-3HF42-SN14.32
ODP-2-22150-3KF42-SN1.5ODP-2-22020-3HF42-SN272
ODP-2-22220-3KF42-SN2.2ODP-2-22030-3HF42-SN310.52
ODP-2-32040-3KF42-SN4ODP-2-32050-3HF42-SN5183
ODP-2-32055-3KF42-SN5.5ODP-2-32075-3HF42-SN7.5243
380-480V ±10% - 3 Phase Input
kW ModelkWHP ModelHPOutput Current (A)Frame Size
ODP-2-24075-3KF42-SN0.75ODP-2-24010-3HF42-SN12.22
ODP-2-24150-3KF42-SN1.5ODP-2-24020-3HF42-SN24.12
ODP-2-24220-3KF42-SN2.2ODP-2-24030-3HF42-SN35.82
ODP-2-24400-3KF42-SN4ODP-2-24050-3HF42-SN59.52
ODP-2-34055-3KF42-SN5.5ODP-2-34075-3HF42-SN7.5143
ODP-2-34075-3KF42-SN7.5ODP-2-34100-3HF42-SN10183
ODP-2-34110-3KF42-SN11ODP-2-34150-3HF42-SN15243
500-600V ±10% - 3 Phase Input
kW ModelkWHP ModelHPOutput Current (A)Frame Size
ODP-2-26075-3K042-SN0.75ODP-2-26010-3H042-SN12.12
ODP-2-26150-3K042-SN1.5ODP-2-26020-3H042-SN23.12
ODP-2-26220-3K042-SN2.2ODP-2-26030-3H042-SN34.12
ODP-2-26400-3K042-SN4ODP-2-26050-3H042-SN56.52
ODP-2-26550-3K042-SN5.5ODP-2-26075-3H042-SN7.592
ODP-2-36075-3K042-SN7.5ODP-2-36100-3H042-SN10123
ODP-2-36110-3K042-SN11ODP-2-36150-3H042-SN15173
ODP-2-36150-3K042-SN15ODP-2-36200-3H042-SN20223

* Note: The final two characters of the model number relate to available factory build options as follows

  • -SN Standard Seven Segment LED Display, standard PCB coating
  • -SC Standard Seven Segment LED Display, additional PCB conformal coating

Drive model numbers – IP55

200-240V ±10% - 3 Phase Input
kW Model NumberkWHP Model NumberHPOutput Current (A)Frame Size
ODP-2-42055-3KF4N-SN5.5ODP-2-42075-3HF4N-SN7.5244
ODP-2-42075-3KF4N-SN7.5ODP-2-42100-3HF4N-SN10394
ODP-2-42110-3KF4N-SN11ODP-2-42150-3HF4N-SN15464
ODP-2-52150-3KF4N-SN15ODP-2-52020-3HF4N-SN20615
ODP-2-52185-3KF4N-SN18.5ODP-2-52025-3HF4N-SN25725
ODP-2-62022-3KF#N-SN22ODP-2-62030-3HF#N-SN30906
ODP-2-62030-3KF#N-SN30ODP-2-62040-3HF#N-SN401106
ODP-2-62037-3KF#N-SN37ODP-2-62050-3HF#N-SN501506
ODP-2-62045-3KF#N-SN45ODP-2-62060-3HF#N-SN601806
ODP-2-72055-3KF#N-SN55ODP-2-72075-3HF#N-SN752027
ODP-2-72075-3KF#N-SN75ODP-2-72100-3HF#N-SN1002487
380-480V ±10% - 3 Phase Input
kW Model NumberkWHP Model NumberHPOutput Current (A)Frame Size
ODP-2-44110-3KF4N-SN11ODP-2-44150-3HF4N-SN15244
ODP-2-44150-3KF4N-SN15ODP-2-44200-3HF4N-SN20304
ODP-2-44185-3KF4N-SN18.5ODP-2-44250-3HF4N-SN25394
ODP-2-44220-3KF4N-SN22ODP-2-44300-3HF4N-SN30464
ODP-2-54300-3KF4N-SN30ODP-2-54040-3HF4N-SN40615
ODP-2-54370-3KF4N-SN37ODP-2-54050-3HF4N-SN50725
ODP-2-64045-3KF#N-SN45ODP-2-64060-3HF#N-SN60906
ODP-2-64055-3KF#N-SN55ODP-2-64075-3HF#N-SN751106
ODP-2-64075-3KF#N-SN75ODP-2-64120-3HF#N-SN1201506
ODP-2-64090-3KF#N-SN90ODP-2-64150-3HF#N-SN1501806
ODP-2-74110-3KF#N-SN110ODP-2-74175-3HF#N-SN1752027
ODP-2-74132-3KF#N-SN132ODP-2-74200-3HF#N-SN2002407
ODP-2-74160-3KF#N-SN160ODP-2-74250-3HF#N-SN2503027
480-525V ±10% - 3 Phase Input
kW Model NumberkWHP Model NumberHPOutput Current (A)Frame Size
ODP-2-75132-3K0#N-SN132--1857
ODP-2-75150-3K0#N-SN150--2057
ODP-2-75185-3K0#N-SN185--2557
ODP-2-75200-3K0#N-SN200--2757
500-600V ±10% - 3 Phase Input
kW Model NumberkWHP Model NumberHPOutput Current (A)Frame Size
ODP-2-46150-3K04N-SN15ODP-2-46200-3H04N-SN20224
ODP-2-46185-3K04N-SN18.5ODP-2-46250-3H04N-SN25284
ODP-2-46220-3K04N-SN22ODP-2-46300-3H04N-SN30344
ODP-2-46300-3K04N-SN30ODP-2-46400-3H04N-SN40434
ODP-2-56370-3K04N-SN37ODP-2-56050-3H04N-SN50545
ODP-2-56450-3K04N-SN45ODP-2-56060-3H04N-SN60655
ODP-2-66055-3K0#N-SN55ODP-2-66075-3H0#N-SN75786
ODP-2-66075-3K0#N-SN75ODP-2-66100-3H0#N-SN1001056
ODP-2-66090-3K0#N-SN90ODP-2-66125-3H0#N-SN1251306

* Note: The final two characters of the model number relate to available factory build options as follows

  • -SN Standard Seven Segment LED Display, standard PCB coating
  • -SC Standard Seven Segment LED Display, additional PCB conformal coating
  • -TN OLED Text Display, standard PCB coating
  • -TC OLED Text Display, additional PCB conformal coating
  • # Replace with "4" for internal brake transistor, "1" for no internal brake transistor

Drive model numbers – IP66

200-240V ±10% - 1 Phase Input
kW ModelkWHP ModelHPOutput Current (A)Frame Size
Non SwitchedSwitchedNon SwitchedSwitched
ODP-2-22075-1KF4X-SNODP-2-22075-1KF4Y-SN0.75ODP-2-22010-1HF4X-SNODP-2-22010-1HF4Y-SN14.32
ODP-2-22150-1KF4X-SNODP-2-22150-1KF4Y-SN1.5ODP-2-22020-1HF4X-SNODP-2-22020-1HF4Y-SN272
ODP-2-22220-1KF4X-SNODP-2-22220-1KF4Y-SN2.2ODP-2-22030-1HF4X-SNODP-2-22030-1HF4Y-SN310.52
200-240V ±10% - 3 Phase Input
kW ModelkWHP ModelHPOutput Current (A)Frame Size
Non SwitchedSwitchedNon SwitchedSwitched
ODP-2-22075-3KF4X-SNODP-2-22075-3KF4Y-SN0.75ODP-2-22010-3HF4X-SNODP-2-22010-3HF4Y-SN14.32
ODP-2-22150-3KF4X-SNODP-2-22150-3KF4Y-SN1.5ODP-2-22020-3HF4X-SNODP-2-22020-3HF4Y-SN272
ODP-2-22220-3KF4X-SNODP-2-22220-3KF4Y-SN2.2ODP-2-22030-3HF4X-SNODP-2-22030-3HF4Y-SN310.52
ODP-2-32040-3KF4X-SNODP-2-32040-3KF4Y-SN4ODP-2-32050-3HF4X-SNODP-2-32050-3HF4Y-SN5183
380-480V ±10% - 3 Phase Input
kW ModelkWHP ModelHPOutput Current (A)Frame Size
Non SwitchedSwitchedNon SwitchedSwitched
ODP-2-24075-3KF4X-SNODP-2-24075-3KF4Y-SN0.75ODP-2-24010-3HF4X-SNODP-2-24010-3HF4Y-SN12.22
ODP-2-24150-3KF4X-SNODP-2-24150-3KF4Y-SN1.5ODP-2-24020-3HF4X-SNODP-2-24020-3HF4Y-SN24.12
ODP-2-24220-3KF4X-SNODP-2-24220-3KF4Y-SN2.2ODP-2-24030-3HF4X-SNODP-2-24030-3HF4Y-SN35.82
ODP-2-24400-3KF4X-SNODP-2-24400-3KF4Y-SN4ODP-2-24050-3HF4X-SNODP-2-24050-3HF4Y-SN59.52
ODP-2-34055-3KF4X-SNODP-2-34055-3KF4Y-SN5.5ODP-2-34075-3HF4X-SNODP-2-34075-3HF4Y-SN7.5143
ODP-2-34075-3KF4X-SNODP-2-34075-3KF4Y-SN7.5ODP-2-34100-3HF4X-SNODP-2-34100-3HF4Y-SN10183
500-600V ±10% - 3 Phase Input
kW ModelkWHP ModelHPOutput Current (A)Frame Size
Non SwitchedSwitchedNon SwitchedSwitched
ODP-2-26075-3K04X-SNODP-2-26075-3K04Y-SN0.75ODP-2-26010-3H04X-SNODP-2-26010-3H04Y-SN12.12
ODP-2-26150-3K04X-SNODP-2-26150-3K04Y-SN1.5ODP-2-26020-3H04X-SNODP-2-26020-3H04Y-SN23.12
ODP-2-26220-3K04X-SNODP-2-26220-3K04Y-SN2.2ODP-2-26030-3H04X-SNODP-2-26030-3H04Y-SN34.12
ODP-2-26400-3K04X-SNODP-2-26400-3K04Y-SN4ODP-2-26050-3H04X-SNODP-2-26050-3H04Y-SN56.52
ODP-2-26550-3K04X-SNODP-2-26550-3K04Y-SN5.5ODP-2-26075-3H04X-SNODP-2-26075-3H04Y-SN7.592
ODP-2-36075-3K04X-SNODP-2-36075-3K04Y-SN7.5ODP-2-36100-3H04X-SNODP-2-36100-3H04Y-SN10123

* Note: The final two characters of the model number relate to available factory build options as follows

  • -SN Standard Seven Segment LED Display, standard PCB coating
  • -SC Standard Seven Segment LED Display, additional PCB conformal coating
  • -TN OLED Text Display, standard PCB coating
  • -TC OLED Text Display, additional PCB conformal coating
