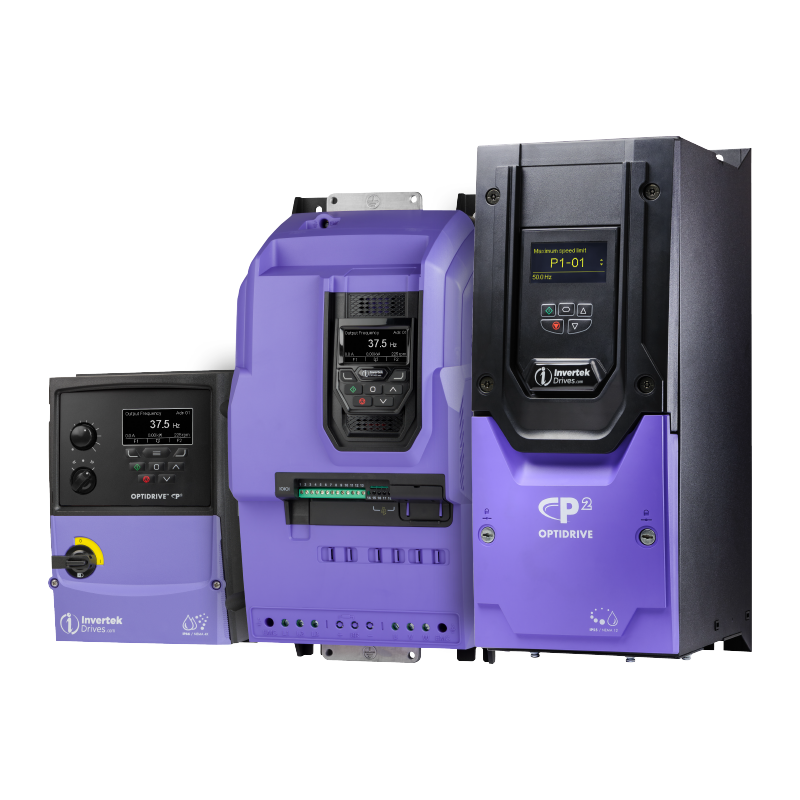

Optidrive P2

$0.00

The Invertek Optidrive P2 is a high-performance industrial Variable Frequency Drive (VFD) designed for demanding motor control applications such as conveyors, hoists, mixers, crushers, pumps, fans, extruders, and general automation. It combines heavy-duty torque performance, multiple motor compatibility, and advanced control features.

Main Range Overview

  • Input Voltage: 200–600V

  • Single & Three Phase Models

  • Power Range: 0.75 kW to 250 kW

  • Horsepower: 1 HP to 400 HP

  • Efficiency: up to 98%

  • Overload: 150% for 60 sec / 200% for 4 sec

  • Enclosures: IP20, IP55, IP66 / NEMA 4X

  • Built-in Modbus RTU + CANopen

The Invertek Optidrive P2 is a high-performance industrial Variable Frequency Drive (VFD) designed for demanding motor control applications such as conveyors, hoists, mixers, crushers, pumps, fans, extruders, and general automation. It combines heavy-duty torque performance, multiple motor compatibility, and advanced control features.

Main Range Overview

  • Input Voltage: 200–600V

  • Single & Three Phase Models

  • Power Range: 0.75 kW to 250 kW

  • Horsepower: 1 HP to 400 HP

  • Efficiency: up to 98%

  • Overload: 150% for 60 sec / 200% for 4 sec

  • Enclosures: IP20, IP55, IP66 / NEMA 4X

  • Built-in Modbus RTU + CANopen

Best Features of Optidrive P2

✔ Sensorless Vector Control

✔ PM / BLDC / SynRM Support

✔ Built-in Brake Transistor

✔ Safe Torque Off (STO)

✔ Simple PLC Function

✔ PID Control

✔ Hoist Mode

Industries served by Optidrive Eco

Need and Recommended Model Type

  1. Conveyor: 2.2–7.5 kW IP20

  2. Pump / Fan: 4–22 kW IP20

  3. Mixer / Extruder: 15–55 kW IP55

  4. Hoist / Crane: P2 with Hoist Mode

  5. Outdoor Machine: IP66 Series

  6. Heavy Crusher / Process Line: 75–250 kW

Optidrive Drive P2:Model Numbers Specification

Drive Model Numbers – IP20

kW ModelkWHP ModelHPOutput Current (A)Frame Size
200-240V ±10% - 1 Phase
ODP-2-22075-1KF42-MN0.75ODP-2-22010-1HF42-MN14.32
ODP-2-22150-1KF42-MN1.5ODP-2-22020-1HF42-MN272
ODP-2-22220-1KF42-MN2.2ODP-2-22030-1HF42-MN310.52
200-240V ±10% - 3 Phase
ODP-2-22075-3KF42-MN0.75ODP-2-22010-3HF42-MN14.32
ODP-2-32040-3KF42-MN4ODP-2-32050-3HF42-MN5183
380-480V ±10% - 3 Phase
ODP-2-24075-3KF42-MN0.75ODP-2-24010-3HF42-MN12.22
500-600V ±10% - 3 Phase
ODP-2-26075-3K042-MN0.75ODP-2-26010-3H042-MN12.12

Drive Model Numbers – IP55

kW ModelkWHP ModelHPOutput Current (A)Frame Size
200-240V ±10% - 3 Phase
ODP-2-42055-3KF4N-MN5.5ODP-2-42075-3HF4N-MN7.5244
380-480V ±10% - 3 Phase
ODP-2-44110-3KF4N-MN11ODP-2-44150-3HF4N-MN15244
480-525V ±10% - 3 Phase
ODP-2-75132-3K04N-MN1321751857

Drive Model Numbers – IP66 Non-switched

kW ModelkWHP ModelHPOutput Current (A)Frame Size
200-240V ±10% - 1 Phase
ODP-2-22075-1KF4A-MN1ODP-2-22010-1HF4A-MN14.32
380-480V ±10% - 3 Phase
ODP-2-24075-3KF4A-MN0.75ODP-2-24010-3HF4A-MN12.22

Drive Model Numbers – IP66 Switched

kW ModelkWHP ModelHPOutput Current (A)Frame Size
200-240V ±10% - 1 Phase
ODP-2-22075-1KF4B-MN1ODP-2-22010-1HF4B-MN14.32
