About Altivar Soft Starter AT22
The Altivar Soft Starter ATS22 units have been designed to meet the performance requirements of applications where ruggedness, security of personnel and equipment, and ease of setup are a priority.
The Altistart 22 soft start/soft stop units support the controlled starting and stopping, via voltage and torque, of three-phase squirrel cage asynchronous motors for power ratings ranging from 4 to 400 kW. They are supplied ready for use in standard applications with class 10 motor protection.
Products

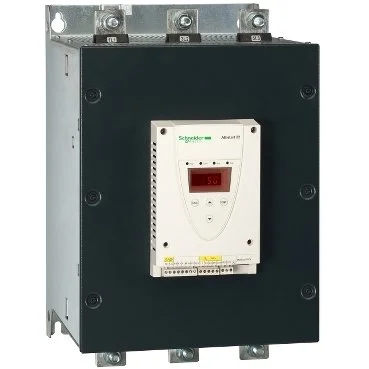

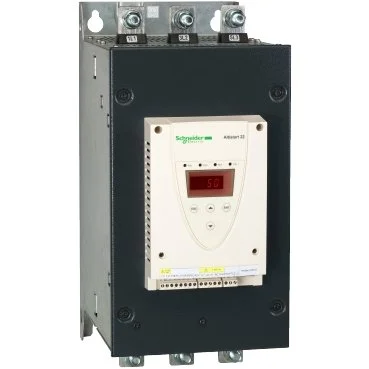

ATS22C21Q
soft starter-ATS22-control 220V-power 230V(55kW)/400...440V(110kW)
ATS22C25Q
soft starter-ATS22-control 220V-power 230V(75kW)/400...440V(132kW)
ATS22C32Q
soft starter-ATS22-control 220V-power 230V(90kW)/400...440V(160kW)
ATS22C41Q
soft starter-ATS22-control 220V-power 230V(110kW)/400...440V(220kW)
ATS22C48Q
soft starter-ATS22-control 220V-power 230V(132kW)/400...440V(250kW)
ATS22C59Q
soft starter-ATS22-control 220V-power 230V(160kW)/400V(315kW)/440V(315kW)/440V(355kW)
ATS22D32Q
soft starter-ATS22-control 220V-power 230V(7.5kW)/400...440V(15kW)

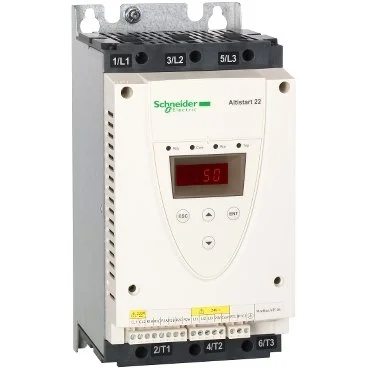

ATS22D17Q
soft starter-ATS22-control 220V-power 230V(4kW)/400...440V(7.5kW)
ATS22D62Q
soft starter-ATS22-control 220V-power 230V(15kW)/400...440V(30kW)
